Autel MaxiDAS DS808K
- ( MaxiDAS DS808 + Full Set Adapters ) is featured with an extensive coverage of OE-level diagnostics . Installed with a fast quad-core processor, DS808K offers maximum convenience and efficiency for your diagnosis and analysis . It can support Injector & Key Coding if you have original programmer software.
Autel MaxiDAS DS808K Support Languages:
- English, French, Spanish, German, Russian, Portuguese, Polish, Italian, Greek, Swedish.
- Note: The default language is English, if you want other language version, please send me S/N when you receive the scanner.
Autel MaxiDAS DS808K Features：
- 1.Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
- 2. Exceptional OE-Level system coverage for all electronic systems
- 3. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
- 4.Smart AutoVIN technology for identifying vehicles easily
- 5.Automatic system and software updates with real-time push message notifications via Wi-Fi
- 6.Instant remote control tech support anytime, anywhere
- 7.Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
- 8.Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
- 9.One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- 10.Convenient data management system for managing internal program applications and reviewing data
- DS808K Coverage for more than 80 USA, Asian and European vehicle makes, including Chrysler, Dodge, Ford, JEEP, GM, Lancia, Land Rover, LT3, Maserati, Maybach, MINI, Opel, Peugeot, Porsche, Renault, ROLLS ROYCE, SAAB, SEAT, SKODA, SMART, Vauxhall, Volvo, VW CV, Benz, BMW, VW, Acura, Daewoo, Daihatsu, FUSO, Honda, Hyundai, HyundaiCV, Infiniti, Isuzu, Nissan, Perodua, Proton, Samsung, Scion, SsangYong, Subaru, TATA, Toyota.
Two Optional Modes:
- There are two options available when accessing the Diagnosis section:
- Auto Scan – starts auto scanning for all the available systems on the vehicle.
- Control Units – displays a selection menu of all available control units of the test vehicle.
- After a section is selected and the tablet establishes communication with the vehicle, the corresponding function menu or selection menu displays.
Autel MaxiDAS DS808K Supported Automotive Protocols:
- ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
How to Update Autel DS808K (With Conkit) software:
- 1. Make sure the Display Tablet is connected to a power source with stable access to the internet.
- 2. Tap the Update application button from the MaxiDAS Job Menu; or tap the update notification message when received one; or tap the Update icon on Vehicle Menu in Diagnostics application. The Update application screen displays.
- 3. Check all available updates: If you decide to update all the items, tap the Update All button; If you only want to update one or some of the item(s), tap the Update button on the right column of the specific item(s).
- 4. Tap the Pause button to suspend the updating process. When you tap Continue to renew the update, the updating process will resume from the break point.
- 5. When the updating process is completed, the firmware will be installed automatically. The previous version will be replaced.
Autel MaxiDAS DS808K Specifications:
- Operating System: Android™ 4.4.4
- Processor: Cortex-A9 processor (1.5 GHz)
- Memory :32GB
- Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution
- Connectivity: • Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB)
- Sensors: Ambient light sensor for brightness auto changing
- Audio Input/Output: • Input: N/A • Output: buzzer
- Power and Battery: • 3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply
- Tested Battery Life: Around 4.5 hours of continuous use
- Battery Charging Input: 5 V/1.5 A
- Power Consumption: 500 mA (LCD on with default brightness, Wi-Fi on) 3.7 V
- Operating Temp: -10 to 60°C(14 to 140°F)
- Storage Temp: -20 to 70°C (-4 to 158°F)
- Operating Humidity: 5% - 95% non-condensing
- Dimensions (W x H x D): 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
- Net Weight: 788 g (2.42 lb.)

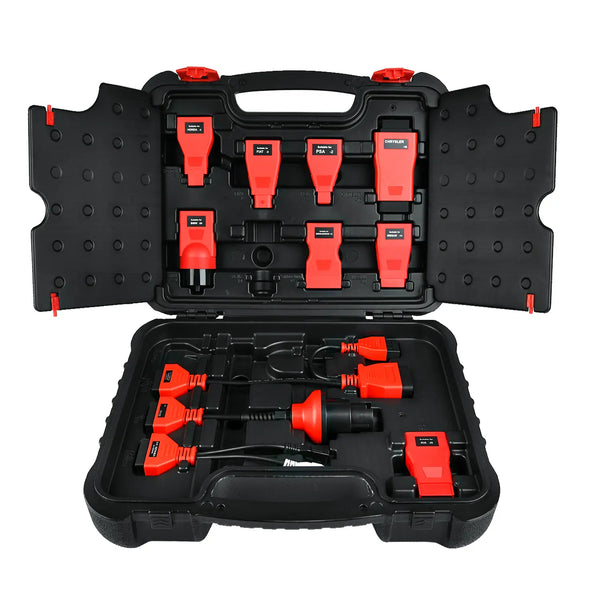

Autel MaxiDAS DS808K Package Includes:
- 1pc x USB External
- 1pc x Power Adapter
- 1pc x USB External Power AdapterUser
- 1pc x ManualQuick reference guide
- 1pc x Main cableCarry case
- 1pc x Mini USB Cable
- 1pc x User Manual
- 1pc x Quick Guide
- 1pc x for Benz-14 (for EU Version)
- 1pc x for Chrysler-16 (for US Version)
- 1pc x for BMW-20
- 1pc x for Kia-20
- 1pc x for Nissan-14
- 1pc x for GM/Daewoo-12
- 1pc x for Honda-3
- 1pc x for VW/AUDI-2+2
- 1pc x for Mitsubishi/Hyundai-12+16
- 1pc x for Benz-38
- 1pc x for PSA-2
- 1pc x for Fiat-3
