Autel MaxiCOM Ultra Lite Intelligent Diagnostic Scanner with Topology Mapping and J2534 ECU Programming Tool

by obdprice | 1 review
from Original price
Original price
$3,599.00
from $3,599.00
Current price $3,599.00

Product Overview

Intelligent Diagnostic System With ECU Programming & Coding

  • Intelligent Diagnostics/ Topology Module Mapping
  • Bi-Directional/ ECU Programming & Coding/ 36+ Services
  • Repair Assist Guided Procedures/ Technical Service Bulletins
  • Same Hardware as Maxisys Ultra and Built-in Demo App
  • 1-Year Free Update, No IP Restriction & Multiple Language
obdprice site after-sale services
  • Description
  • Video
  • Accessories
  • Downloads
  • Shipping
  • Certificate
    • Description
  • Autel MaxiCOM Ultra Lite

    The Autel MaxiCOM Ultra Lite is a 12.9-inch intelligent automotive diagnostic scan tablet, it provides full functions and online repair information needed when diagnosing vehicles, identifying faults, and researching repairs.

    Autel Ultra Lite scanner features a powerful octa-core processor, Android 10.0 OS, and 256GB of built-in memory for swift diagnostics and optimum viewing. As an intelligent automotive diagnostic system, MaxiCOM Ultra Lite not only offers dynamic topology module mapping, enhanced AutoSCAN features and Intelligent Diagnostics options but provides step-by-step guidance to ensure the repair is done correctly and efficiently.

    Combined with the enhanced Autel MaxiFlash J2534 ECU programming device, the Ultra-Lite diagnostic tool enables maximize technicians ECU coding and programming ability.

    Autel Ultra Lite Top 8 Highlights:

    1. NO IP Limitation, Multi-language: English, French, German, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian

    2. ScanVIN: Barcode or Text Recognition with Camera

    3. Upgraded Version of Maxisys MS919, MS909, and Maxisys Elite.

    4. 1-Year Free Update Online and One Year Warranty.

    5. Split-Screen Multi-Application Navigation with Super Fast Running Speed, Greatly Improving Your Work Efficiency.

    6. Multiple Repair Guidance: Technical Service Bulletin (TSB), DTC Analysis, Repair Assist, Repair Tips, Component Measurement, and Relevant Cases

    7. Built-in demonstration software gives you the opportunity to quickly learn the operation of our tool on different vehicles.

    8. One-Stop Intelligent Diagnosis With Topology Mapping, Helping You Have a Clear Picture of Vehicle Status; For each fault code, Ultra performs in-depth analysis and gives the OE data and processing suggestions.

    Autel MaxiCOM Ultra lite Intellgent Diagnostic Scanner Full Features Overview

    MaxiCOM Ultra Lite Features:

    OBD2 Integillent Diagnostic Scanner with ECU Programming and Bi-directional Control

    Software

    • Comprehensive diagnostics on 1996 and newer U.S., Asian and European vehicles
    • Includes advanced MaxiFlash J2534 VCI extra support latest DoIP, D-PDU, CAN FD, RP1210 protocols.
    • AutoScan: Scan all available systems, Read/Erase Codes, View Freeze Frame, and Live Data
    • Comprehensive Integillent OBDII diagnostics & Repair Assist, Bi-directional control, and advanced ECU coding and programming
    • AutoVIN/Scan VIN for rapid vehicle identification
    • Extensive Service Menu: Quick access to 36+ most common maintenance services
    • VAG Guided Functions and Built-in Demo App
    • Perform Battery and Charging System analysis with additional purchase MaxiBAS BT506 tester.
    • Cloud-based Reports, Data Management and Remote Expert

    Hardware

    • 12.9-inch, 2732 x 2048 resolution, Samsung Exynos8895V Octa-core processor with 256GB storage and Android 7.0 operating system.

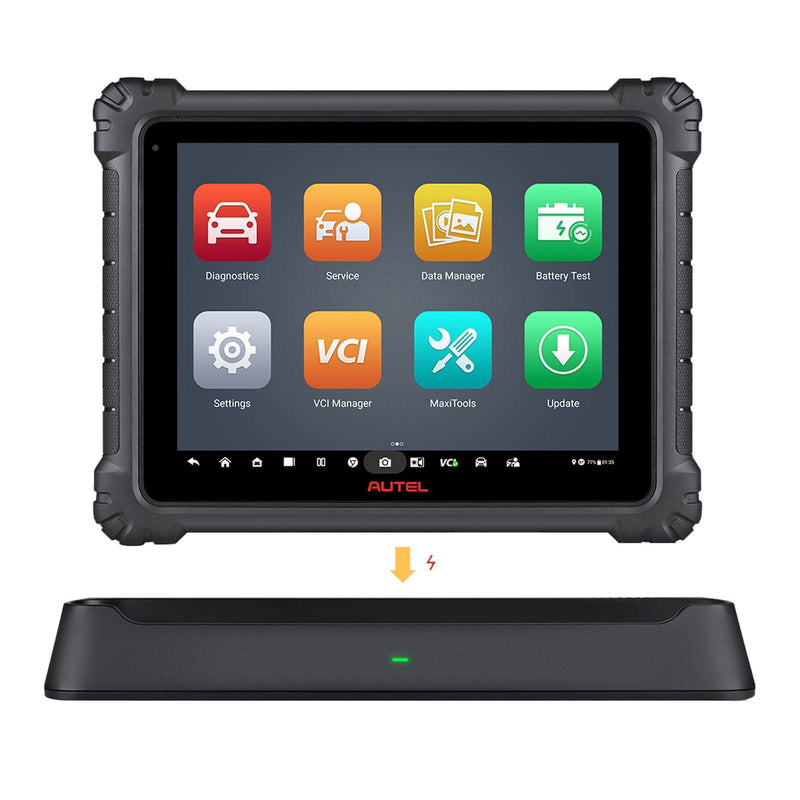

    • Long-lasting 18000mAh rechargeable battery, Convenient Docking Station, 16 MP rear camera and 5 MP front camera
    • 1 Year Free Software Updates

    Compare the Ultra Series

    Autel MaxiCOM Ultra Lite diagnostic scanner has total same hardware specification and software functions as Maxisys Ultra, the main difference between both is Ultra lite comes with MaxiFlash J2534 VCI while the Maxisys Ultra scanner is equipped with MaxiFLASH VCMI 5-in-1 VCI.

    Hardware


    MSULTRA ULTRA Lite MS919 MS909
    Vehicle Connection MaxiFlash VCMI
    Including Latest Protocols
    MaxiFlash VCI
    Including Latest Protocols
    MaxiFlash VCMI
    Including Latest Protocols
    MaxiFlash VCI
    Including Latest Protocols
    Color Screen 12.9-Inch Touchscreen
    2732 x 2048 DPI / TFT-LCD Corelle Glass
    12.9-Inch Touchscreen
    2732 x 2048 DPI / TFT-LCD Corelle Glass
    9.7-Inch Touchscreen
    1536 X 2048 DPI / TFT-LCD Asahi GLASS
    9.7-Inch Touchscreen
    1536 X 2048 DPI / TFT-LCD Asahi Glass
    Processor 2.3GHz + 1.7GHz
    OCTA-CORE
    2.3GHz + 1.7GHz
    OCTA-CORE
    2.3GHz + 1.7GHz
    OCTA-CORE
    2.3GHz + 1.7GHz
    OCTA-CORE
    Memory / RAM 256GB SSD / 4GB RAM 256GB SSD / 4GB RAM 128GB SSD / 4GB RAM 128GB SSD / 4GB RAM
    Battery 18,000 mAh 18,000 mAh 15,000 mAh 15,000 mAh
    Camera 16MP Rear / 5MP Front 16MP Rear / 5MP Front 16MP Rear / 5MP Front 16MP Rear / 5MP Front
    Docking Station Included Included

    Software


    MSULTRA ULTRA Lite MS919 MS909
    Operating System Android 7.0 Android 7.0 Android 7.0 Android 7.0
    Software Updates 1 Year Free 1 Year Free 1 Year Free 1 Year Free
    Support Language English Only Multiple Language 3 Languages(EN, ES, PT) 3 Languages(EN, ES, PT)
    Automatic Detection ScanVIN / Auto-VIN / Auto-Scan ScanVIN / Auto-VIN / Auto-Scan ScanVIN / Auto-VIN / Auto-Scan ScanVIN / Auto-VIN / Auto-Scan
    Split Screen Display View Multiple Functions at Once View Multiple Functions at Once
    Advanced VCMI
    5-IN-1 Device
    VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
    Repair Assist Guided Procedures With DTC Analysis & Fault Code Solutions Guided Procedures With DTC Analysis & Fault Code Solutions Guided Procedures With DTC Analysis & Fault Code Solutions Guided Procedures With DTC Analysis & Fault Code Solutions
    Topology Module Mapping Color Code All System Status Screen
    On Supported Vehicles
    Color Code All System Status Screen
    On Supported Vehicles
    Color Code All System Status Screen
    On Supported Vehicles
    Color Code All System Status Screen
    On Supported Vehicles
    Relevant Cases DTC Troubleshooting DTC Troubleshooting DTC Troubleshooting DTC Troubleshooting
    Technical Service Bulletins Available on Select Vehicles Available on Select Vehicles Available on Select Vehicles Available on Select Vehicles
    License Plate Reader Available on Support Vehicles Available on Support Vehicles Available on Support Vehicles Available on Support Vehicles

    Features


    MSULTRA ULTRA Lite MS919 MS909
    Vehicle Diagnostics Passenger / Light Duty
    Some Medium Duty
    Passenger / Light Duty
    Some Medium Duty
    Passenger / Light Duty
    Some Medium Duty
    Passenger / Light Duty
    Some Medium Duty
    Basic & Special Functions Domestic, Asian & European
    1996 and Newer
    Domestic, Asian & European
    1996 and Newer
    Domestic, Asian & European
    1996 and Newer
    Domestic, Asian & European
    1996 and Newer
    OBDII Test Modes All 10 Test Modes
    Live & Freeze Frame / Enhanced Mode 6
    All 10 Test Modes
    Live & Freeze Frame / Enhanced Mode 6
    All 10 Test Modes
    Live & Freeze Frame / Enhanced Mode 6
    All 10 Test Modes
    Live & Freeze Frame / Enhanced Mode 6
    Service Resets 36+ Services Features 36+ Services Features 36+ Services Features 36+ Services Features
    Diesel PM Reset Diesel Emissions
    Light & Medium Duty Vehicles
    Reset Diesel Emissions
    Light & Medium Duty Vehicles
    Reset Diesel Emissions
    Light & Medium Duty Vehicles
    Reset Diesel Emissions
    Light & Medium Duty Vehicles
    System Diagnostics Access All Modules
    In All Systems
    Access All Modules
    In All Systems
    Access All Modules
    In All Systems
    Access All Modules
    In All Systems
    Component Activations Bi-directional Control Bi-directional Control Bi-directional Control Bi-directional Control
    Enhanced Functions Advanced Coding + Adaptations Advanced Coding + Adaptations Advanced Coding + Adaptations Advanced Coding + Adaptations

    Intelligent Diagnostics

    DTC & Symptom Based Repair Guided Assistance,Improve Shop Repair Efficiency by 70%+

    The Autel MaxiCOM Ultra Lite delivers leading-edge automotive diagnostics, repair, and calibration technologies packaged in a 12.9" tablet. With a split-screen multi-application display and integrates OE-TSB (technical service bulletin), DTC guidance, repair step-by-step assistance to improve technicians’ repair efficiency to a new level. It prioritizes multiple faults, automatically match the circuit diagram of the faults to guide users in troubleshooting, definitely the ideal choice for car workshop owners.

    And with the latest technology of AutoVIN/Scan VIN, Autel Ultra Lite diagnostic tool makes it more rapid and accurate to identify your vehicle and get all system scan.

    Autel Ultra Lite Intelligent Diagnostic Scan Tool for Vehicle Smart Diagnosis

    1. Vehicle System and Detected DTC(s)– displays the name of the vehicle system(s) and the detected DTC(s)

    2. Technical Service Bulletin– contains DTC-related recalls, TSB, and OEM campaigns.

    3. DTC Analysis– provides repair assistance information related to the fault code.

    4. Repair Assist – intelligently prioritizes DTCs and leads the user to the proper repair.

    5. Component Measurement– provides detailed information and instructional guides on using the oscilloscope to test components for faults.

    6. Relevant Cases– offers relevant fault-clearing cases for reference.

    7. Sput Screen Display–View Multiple Functions AT Once

    8. Repair Tips–Intelligent guide

    Topology Module Mapping

    Single Page Color Coded Module Status Mapping

    Autel Ultra Lite automotive scanner can generate a topology map intuitively presenting all module diagnostic results(DTCs status and numbers) in different colors and make you know the communication structure between the modules. This function offers technicians great convenience to locate faults and causes!

    MaxiCOM Ultra Lite Scanner provide user advanced ECU Programming and Coding

    Advanced ECU Programming & Coding - Maximum of Your Car

    Autel Ultra Lite automotive scan tool with ECU programming or ECU remapping function that allow mechanics and technicians to quickly and efficiently reprogram the ECU to customer or garage specifications, customize car parameters, and replace existing software/firmware in the ECUs to improve the vehicle’s overall performance.

    ECU Online Programming: For Benz / BMW ONLY

    ECU Offline Programming: For Ford, Mazda, Jaguar, Vaxhall, Opel ONLY

    ECU Coding + Adaptations:With enhanced ECU coding function, the Ultra lite diagnostic tool allow you to refresh the hidden features, customize the OE settings and enhance the vehicle performance, fuel efficiency, and reduce power loss.

    ECU Coding: Benz, BMW, Audi, Porsche, VW, Nissan, Nissan-GTR, Infiniti, Hyundai

    Hidden function renewal: For BMW, VW, Audi, Skoda

    Autel MaxiCOM Ultra Lite Diagnostic Tool ECU Programming Functions Autel MaxiCOM Ultra Lite Scanner for ECU Codoing and Adaptations

    Full Bi-directional Control/ Component Test

    With the feature of bi-directional control (active test), the scanner Autel Ultra Lite can send commands to the ECUs to activate the a-ctuators to identify the faulty issue by monitoring the operation of a-ctuators.

    Autel MaxiCOM Ultra Lite Automotive OBD2 Bi-directional Control/ Component Test Diagnostic Scanner

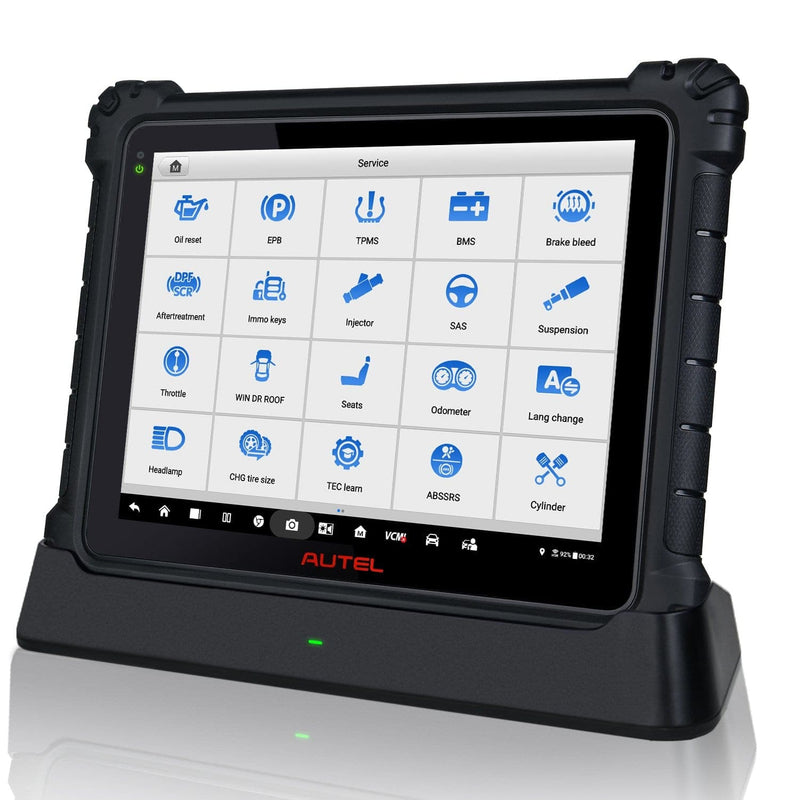

    36+ Maintenance Functions

    As the Autel TOP scan tool, MaxiCOM Ultra Lite comes with 36+ service functions and can be updated constantly for wider vehicle coverage, more functions, and functional optimization, to meets all your needs for various scheduled repairs or maintenance.

    The maintenance functions are as following: Oil Reset, EPB, TPMS, BMS, Brake Bleed, DPF SCR Aftertreatment, IMMO keys, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Lang change, Headlamp, CHG tire size, TEC learn, ABSSRS, Cylinder, VGT learn, Speed & PTO, Clutch, Trans adaptation, Airbag reset, and A/F Setting.

    Autel MaxiCOM Ultra Lite Diagnostic Scanner 36+ Maintence Services

    Worldwide and Newer Vehicle Coverage

    The MaxiCOM Ultra Lite scanner provides the absolute full range of diagnostics (including read/erase codes, view freeze frame and live data) for any vehicle manufactured in 1996 or later. It doesn’t matter if your garage is geared toward domestic, Asian, and European cars—this diagnostic tool’s got you covered. Supported vehicle more than 80 manufacturers, 140 brands.

    Besides, Autel Ultra Lite scanner supplied with MaxiFlash VCI with Enhanced Protocol Compatibility, which supports D-PDU, RP1210, CANFD. J2534 and DoIP protocols.

    D-PDU / J2534 / RP1210 Diagnostic Protocols Cover More Vehicle Types

    DoIP / CAN FD Protocols for High-Speed CAN Cover New Vehicle Models

    Autel Ultra Lite Automotive Scanner with MaxiFlash J2534 VCI for cover more newer vehicleAutel Maxicom Ultra Lite Car Diagnostic Tool Support 1996 and Newer Vehicle

    More New Added Function

    1. Remote Expert:

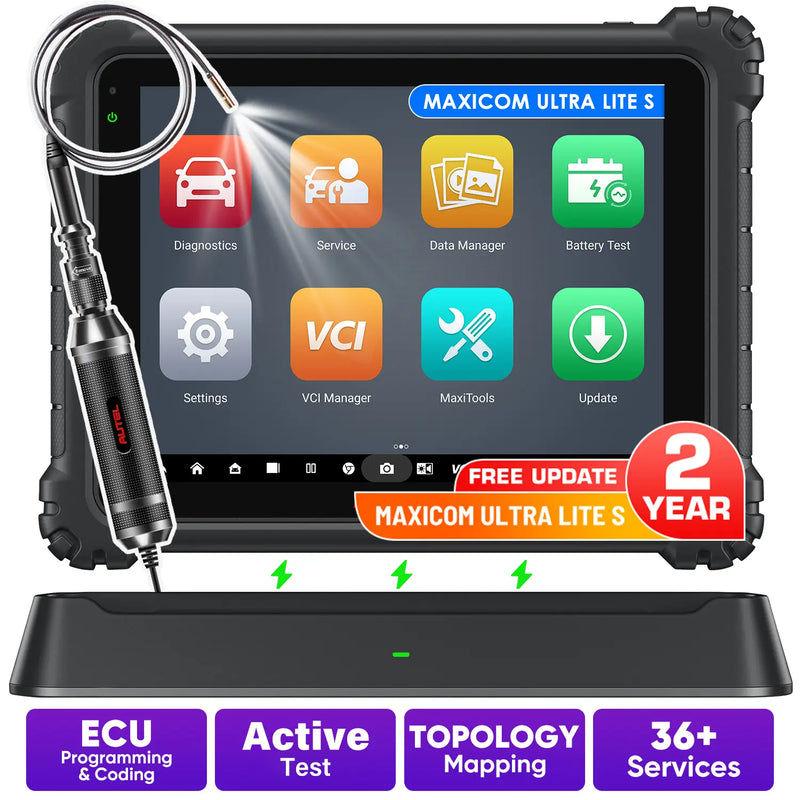

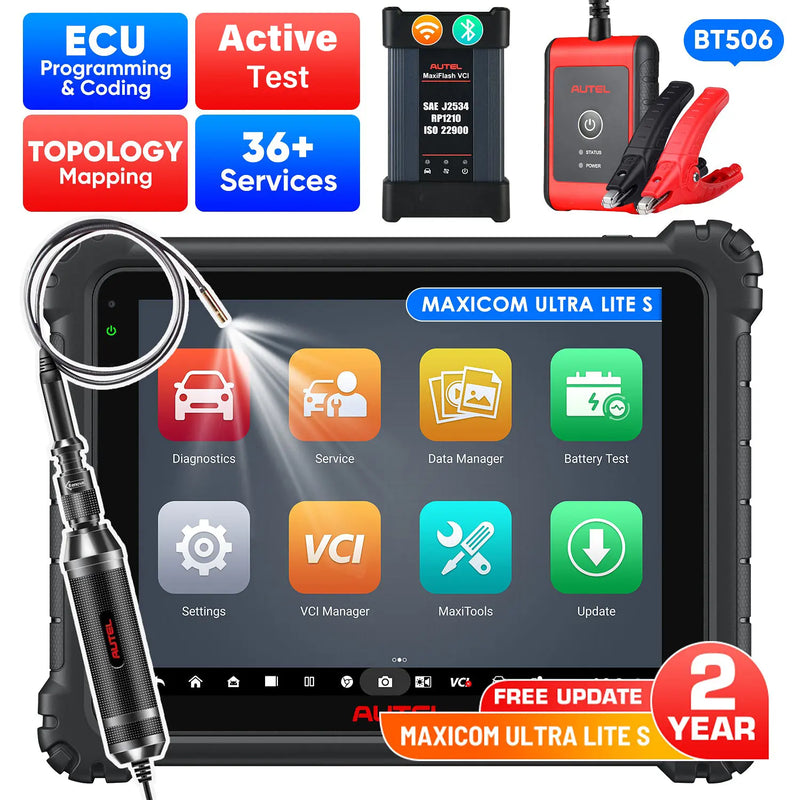

    2. Expanded Function, Like add on MV108 videoscope, or Autel battery tester BT506

    3. WIFI Printing

    MaxiCOM Ultra Lite Specification:

    Operating System: Android 7.0
    Processor: Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
    Memory: 4GB RAM & 256GB On-board Memory
    Display: 12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
    Connectivity: •WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO),BT v.2.1 + EDR,GPS
    USB 2.0 (Two USB HOST Type A, one USB mini device),HDMI 2.0,SD Card (Support up to 256GB)
    Camera: Rear: 16 Megapixel, Autofocus with Flashlight
    Front: 5 Megapixel
    Sensors; Gravity Accelerometer, Ambient Light Sensor (ALS)
    Audio Input/Output: •Microphone,Dual Speakers,3-Band 3.5 mm stereo/standard headset jack
    Power and Battery: 18000mAh 3.8 V lithium-polymer battery
    Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
    Input Voltage: 12V/3A Adapter
    Operating Temp.: 0 to 50°C (32 to 122°F)
    Storage Temp.: -20 to 60°C (-4 to 140°F)
    Dimensions (W x H x D): 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
    Weight 2.18kg (4.81 lb.)
    Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20),
    TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS),
    Ford UBP, Nissan DDL UART with Clock , BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
    autel ultra lite specifications

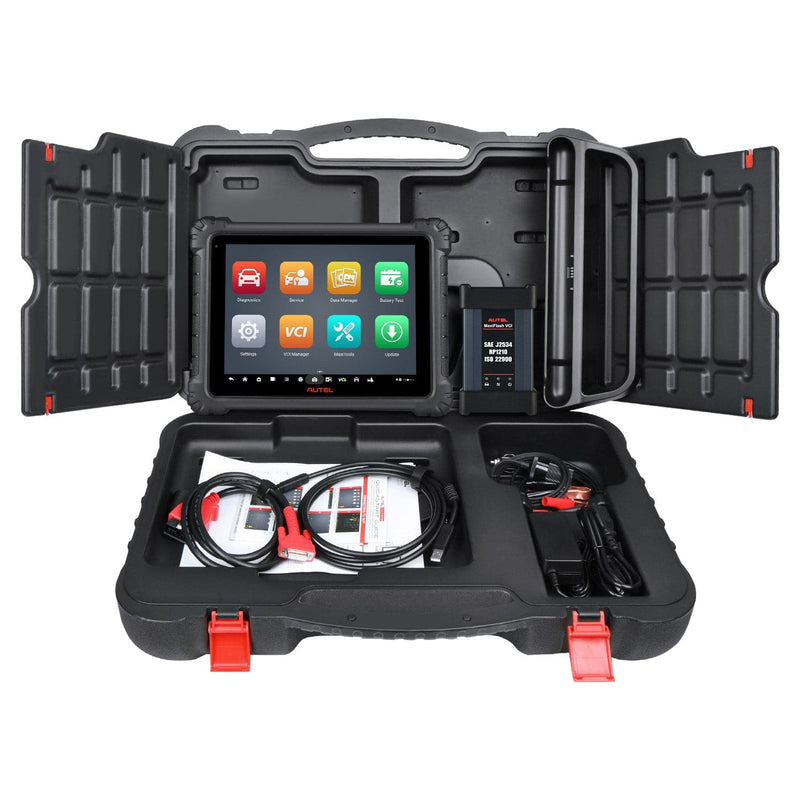

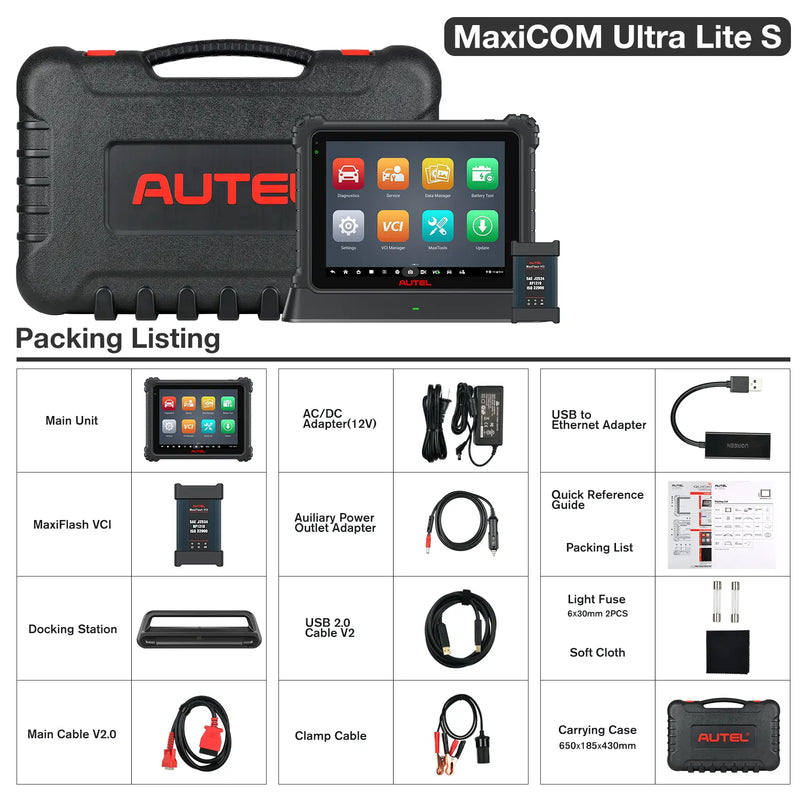

    Autel MaxiCOM Ultra Lite Package Content:

    • 1x MaxiCOM Ultra Lite Main Unit
    • 1x MaxiFlash VCI
    • 1x Docking Station
    • 1x Main Cable V2.0
    • 1x USB 2.0 Cable V2
    • 1x AC/DC Adapter(12V)
    • 1x Auxiliary Power Outlet Adapter
    • 2x Spare Fuse 6x30mm
    • 1x Clamp Cable
    • 1x USB to Enthernet Adapter
    • 1x Quick Reference Guide
    • 1x Packing List
    • 1x Soft Cloth
    • 1x Carrying Case 650 x 185 x 430 mm
