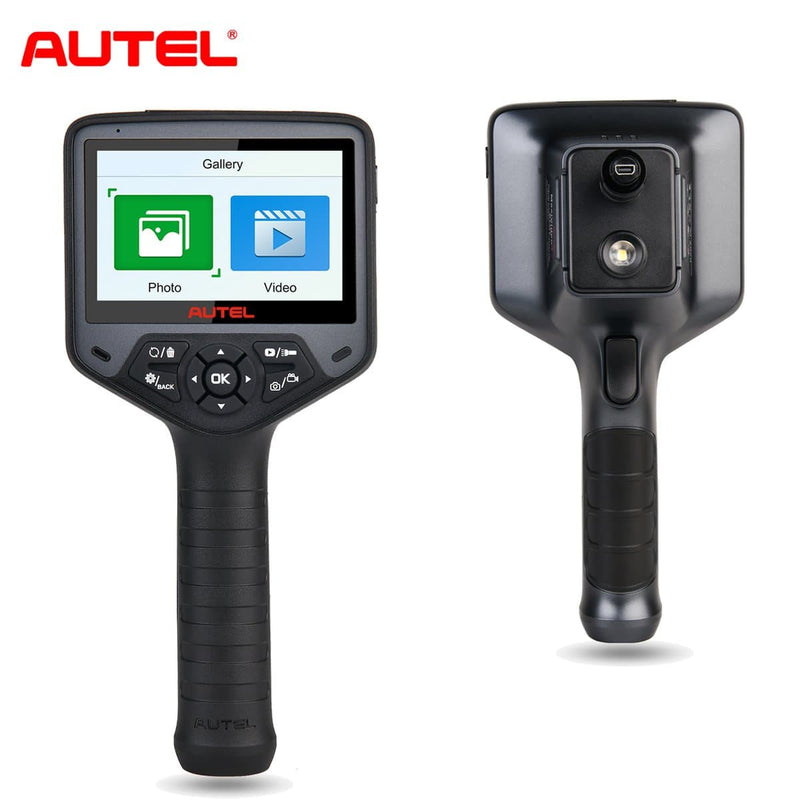

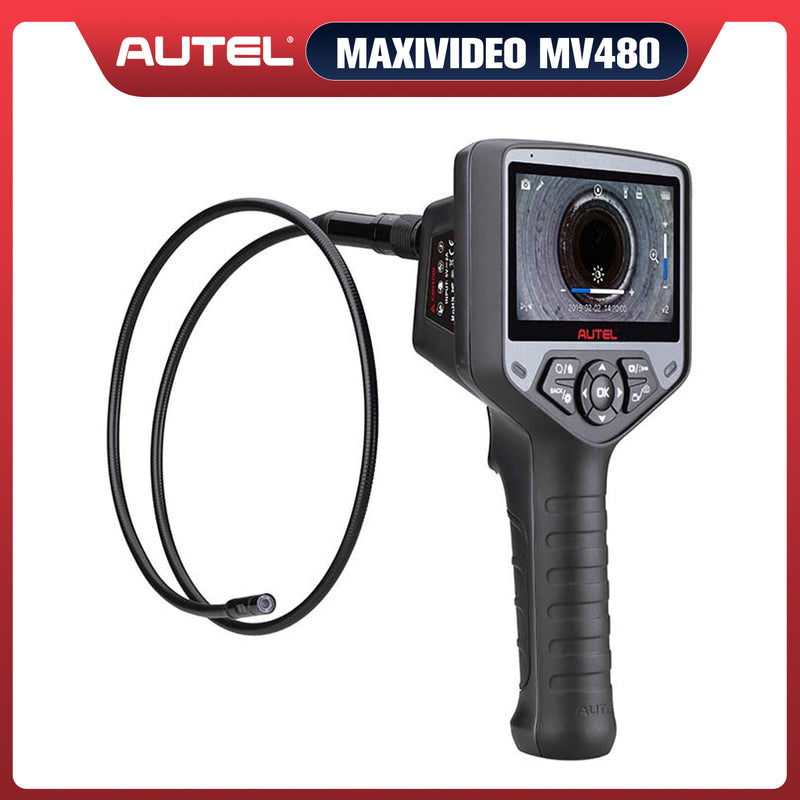

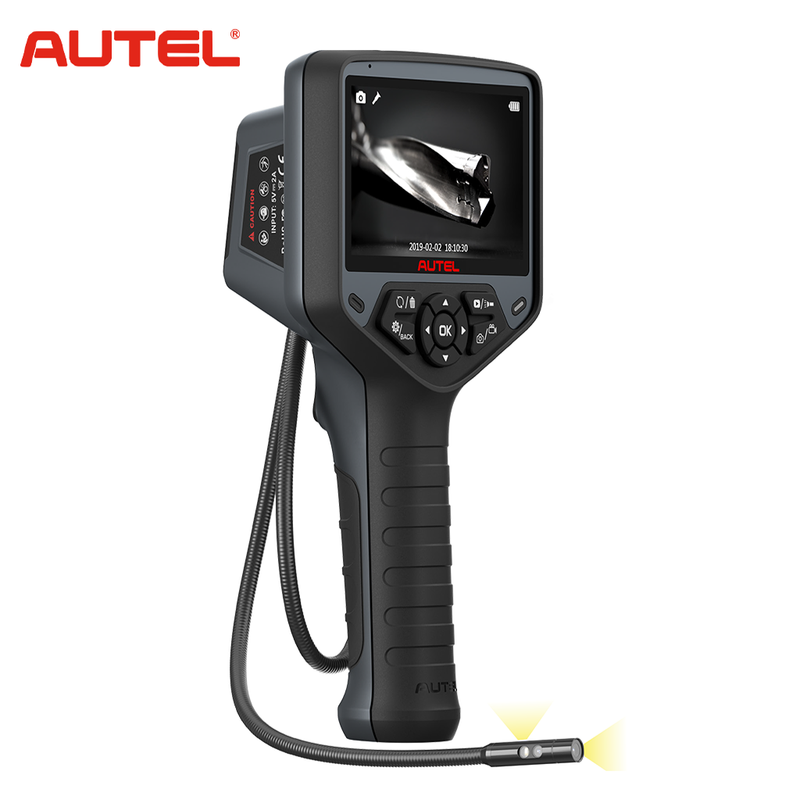

Autel Maxivideo MV480 Dual-camera Digital Videoscope Inspection Camera Endoscope

by obdprice | 3 reviews
Sold out
14-days return or replacement View details »
Free Shipping to US/CA
Estimated delivery time: 7-10 Days.View details »
  • Description
  • Shipping
  • Downloads
  • Autel Maxivideo MV480

    • Autel MaxiVideo MV480, the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features dual front and side cameras with 1920×1080 high resolution, a 4.1" 1200×720 full color LCD display, an 8.5mm camera probe, and a built-in 2600mAh battery with up to 4 hours continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest and most cost-effective manner possible.

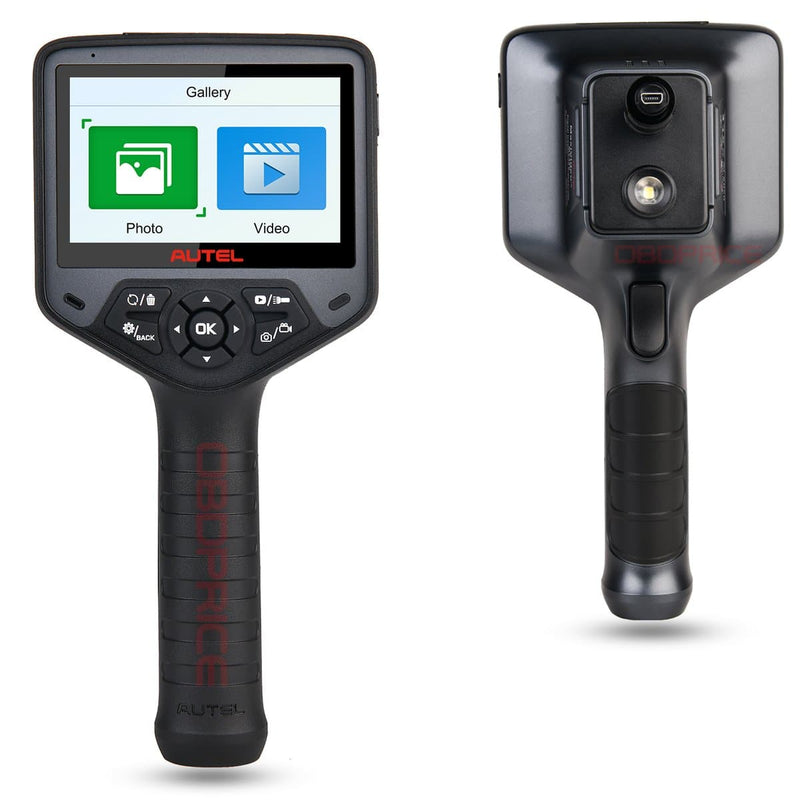

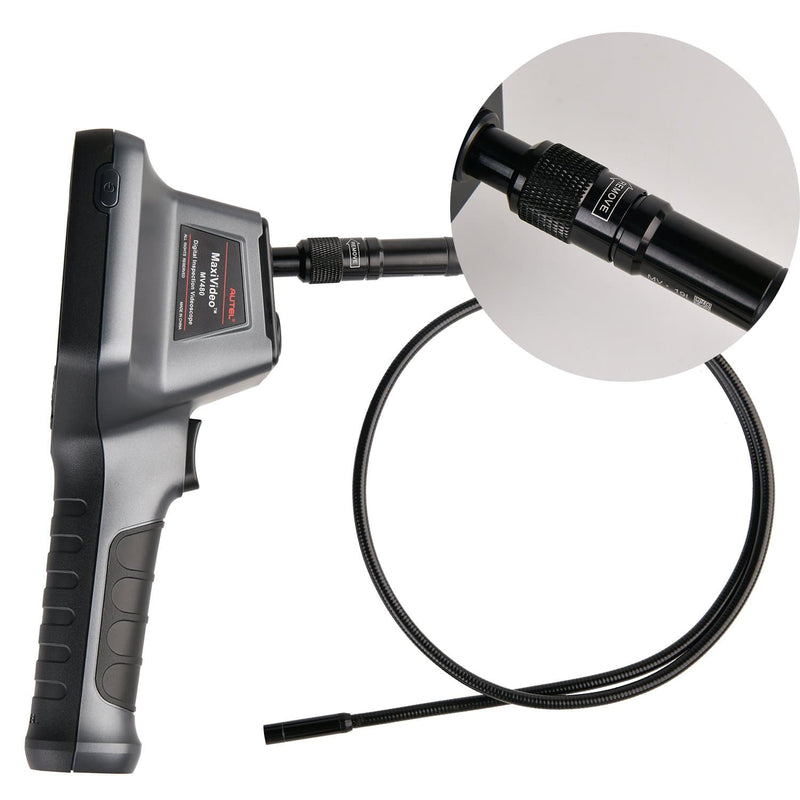

    autel maxivideo mv480 Dual-camera Inspection Camera

    Autel Maxivideo MV480 Features

    • High resolution images and videos (1920 x 1080)
    • Dual front and side cameras for wider viewing angle

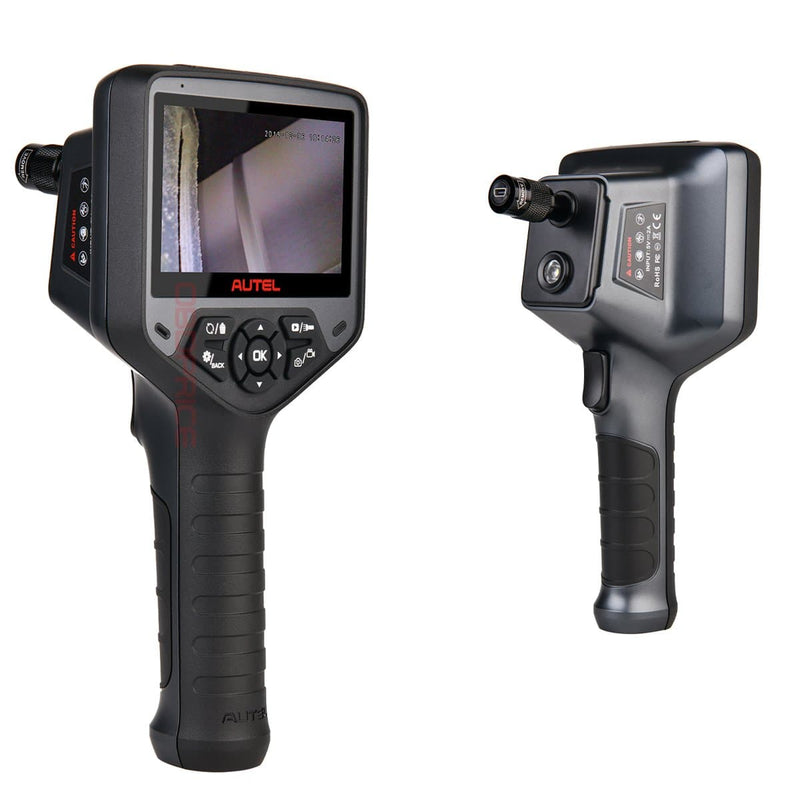

    • 4.1-inch full color LCD display (1200 x 720)
    • 1-button quick image capture and video recording
    • 70-degree field of view for expanded viewing angle
    • Adds audio annotation for detailed review
    • Micro HDMI-output enables streaming to larger monitors
    • Freeze-frame camera stills or video recording
    • On-screen horizontal/vertical reverse
    • Records and plays back images and video clips
    • 7X digital zoom for increased viewing
    • 8GB Micro SD card (included), supports up to 128G
    • Mini-USB cable (included) for uploading images and videos
    • More than 10,000 lux, adjustable 10-level LED illumination
    • Flashlight for higher visibility in low-light environment
    • Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use
    • 1m (39.4") semi-rigid, flexible watertight cable
    • Includes magnet and hook cable accessories
    • 8.5mm (0.33’’) probe fits most spark plug holes
    • Compatible with 5.5mm (0.22’’) camera head (not included)
    Autel MV480 outstanding features

    Autel Maxivideo MV480 Specification

    • Recommended use: Indoor
    • Optimal viewing Distance: 0.79" to 2" (2 cm to 5 cm)
    • Image capture: JPG images (1920 x 1080 pixels) / MP4 videos (1920 x 1080 pixels)
    • Screen type display: 4.1" TFT LCD
    • Display resolution: 1200 x 720 pixels
    • Power supply: Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh)
    • Tested battery life: Approximately 4 hours of continuous use
    • Dimensions: 243 x 116 x 122mm (9.6" x 4.6" x 4.8")
    • Weight: 0.422 kg (0.93lbs)
    • Recording medium: Micro SD card (8GB Standard/128GB Max)
    • Image controls: Zoom, low light vision
    • Lighting: Fully adjustable LED, Flashlight
    • Cable reach: 1m (39.4")
    • Imager heads: 8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels)
    • Waterproof: To a depth of 1m (39.4") (Imager heads and cable only)

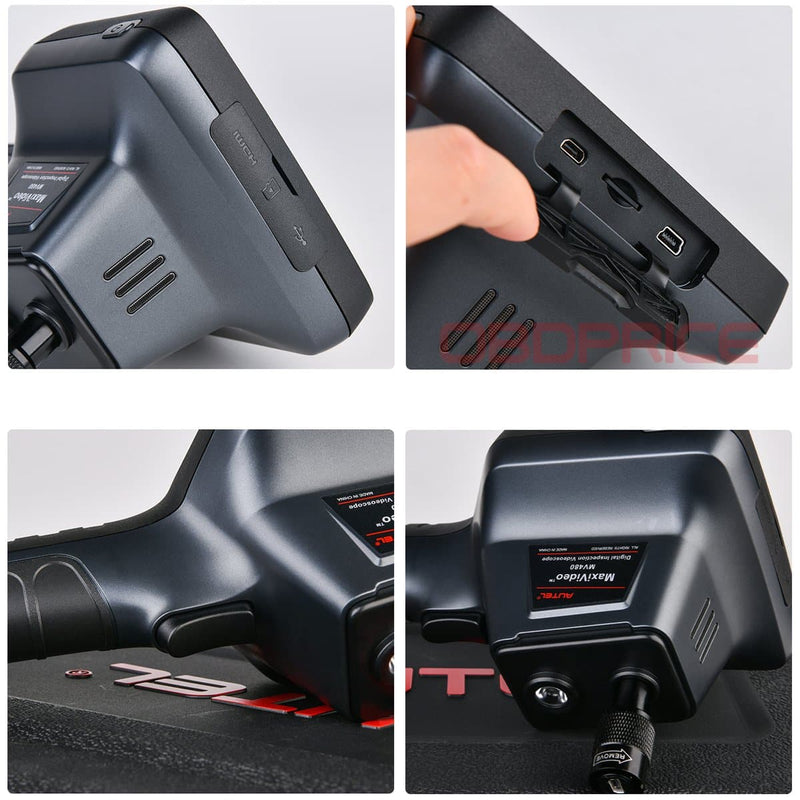

    • Additional ports: TF, Mini USB, Micro HDMI
    • Operating temp.: Main unit: 14°F to 122°F (-10°C to 50°C) / Cable: 14°F to 140°F (-10°C to 60°C)
    • Storage temp.: Cable: 14°F to 140°F (-10°C to 60°C)
    • Storage temp.: -4°F to 158°F (-20°C to 70°C)
    • Operating humidity: 5% - 95% non-condensing
    autel maxivideo mv480 Inspection Camera with Dual-camera head Autel mv480 battery life

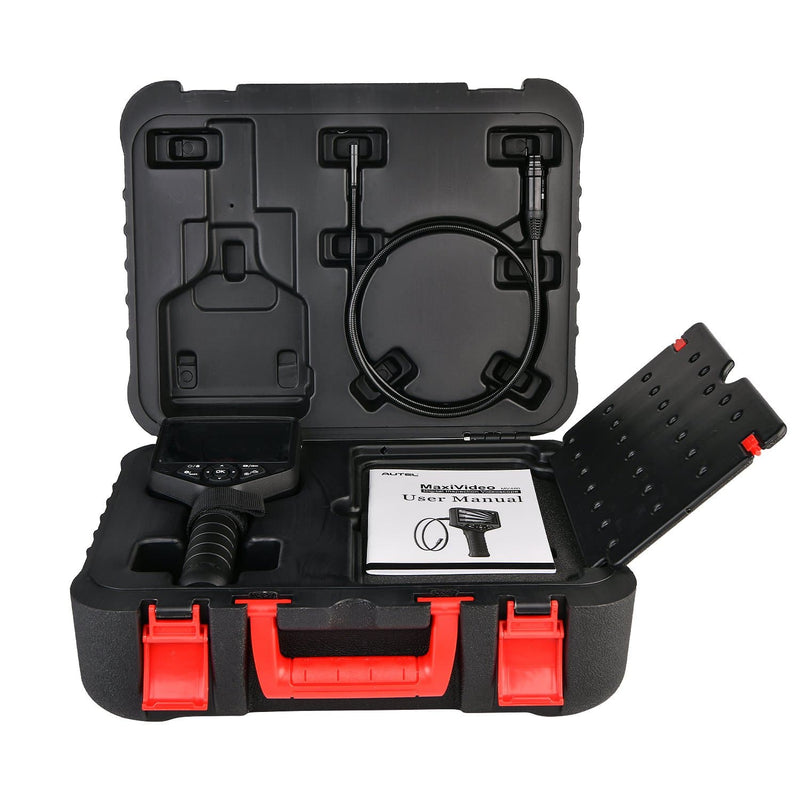

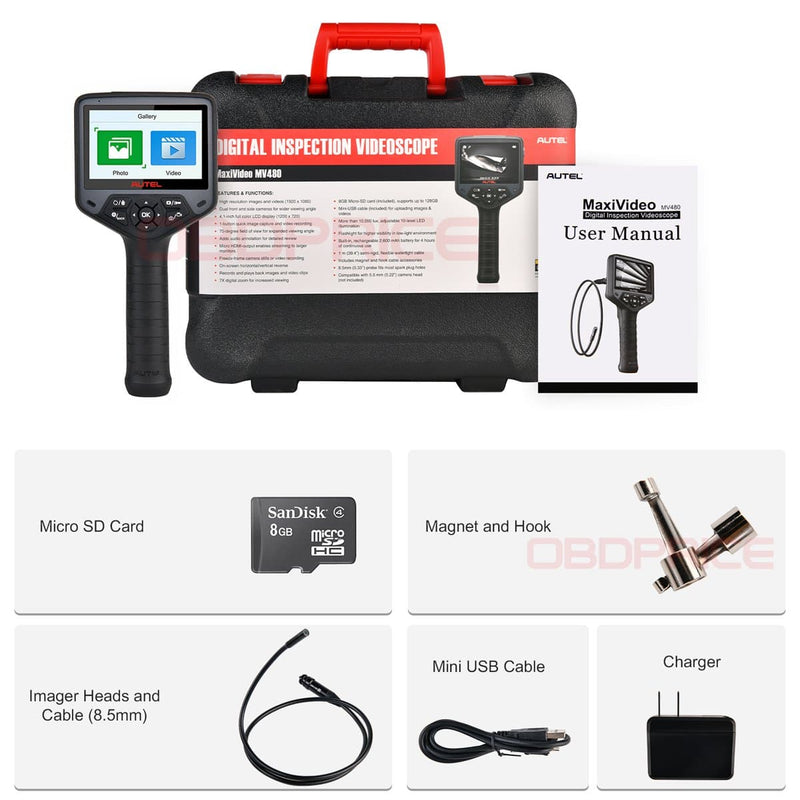

    Autel MV480 Package Content:

    • 1x MV480 main Unit
    • 1x Magnet and Hook
    • 1x Imager Heads and Cable (8.5 mm)
    • 1x User Manual

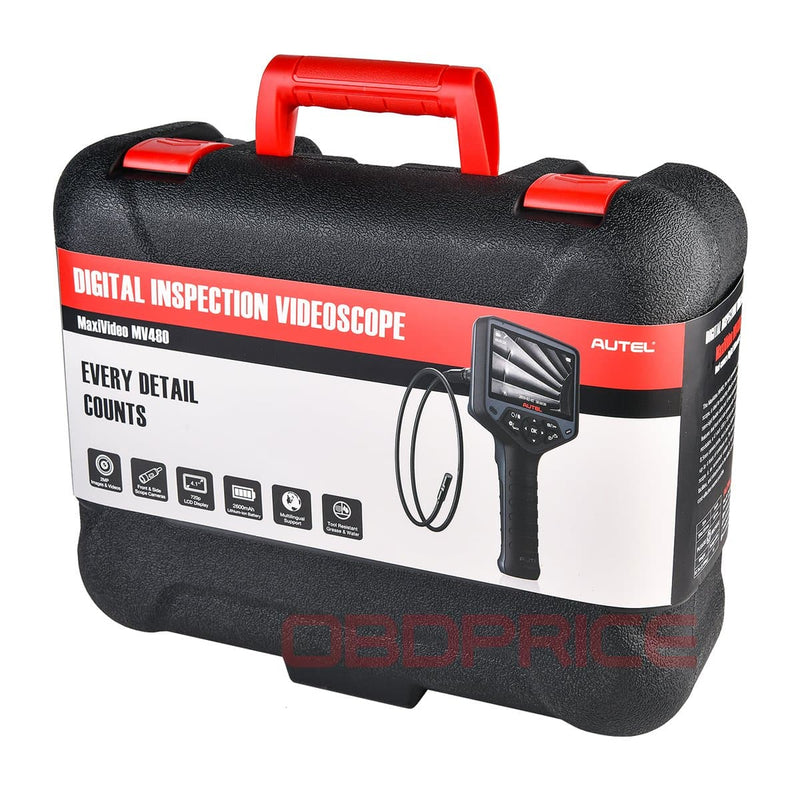

    • 1x Protective carrying case
    • 1x Micro SD card
    • 1x Charger
    • 1x RS232 Serial Cable
    • 1x Mini USB Cable
