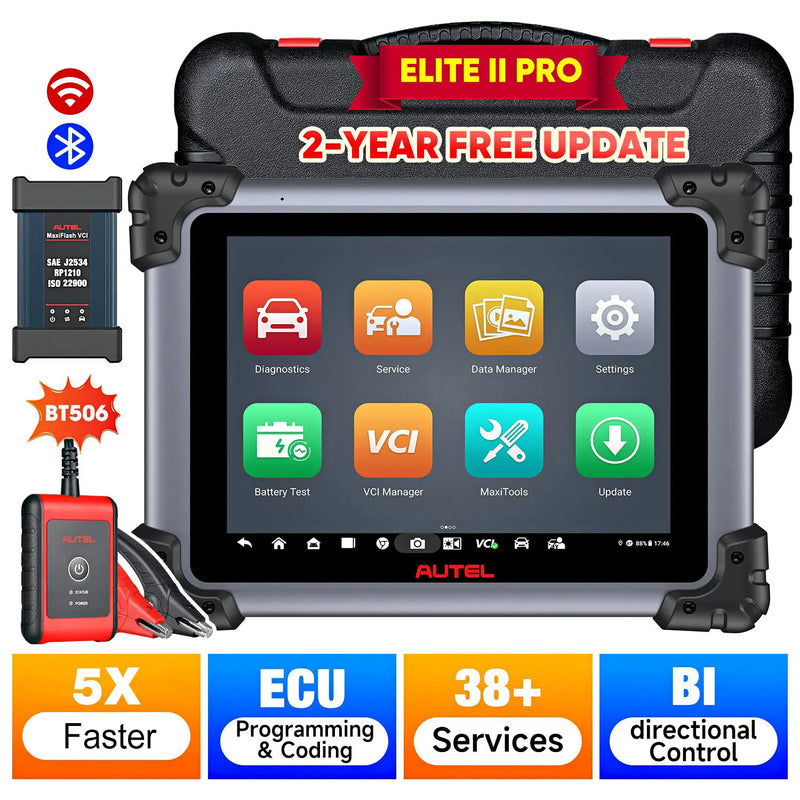

Autel Maxisys Elite II Automotive Diagnostic Tool Bi-Directional Scanner With J2534 ECU Programming, 36+ Services (Free MV108)

by obdprice | 1 review
Original price $2,899.00
from Original price $2,899.00
Original price $2,899.00
Current price $2,599.00
from $2,599.00
Current price $2,599.00
  • Description
  • Downloads
  • Shipping
  • Certificate
    • Description

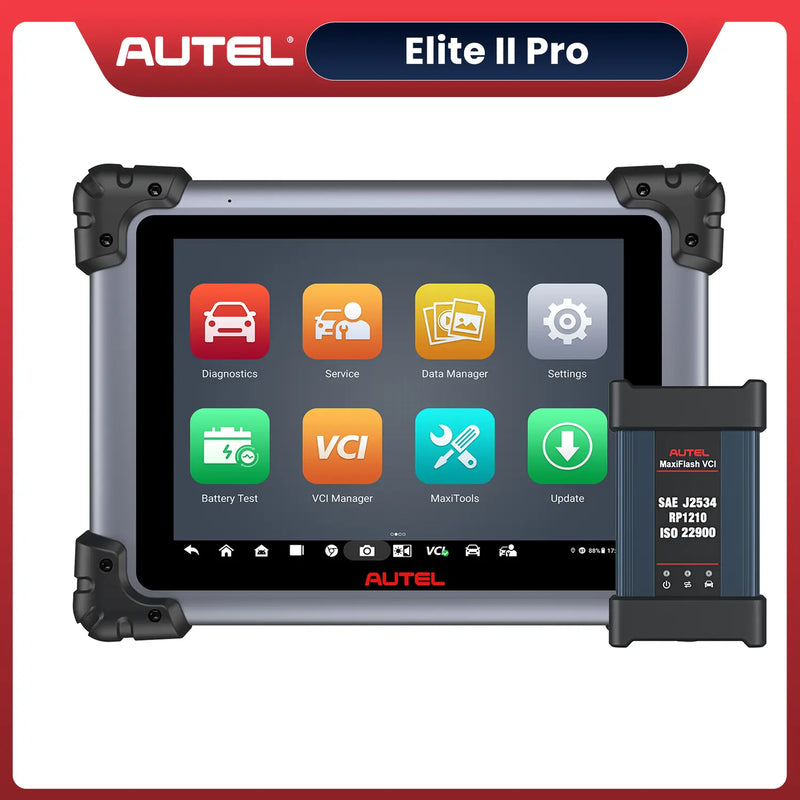

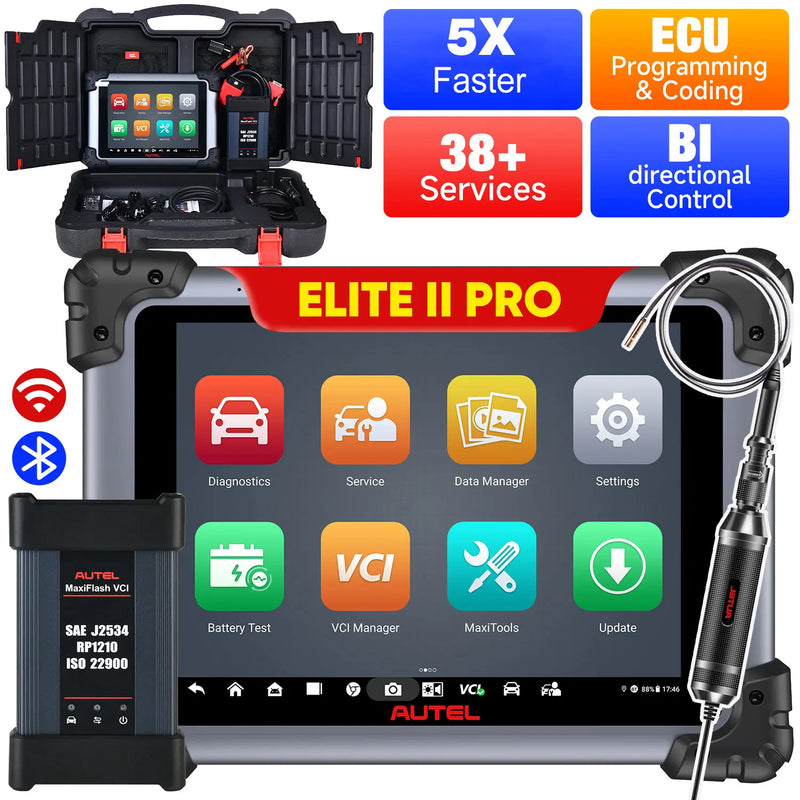

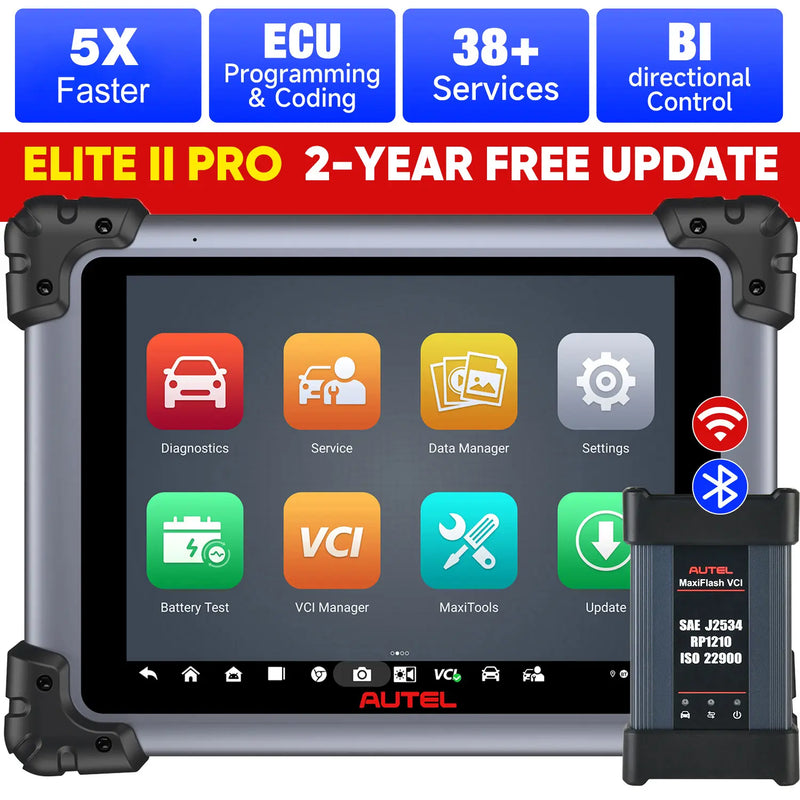

  • Autel Maxisys Elite II

    The Autel MaxiSys Elite II is the 2022 latest OBD2 Bi-Directional Diagnostic Scanner of the Autel Maxisys product line. As an upgraded version of Maxisys Elite, MaxiSys Elite II featured the best possible coverage of OE-level all system diagnostics & analysis, advanced ECU programming, bi-directional, and test components to confirm repairs.

    As a 2022 Maxisys Series Latest flagship version scanner, the Autel MaxiSys Elite II is based on the fast and intuitive Android 7.0 OS powered by an Octa-core processor, features a 9.7-inch ultra-high resolutions touchscreen, 4GB RAM & 128GB on-board memory, long-distance wireless communication, and 8 hours of continuous battery life.

    Autel Maxisys Elite II Scanner ECU Coding & Programming Diagnostic Tool Features Overview

    Autel Maxisys Elite II Features:

    • The most extensive complete system coverage for more than 80 US domestic, Asian and European makes and models
    • Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
    • Uniquely integrated vehicle programming capabilities working with a SAE J2534-1 & -2 compliant vehicle programming pass-thru interface
    • Automatic system and software updates with real-time push message notifications via internet
    • Instant remote control tech support anytime, anywhere
    • Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
    • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized

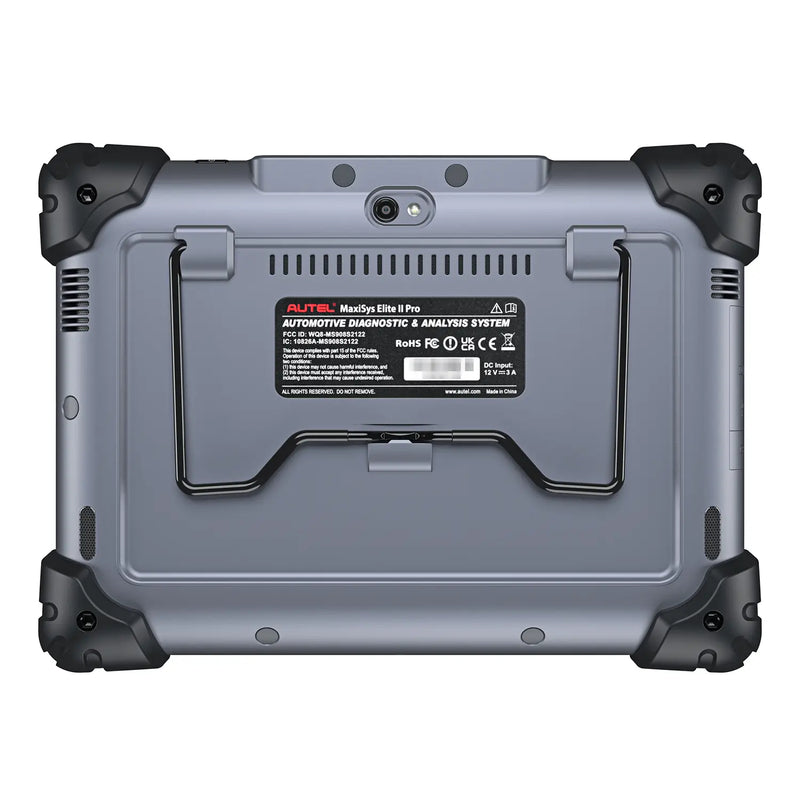

    • Unique ergonomic design with rubberized outer protection and a rugged internal housing

    Autel MaxiSys Elite II Full Systems Diagnosis Services:

    Doing regular and routine maintenance on a modern car is impossible without a diagnostic system. Even the simplest procedures require the participation of an auto scanner. That's why Autel engineers have been working on them and making them as user-friendly as possible in the new MaxiSys Elite II. Now you can easily do functions like:

    1. Oil Reset - Reset the oil change calculator in the engine and automatic transmission
    2. EPB - Replacement of brake pads on vehicles with an electric parking brake
    3. SAS - Adaptation of the sensor to the angular position of the steering wheel
    4. DPF - Regeneration of diesel particulate filter
    5. Brake Bleed - ABS Brake Bleeding
    6. IMMO - Disable any lost keys and add new keys. *ONLY for vehicles with low-grade anti-theft systems. Compatible with GM, Ford, Toyota, Honda and other 56 brands or models.
    7. ​​TPMS - Battery registration and reset
    8. ​​Seat Calibration - Calibrate the memory in replaced or repaired seats
    9. Airbag Reset - Resets the airbag data to clear the airbag collision fault indicator
    10. ​​A/F Reset - Set or learn Air/Fuel ratio parameters
    11. ​​Gearbox Reset - Help complete the gearbox self-learning to improve gear shifting quality
    12. ​​Suspension Reset - Adjust the vehicle body height sensor for level calibration
    13. ​​BMS - Battery registration and reset

    Autel MaxiSys Elite II Advanced Functions:

    • Autel MaxiSys Elite II ECU Programming ECU Coding--Autel diagnostic scanner Elite II comes with J2534 ECU programming device BMW Ethernet Cable(For F-Series Coding Programming), which is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new Benz/BMW ECUs and fixing software-controlled drivability issues and emission issues, update the computer software on the vehicle to the latest version.
      Note:ECU Programming only forBMW/Mercedes Benz
    • Autel Elite II Bi-directional Control(Active Test)--Elite II automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.
      Note: Available tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu. To check compatibility with your vehicle, please refer to Autel website or consult us directly.

    Why Choose Autel maxisys Elite II?

    autel maxisys elite 2 comparison

    Autel Maxisys Elite II Specifications:

    Operating System Android 7.0
    Processor Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
    Memory 4GB RAM & 128GB On-board Memory
    Display 9.7”Retina display with 2048X1536 resolution&Capacitive touch screen
    Vehicle Communication Interface(VCI) Maxiflash Elite J2534
    Connectivity WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
    BT v.2.1 + EDR
    GPS
    USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
    HDMI 2.0
    SD Card (Support up to 256GB)
    Camera Rear:16.0 Megapixel,Autofocus with Flashlight
    Front:5.0 Megapixel
    Sensors

    Gravity Accelerometer

    Ambient Light Sensor(ALS)

    Audio Input/Output Microphone
    Dual Speakers
    3-Band 3.5 mm stereo/standard headset jack
    Power and Battery 3.7V/15400mAH Lithium-polymer battery
    DC/12V/3A Power Supply
    Input Voltage DC/12V/3A
    Power Consumption Max 20W
    Operating Temperature -10 to+55°C
    Storage Temperature -20 to+70°C
    Dimensions(W x H x D) 309 X 225 X 35(mm)
    Weight 1.59 kg
    Protocols ISO 9142-2,ISO 14230-2,ISO 15765-4,K/L line,Flashing Code,SAE-J1850 VPW,SAE-J1850 PWM,CAN ISO 11898,Highspeed,Middlespeed,Lowspeed and Singlewire CAN,GM UART,UART Echo Byte Protocol,Honda Diag-H Protocol,TP 2.0,TP 1.6,SAE J1939,SAE J1708V

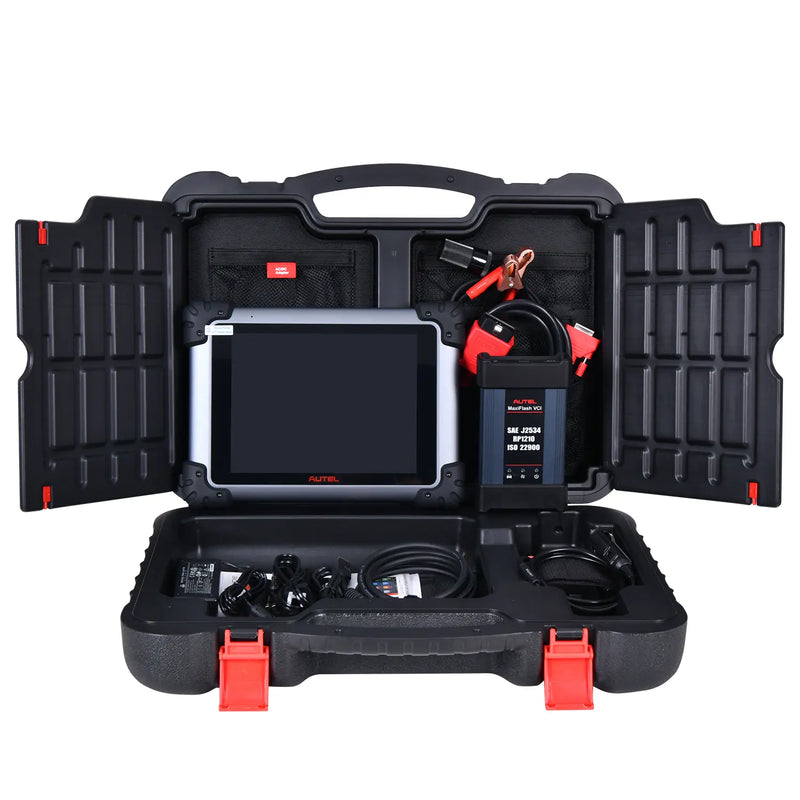

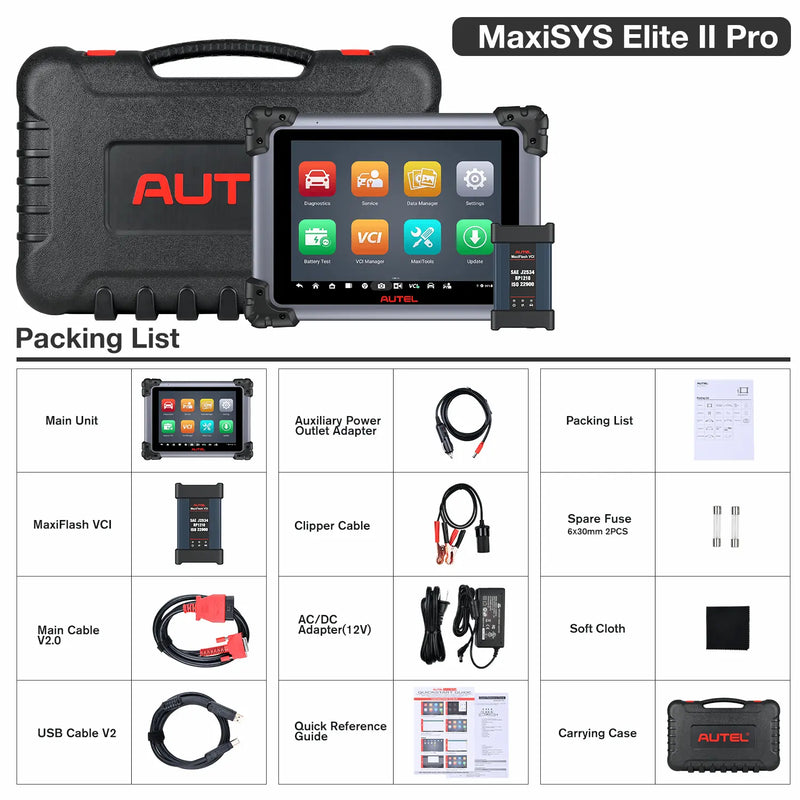

    Maxisys Elite II Package List

    • 1x Maxisys Elite II Main Unit
    • 1x Docking Sation
    • 1x MaxiFlash Elite J2534 ECU Programming Device
    • 1x Main Cables
    • 1x Clipper Cables
    • 1x USB Cables
    • 1x Cigarette lighter
    • 1x AC/DC adapter (12V)
    • 1x User manual
    • 1x Carrying case
    Autel Maxisys Elite II Package List
