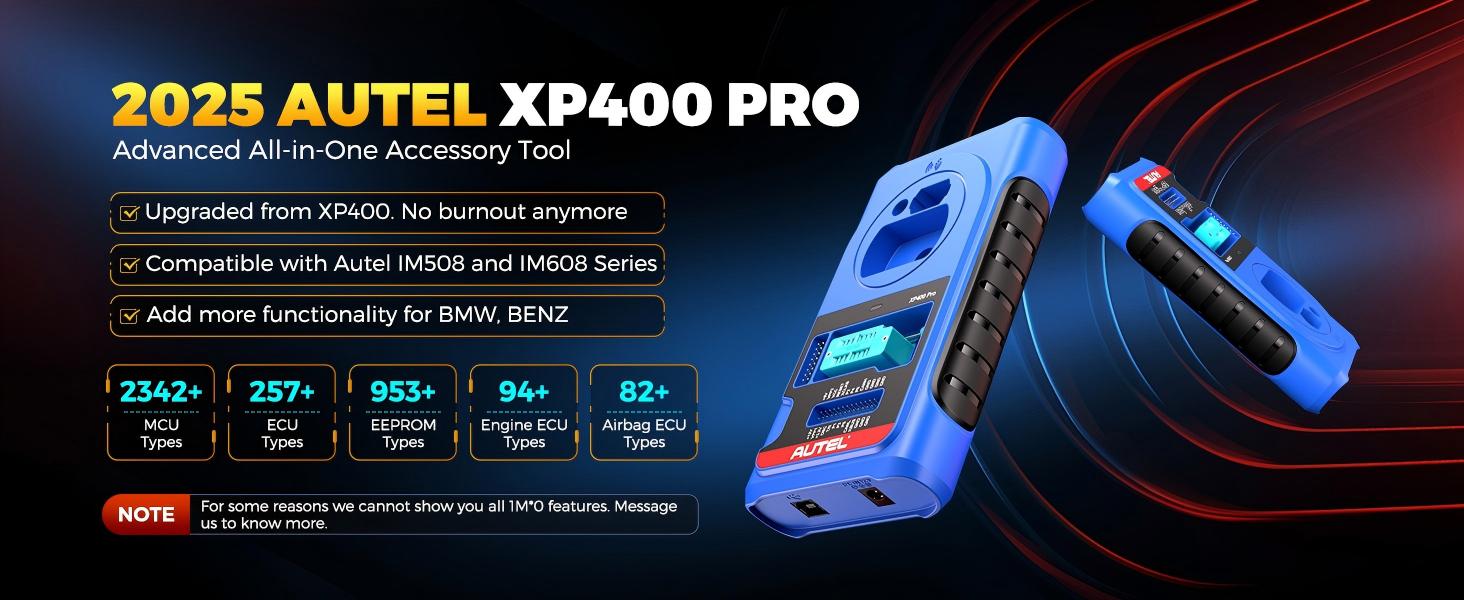

Autel XP400 Pro: All-in-One Key Programmer for Auto Technicians

As vehicles become more advanced, so too must the tools used to service them. The Autel XP400 Pro is a high-performance key and chip programmer designed for professional locksmiths and automotive technicians who require robust, reliable, and cutting-edge key programming capabilities.

Paired with Autel’s IM-series diagnostic tablets like the IM508S, IM608, and IM608 Pro II, the XP400 Pro enhances the ability to perform complex key programming and chip-level diagnostics across a wide range of vehicles.

What is the XP400 Pro?

The XP400 Pro is not just a key programmer—it's a comprehensive ECU and chip-level diagnostic assistant. With capabilities that go far beyond basic transponder functions, this tool allows technicians to read and write EEPROM and MCU/ECU data, generate smart keys, clone transponders, and even perform ECU coding in supported systems.

When paired with an IM608 Pro II, the XP400 Pro transforms the tablet into an OE-level immobilizer and key programming workstation, capable of handling some of the most complex anti-theft systems on the market—including systems found in Mercedes-Benz, BMW, Volkswagen/Audi Group, and others.

An auto technician is using the XP400pro to program a key.

Key Features and Functions of the XP400 Pro

🔑 All-In-One Key Programming Tool

• Read and write transponder and remote control data for a wide range of vehicle makes and models.
• Generate exclusive keys such as Mercedes-Benz infrared smart keys, which require specialized handling.
• Detect key frequency (including ASK/FSK) and clone transponder chips with high accuracy.
• Unlock used keys for reuse in other vehicles (when supported).

🧠 EEPROM/MCU Data Handling

• Read/write EEPROM and MCU/ECU chip data with precision
• Supports 440+ types of EEPROMs, 2000+ MCU components, 180+ immobilizer ECUs, and more
• Includes a full set of adapters for PLCC, FQFP, and SOIC packages

Autel XP400 Pro: Advanced key and chip programmer for multi-brand vehicles.

💻 PC Compatibility

• XP400 Pro can operate independently of a tablet using Autel's PC software, allowing technicians to set up a dedicated key programming workstation.
• Ideal for shops that prefer a bench-based programming setup or need to work with chip-level components off vehicle.

Why Choose the XP400 Pro?

The XP400 Pro stands out due to its expanded EEPROM functions, wide chip compatibility, and constant updates — all of which ensure support for new vehicle models and modules. For users who work with European vehicles like Mercedes-Benz, BMW, and VAG, the XP400 Pro is indispensable for its coverage of NEC, ESL, and EWS systems.

Expand Your Capabilities with the IMKPA Kit

To unlock even more advanced key programming functions, the IMKPA Kit is available as an add-on. This set of 12 adapters works exclusively with the XP400 Pro and provides support for:

• Mercedes-Benz ESL_W209/W906 read/write/erase
• NEC key learning
• BMW EWS3 key programming
• Key unlocking for VAG/BMW/Benz

This adapter kit makes the XP400 Pro one of the most versatile key programmers on the market today.

XP400 Pro Technical Specifications

• Operating Temperature: -10°C ~ 70°C (14°F ~ 158°F)
• Input Voltage: 5V DC, 12V DC
• Connectivity: USB Type-B, DB26, DC12
• Max Power Consumption: 2.5W
• Dimensions: 168mm × 98mm × 30mm
• Weight: 520g

The specifications of the XP400 Pro Programmer are shown in the figure.

What’s in the Box?

The XP400 Pro comes with a comprehensive set of adapters and cables to cover most EEPROM, MCU, and key programming tasks. This includes:

• EEPROM clamp and socket
• Multiple MCU adapters (PLCC52, FQFP64/80/112/144/176)
• Mercedes IR key reader
• ECU, MCU, and MC9S12 cables
• USB communication cable
• Signal and Dupont lines

The IMKPA Kit includes an additional 12 adapter boards and a dedicated storage case.

Who is the XP400 Pro For?

The XP400 Pro is ideal for:

• Professional locksmiths offering automotive services
• Automotive repair shops handling immobilizer systems
• Technicians specializing in ECU-level repairs or EEPROM work
• Users of Autel IM508/IM608/IM608 Pro looking to unlock full key programming functions

Conclusion

If you’re serious about automotive key programming, the Autel XP400 Pro is a must-have. With support for thousands of components, frequent software updates, and compatibility with leading Autel diagnostic tools, it offers everything professionals need for high-level immobilizer and EEPROM work.
