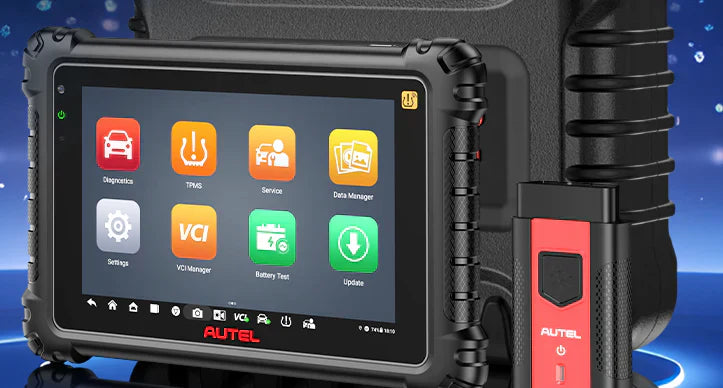

MK906S Pro II-TS vs MS906 Pro-TS – Best OBD2 Scanner?
The MK906S Pro II-TS is the latest automotive diagnostic tool released by Autel, while the MS906 Pro-TS also received a significant upgrade in 2025.
As part of the popular Autel 906 series, both scanners offer OE-level diagnostic capabilities along with a complete set of TPMS functions. But when it comes to MK906S Pro II-TS vs MS906 Pro-TS, what are the real differences?
In this Autel scanner comparison, we’ll break down the features, performance, and value of each so you can decide which one is the best OBD2 scanner for your needs. Whether you’re a professional mechanic or a serious DIYer, choosing the right Autel scanner can make all the difference.
Brief Overview

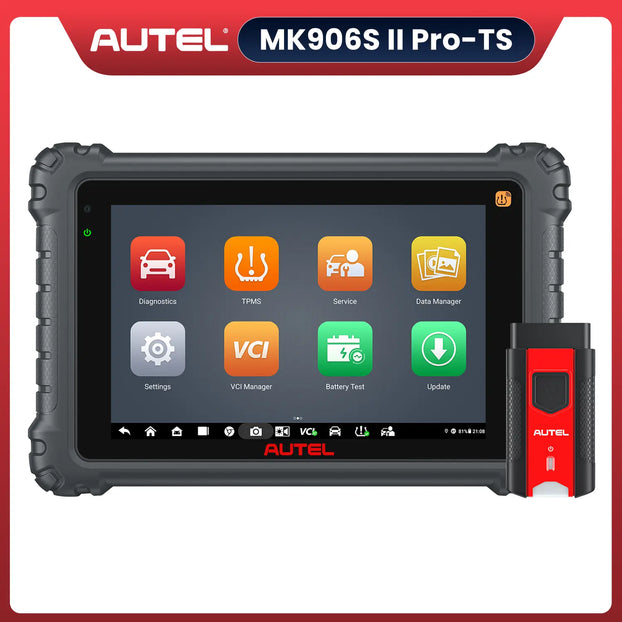

What is the Autel MK906S Pro II-TS?
The Autel MaxiCOM MK906S Pro II-TS is a 2025 premium diagnostic tool with an 8-inch HD touchscreen, octa-core processor, and 128GB storage. It offers full-system diagnostics, TPMS programming, bi-directional control, ECU coding, and advanced service resets (oil, EPB, DPF). Supports 21 languages and hidden function activation.
Autel MaxiCOM MK906S Pro II TS
$1449.00
Autel MaxiCOM MK906S Pro II TS | 2025 TPMS Functions ECU Coding | Bi-directional Control | 36+ Reset Services | Upgrade Ver. OF MS906 PRO-TS/ MS906 PRO/ MS906TS/ MS906BT

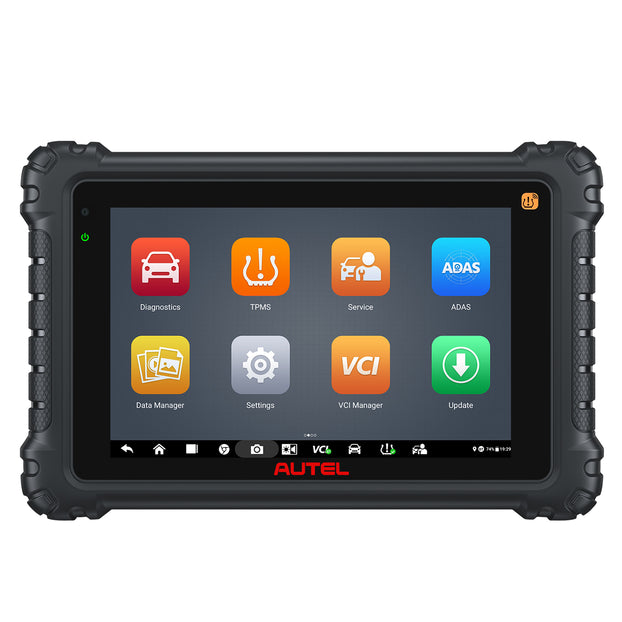

View MoreWhat is the Autel MS906 Pro-TS?
Autel MaxiSys MS906 Pro-TS - A 2025 professional diagnostic tool featuring an 8-inch HD touchscreen, octa-core processor, and 128GB storage. Delivers full-system diagnostics, TPMS programming, bi-directional control, ECU coding, and 36+ service resets (EPB, DPF, BMS). Supports FCA AutoAuth, VAG guided functions, and cloud reporting.
Autel Maxisys MS906 Pro-TS
$1439.00
Autel Maxisys MS906 Pro-TS | OBD2&TPMS Diagnostic Scanner | 2025 Newest All Systems Diagnostics | Bi-Directional Control |36+ Services | Online ECU Coding | Upgraded Ver. of MS906TS
View MoreAutel MK906S Pro II-TS vs MS906 Pro-TS: Full Feature Comparison Chart
| Item | MK906S Pro II-TS | MS906 Pro-TS |
| Image |
 |
 |
| Price | $1,449 | $1,439 |
| Hardware | ||
| Processor | Octa-core processor (2.2 GHz + 1.8 GHz) |
Octa-core processor (2.2 GHz + 1.8 GHz) |
| Screen | 8.0 inch | 8.0 inch |
| Resolution | 1920*1200 | 1920*1200 |
| Camera | Rear: 16 megapixel, autofocus with flashlight Front: 16 megapixel |
Rear: 16 megapixel, autofocus with flashlight Front: 16 megapixel |
| Memory | 4 GB RAM & 128 GB on-board memory |
4 GB RAM & 128 GB on-board memory |
| Weight | 0.962 kg (2.12 lb.) | 0.962 kg (2.12 lb.) |
| Battery | 11600mAh | 11600mAh |
| VCI | MaxiVCI V200 | MaxiVCI V200 |
| Conectivity | Wi-Fi (802.11 b/g/n) USB 2.0 USB Type-C Bluetooth V2.1+EDR, Class 1 HDMI SD Card (supports up to 32 GB) |
Wi-Fi (802.11 b/g/n) USB 2.0 USB Type-C Bluetooth V2.1+EDR, Class 1 HDMI SD Card (supports up to 32 GB) |
| Software | ||
| Operating System | Android 10 | Android 10 |
| Basic Functions (Read Codes, Clear Codes, Data Stream) |
✔ | ✔ |
| Service | 36+ | 36+ |
| Special Functions | ✔ | ✔ |
| Bi-Directional Control (Active Test) |
✔ | ✔ |
| Advanced ECU Coding | ✔ | ✔ |
| TPMS Service | ✔ | ✔ |
| Work With MX-Sensor BLE-A001 | ✔ | ✘ |
| Program/Relearn/Activate MX-Sensor BLE-A001 |
✔ | ✘ |
| Language | Multi-Language | Multi-Language |
| Autel Cloud Service | ✔ | ✔ |
| DoIP/CAN FD | ✔ | ✔ |
| Wifi Print | ✔ | ✔ |
| Extended Function | ||
| Battery Test (requires BT506) |
✔ | ✔ |
| Endoscope Function (requires MV105/MV108) |
✔ | ✔ |
| ADAS Expansion | ✘ | ✔ |
| Oscilloscope | ✘ | ✔ |
MK906S Pro II-TS vs MS906 Pro-TS: Key Differences
TPMS Support Differences
- MK906S Pro II-TS
- Fully supports Autel MX-Sensor BLE-A001 programming, relearn, and activation.
- This means it can directly service Tesla Model 3/Y/S/X and other vehicles equipped with BLE TPMS sensors, with the option of black, chrome, or gray valve stems to match vehicle style.
- MS906 Pro-TS
- Does not support BLE-A001 programming/relearn/activation, so compatibility with Tesla and other BLE TPMS vehicles is limited.
If you work on Tesla BLE TPMS systems, the MK906S Pro II-TS is the better fit.
The MK906S Pro II-TS supports Autel MX-Sensor BLE-A001 programming and activation.
Extended Hardware Capabilities
- MK906S Pro II-TS
- No ADAS expansion support
- No oscilloscope support
- MS906 Pro-TS
- Supports ADAS expansion (Advanced Driver Assistance System calibration)
- Supports oscilloscope for in-depth waveform diagnostics
If you need ADAS calibration or advanced waveform analysis, the MS906 Pro-TS is the better option.
The MS906 Pro-TS supports more expended capabilities.
Conclusion
In this Autel scanner comparison, both tools deliver OE-level diagnostics, fast performance, and complete TPMS functionality—but their strengths diverge.
If your workflow includes Tesla or other BLE TPMS vehicles, the MK906S Pro II-TS is the best OBD2 scanner for you thanks to full support for the MX-Sensor BLE-A001 (program, relearn, activate). If your shop needs ADAS calibration and oscilloscope-based waveform analysis, the MS906 Pro-TS is the smarter choice.
