[2021NEWEST] Autel MaxiPRO MP808BT Wireless Diagnostic Scanner

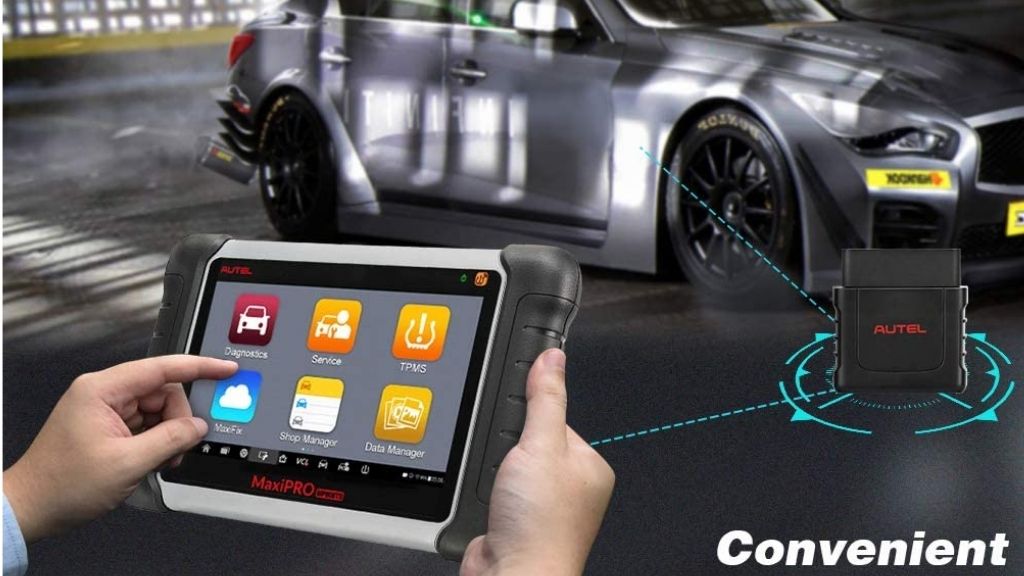

As an upgraded version of MK808, MX808, Autel MaxiCOM MK808BT auto scan tool comes with both wireless and lined connection(with the USB cable included). With a long working range of 33 ft(10m), MK808BT automotive diagnostic scanner enables mechanics and DIYers to perform all systems diagnostics and service resets in the comfort of a tree shade. No more short cables! No more hot air in the limited room of the driver’s seat.

Autel MaxiPRO MP808BT Wireless Diagnostic Scanner

Autel MP808BT Specification:

Recommended Use: Indoor
Operating System: Android™ 4.4.4, KitKat
Processor: Cortex-A9 quad-core processor (1.4 GHz)
Memory: 64GB
Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity: •Mini USB 2.0,USB 2.0,Wi-Fi,Micro SD card (supports up to 32GB)
Sensors; Ambient light sensor for brightness auto changing
Audio Input/Output: •Input: N/A,Output: buzzer
Power and Battery: 3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply
Tested Battery Life: Around 4.5 hours of continuous use
Battery Charging Input: 5 V/1.5 A
Power Consumption: 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.: 0 to 55°C(32 to 131°F)
Storage Temp.: -20 to 60°C (-4 to 140°F)
Operating Humidity: 5% - 95% non-condensing
Dimensions (W x H x D): 237.8 mm (9.4") x 148.6 mm (5.9") x 35.5 mm (1.4")
Net Weight 788 g (1.74 lb.)
Protocols ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,SAE-J1850 VPW,SAE-J1850PWM, SAE J2610,GM UART UART Echo Byte Protocol,
ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN),Honda Diag-H Protocol,TP2.0,TP1.6
  • Same Competence as MS906 in All System Diagnosis

Autel MP808BT features the same diagnostic capabilities as OE tools that are previously available to dealerships only. With 11 extra OBD adapters, MaxiPRO MP808BT access and diagnose all available modules on a wide range of vehicles, including PCM, ECM, EPS, PDM, TPM, BCM, ABS and SCCM and etc. It's a good alternative to MS906, but with extra wireless connection feature

  • Complete Service Functions

Autel MP808BT diagnostic tool comes with 30+ service functions including: Oil Reset, EPB Reset, SAS Calibration, DPF Regeneration, Battery Registration, Throttle Reset, ABS Bleed, Injector Coding, Key Fob Programming, Trans Adaptation, Suspension Calibration, Zero Point Calibration, Calibrate Weight Sensors, Idle Relearn, Power Balance, Crankshaft Variation Position Learn, EVAP Test etc. Some services are not universal to all cars and please consult with us beforehand

  • Active Test & IMMO function

Autel MP808BT is a cost-effective scanner that able to perform active test over various car systems to control ABS motor, window, door, solenoids, relay, switch, valves, sunroof, headlamps and etc to check its functionality. In addition, it's able to do key fob programming for Asian cars with low-grade IMMO system

Autel MP808BT is the 2021 newest original Autel scanner backed up by Autel official after-sale services with 1-year warranty, available 30-days return & replacement policy, and 24/7 thoughtful scanner code readers & scanners
