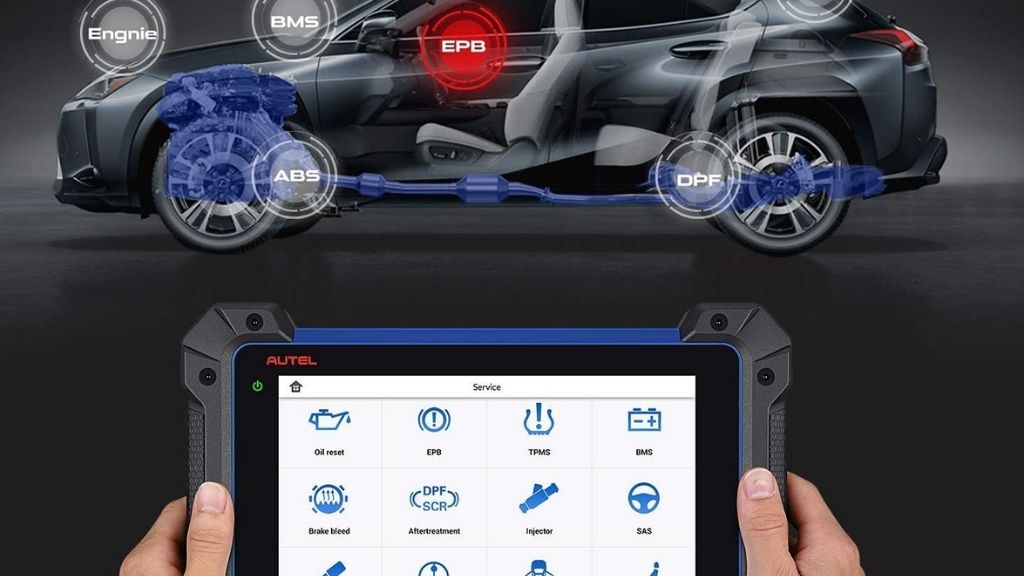

2021 New Arrival! Autel MaxiIM IM608 Pro Key Programmer Diagnostic Tool

MaxiIM IM608 PRO is the most advanced and unique all in one key programming and diagnostic tool that combines advanced key programming.

All systems diagnostics, and advanced services in one Android based 10.1-inch touchscreen tablet. It is equipped with XP400 PRO key programmer and MaxiFlash ECU programmer to provide complete coverage of IMMO and programming functions. IM608 PRO provides you with all special functions to quickly diagnose all modules for the majority of the makes and models on the market. It is the unprecedented key programming and diagnostic tool that you ever wanted.

Autel IM608 Pro Main Specification

Operating System Android™ 4.4.2, KitKat
Processor Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory 2GB RAM & 64GB On-board Memory
Display 10.1-inch LED capacitive touch screen with 1920x1200 resolution
Connectivity

Wi-Fi (802.11 a/b/g/n/ac)

USB: 2.0

BT v.2.1 + EDR

SD Card (Support up to 32GB)

HDMI

Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Power and Battery

15000 mAh 3.8 V lithium-polymer battery

Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12 V (9-24 V)
Power Consumption 6.5 W
Operating Temp 0 to 50°C (32 to 122°F)
Storage Temp -20 to 60°C (-4 to 140°F)
Dimensions (WxHxD) 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight

NW: 1.42 kg (3.13 lb.)

GW: 8.655 kg (19.08 lb.)

Protocols



ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

XP400 Pro Key Programmer with Smart Mode & Expert Mode

XP400 Pro is advanced All-in-One Key Programmer, it performs EEPROM-data functions needed for European vehicles. Supports Data Read/Write of 3,000 Plus Types. XP400 Pro will read PIN, key learning remote learning, key generation, IMMO ECU reset/adaptation/refresh/coding, IMMO data backup. The Smart Mode for guided and automated key learning, and the Expert Mode for advanced key learning.

Advanced ECU Coding & Bi-Directional Control

IM608 Pro can perform advanced ECU Coding such as MK908/MK908P. Bi-directional control (Active Test) to request information or command a actuator to perform specific tests, such as turning the fuel pump on and off, cycling the a/c clutch on and off, performing an evaporative emissions leak test, fast troubleshooting your car, not simply by reading codes.

Unmatched OE-Level Full Diagnostics with 30+ Service Function

IM608 Pro can perform 30+ servicet functions: Oil Reset, Engine/ABS/SRS/SAS/DPF, BMS Reset, Brake Reset, Key Fob Coding, fully meeting your needs.The Auto Scan function performs a comprehensive scanning over all the ECUs inthe vehicle to locatesystems’ faultsand retrieve DTCs. IM608 Pro performs powerful OE level diagnostics for more than 80 US, Asian and European makes and models.



Autel IM608 Pro
