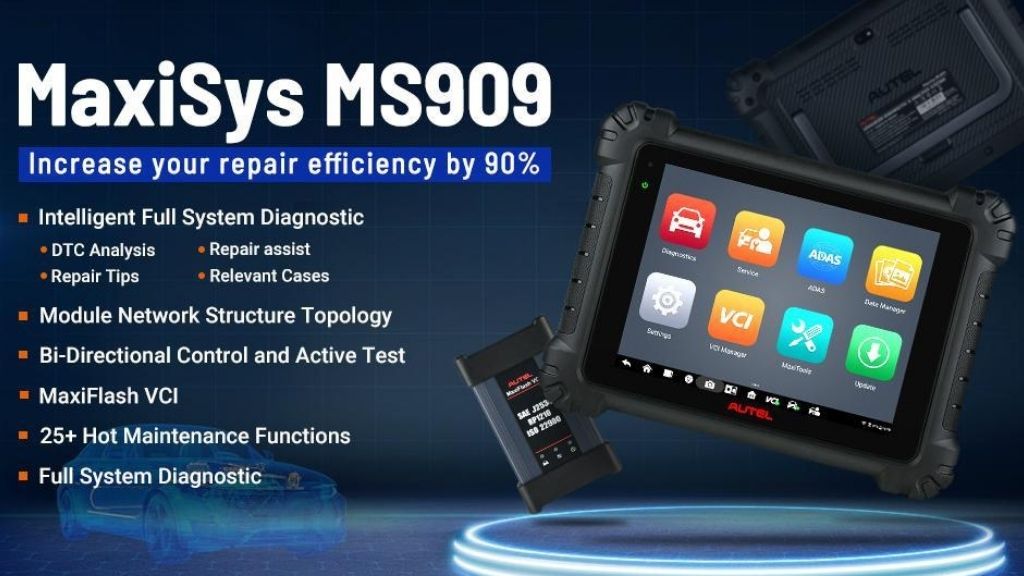

Autel MaxiSYS MS909 Diagnostic Tool Honest Review 2021
Autel MaxiSys MS909 Intelligent Bi-Directional Diagnostic Scanner with J2534 ECU Programming, Advanced MS908P Pro/Elite, MS919 is Autel’s 2021 latest intelligent diagnostic scan tool defaulted English & Spanish for using in North & South American (North & South American ONLY).
What is J2534 ECU programming?
J2534 is a concept that enables flash programming of an emission related ECU regardless of the communication protocol that is used by the ECU. The purpose is that only one tool (hardware device), often referred to as the pass-thru device, should be needed for all kind of ECUs.
MaxiSYS MS909 Specifications:
|Operating System:||Android 7.0|
|Processor:||Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)|
|Memory:||4GB RAM & 128GB On-board Memory|
|Display:||9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen|
|Connectivity:||• Wi-Fix2 (802.11 a/b/g/n/ac 2x2 MIMO) • BT v.2.1 + EDR • GPS • USB 2.0 (TWO USB HOST Type A, ONE USB mini device) • HDMI 2.0 • SD Card (Support up to 256GB)|
|Camera (rear):||Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5.0 Megapixel
|Sensors;||Gravity Accelerometer, Ambient Light Sensor (ALS)|
|Audio Input/Output:||• Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack|
|Power and Battery:||15000mAh 3.8V lithium-polymer battery
Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
|Input Voltage:||12V/3A Adapter|
|Operating Temp.:||0 to 50°C (32 to 122°F)|
|Storage Temp.:||-20 to 60°C (-4 to 140°F)|
|Dimensions:||304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")|
|Protocols:||DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)|
MS909 automotive tool, a professional Autel scanner, scans all systems and holds powerful functions. ECU programming can customize car settings, enhance vehicle performance, reprogram the new ECU, etc. J2534 ECU programming of car scanner is designed for BMW and Benz to handle complex vehicle issues such as fuel efficiency, power loss, fault codes, and durability of mechanical parts, etc.
【36+ Functions & Active Test】
MS909 scan tool also features 36 service functions: Oil Reset, Injector Coding, EPB, TPMS, BMS, ABS Bleeding, DPF, IMMO Keys, SAS, Suspension, Throttle, etc., and runs bi-directional test (active test) to check the functionality of systems and components, helping your win more business.
【Autel MaxiSys MS909--99% Coverage on the Market】In addition to the D-PDU/SAE J2534/RP1210 diagnostic protocols, this OBD2 intelligent diagnostic tool MaxiSys Ultra also supports the DoIP and CAN FD protocols for more new vehicle models, covering 99% of vehicles on the market, including supercars.
【Advanced Configuration】Autel MS909 tool is configured with a 9.7’’ touch screen, Android 7.0 OS, octa-core processor(2.3GHz+1.7GHz), 15000mAH 3.8V lithium polymer battery(For 8 hours continuous use), and 128GB memory, which improve the diagnostic efficiency. Upgrade version of Autel MK908, MS908S Pro, and Elite, MS909 car scan tool smooths the diagnostic process.
Autel MS909 scanner is a smart scan tool that scans all the available systems to pinpoint problems and integrates versatile diagnostic functions to serve 10000+ vehicle models worldwide. Intelligent diagnostics, 36+ diagnostic functions, and active test mostly simplify the diagnostic process, which makes you complete the diagnostics and repair quickly and easily.Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar, light duty and some medium duty.
Related: Difference between MS919 and MS909
