Autel MaxiSys Ultra Best Auto Diagnostic Scanner 2021

Artificial intelligence is already being implemented into autonomous test vehicles for the purpose of detecting and classifying objects. Car Intelligent Diagnostics delivers all of the information in one scrolling, easy-to-navigate screen. It intuitively guides technicians straight through the diagnostic workflow, from pinpointing the problem, to finding the fix.The Autel MaxiSYS Ultra is designed to offer technicians step-by-step repair guidance by combining topology module mapping.

2021 Most Intelligent Diagnostic Scan Tool - Autel MaxiSys Ultra

if money is no object or if you're a paid professional. Your Repair Assist - Autel Top Intelligent Diagnostic Scan Tool.The history of Autel Diagnostic Tools is a foundation of success built on ingenuity and a revolution of design and functionality, Ultra is the future intelligent diagnostic, a larger tablet for multi-window operation. Maximize your intelligence with powerful hardware. Faster analysis and expanded data storage meet busy repair demands with substantial battery capacity.

Autel Maxisys Ultra Specification:

Operating System: Android 7.0
Processor: Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory: 4GB RAM & 256GB On-board Memory
Display: 12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity: •WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO),BT v.2.1 + EDR,GPS
USB 2.0 (Two USB HOST Type A, one USB mini device),HDMI 2.0,SD Card (Support up to 256GB)
Camera: Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5 Megapixel
Sensors; Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: •Microphone,Dual Speakers,3-Band 3.5 mm stereo/standard headset jack
Power and Battery: 18000mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage: 12V/3A Adapter
Operating Temp.: 0 to 50°C (32 to 122°F)
Storage Temp.: -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D): 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
Weight 2.18kg (4.81 lb.)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141,
ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock
, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Autel MaxiSys Ultra Best Auto Diagnostic Scanner 2021


HD dual cameras capture every detail Dual WiFi connection to the VCMI device and a wireless network simultaneously for faster diagnostics. The MaxiFlash VCMI is more powerful than ever, muti-channel simultaneous analysis test components and confirm repairs new protocols to support the vehicles of today and tomorrow expanded passenger and increasing commercial vehicle coverage.

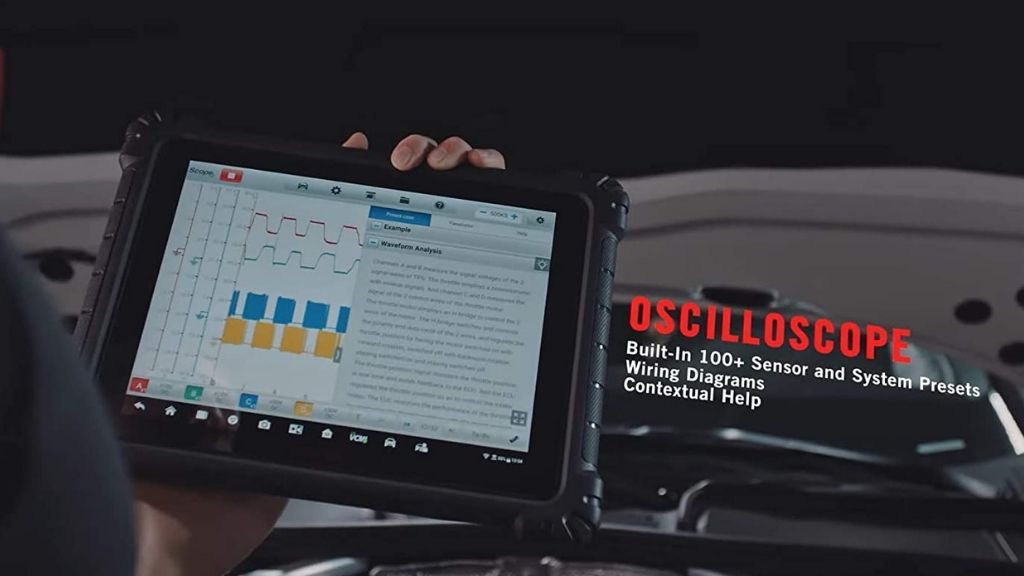

The advanced 5-in-1 Autel MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and OBD2 CAN Bus Check,helping MaxiSys Ultra realize multiple functions of diagnostics, detection, signal simulation, etc. What's more, it’s a D-PDU, SAE J2534 & RP1210 compliant PassThru programming interface, capable of connecting with OEM diagnostic tools to diagnose and program more passenger and commercial vehicles, such as Volvo, VW, Benz, etc.

Muti-function detection Using OBD2 CAN BUS CHECK

Ultra smarter than ever, faster VIN Scan recognition for vehicle identification new topology mapping of CAN BUS tree with color coded module status for faster full system diagnostic results, Ultra intelligent diagnostics provides direct access to OE-related TSB recalls and service campaigns, REPAIR ASSIST diagnostics guidance is designed to support from DTC diagnostic analysis, to repair recommendation options easily and efficiently.

OBD2 Code Reader Ultra MaxiFIX, more efficiently than ever, search multiple options of DTC based repair advice by relevant cases or repair tips video and documentary libraries, providing direct access to to-ranked repair recommendation from industry pros.

Autel MaxiSys Ultra Best Auto Diagnostic Scanner 2021

The MaxiSys Ultra is Autel’s most ambitious diagnostic tool to date. It takes fault guidance as the core, integrates TSB, fault code details, and improve technicians' maintenance level and efficiency. With topology, you can see all the different modules situations of the vehicle. It prioritize multiple faults, automatically match the circuit diagram of the fault point to guide users in troubleshooting, improve the efficiency of troubleshooting by 70%+.

Autel maxisys ultra price is $4,399.00 sale on the that you can save 12% for your purchas. Autel Maxisys ultra is for US only, it will be IP blocked if out of US.  It comes with English only. All the mentioned functions are not universally compatible, please send VIN to to check before purchase.

Everything you have been waiting for -This is Maxisys Ultra.
