September 30, 2021

Autel MaxiSYS Ultra Reviews 2021[Update]

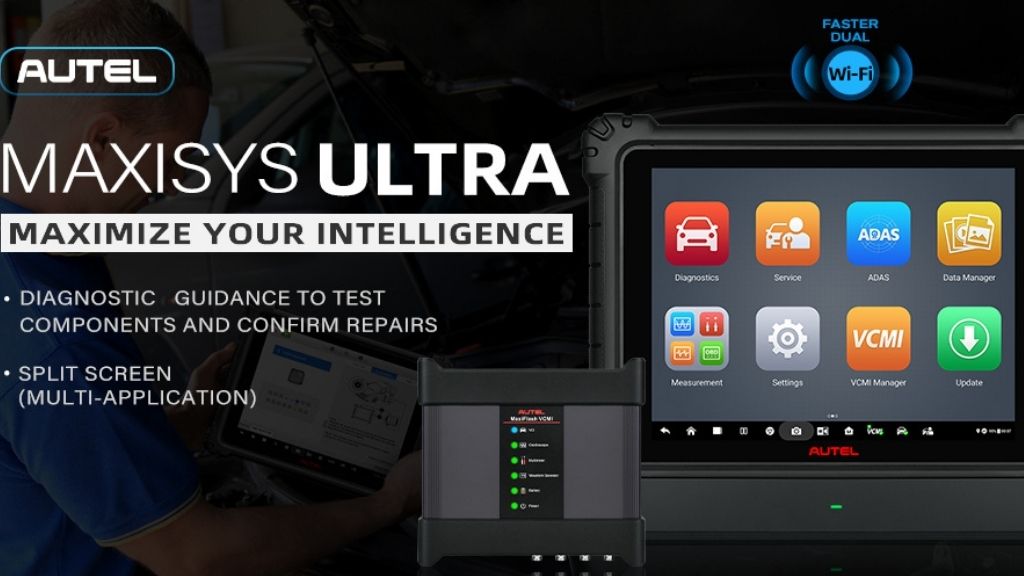

As the Autel most ambitious diagnostics tablet, Autel MaxiSys Ultra Automotive Diagnostic Tool is designed to maximize technician intelligence. It features with a 12.9-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features and Intelligent Diagnostics options, the Ultra offers the technicians step-by-step repair guidance. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan. As the top-end diagnostic scanner in 2021, Autel MaxiSys Ultra is equipped with all funtions that you may need to be a professional mechanic.

Autel MaxiSys Ultra Specification

Operating System	Android 7.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 256GB On-board Memory
Display	12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity	WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (Two USB HOST Type A, one USB mini device) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temp.	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)	366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
Weight	2.18kg (4.81 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Autel MaxiSYS Ultra Features

Updated version of MK908P/MS908P/Elite/MS909/MS919, All-in-one comprehensive scanner for large repair workshops
D-PDU/SAE J2534/RP1210/DoIP/CAN FD protocols are supported; Wider vehicle coverage for 99.99% makes in the market
5-in-1 VCMI with functions of VCI, oscilloscope, waveform generator, multimeter, and CAN BUS tester
Advanced Programming and Coding, ECU upgrading & downgrading, ECU module matching & replacement, etc.
36+ service functions to fix all car-related problems, no need to turn to other scan tool or gurus
One-stop Intelligent Diagnosis based on DTCs, helping you have a clear picture of vehicle status; the Ultra features the TSB, repair tips, DTC analysis, etc. For each fault code, Ultra performs in-depth analysis and gives the OE data and processing suggestions.
OE-level Topology Module Tree, helping you veiwing the vehicle's crux much more intuitively
Split-screen multi-application navigation with super fast running speed, greatly improving your work efficiency
10+ highly advanced functions: Active Test/Guided Functions/Personalization/Modification/ etc.
Multiple repair guidance: Technical Service Bulletin (TSB), DTC Analysis, Repair Assist, Repair Tips, Component Measurement, and Relevant Cases
