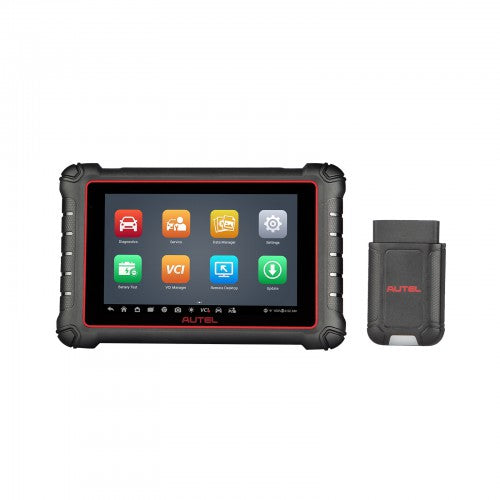

Autel MP900BT/MP900Z-BT 2023 Diagnostic Scanner Overview

In 2023, the newly upgraded diagnostic scanner Autel MP900BT/MP900Z-BT, as an upgraded version of MP808BT Pro, supports ECU Coding, Pre & Post Scan, DoIP&CAN FD Protocols, and upgraded hardware makes user interaction better and coverage wider.

The innovation of the Autel MaxiPRO MP900BT scanner is to increase the service function to provide maintenance needs for more cars. Autel MP900BT and Autel MP900Z-BT have the same function and configuration.

Car repair/maintenance personnel can use the scanner MP900BT to support oil reset, EPB, BMS, SRS, ABS Bleed, SAS calibration, DPF generation, fuel injector coding, throttle matching, suspension matching, TPMS and other functions, you can also Additional cylinders, turbos, clutches and trans adaptations where required can be performed.

Autel MaxiCOM MP900BT Specifications:

Autel MP900BT Scanner
Autel Maxicom MP900BT
Customer Rating Autel Maxicom MK808BT 4.5 star
Obdprice Price $1,099
Recommended Use Indoor
Operating System Android 11
Processor Quad core Processor, 1.8GHz
Memory 64GB
Display 8inches, 800*1280
Connectivity Mini USB 2.0
Micro SD card slot(supports up to 64GB)
Power and Battery

3.7 V/7700 mAh

Tested Battery Life Around 8 hours of continuous use
Battery Charging Input 5V/1.5A
Net Weight 788 g (2.42 lb.)
Protocols ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6,DO IP,CAN FD

Autel MaxiCOM MP900BT Scanner Features

  • Support wireless bluetooth connection
  • Extremely powerful Android 11.0 operating system, 1.8 GHz processor
  • 8" LCD capacitive touchscreen with 1280 x 800 resolution
  • 4GB RAM+64GB ROM
  • Extensive Vehicle Coverage
  • Rear 8MP camera
  • Support DoIP&CAN FD Protocols
  • Expandable accessories support BT506&MV108S
