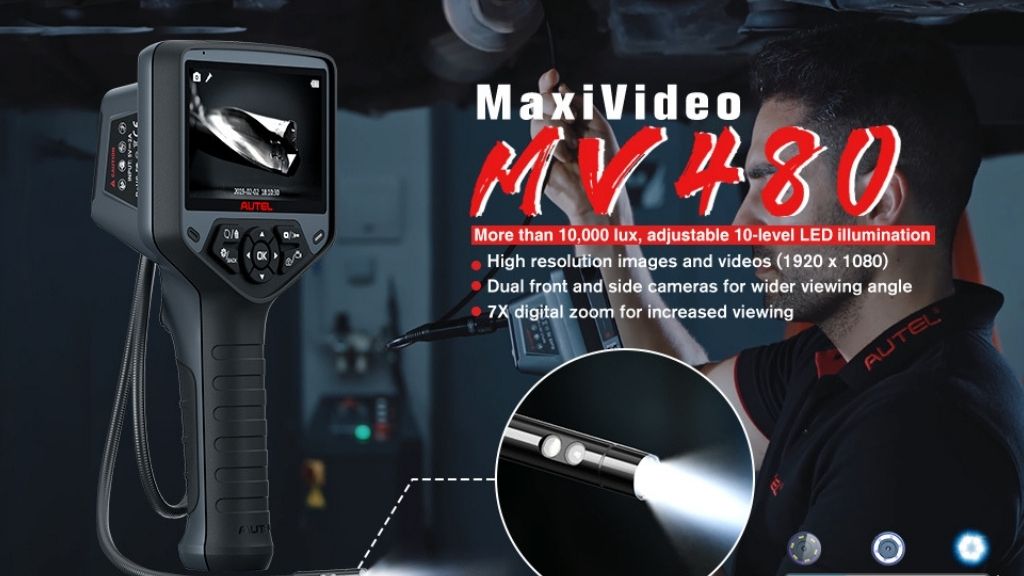

Introduction Autel MaxiVideo MV480 Inspection Camera

Autel MaxiVideo MV480 the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features dual front and side cameras with 1920×1080 high resolution, a 4.1" 1200×720 full color LCD display, an 8.5mm camera probe, and a built-in 2600mAh battery with up to 4 hours continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest and most cost-effective manner possible.

Autel MaxiVideo MV480

Autel Maxivideo MV480 Specification

Optimal viewing Distance 0.79" to 2" (2 cm to 5 cm)
Image capture JPG images (1920 x 1080 pixels)
MP4 videos (1920 x 1080 pixels)
Screen type display 4.1" TFT LCD
Display resolution 1200 x 720 pixels
Power supply Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh)
Tested battery life Approximately 4 hours of continuous use
Dimensions 243 x 116 x 122mm (9.6" x 4.6" x 4.8")
Weight 0.422 kg (0.93lbs)
Recording medium Micro SD card (8GB Standard/128GB Max)
Image controls Zoom, low light vision
Lighting Fully adjustable LED, Flashlight
Cable reach 1m (39.4")
Imager heads 8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels)
Waterproof To a depth of 1m (39.4") (Imager heads and cable only)
Additional ports TF, Mini USB, Micro HDMI
Operating temp Main unit: 14°F to 122°F (-10°C to 50°C)
Cable: 14°F to 140°F (-10°C to 60°C)
Storage temp -4°F to 158°F (-20°C to 70°C)
Operating humidity 5% - 95% non-condensing

Autel Maxivideo MV480 Features

  • High resolution images and videos (1920 x 1080)
  • Dual front and side cameras for wider viewing angle
  • 4.1-inch full color LCD display (1200 x 720)
  • 1-button quick image capture and video recording
  • 70-degree field of view for expanded viewing angle
  • Adds audio annotation for detailed review
  • Micro HDMI-output enables streaming to larger monitors
  • Freeze-frame camera stills or video recording
  • On-screen horizontal/vertical reverse
  • Records and plays back images and video clips
  • 7X digital zoom for increased viewing
  • 8GB Micro SD card (included), supports up to 128GB
  • Mini-USB cable (included) for uploading images and videos
  • More than 10,000 lux, adjustable 10-level LED illumination
  • Flashlight for higher visibility in low-light environment
  • Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use
  • 1m (39.4") semi-rigid, flexible watertight cable
  • Includes magnet and hook cable accessories
  • 8.5mm (0.33") probe fits most spark plug holes
  • Compatible with 5.5mm (0.22") camera head (not included)
