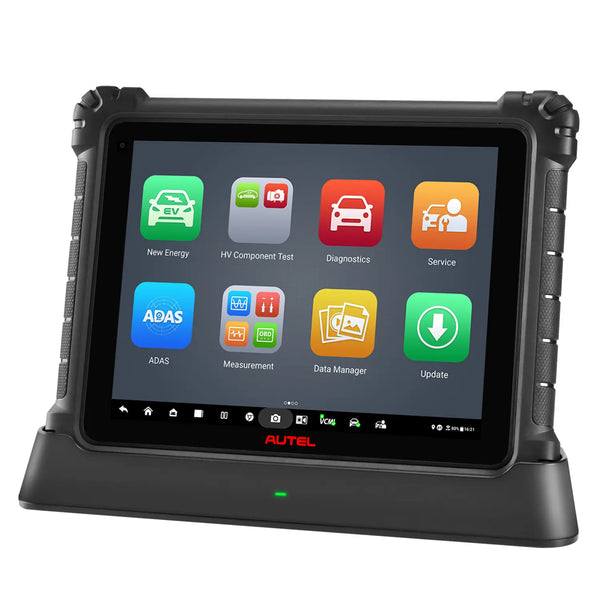

Autel Maxisys Ultra EV

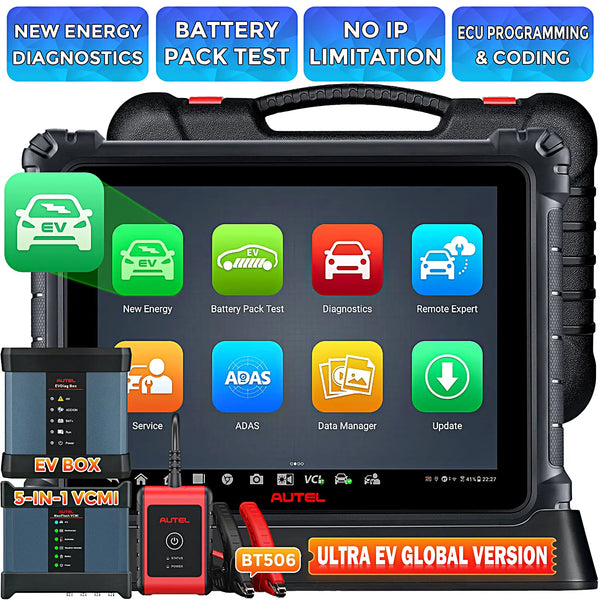

Autel MaxiSys Ultra EV New Energy Car Diagnostics Scanner is a new generation of full system diagnostics for electric, hybrid, gas, and diesel vehicles. The Ultra EV provides a comprehensive analysis of electric and hybrid vehicles with expanded topology mapping and battery pack analysis that can be performed via OBD or directly with included specialty cables and jumpers. The Ultra EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing. The 12.9-inch Ultra EV touchscreen tablet comes equipped with the MaxiFlash VCMI (5-in-1) measurement device, Bluetooth-enabled vehicle communication interface and J2534 pass-thru programming device, and a dedicated EVDiag box. The MaxiSys UltraEV combines Autel's MaxiSys Ultra with the MaxiSYS EV Diagnostics Upgrade Kit.
Autel Ultra EV Top Highlights
Autel MS Ultra EV (1000 less than purchasing Ultra and EV Box separately) adds an EVDiag Kit to Ultra, making the scanner possible to diagnose new energy vehicles, including Tesla, BMW, VW, Au-di, etc. This automobile diagnostic scanner combines together almost every high-end diagnostic feature you can think of, bringing repair stores more orders.
-
EV Vehicle Diagnostic - The EV Diagnostics Upgrade Kit includes EVDiag Box and adapters for specific electric vehicles to perform battery pack analysis, it also can work with gasoline vehicles.
-
Advanced VCMI 5-In-1 Device - The VCMI of advanced car scan tool Autel MaxiSys Ultra EV is integrated with VCI functions + Oscilloscope + Waveform Generator + Multimeter + CAN BUS CHECK, which making the tool has never been so powerful.
- Advanced ECU Coding & Programming - Program,rewrite,code, and match new ECU after new module replacement. Code cars to unfold hidden features and activate high-end functions to improve vehicle performance.
- Topology Mapping - Provides a color-coded topology display for all vehicle systems' relationship on one page, helping you better analyze the system faults.
-
High-voltage System Diagnostics - Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data.
- Unmatched 10000+ Coverage, Works With OE Tools - Top Full System Scanner Autel Ultra EV supports D-PDU/SAE J2534/RP1210/DoIP/CAN FD protocols, Wide coverage of 99.99% vehicle in the market,which makes Autel UltraEV compatible with oe factory tools and peform further services and programmings. Eg: it supports OE diagnostic tools for Land Rover, Jaguar, Volvo, Toyota, GM, Honda, Nissan, BMW, BENZ, VW, Hyundai, Kia, Mazda, Mitsubishi, Chrysler, etc.
-
Extensive Reset Services - This TOP car diagnostic scanner Autel Maxisys Ultra EV supports the most comprehensive services on the widest vehicles. Services include Oil Reset, EPB Reset, SAS Calibration, DPF Regen, Battery Reset, Throttle Reset, ABS Bleed, Injector Coding, Power Balance, Key Coding, Suspension Calibration, EGR, VGT Turbo Calibration, Transmission, Headlamps, Window Door Roof etc.
-
Top Hardware - Ultra EV With a winning combination of solid hardware and software, the Autel MaxiSys Ultra EV ensures you a smooth and efficient diagnostic experience. Android 7.0 OS, Samsung octa-core processor, 4GB RAM & 256GB memory, 16MP Rear/5MP Front Camera. 12.9 inch TFT-LCD touch screen, 18000mAh 3.8 V battery, etc.
-
NO IP Limitation - Autel Maxisys Ultra EV (Global Version) is not affected by IP restrictions and can be used worldwide.

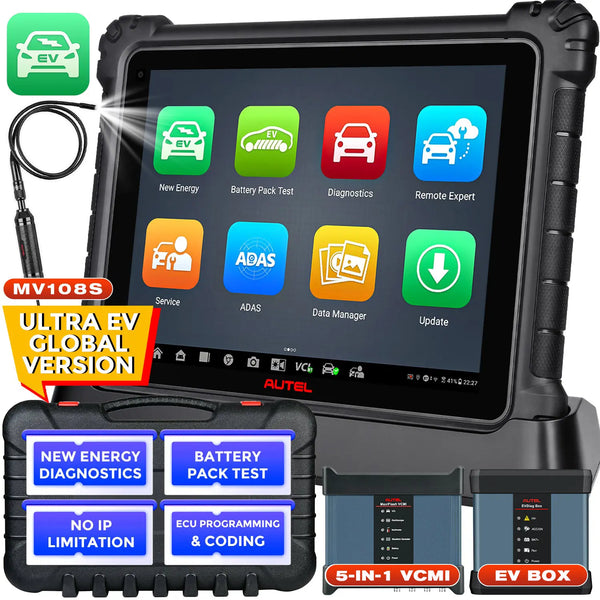

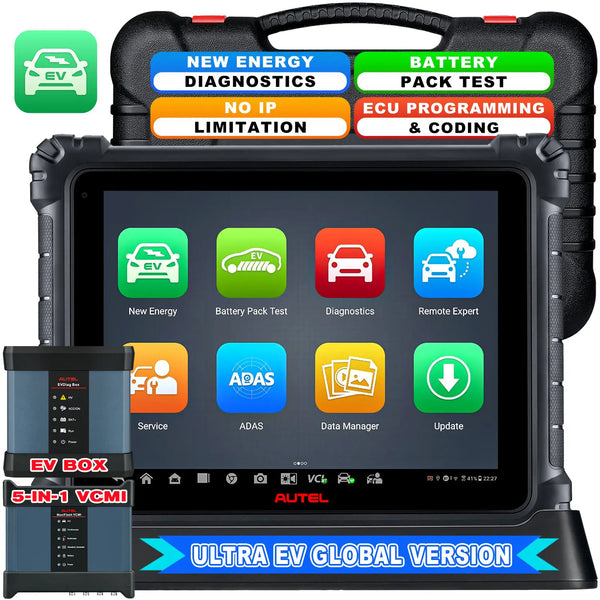

EV Diag Box & Adapters for Battery Pack Diagnostics

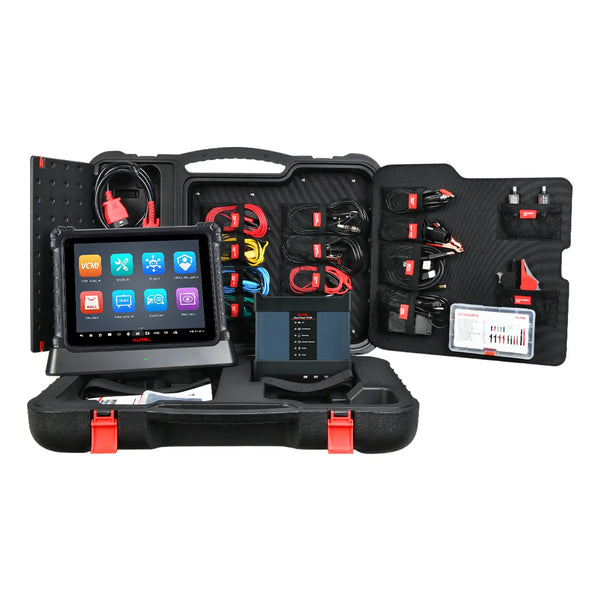

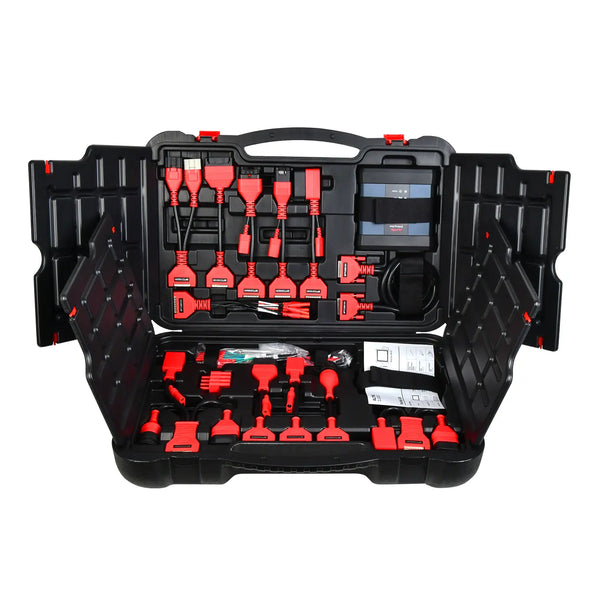

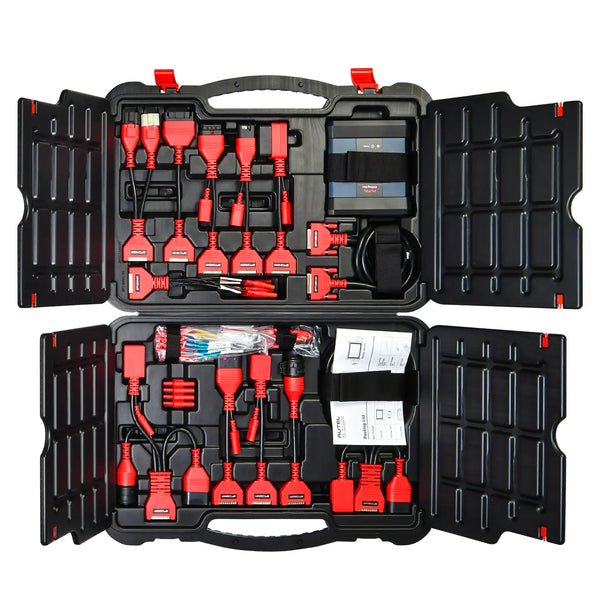

The EV Diagnostics Upgrade Kit includes EVDiag Box and adapters with a carrying case for specific electric vehicles to perform battery pack analysis. The EVDiag Box is compatible with the MaxiSys Ultra, MaxiSys Ultra ADAS, MaxiSys MS919, and MaxiSys MS909 tablets. EVDiag Box connects to MaxiFlash VCI or VCMI.

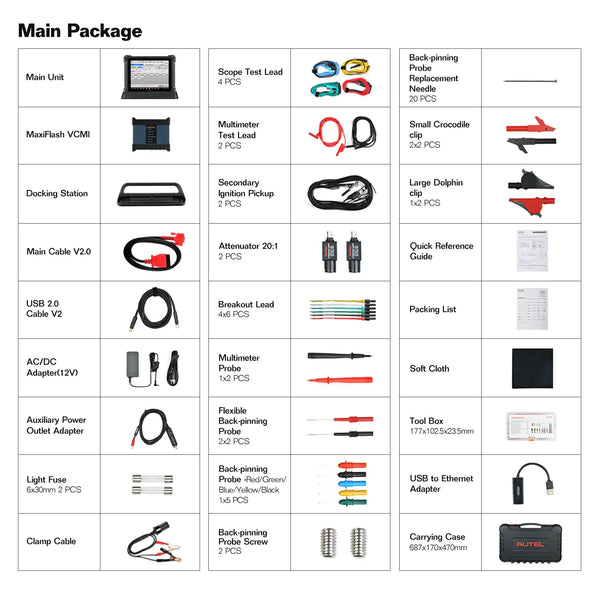

- Includes EVDiag Box, Adapters for BMW, VW and Breakout Leads
- Includes Carrying Case
- Compatible with Ultra series products to perform Battery Pack diagnostics
- State of Charge and State of Health analysis for true battery condition
- For customers who already bought MS909 or MS919EV or MaxiSys Ultra can just buy EV box to upgrade their device to MS909EV、MS919EV and MaxiSys Ultra EV.
- The methods to active EV box on MS909/MS919/ MaxiSys Ultra: to imput EV box SN on tablets portal directly to upgrade. EV Diagnostics Upgrade Kit - $895
High-Voltage Diagnostics & Offline Battery Pack Diagnostics
High-voltage system diagnostics allow for reading/ clearing codes and displaying the SOC, SOH, voltage, and battery pack status with one click, helping locate the fault. EV provides a high-voltage system block diagram, parts diagram, plug-in diagram, disassembly guide, etc., making operation easier. The scan tool also provides offline battery package diagnostics to ensure the efficient completion of each battery installation.

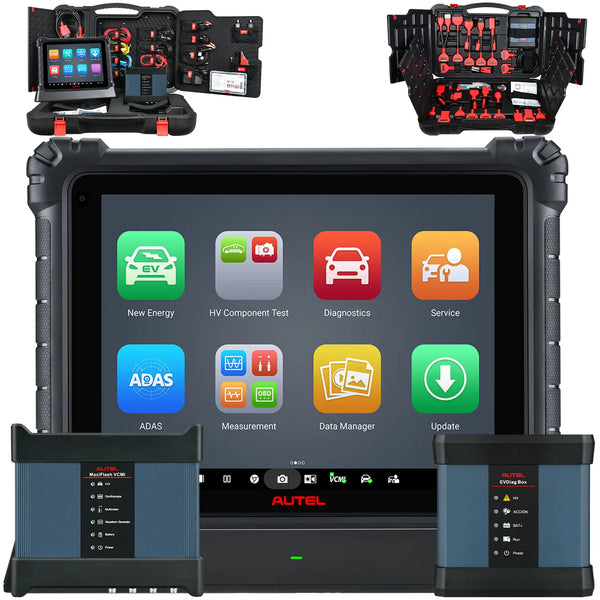

Advanced 5-IN-1 VCMI
The VCMI of advanced car scan tool Autel MaxiSys Ultra is integrated with VCI functions + Oscilloscope + Waveform Generator + Multimeter + CAN BUS CHECK, which making the tool has never been so powerful.
-
VCI Connection (Wi-Fi / BT / USB) - Support Dual Wireless Mode, the new host and communication box are connected through Wi-Fi, Wi-Fi communication transmission speed is faster\more stable\strong anti-interference ability, the actual test wireless distance is more than 50m, and the diagnosis speed is more than 30% faster.
-
Oscilloscope - VCMI integrated oscilloscope, through 4 major technologies: Large Bandwidth, High Sampling Rate, Deep Storage, Massive Preset Cases, supports 2 major features: Zoom & Playback, Advanced Triggering, improving the efficiency of solving complex faults.
-
Waveform Generator - Supports multiple signal modes, including DC voltage, square wave, square wave (X+Y), triangle wave, actuator drive and arbitrary waveform. Simulate the signals of various sensors and ECU modules, you can intuitively judge whether it is a hardware problem without changing parts.
-
Multimeter - The Multimeter is mainly used to measure voltage, current, resistance, frequency, diode, duty cycle, pulse width and connectivity.
-
CAN BUS Check - By detecting the signal of the OBD interface, you can quickly determine whether the communication status is normal. If the signal is normal, the indicator light will flash; if there is no signal, make sure the pins are set correctly.

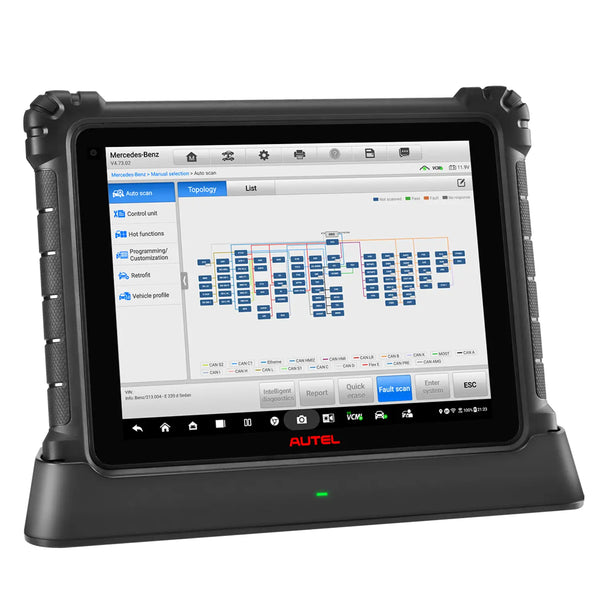

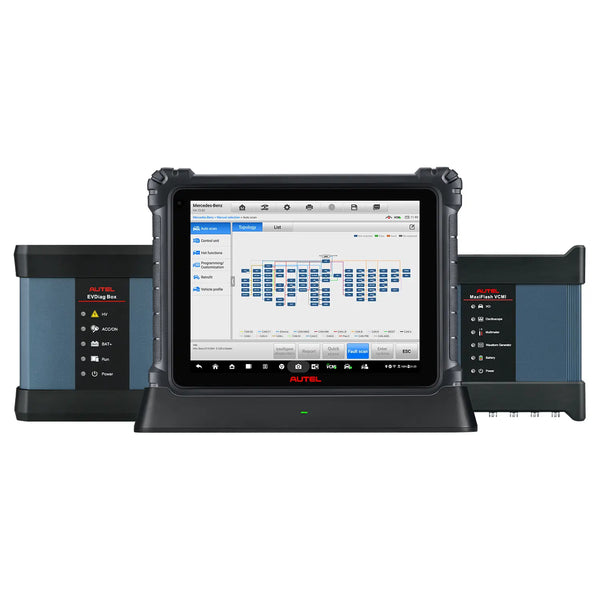

Newest Topology Module Mapping
The new Topology Module Listing CAN BUS Tree, specially designed for the OEM diagnostic tools, shows all available control units of the test vehicle in different colors, helping users get to know the numbers of systems, the scanned systems, and the scan results at a glance.
- Intuitively display the current module status (includes whether there’s a DTC in a specific module, and the number of DTCs);
- Systematically show the communication structure between the modules;
- Directly display the fault code and enter the system execution function;
- Clearly view the color coded module status tree by zooming in and out;
- Compatible with BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Benz, VW, etc.
OE-Level All Systems Diagnostics
Autel Ultra EV offers comprehensive OE-level full system diagnostics, enabling in-depth analysis of vehicle systems. It provides detailed topology mapping and battery pack analysis, supporting high-voltage system diagnostics and component-level troubleshooting
Full Bi-directional Control (Active Test)
Autel Maxisys Ultra EV automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.
40+ Hot Reset Services
Autel Ultra EV supports over 40 reset services, including oil reset, EPB, DPF, SAS, and more. This advanced functionality ensures comprehensive vehicle maintenance, offering precise control and reset of crucial systems. Ideal for professionals, it enhances efficiency and ensures accurate service resets for electric vehicles.
Online ECU Coding
Autel diagnostic scanner Ultra EV comes with J2534 ECU programming device BMW Ethernet Cable(For F-Series Coding Programming), which is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new Benz / BMW ECUs and fixing software-controlled drivability issues and emission issues, update the computer software on the vehicle to the latest version.
Note: ECU Programming only for BMW / Mercedes Benz
Online ECU Programming
Autel Ultra EV supports online ECU programming for Benz and BMW vehicles, enabling advanced diagnostics and reprogramming of electronic control units (ECUs). This feature allows technicians to update software, resolve drivability issues, and enhance vehicle performance by adapting or reprogramming ECUs.
VAG Guided Functions
Autel Ultra EV supports VAG Guided Functions, as similar models, which simplifies diagnostic processes by reducing manual steps like security codes and channel numbers . This function streamlines workflows, enhancing efficiency in vehicle diagnostics.
FCA Auto Auth
After logging into AutoAuth account (registered on official website), UltraEV offers full system diagnostic, ECU programming, calibration etc for FCA in/ after 2018 (for Chrysler, Dodge, Jeep, Fiat).
Pre-Scan & Post-Scan
Pre&Post Scan reports help expedite insuran-ce company approval of repair estimates. After all issues are troubleshooted, directly generate total comparison repair report as maintenance eviden-ce.
Unmatched 10000+ Coverage, Works With OE Tools
Top Full System Scanner Autel Ultra EV supports D-PDU/SAE J2534/RP1210/DoIP/CAN FD protocols, Wider vehicle coverage for 99.99% makes in the market,which makes it compatible with oe factory tools to peform further services and programmings. Covers more than 80 US domestic, Asian and European models, including supercar, light duty and some medium duty.
Autel Maxisys Ultra EV Specification List
Operating System
|
Android 7.0
|
| Processor |
Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
| Memory |
4GB RAM & 256GB On-board Memory |
| Display |
12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen |
| Connectivity |
WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
BT v.2.1 + EDR
GPS
USB 2.0 (Two USB HOST Type A, one USB mini device)
HDMI 2.0
SD Card (Support up to 256GB) |
| Camera |
Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5 Megapixel |
| Sensors |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery |
18000mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C |
| Input Voltage |
12V/3A Adapter |
| Operating Temp |
0 to 50°C (32 to 122°F)
|
| Storage Temperature |
-20 to 60°C (-4 to 140°F)
|
| Dimensions (WxHxD) |
366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
|
| Weight |
2.18kg (4.81 lb.) |
| Protocols |
DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
Autel Maxisys Ultra EV FAQ
Q: What's the difference between MS909EV and Ultra EV?
A： The 2025 Newest Autel MaxiSys Ultra EV Scanner upgrades from MS909EV and adds newer features to improve diagnostic capacity including:
1) Fast-running hardware. Compared with the MS909EV, Autel MaxiSys Ultra EV comes with a bigger 4+256G memory.
2) Autel MaxiSys Ultra EV supports more functions, such as WIFI print reports, Pre & Post scan, remote expert, and Docking Station.
3) Autel MaxiSys Ultra EV is equipped with an advanced 5-in-1 VCMI combining VCI, oscilloscope, waveform generator, multimeter, and OBD2 CAN BUS Check, it can perform super precise and most overall diagnostic and services on 99% of vehicles on the market.
All in all, The 2025 Newest Autel Scanner Ultra EV comes with the OE-level diagnose and EVDiag Kit, so for technicians and repair shops who want to expand their new energy business, ULTRA EV is a good choice.
Q: Can it do tire pressure function and learn new sensors?
A： Autel MaxiSys Ultra EV Scanner can perform a TPMS reset, but if you want to program sensors or perform OBD relearn after changing sensors, you need to consider Autel TPMS tools, such as TS508 and TS608.
For detailed vehicle coverage and functions, please check the below link for more information.
https://autel.com/vehicle-coverage/coverage2
Select the product model and your detailed car model information, and go to search to view the functions supported.
Q: Can any car computer be reprogrammed and updated with this system?
A： Autel MaxiSys Ultra EV Scanner Ultra EV can support Benz and BWM online ECU programming.
For other vehicles, you need to use the VCMI tool with the relevant manufacturer software to perform ECU programming.
For detailed vehicle coverage and functions, please check the below link for more information: https://autel.com/vehicle-coverage/coverage2. Select the product model and your detailed car model information, and go to search to view the functions supported.
Q: What upgrades have Ultra EV made on the basis of Ultra?
A： The 2025 Newest Autel Scanner Ultra EV upgrades from Autel Ultra and adds newer features to improve diagnostic capacity including:
Except for the 5-in-1 VCMI, The 2025 Newest Autel Scanner Ultra EV adds an EVDiag Kit, making it possible to diagnose new energy vehicles. Ultra EV adds EV diagnostics, offline battery pack diagnostics, and high voltage system testing to Ultra's already powerful diagnostic functions. High-voltage system diagnostics allow for reading/ clearing codes and displaying the SOC, SOH, voltage, and battery pack status with one click, helping locate the fault. The scan tool also provides offline battery package diagnostics to ensure the efficient completion of each battery installation.
For detailed vehicle coverage and functions, please check the below link for more information: https://www.obdprice.com/pages/vehicle-coverage
Select the product model and your detailed car model information, and go to search to view the functions supported.
