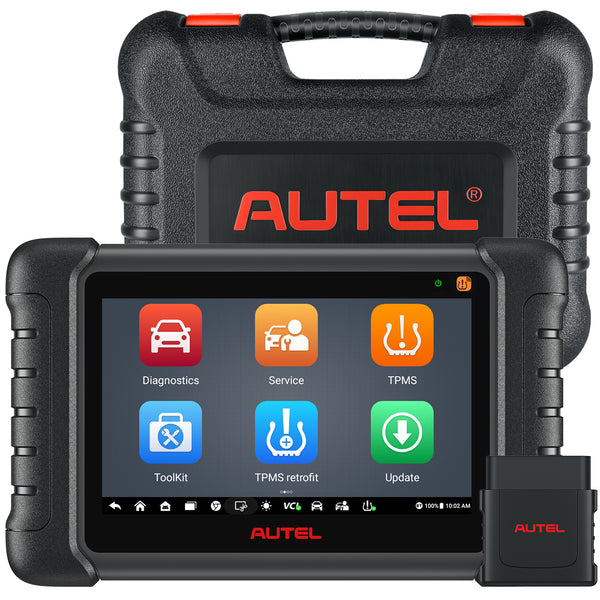

Autel MaxiDas DS808S-TS Wireless TPMS Diagnostic Tool, Complete TPMS Programming, OE-Level All Systems Diagnosis, 30+ Services, Upgraded of MP808S/ DS808TS/MP808TS, and 2 Free Autel TPMS MX-Sensor
Save up to 0%
Delivered by Sat, Sep 30 - Mon, Oct 02Ship from New Jersey or California, United States
Fast, Free Shipping & No Extra Tax
30-Day Return or Replacement
12-Month Free Warranty
Lifetime Customer Support
Pay with Ease

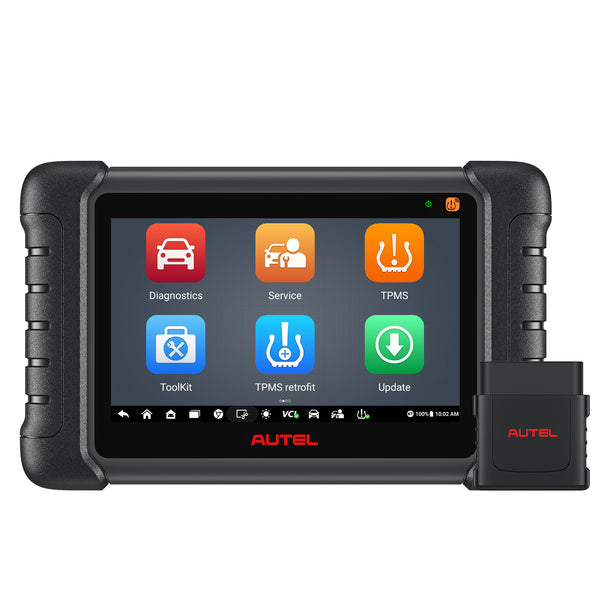

Autel MaxiDAS DS808S-TS Diagnostic Scan Tool
2023 Autel Newest TPMS & Dignostic Tool - MaxiDas DS808S-TS, Featuring a fast quad-core processor,offers maximum convenience and swift diagnosis. Together with the ability to quickly read and clear OEM enhanced codes for TPMS module of the majority of the makes and models on the market, DS808S-TS provides you with superior special functions for TPMS services with ease.
Why Choose Autel MaxiDas DS808S-TS?
99% of vehicles covered - Autel Scanner DS808S-TS is capable to diagnose almost all vehicles in the market, making it an one-for-all diagnostic scanner.
1-Year Free Software Update-After 1 year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device
A Key to Access On-board Systems - ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System.. Autel Newest Diagnostic tool MaxiPro MP808TS can solve the vast majority of problems with your vehicle.

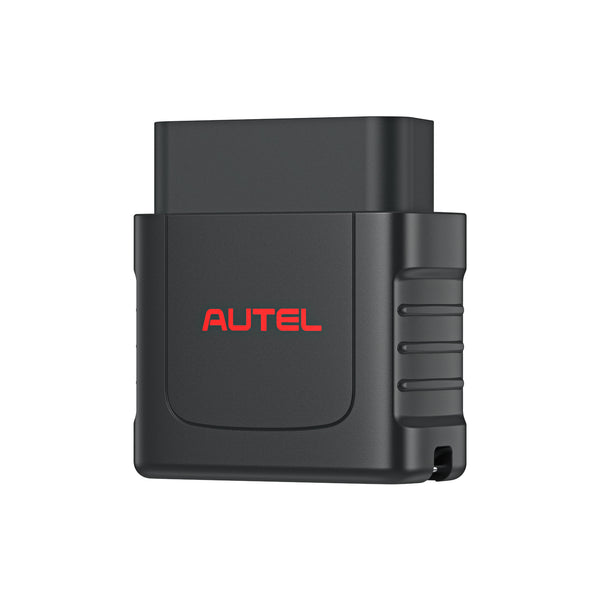

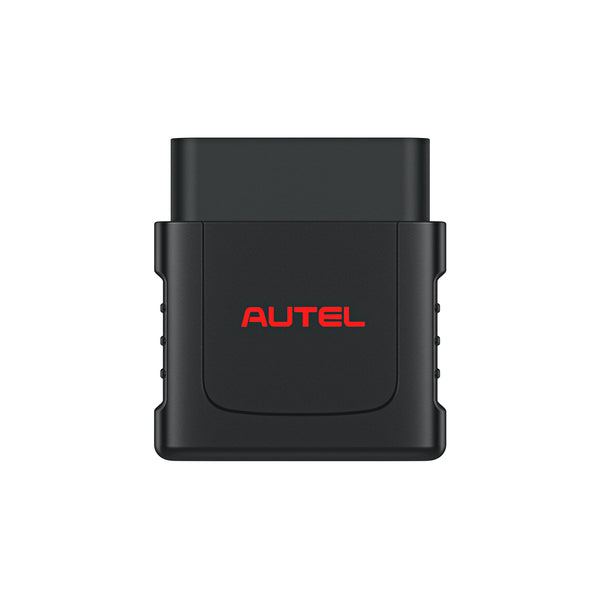

Wireless Diagnosis - Conducting wireless diagnostics through VCI module, Newest diagnostic tool MP808TS will set you free from entangled wires.
Compelete TPMS Services - Combination of MS906 and hand held TS601 which is a solid and well respected TPMS tool. As Advanced TPMS diagnostics for complete TPMS health check. Autel DS808S-TS can activate sensors, retrieve data, clone and program Autel MX-Sensors and pinpoint faults on exclusive TPMS Status Screen.
Bi-Directional Control - DS808S-TS builds a mutual communication with onboard ECUs and execute every single one of your commands
30+ Special Functions - Autel DS808S-TS Supports 30+ commonly used hot functions to meet the needs of daily maintenance diagnostic and reset.
Multi-Languages support- Autel DS808S-TS will come with default language: English, German, Spanish, If you need other language ,please send the S/N number to email@example.com after you receive the machine.

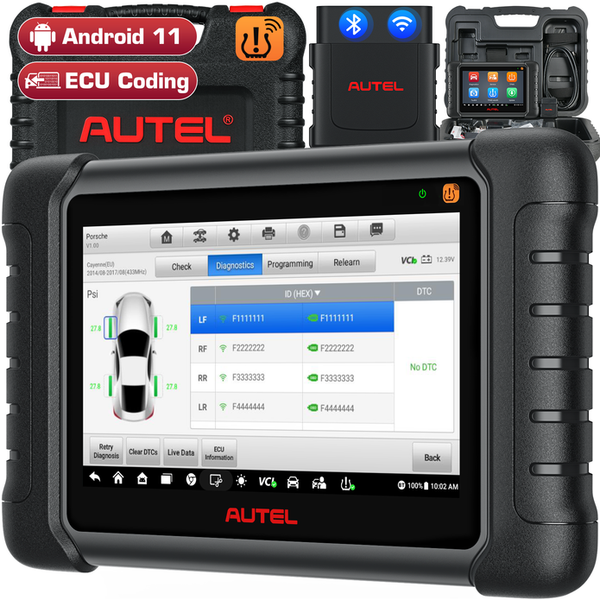

Autel DS808S-TS Compelete TPMS Services
Autel DS808S-TS is a perfect combination of Autel MS906 and TS601/608 and with same TPMS function as MS906TS. It is specially designed to fix all the TPMS issues, best used for complete TPMS health check, sensor activation, relearn , program, TPMS sensor retrofitting.
Autel DS808S-TS OE-Level Full Systems Diagnosis
The full system diagnostics give you a key to access every on-board system to root out those invisible problems such as PCM, ECM, EPS, PDM, BCM, TPM, SCCM, RADIO, etc. The Autel DS808S-TS can read and clear codes on all systems and subsystems so as to present you a clear picture of multiple sensors in different formats. And also it empowers you to read ECU information, live data and conduct active test.
Read DTCs – It can access to the depth of every onboard systems to read and analysis the DTCs
Clear DTCs – After tune-up or changing certain components, it can clear the DTCs hidden in the ECU and kill the lights on the dashboard.
ECU Information – get the retrieved ECU information in detail.
Live Data Stream – a valuable reference to determine the specific problems accurately.

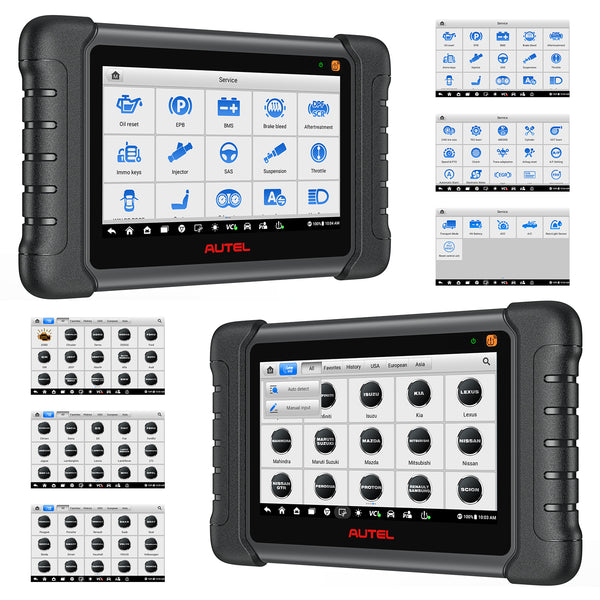

Autel DS808S-TS with 30+ Maintenance Service
A well-bred horse deserves a good saddle. A real comprehensive OBD diagnostic scanner requires all-in-one functions.DS808S-TS diagnostic tool has been upgraded with over 31 service functions, such as Oil Reset, EPB, BMS, SRS, ABS Bleed, SAS Calibration, DPF Generation, Injector Coding, Throttle Matching, Suspension Matching, TPMS, etc. Moreover, DS808S-TS can be constantly upgraded with more functions to meet your various maintenance needs.
Oil Reset - Reset the oil life system and turn off the oil light after oil or oil filter replacements.
EPB - Reset the brake pad after replacing the brake pad, the servo motor, etc., deactivate/activate the brake control system, assist with brake fluid control, open and close brake pads, etc.
BMS - Reset the monitoring unit of the car battery after replacing battery or battery monitoring sensors.、Brake/ABS Bleed: bleed the brake system when the ABS system contains air to restore its braking sensitivity.
DPF - Regeneration: clear particulate matter from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance.
Injector Coding - Write the actual code of the fuel injection nozzle or rewrite the code in the ECU to the code corresponding to the fuel nozzle of each cylinder after replacing the ECU and the fuel injector, to accurately control or correct the fuel injection amount of each cylinder.
SAS Calibration - Calibrate the steering angle after replacing steering related parts.
Suspension Level Calibration - Adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.
Throttle Adaption - Initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state.
Sunroof Initialization - Initialize the sunroof data to set the sunroof lock off, close in rain, memory function of sliding/tilting sunroof, outside temperature threshold, etc.
Seats Calibration - Specially designed for the seats with memory functions. Match the seat after repairing or replacing the seat.
Note: The reset service feature is not available on all models. Pls send VIN and your needs to 👉Contact us👈to check.
Autel DS808S-TS Advanced Function -
Autel DS808S-TS, automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.
Digital Inspection with MV108:
This allows you to examine difficult-to-reach areas normally hidden from sight, with the ability to record digital still images and videos, in a safe and quick way.
Battery Test with BT506 :
To produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, which is vital to determining a battery’s true health.

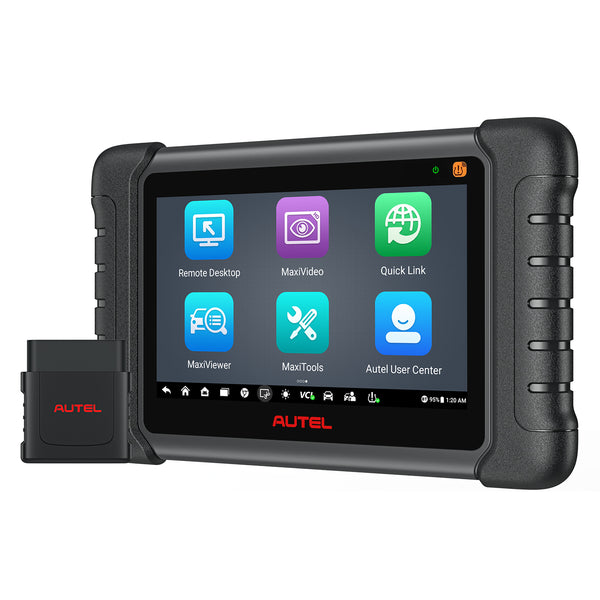

Autel DS808S-TS Other Supportive Features
Shop Manager feature keeps all data files, customer information, and vehicle records and history well organized on tablet
Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
Automatic system and software updates with real-time Wi-Fi push notifications
Remote control technology enables support to quickly repair or update tool
One-stop multitasking is designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized.

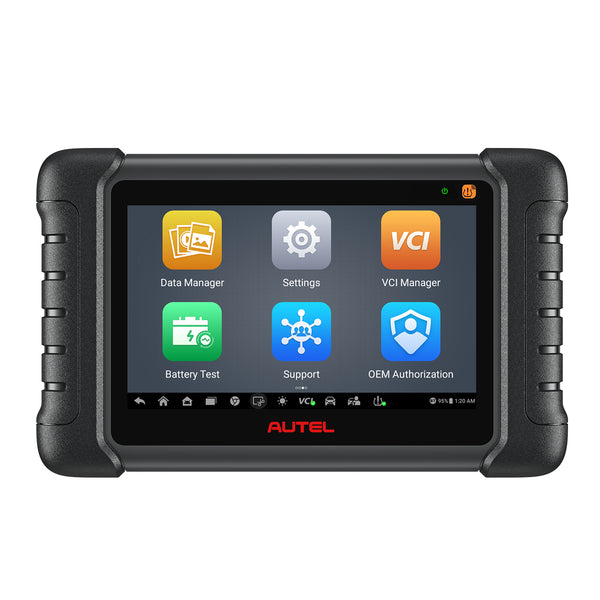

Autel DS808S-TS Specification:
7-inch LCD capacitive touchscreen with 1024x600 resolution
Mini USB 2.0 USB 2.0 Wi-Fi HDMI Type A Micro SD card slot (supports up to 32GB)
Light sensor for brightness auto adjust
Input: N/A Output: Beep
Power and Battery:
3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply
12 V (9-35 V)
-10 to 55°C (14 to 131°F)
-20 to 70°C (-4 to 158°F)
Dimensions (W x H x D):
270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
885 g (2.31 lb.)
DS808S-TS VS MS906PRO-TS VS MS906BT VS MP808TS VS MP808S
