Cyber Monday Sale Autel Robotics EVO II Pro 6K RTK Rugged Bundle [V3]

items available In Stock |
Save 7% Save 7%
Original price $2,999.00
from Original price $2,999.00
Original price $2,999.00
Current price $2,799.00
from $2,799.00
Current price $2,799.00
  • Centimeter-Level Positioning
  • Autel Explorer for Mapping
  • Moonlight Algorithm 2.0
  • 1" CMOS Sensor Gimbal Camera
  • 15KM Image Transmission
  • 360° Obstacle Avoidance
  • 12-bit DNG A-Log
  • 40 Mins Flight Time

Delivered by Wed, Dec 11 - Fri, Dec 13 Ship from New Jersey or California, United States

Service

Fast, Free Shipping & No Extra Tax

30-Day Return or Replacement

12-Month Free Warranty

Lifetime Customer Support

  • Description
  • Specs
  • Video
  • Accessories
  • Downloads
  • FAQ
  • Shipping
  • Certificate
    • Description
  • Autel EVO II Pro RTK [V3]

    The Autel Robotics EVO II Pro RTK V3 inherits all features of the original EVO II Pro drone and integrates an entirely new RTK V3 module on top, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK).

    Autel EVO II Pro RTK V3 10 Highlights

    Centimeter-Level Positioning System

    The EVO II RTK V3 series integrates an entirely new RTK V3 module, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK). The EVO II RTK V3 aircraft can record the original satellite observation data, camera exposure parameters and various other data. The positioning system supports A-RTK V3 base station and RTK V3 network, which helps to achieve accurate and stable data acquisition in complex operation environments.

    Autel Robotics EVO II RTK V3 Series Drone Centimeter-Level Positioning System

    Mission Execution With Advanced Intelligence

    EVO II RTK V3 Series aircraft offer users a full range of intelligent features and solutions to suit a variety of mission needs. Using advanced flight control and the latest AI technology, the aircraft can significantly improve mission work flows and help reduce operating costs.

    Creating Mission, Waypoint Flying, 720° Omnidirectional sensing & Obstacle avoidance, Photo Replication, No Need Ground Control Points, High Precision RTK V3/ PPK Positioning, Support A-RTK V3 High Precision GNSS Base Station.

    autel evo ii pro RTK V3 Mission Execution With Advanced Intelligence

    No Need for Ground Control Points

    The EVO II RTK V3 Series leverages a high precision RTK V3 module, supports PPK and time synchronization, and is not limited by communication links or network coverage.

    autel evo ii pro RTK V3 application

    RTK V3 High-precision GNSS Base Station

    The EVO II RTK V3 Series supports RTK V3 high-precision GNSS base station to obtain real-time differential data, which makes it possible to obtain the accurate coordinates of the designated target point. And the EVO II RTK V3 Series supports third party base stations with NTRIP capability.

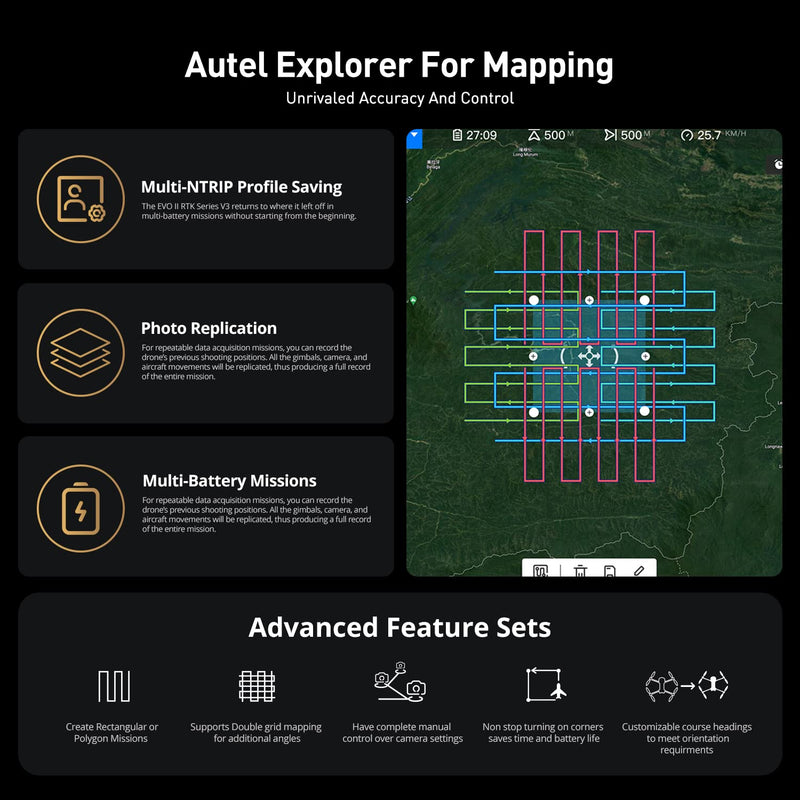

    Autel Explorer for Mapping

    Create Rectangular or Polygon Missions Non stop turning on corners Supports Double grid mapping for additional angles

    Moonlight Algorithm 2.0

    EVO II Pro V3 comes with Autel's Moonlight Algorithm 2.0, which provides additional noise reduction for improved image quality. Combined with its upgraded CMOS sensor, this drone is capable of capturing clear images and video even in low light conditions or at night.

    This feature is particularly useful for pilots who need to operate the drone in challenging lighting environments.

    Autel Robotics EVO II Pro V3 Moonlight Algorithm 2.0

    Exceptional Image Quality

    With Sony's new 20 megapixel 1-inch CMOS image sensor, the EVO II Pro V3 supports up to 6K video with greater dynamic range, stronger noise suppression, and higher frame rates. The f/2.8-f/11 adjustable aperture and 44000 maximum ISO gives photographers enhanced creative control.

    Excel in Low Light

    EVO II Pro V3 brings you Autel's Moonlight Algorithmn 2.0 with additional noise reduction processing. Paired with EVO II Pro V3's upgraded CMOS, succeed in operations with minimal lighting or in harsh lighting situations at night.

    Capture the night time world

    The EVO II Pro V3 camera featured Hyper-light mode for shooting in low-light conditions with 2D and 3D noise reduction smoothing motion blur and reducing noise.

    4K HDR Video

    the EVO II Pro V3 pairs the brilliance of 4K clarity with the brightness, color and detail of HDR. Previously hidden areas of dark shadow and sunlight are now full of clarity and details.

    Autel Robotics EVO II Pro 6K Rugged Bundle [V3] 4K HDR Video

    Post-Production Flexibility with 12-bit DNG

    The EVO II Pro V3 can take 12-bit DNG photos and is capable of recording up to 68.6 billion colors with 64 times the color rendering power of 10-bit, allowing greater flexibility in post-production.

    EVO II PRO V3 Post-Production Flexibility with 12-bit DNG

    6K Hyper-Lapse Photography

    You can enjoy your favorite moments at any time, free from post-processing as 6K mobile time-lapse as video can be exported right after recording, and JPEG/RAW format are also supported.

    16x Zoom in for the Details: EVO II Pro V3 supports 3x lossless zoom and 16 times digital zoom. Obtain clear intel from farther away without suspicion.

    Accident Reconstruction:The EVO II Pro V3 is excellent for accident reconstruciton, andis compatible with Pix4d, Drone Deploy, and Skyebrowse.

    Skylink 2.0 Video Transmission

    The EVO II PRO V3 is upgraded with Autel's all new skylink 2.0 Video Transmission technology.

    15KM HD video Transmission QHD Critical details with QHD video within 1km

    2.4G/5.8G Less signal breakups and enhanced anti-inter-ference capabilities.

    360°Obstacle Avoidance

    EVO II Pro V3 is equipped with 12 visual optical sensors, which integrates 19 sets of sensors including the main
    camera, ultrasonic wave, and IMU to build a three-dimensional map of the drone and its surroundings in real time.

    EVO II - AI Enhanced Dynamic Track

    EVO II Pro V3 can model location and speed of targets simultaneously, predict their trajectory accurately, avoiding obstacles during flight, and track them continuously while identifying up to 64 objects at the same time. The function can track the subject in three modes: behind, side-by-side, or fixed position.

    Multiple Intelligent Flight Modes

    Autel EVO II Pro V3 Drone supports multiple smart Flight Modes includes Dynamic Track, Parallel Track, Tripod Track, Viewpoint, Orbit, Gesture control, VR Flight, Waypoint and more.

    autel robotics evo ii pro flight mode

    Failsafe & Automatically Return Home

    EVO 2 Pro V3 will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.

    Maximum Performance Endless Possibilities

    40 Min Maximum Flight Time 20m/s Maximum Flight Speed

    17m/s Maximum Wind Resistance 920g Maximum Lift Capability

    Practical and Convenience Features

    Deploy Rapidly : The EVO II Pro V3 takes 45 seconds from
    launch to takeoff without fuss.

    No Forced Updates : EVO II Pro V3 does not need to be on the latest
    hardware or app version in order to take off unlike others.

    No Fly Zones: EVO II Pro V3 does not have any no fly zones and will not prevent the pilot from taking off.(Please fly safely and consult your local laws and regulations.)

    Autel Smart Controller V3

    7.9-inch ,2000nit high brightness srceen is clearly visible even under direct sunlight. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

    Broadcast with Live Deck 2

    EVO II Pro V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck 2.

    EVO II Pro RTK [V3] - Wide Application

    Public Safety

    Assess threats from a safe distance or patrol an area during an investigation, freeing up manpower for other tasks.

    Autel Robotics EVO II Pro Enterprise [V3] Public Safety

    Traffic Supervision

    Monitor traffic flow over a larger areaand crack down on traffic violationsto improve safety for everyone on theroad.

    Autel Robotics EVO II Pro Enterprise [V3] Traffic Supervision

    Power Inspection

    Zip between transmission towersto quickly spot structural damageor overheating electrical elementssaving time and labor costs.

    Autel Robotics EVO II Pro Enterprise [V3] Power Inspection

    Search and Rescue

    Quickly locate missing persons byusing automated mission modesto cover larger search areas insituations where every secondcounts.

    Autel Robotics EVO II Pro Enterprise [V3] Search and Rescue

    Firefighting

    Soar above the flames to identify hotspots, locate victims,and monitor changing conditions, reducing the risk for crew members on the ground.

    Autel Robotics EVO II Pro Enterprise [V3] Firefighting

    Accident Reconstruction

    The EVO Il Pro Enterprise V3 is excellent for accident reconstruction, and is compatible with Pix4D,DroneDeploy,and SkyeBrowse.

    EVO Il Pro V3 Enterprise Accident Reconstruction

    Mapping

    Autel EVO II Pro Enterprise V3 is the perfect choice for any aerial cinematographer or mapping pilot.

    Autel EVO II Pro Enterprise V3 Mapping

    • Specs
  • Autel EVO 2 Pro V3 Specs

    • Aircraft

      Takeoff weight 1191 g
      Max takeoff weight 2000 g
      Wheelbase 397 mm
      Size(L*W*H) 230x130x108 mm (folded)
      457x558x108 mm (unfolded)
      Maximum service ceiling altitude 7000 m
      Max ascent speed 8 m/s (Ludicrous)
      Max descent speed 4 m/s (Ludicrous)
      Max horizontal flight speed 20m/s (Ludicrous)
      Max flight distance (no wind) 25 km
      Max tilt angle 33° (Ludicrous)
      Max angular velocity 120°/s
      Max flight time (no wind) 40 min
      Max hovering time (no wind) 35 min
      Operating temperature range -10℃ ~ 40℃
      Maximum resistance to wind 12 m/s (Take-off and landing)
      Operating frequency 902-928MHz (FCC Only)
      2.400-2.4835GHz
      5.725-5.850GHz (non-Japan)
      5.650-5.755GHz (Japan Only)
      Transmission power 900M
      FCC/ ISED:≤31dBm
      2.4G
      FCC/ ISED:≤32dBm
      SRRC/CE/MIC/RCM:≤20dBm
      5.8G (non-Japan) ; 5.7G (Japan)
      FCC/ISED/SRRC/MIC:≤33dBm
      CE/ RCM:≤14dBm
      Hovering accuracy Vertical: ±0.1 m (when the visual positioning is working normally);
      ±0.5 m (when GPS works normally)
      Horizontal: ±0.3 m (when the visual positioning is working normally);
      ±1.5 m (when GPS works normally)
      GNSS GPS/Beidou/Glonass/Gallieo
      Internal storage 8GB
      SD storage max. support 256GB (UHS-3 or Class 10)
    • Gimbal

      Gimbal 3-axis stabilization
      Mechanical range Tilt: -135° to +45°;
      Pan: -100° to +100°
      Controllable rotation range Tilt: -90° to +30°;
      Pan: -90° to +90°
      Max control speed (Tilt) 300°/s
      Angular Vibration Range ±0.005°
    • Remote controller and image transmission

      Operating frequency 902-928MHz (FCC Only)
      2.400-2.4835GHz
      5.725-5.850GHz (non-Japan)
      5.650-5.755GHz (Japan Only)
      Transmission power FCC:≤33dBm
      CE:≤20dBm@2.4G,≤14dBm@5.8G
      SRRC:≤20dBm@2.4G,≤33dBm@5.8G/5.7G
      Max Transmission Distance (unobstructed, free of interference) FCC:15km
      CE:8km
      Display screen 2340x1080 60fps
      Battery 1900mAh
      Operating time ~2 hours (Max. Brightness)
      ~3 hours (50% Brightness)
      Charging time 90 minutes
      Internal Storage ROM 128GB + expandable storage via micro-SD card
    • Sensing system

      Sensing system type Omnidirectional sensing system
      Forward Accurate measurement range: 0.5-18 m
      Effective sensing speed:<12m/s
      Viewing angle: Horizontal: 60°, Vertical: 80°
      Backward Accurate measurement range: 0.5-16 m
      Effective sensing speed:<12m/s
      Viewing angle: Horizontal: 60°, Vertical: 80°
      Upward Accurate measurement range: 0.5-10 m
      Effective sensing speed:<5m/s
      Viewing angle: Horizontal: 65°, Vertical: 50°
      Downward Accurate measurement range: 0.5-10 m
      Effective sensing speed:<5m/s
      Viewing angle: horizontal: 100°, vertical: 80°
      Left and right Accurate measurement range: 0.5-10 m
      Effective sensing speed:<5m/s
      Viewing angle: horizontal: 65°, vertical: 50°
      Operating Environment Forward, Backward and Sides:
      Surface with clear pattern and adequate lighting (lux > 15)
      Upward:
      Detects diffuse reflective surfaces (>20%)
      (walls, trees, people, etc.)
      Downward:
      Surface with clear pattern and adequate lighting (lux > 15)
      Detects diffuse reflective surfaces (>20%)
      (walls, trees, people, etc.)
    • Camera

      Sensor 1 inch CMOS; 20M pixels
      Lens FOV: 82°
      Equivalent focal length: 29 mm
      Aperture: f/2.8 - f/11
      Focus range: 0.5 m to infinity
      ISO range Video: 100-44000
      Photo: 100-6400
      Shutter speed Photo mode: 1/8000 ~ 8s
      Other: 1/8000 ~ 1/frame rates
      Zoom 1-16x (up to 3x lossless zoom)
      Photo mode Single shot/Burst shooting/AEB/Time Lapse/HDR
      Maximum photo size 5472*3648 (3:2)
      5472*3076 (16:9)
      3840*2160 (16:9)
      Image Format JPG (default) / DNG / JPG+DNG
      Photo mode 5472x3076P30/P25/P24
      3840x2160P60/P50/P48/P30/P25/P24
      2720x1528P60/P50/P48/P30/P25/P24
      1920x1080P60/P50/P48/P30/P25/P24
      Video format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
      Max bitrate 120Mbps
      Supported file system FAT32/exFAT
    • Battery

      Capacity 7100 mAh
      Voltage 11.55 V
      Battery type LiPo 3S
      Energy 82 Wh
      Weight 365 g
      Charging temperature range 5℃ to 45℃
      Storage temperature and humidity -10~30℃,65±20%RH
      Recommended storage temperature 22-28℃
      Max charging power 93W
      Charging time 90 minutes
    • Charger

      Input 100-240 V, 50/60 Hz, 1.5A
      Output 13.2 V ⎓ 5 A
      5V⎓3A 9V⎓2A 12V⎓1.5A
      Voltage 13.2±0.1V
      Rated power 66W
    • Multi-Charger

      Voltage 13.2 V
      Charging temperature range 5℃ to 45℃


    • Video
  • Autel EVO II RTK Series

    Autel EVO II Pro 6K: Review + Flight Footagee

    Introducing: EVO 2 Series

    Experience: Shot On EVO II Pro 6K Drone

    • Accessories

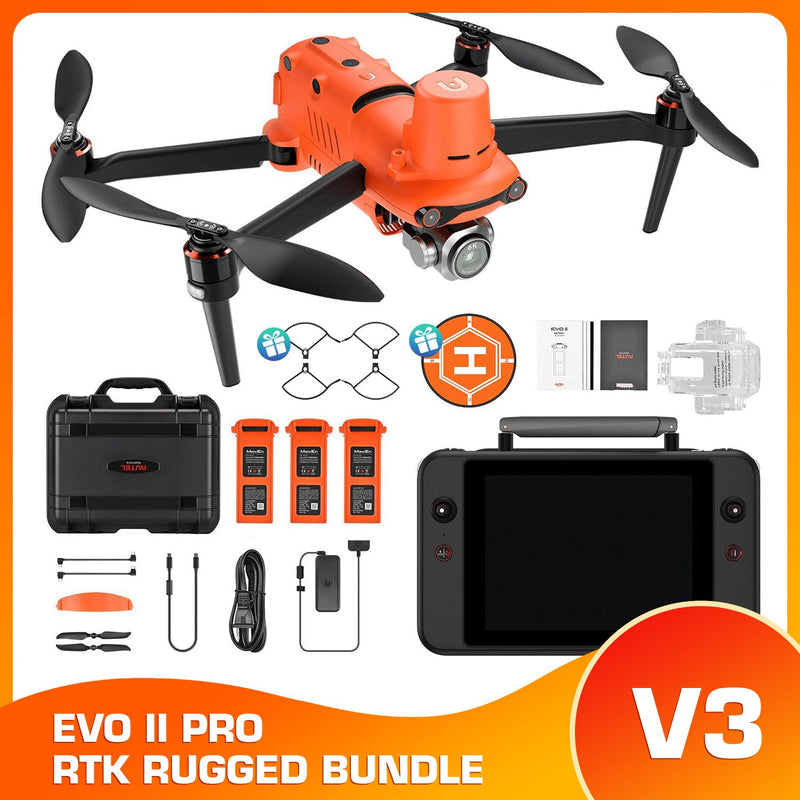

  • Autel EVO II Pro V3 RTK Rugged Bundle Package List

    • Downloads
  • Name

    Download

    EVO II RTK V3 Brochure - EN.pdf

    Specs For EVO II RTK Series V3 - .pdf

    Autel Smart Controller V3 Brochure

    Specs For Autel Smart Controller V3

    Autel Live Deck 2 Brochure

    Specs For Autel Live Deck 2

    • FAQ
  • EVO II Pro V3 RTK FAQ

    Q: What is the RTK positioning accuracy?
    A: 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)

    Q: Which RTK base station modes are currently supported?
    A: The A-RTK base station is currently supported.

    Q: Is the gimbal replaceable?
    A: Yes, and the aircraft comes built-in with 8GB internal memory.

    Q: What is the difference between EVO II and EVO II Pro?
    A: Yes. The product adopts a modular design, allowing for the payload to be replaced as needed.

    Q: How long does it take to fully charge the battery?
    A: It takes about 90 minutes to fully charge each battery.

    Q: What app does this RTK drone using?
    A: Autel EVO 2 PRO RTK uses Autel Explorer, which has lots of advanced features such as Multi-NTRIP Profile Saving, Photo Replication and Multi-Battery Missions etc.

    Q: Does the evo ii rtk version 3 have "no fly zones"?
    A: Autel EVO II RTK Series V3 does not have any no fly zones and will not prevent the pilot from taking off.

    Q: Does this mappng drone support 3rd Party Base Station?
    A: Yes, Autel EVO 2 PRO RTK V3 supports all NTRIP-compatible base stations.

    • Shipping
  • Free Worldwide Shipping

    shipping policy

    Where is my order shipped from?

    We provide worldwide free shipping! And all orders will be shipped from the warehouse nearest to you and carried by DHL, FedEx, UPS, USPS, DPD, or Royal Mail according your address. Following is the location where our warehouse located at and estimate develiry date for reference.

    Your Address Shipping Location Delivery Estimated
    United States/ Canada CA, US NJ, US 3-5 Days
    Europe Germany 5-7 Days
    United Kingdom Leicestershire, UK 5-7 Days
    Australia Sydney, AU 7- 10 Days
    Other Countries HongKong 7-15 Days

    Order Processing Time

    All our order are processed and shipped out within 24 hours (excluding weekends and holidays).

    After the order is shipped out and received by the carrier, we will update you by email with a Track-and-Trace code with which you can follow your package and see the remaining shipping time.

    Please allow 24-48 hours for the tracking information to update.

    Shipping Address Change

    If you would like to change the shipping address for your order, please contact us by email with the new shipping address. Once the order is shipped, we can not alter the shipping address anymore.

    International Shipping Duties & Taxes

    - For international order. If the items don't ship from your local warehouse in your country/ region, you, the customer, will be responsible for the import duty, but please don't worry, We will decrease the declared value to reduce your import tax.

    For more details of the Import Tax, please visit Import Duty

    Returns, Refunds, and Exchanges

    We provide a 30-Day Returns Service after delivery, If you are not satisfied with the item you bought or change your mind, please contact us for a return shipping address and ship all the items back to us for a refund in their original package.

    For more details of the return policy, please visit our Return Policy

    • Certificate
  • Autel Authorized Dealer

    Obdprice.com is Autel Authorized Exclusive Online Dealer. Products Created by Autel ® Innovation & Quality You Can Trust.

    autel scanner UK authorized dealer
