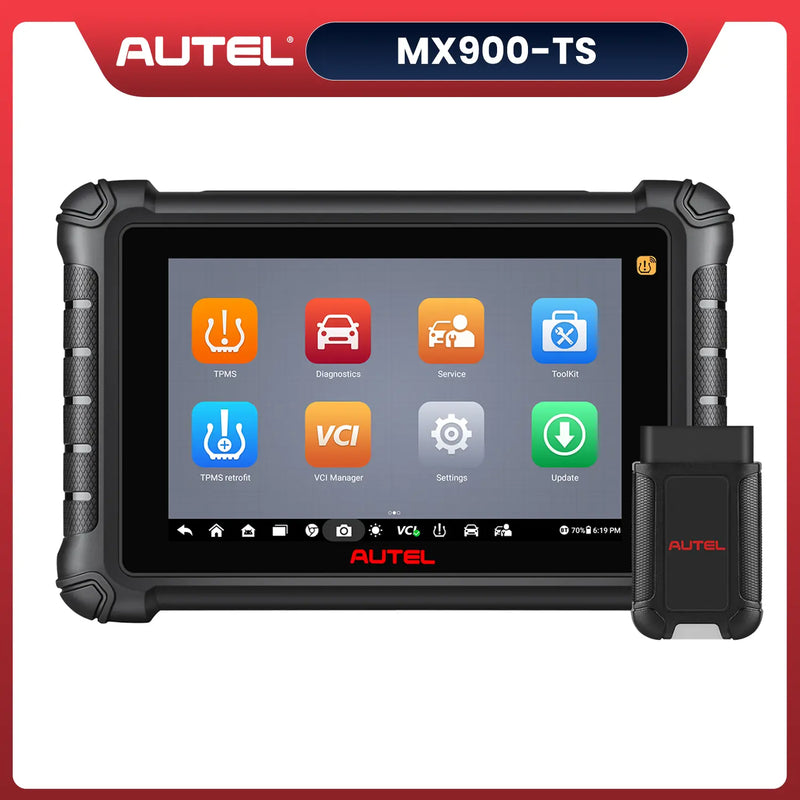

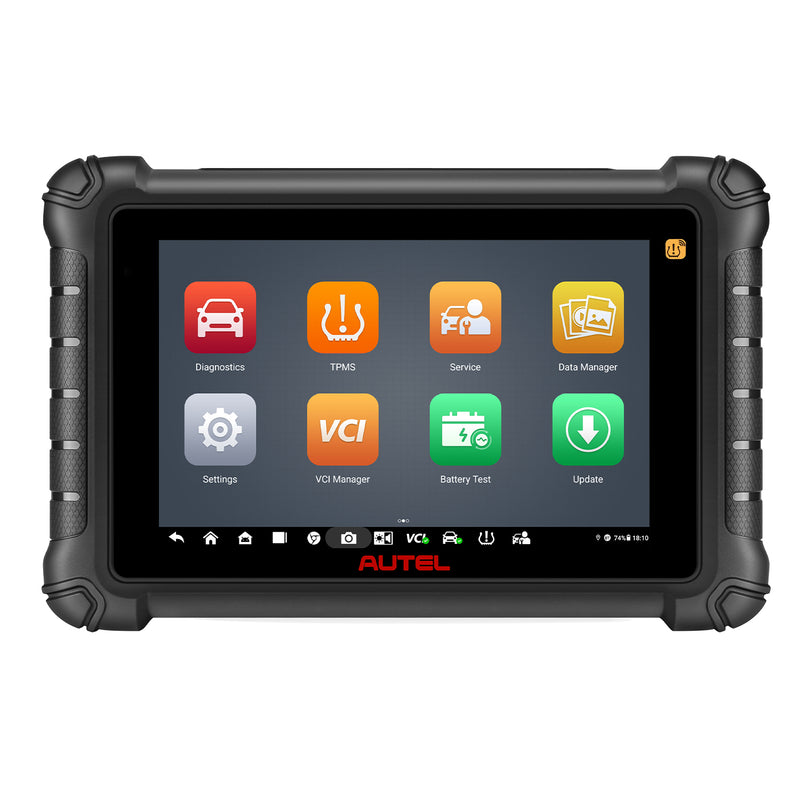

Autel MaxiCheck MX900TS MX900-TS All System Diagnostic Scanner with Full TPMS Functions, Bi-Directional Control, 40+ Services, Updated Of MX808TS/MX808S-TS/MK808TS

items available In Stock |
from Original price
Original price
from $809.00
Current price $809.00
Item: MX900TS

Delivered by Thu, Jul 25 - Sat, Jul 27 Ship from New Jersey or California, United States


Fast, Free Shipping & No Extra Tax

30-Day Return or Replacement

12-Month Free Warranty

Lifetime Customer Support

Pay with Ease
Trusted Delivery
free shipping by USPS, UPS or FedEx
  • Description
  • Comparison
  • Accessories
  • Shipping
  • Certificate
    • Description
  • Autel MaxiCheck MX900-TS Diagnostic Scanner - 2024 Newly Released

    Autel released the MaxiCheck MX900-TS in 2024 as the new version of MaxiCheck MX808TS, MX808S-TS, MK808TS, and MK808S-TS. The MaxiCheck MX900-TS is designed to cover a wider range of vehicles and functions, with updated software and hardware. As a result, it has become one of the most cost-effective bidirectional scan tools in the Autel family.

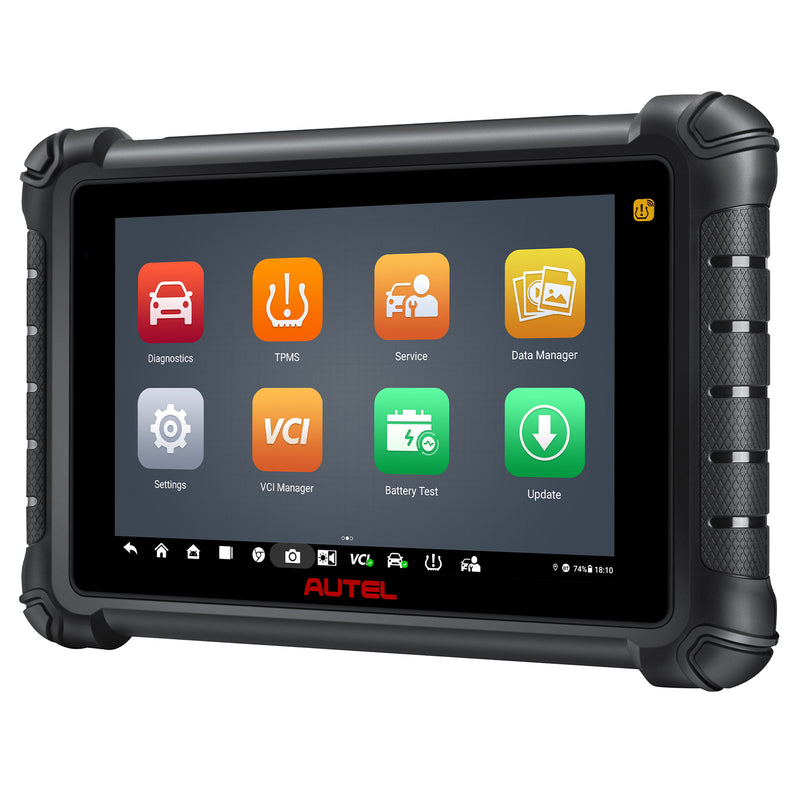

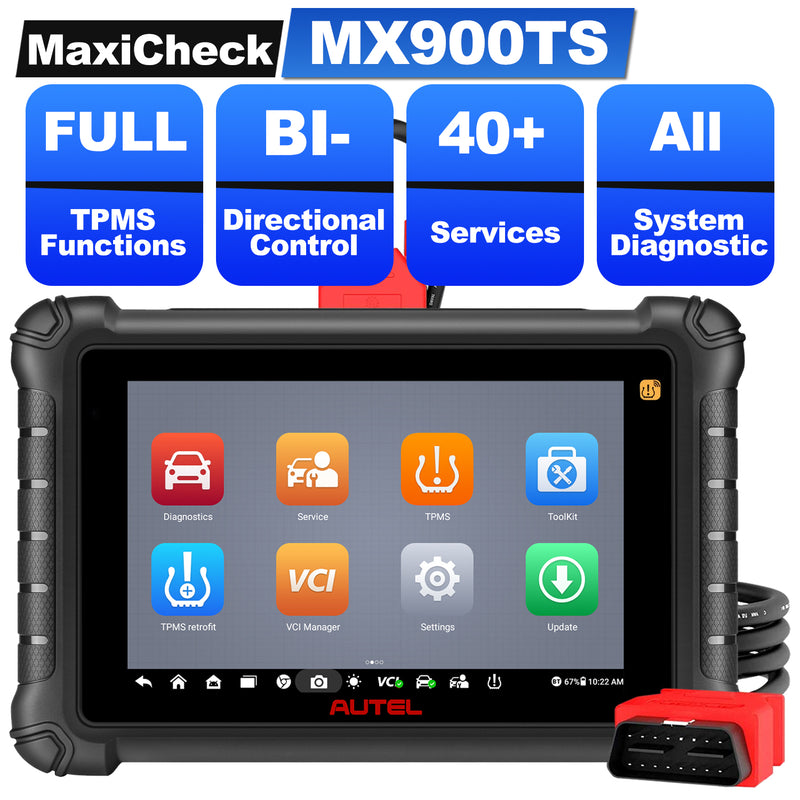

    Autel MaxiCheck MX900TS MX900-TS All System Diagnostic Scanner

    MaxiCheck MX900-TS Newly Added Functions in 2024

    • Support Pre & Post Scan
    • Support Scan VIN
    • Support DoIP & CAN FD Protocol
    • Superior Hardware: Android 11.0, 1280*800 Screen resolution, 8'' LCD Screen, 7700mAh Battery Capacity and Rear 8 MP
    • Support Wifi Print

    Top Reasons to Choose MaxiCheck MX900-TS

    • OE-Level All Systems Diagnostic: Autel MaxiCheck MX900-TS diagnostic tablet scanner can access and scan all available electronic systems to read and clear codes, view live data stream, and retrieve ECU information.
    • Bi-Directional Control/Active Test: Thanks to the full bidirectional control feature, MX900-TS can do everything Autel MX808TS does. Autel MX900-TS bidirectional scanner control various systems and components of the vehicle
    • 40+ Service Functions: Autel MaxiCheck MX900-TS car diagnostic tool also provides 40+ services including Oil Reset, EPB, SAS Reset, D-P-F Regeneration, Throttle Reset, ABS Bleed, Battery Registration, Injector Coding, WIN DR Roof,Cylinder, Headlamp and so on.
    • Full TPMS Functions: Easily diagnose and service TPMS, activate/relearn 99% of known sensors, and program MX-sensors.
    • Enhanced Hardware: Autel MX900-TS is equipped with Android 11.0 OS, ROCKCHIP RK3566 CPU, 4G RAM & 64G ROM, 5X Faster, 8-inch LCD capacitive touchscreen and 8 MP Rear Camera.
    • Wide Coverage: Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes after 1996. Ford, Ford(EU), GM, Chrysler, Dodge, Jeep, BMW, etc.
    • AUTO VIN & AUTO SCAN: Autel MX900-TS diagnostic scan tool can quickly work on specific vehicles to retrieve VIN information and perform comprehensive scan on all available systems for efficient and accurate diagnosis and services.
    • Extensive Functions: Support Pre & Post Scan, DoIP & CAN FD Protocol and Wifi Print, while MX808TS does not support.
    • 1-Year Warranty: Offering 1-Year Warranty and 1-Year-free software update for Autel MX900-TS.

    Autel MaxiCheck MX900-TS with Powerful TPMS Diagnostic System

    MaxiCheck MX900-TS TPMS Car Diagnostic Tool can perform OE-Level TPMS Diagnostics and find TPMS-Related DTCS, it features to check the TPMS Module Status: Read/Clear trouble codes from TPMS, read live data to check the module status, turn off the error light. It will also provide an efficient method to quickly and accurately determine the current vehicle's model, year and frequency information, avoiding TPMS matching failure caused by incorrect selection.

    Autel MX900-TS with Dealership Level All System Diagnostic

    Autel MaxiCheck MX900TS MX900-TS All System Diagnostic Scanner with OE All System Diagnostic

    Autel MaxiCheck MX900-TS 2024 Model performs comparable to the diagnostic capacity of the original factory. It works well to read & clear codes, ECU information reading, read live data, view freeze frame, graphic data, and performs special functions for all available systems.

    The MX900-TS is your best choice for all system diagnostic, including Anti-lock Brake System(ABS), Electronic Parking Brake(EPB), Battery Mange System(BMS), Supplemental Restraint System(SRS), Steering Angle System(SAS), Air Conditioning System, etc.

    Autel MaxiCheck MX900-TS With Bi-Directional Control

    Autel MaxiCheck MX900-TS Scanner performs bi-directional control, which is able to transmit control commands to operate the vehicle systems. This function is useful in determining whether the ECM responds to a command well.

    Autel MaxiCheck MX900-TS With Bi-Directional Control

    To be more clear, I will take an example for you:

    • If one part of your vehicle didn't work, you are able to use the Autel MX900-TS scanner to quickly shot the trouble without removing any parts. So convenient for Home Mechanic and Workshop!
    • Here are some specific application situations:
      • Turn on / off Doors & Windows & Lights
      • Adjust the Window Wipers & Headlamp
      • Mirrors Folding / Unfolding
    • Note: Autel MX900-TS is not universal for all vehicles, if you are interested in this device, email us with your vehicle VIN for a compatible check.

    2024 MaxiCheck MX900-TS with 40+ Maintenance Services

    MaxiCheck MX900-TS with 40+ Maintenance Services

    Maybe you are always haunted by the following situations:

    • Highly Maintenance and Repair Costs
    • IP Limited & Low Coverage
    • Outdated device

    Fortunately, with 40+ maintenance services, wide coverage, and high-frequency updating, this Autel MaxiCheck MX900-TS Diagnostic Scan tool is able to perfectly relieve your anxiety.

    The services are included but not limited Oil Reset, EPB Reset, TPMS Reset, ABS Bleed, BMS Reset, Throttle Matching, SAS Calibration, Suspension Calibration, Airbag Reset, ABS & SRS, WIN DR Roof, Seats Calibration, Language Change, Headlamp Matching, Cylinder, Clutch, A/F Setting, etc.

    Note: The compatible services may differ from different vehicles.

    Injector Coding: Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;

    Brake Reset: Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;

    GEAR Learn: Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.

    Key Coding: Help ECU to recognize the new keys when you need to add new keys, and delete the lost keys;

    Oil Reset: Reset the oil life systems every time the oil and oil filter are changed;

    SAS Reset: Perform steering angle sensor calibration and clear records;

    BMS Reset: Evaluate the battery charge state, register the battery replacement, etc.

    ABS Bleeding: When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;

    Relearn Throttle: Initialize the throttle so that the “learned” values stored on ECU are returned to the default state;

    DPF REG: Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance;

    MaxiCheck MX900-TS with Wide Coverage

    Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes after 1996.

    Ford, Ford(EU), GM, Chrysler, Dodge, Jeep, BMW, Mini, Benz, Benz Sprinter, Maybach, Smart, Volvo, Land Rover, Jaguar, Porsche, Volkswagen, LT3, Volkswagen CV, Audi, Bentley, Lamborghini, MAN_LD, Seat, Skoda, Bugatti, Renault, Dacia, Samsung, Opel, Vauxhall, Peugeot, Citroen, Fiat, Abarth, Lancia, Toyota, Acura, Daewoo, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Nissan GT-R, Scion, Subaru, Suzuki...

    Autel MaxiCheck MX900-TS with Wide Coverage

    Note: Autel MaxiCheck MX900-TS is not universal for all vehicles, please email us at, and send us your VIN to have a compatible check.

    MaxiCheck MX900-TS Extensive Functions

    Work with MV108S & BT506

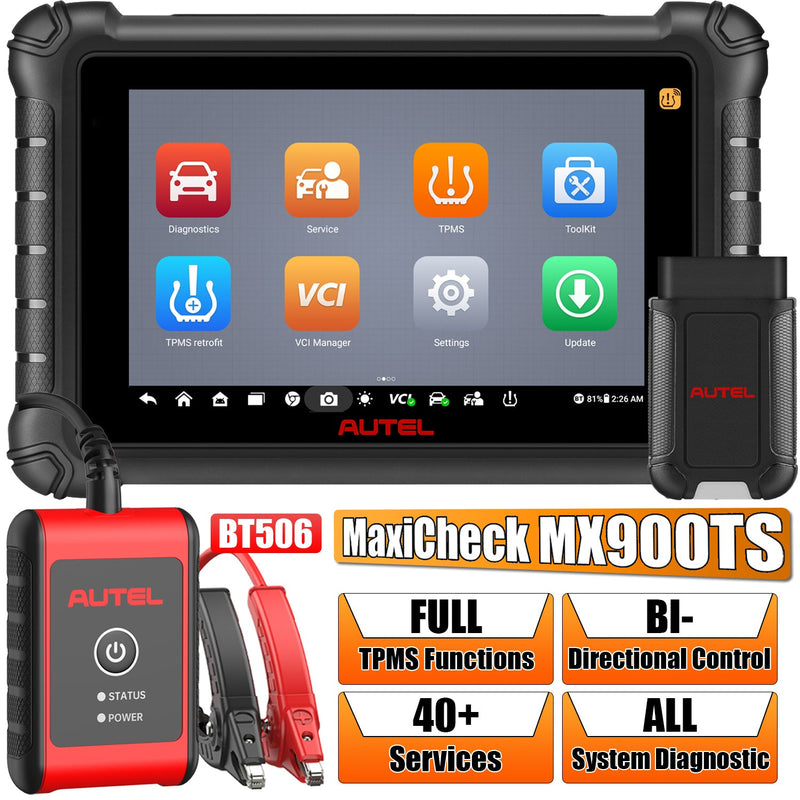

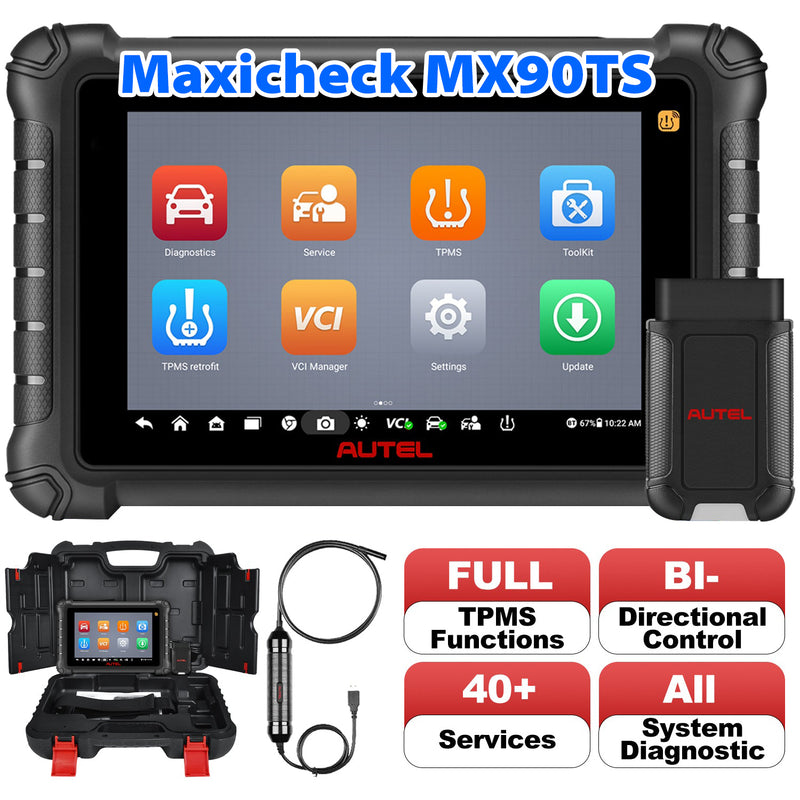

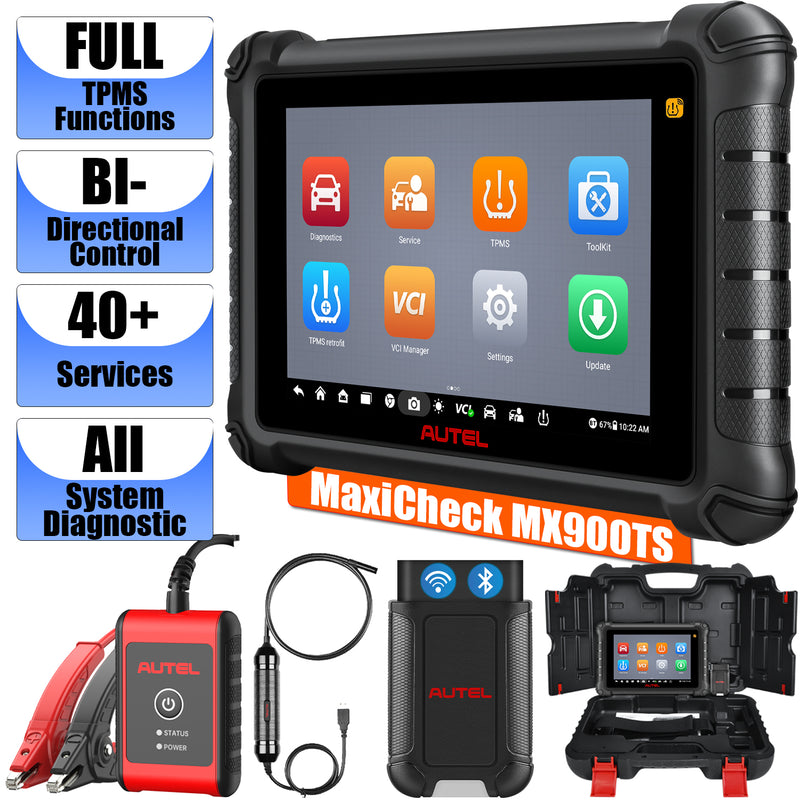

    This OBD II Scanner MX900-TS is compatible with Autel Digital Inspection Cameras(MV105S/MV108S) & Autel Battery Tester(BT506) which is sold separately and this MX900-TS will help you view more credible images.

    More help will be provided

    Remote Desk allows you to quickly get the support from Autel's technicians

    Auto VIN

    This function allows you accurately and fast identification of Vehicle Information

    Specifications about Autel MX900-TS

    Operating System Android 11
    Processor Quad core Processor(1.8GHz)
    Memory 4GB RAM &64GB ROM
    Display 8-inch LCD capacitive touchscreen with 1280x800 resolution
    Rear Camera 8 MP
    Connectivity USB Type-C
    USB 2.0
    Mini SD card (supports up to 64GB)
    Audio Input/Output Input: N/A
    Output: buzzer
    Power and Battery 3.7 V/7700mAh lithium-polymer battery
    Charges via 5 VDC power supply
    Battery Charging Input 5V/3 A
    Operating Temp 0 to 50°C (32 to 122°F)
    Storage Temp -10 to 60°C (14 to 140°F)
    ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD
