4PCS Autel MX-Sensor 315MHz TPMS Sensor Rubber Stem Tire Pressure Sensors Programmable Winter Snow Tire Exchange

by obdprice | 1 review
Save 6% Save 6%
Original price $116.00
Original price $116.00 - Original price $116.00
Original price $116.00
Current price $109.00
$109.00 - $109.00
Current price $109.00
Return:
30-Day Return or Replacement More >>
Shipping:
Free Worldwide Shipping
Payment:
PayPal payment
  • Description
  • Downloads
  • Shipping
  • Certificate
    • Description
  • Note ! ! !

    Autel 1-Sensor combines both 315MHz + 433MHz frequencies into one TPMS sensor which has the totally same function as a single 315MHz or 433MHz sensor while having a wider vehicle coverage. If you are looking for an Autel 315MHz or 433MHz sensor, please prefer to choose Autel 1-Sensor.

    Autel 1-Sensor Metal Version 👉 https://www.obdprice.com/products/4pcs-autel-1-sensor-315mhz-433mhz-2in1-tire-pressure-sensors-tpms-sensor

    Autel 1-Sensor Rubber Version 👉 https://www.obdprice.com/products/autel-2in1-sensor-dual-frequency-tpms-sensor-rubber-valve

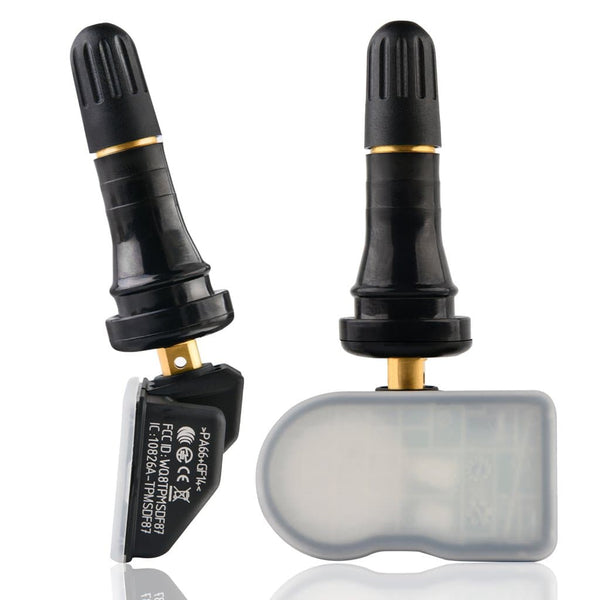

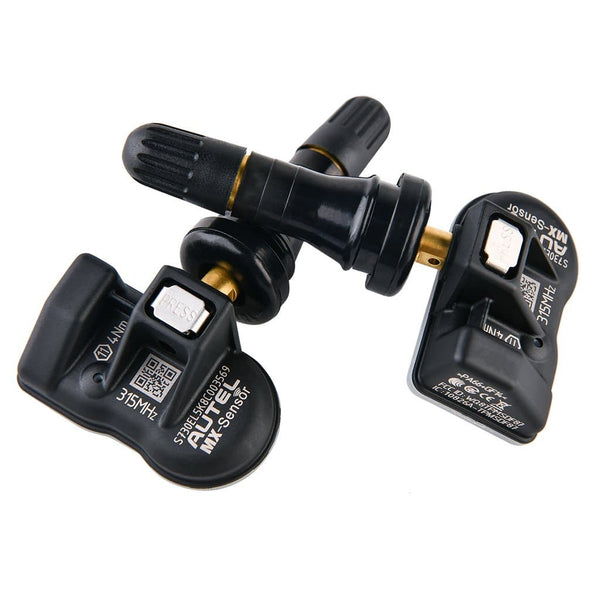

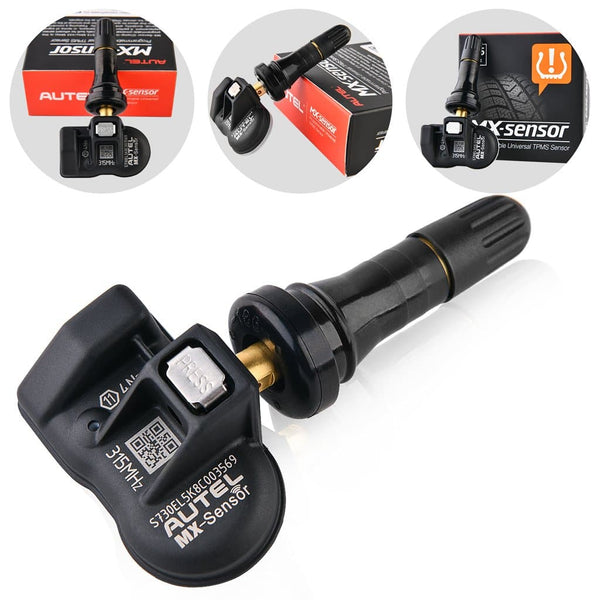

    Autel 315MHz MX-Sensor R

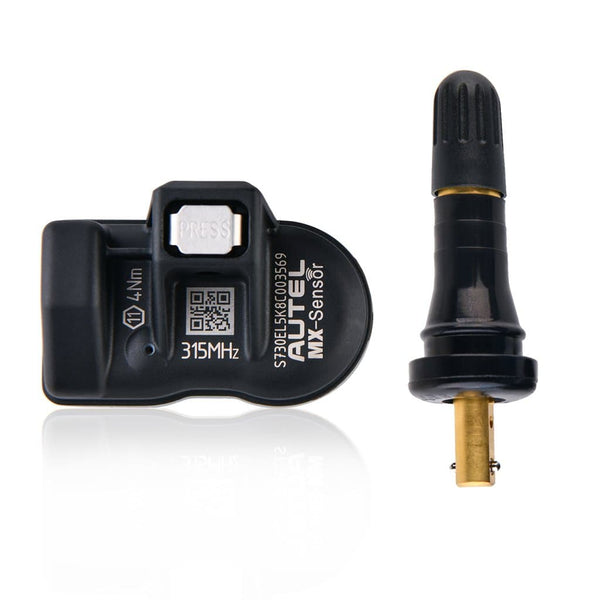

    • Autel MX-Sensor interchangeable valve stems provide a limited 2-SKU inventory required for 98% vehicle coverage. The exclusive MX-Sensor patented PRESS release valve design, allows rubber and metal valve stems to freely interchange by hand, without requiring a tool for sensor head fitting. Built to match or exceed OEM sensors in frequency strength and durability, MX-Sensors are 100% ID clone-able with no relearn required and offer latest model vehicle coverage because they quickly update with an Autel wireless programming tool.

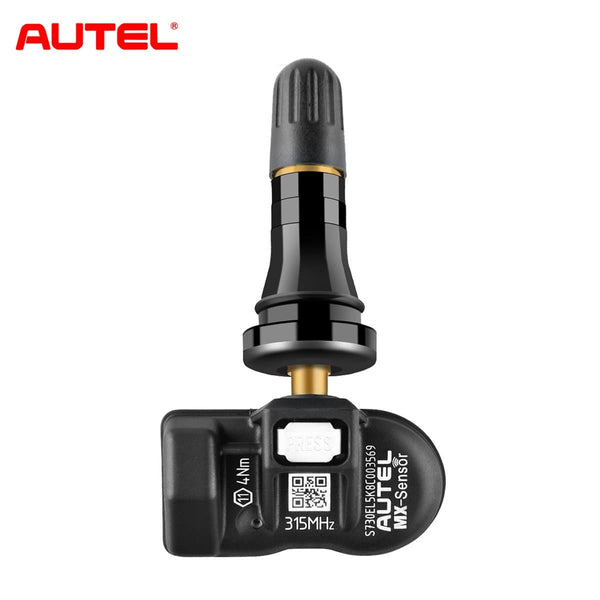

    Rubber autel mx-sensor 315mhz

    Winter / Snow Tire Replacement?  Why Choose Autel MX-Sensor?

    • Autel introduces new MX-Sensor with interchangeable rubber and metal valves to replace 98% of OE sensors with only 2-SKU types. The exclusive patented Press design allows rubber valve and metal valve to be interchangeable by hand, which minimizes installation time and provides a quick and simple assembly.
    autel mx-sensor with 2sku type to replace 98% of OE sensors autel 315mxha mx-sensor advantage

    Autel 315MHZ Sensor Specification:

    • Battery Life: 4-6 years
    • Operating Temperature: -40°C to +125°C
    • Storage Temperature: -40°C to +35°C
    • Operating Humidity: ≤90%
    • Operating Frequency: 315 MHz
    • Pressure Monitoring Range: 0 to 800 kPa
    • Pressure Reading Accuracy: ±10 kPa
    • Temperature Reading Range: -40°C to +125°C
    • Temperature Reading Accuracy: ±5°C
    • G Sensor Reading Accuracy: ±15%
    • Transmission Power: 5-8 dBm
    • Battery: 3.0 V
    • Dimensions (W x H x D): 54.2 mm x 29.4 mm x 19.1 mm
    • Weight (Without Valve): 15.6 g

    autel mx-sensor details display and technical data

    Installation Process for Rubber Stem (Screw-In):

    • 1. Loosening the tire: Remove the valve cap and core and deflate the tire. Use the bead loosener to unseat the tire bead.
    • 2. Dismounting the tire: Clamp the tire onto the tire changer, and adjust the valve at 1 o’clock relative to the tire separation Insert thetire tool and lift the tire bead onto the mounting head to dismount the bead.
    • 3. Dismounting the sensor: Depress the Pressbutton on the sensor body. Carefully pull the sensor body straight back off the valve. Cut the rubber bulb and attach a standard tire valve extractor to the valve. Remove the valve from the rim by pulling through the rim.
    • 4. Mounting sensor and valve:
    1. ) Connect the sensor body and valve stem at a suitable angle (normallyuse the maximum angle of 30 degrees) and tighten the screw. Apply tire soap or lube solution to the rubber valve stem.
    2. ) Line the sensor up with the rim hole and attach a standard tire valve extractor to the end of the valve.
    3. ) Pull the valve stemstraight through the valve hole. Note the rubber bulb of the valve resting against the rim.
    • 5. Mounting the tire: Place the tire on the rim, make sure that the valve faces the separationhead at an angle of 180 degrees. Mount the tire over the rim.

    how to install tire pressure sensor?

    Autel 315MHz MX-Sensor Package:

    • 1pc x 315mhz mx-sensor rubber stem
    • 1pc x user manual
    • Downloads
  • Name

    Download

    Autel-MX-sensor-315mhz-R-Quick-Start-Guide.pdf

    Autel-MX-Sensor-Valve&Accessories(US-Version).pdf

    TPMS-Problem-Feedback-Form.pdf
