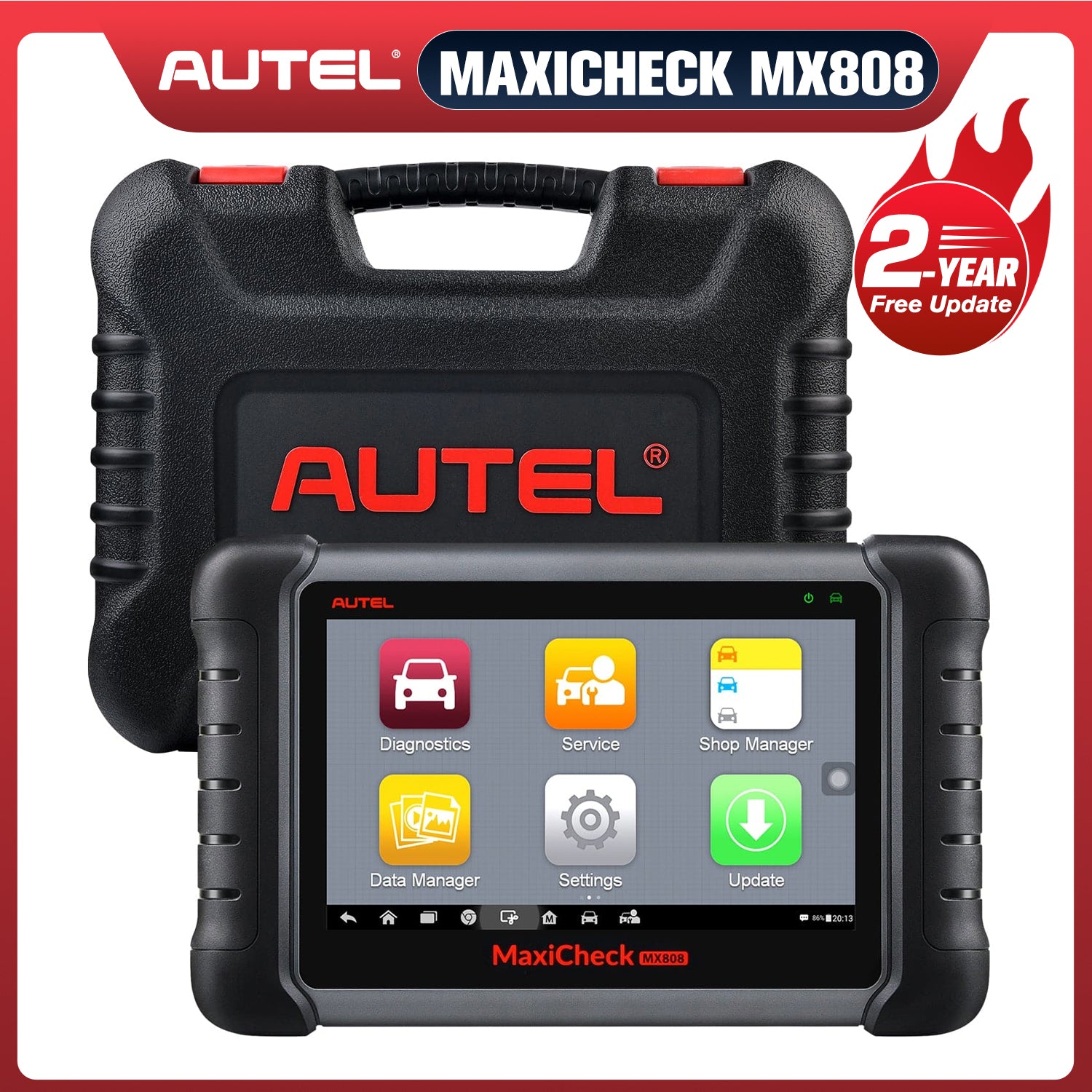

Autel MaxiCheck MX808 Diagnostic Scan Tool Same as MK808 OBD2 Car Scanner with All System Diagnostic, 25+ Service Functions
Autel MaxiCheck MX808

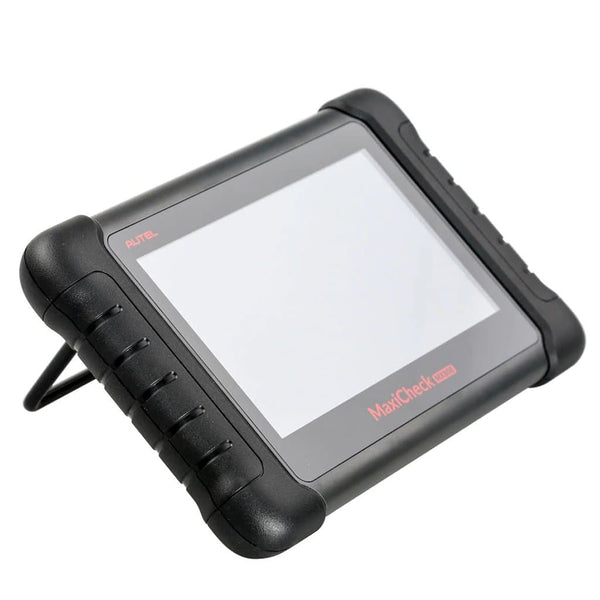

Autel MaxiCheck MX808 is a portable all system OBD II diagnostic scanner. Installed with a fast quad-core processor, MX808 offers maximum convenience and swift diagnosis. The intuitive user interface makes using the device effortless through a 7-inch LCD touch screen that displays at 1024 x 600 quality.

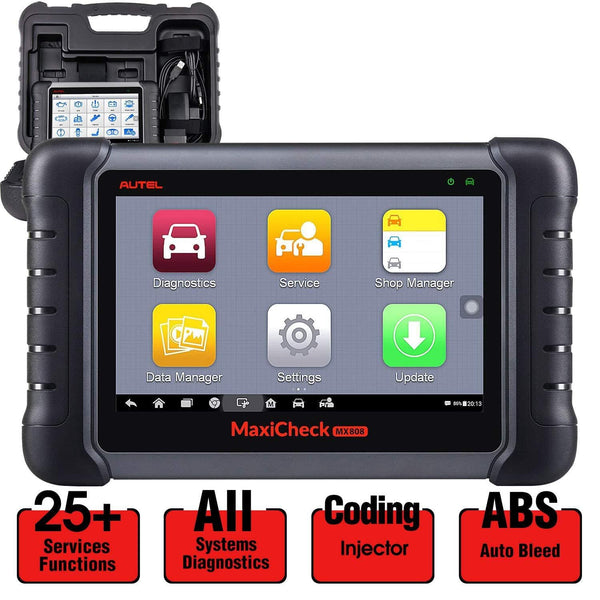

Autel MX808 Highlights:
Together with the ability to quickly read and clear fault codes for all available modules of the majority of the makes and models, MX808 Scanner also provides you with 18 superior special functions. Easily AutoVIN then AutoScan the vehicle to accurately diagnose your repairs.
- Read & Clear Fault Codes For All Available Systems
- Short description & code provided (can clear faults & warning lights)
- DTC troubleshooter provides code cause/solution tips guide technicians

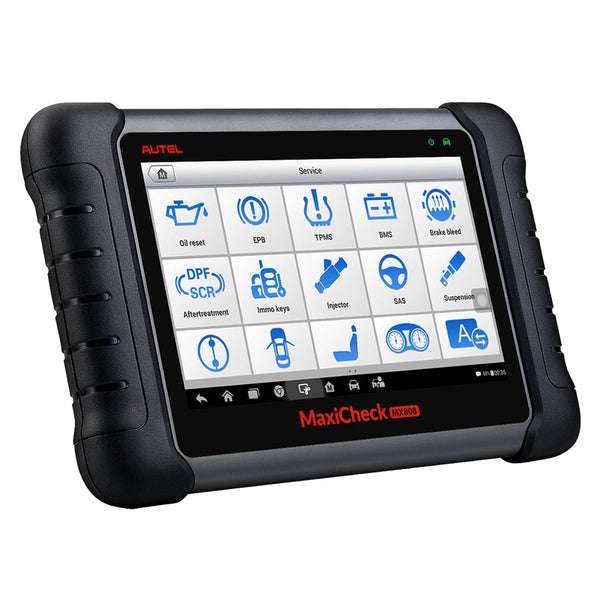

- All Service Functions Available
- Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), DPF (Diesel Particulate Filter), IMMO, Throttle, Injector, WIN DR ROOF, Seats and More

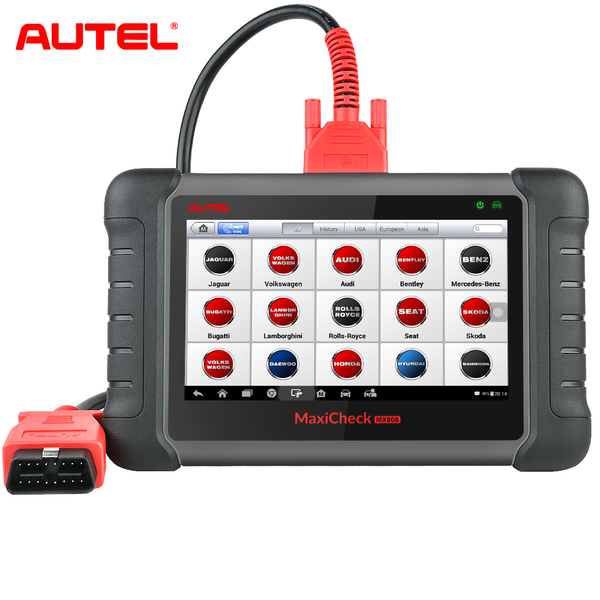

- Auto VIN Detection and Auto Scan
- With the latest Auto VIN technology, MX808 scanner can automatically identify the vehicle’s make, model, and year information in no time.
- Display Live Data in Text, Graph & Analog
- Data from the ECU/modules/sensors displayed in real-time (oxygen sensor-rich/lean etc)
- Full OBD2 Functions and Enhanced Mode 6
- Freeze Frame, Enhanced Mode 6, Vehicle Info, I/M Readiness, On-Board Monitor and Component Tests
- Actuation / Component Testing
- Actuate (switch on/off) to diagnose functionality (relays, fans, locks etc)
- Diagnostic Reporting Print
- Automatically keeps a full history of all scans with the option to easily print or email.
- Andriod tablet (touch screen) with simple navigation and easy wifi updating of software
- 12-Month Warranty and Free Update
Compare with MK808 and MD808 Pro
The MX808 and the MD808 Pro offer identical diagnostics, they both can read and clear codes, live data, and graphing. When comes to service functions, the MX808 scanner offers up to 18 service functions while MD808 Pro only has 5 basic services.
NOTE: Autel MX808 is totally same as MK808
Autel MaxiCheck MX808 Specification:
Operating System: Android™ 4.4.4, KitKat Processor: Cortex-A9 processor(1.5 GHz) Memory: 32GB Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution Connectivity: Mini USB 2.0; USB2.0; Wi-Fi; HDMI Type A; Micro SD card slot(supports up to 32GB) Sensors: Light sensor for brightness auto adjust Audio input/output: Input: N/A,Output: buzzer Power and Battery: 3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply
Tested Battery Life: Around 7 hours of continuous use Battery Charging Input: 5V/1.5A Power Consumption: 600 mA(LCD on with default brightness,Wi-Fi on)@3.7 V Operating Temp.: -10°C to 60°C (14°F to 140°F) Storage Temp.: -20°C to 70°C (-4°F to 158°F) Operating Humidity: 5%-95% non-condensing Dimensions 270.8mm(10.0)X176.0mm(6.9)x36.0mm(1.4) Net Weight: 885g(2.31|b.) Protocols: ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,SAE-J1850 VPW,SAE-J1850PWM,ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN),SAE J2610,GM UART UART Echo Byte Protocol,Honda Diag-H Protocol,TP2.0,TP1.6

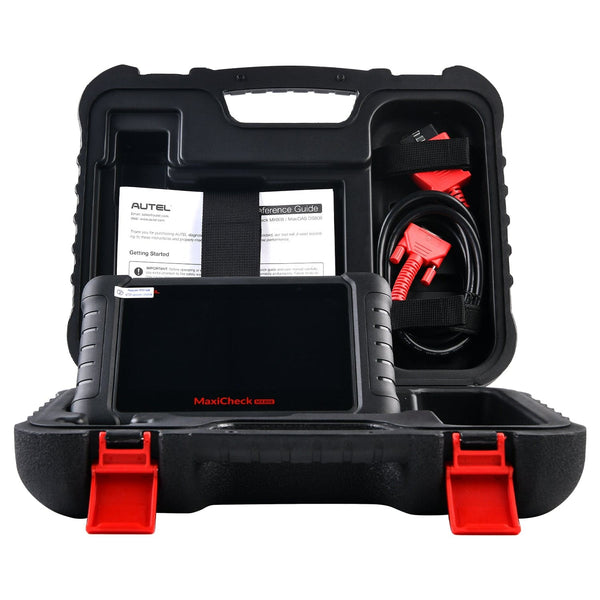

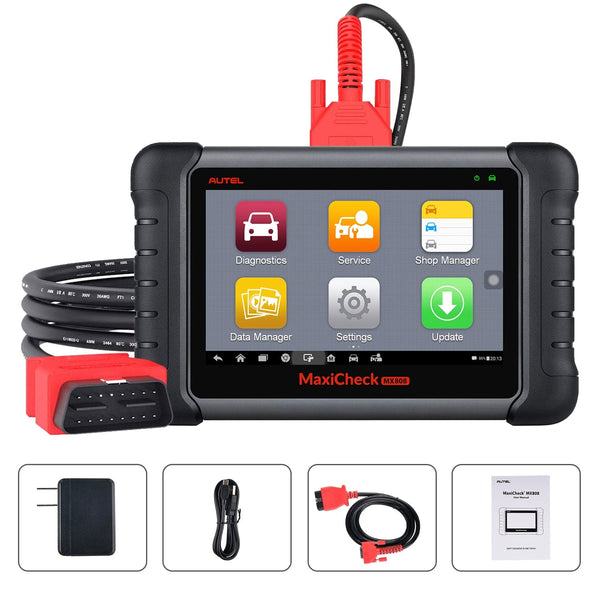

Autel MaxiCheck MX808 Package List:
- 1x MX808 Main Unit
- 1x Main Cable
- 1x USB External Power Adapter

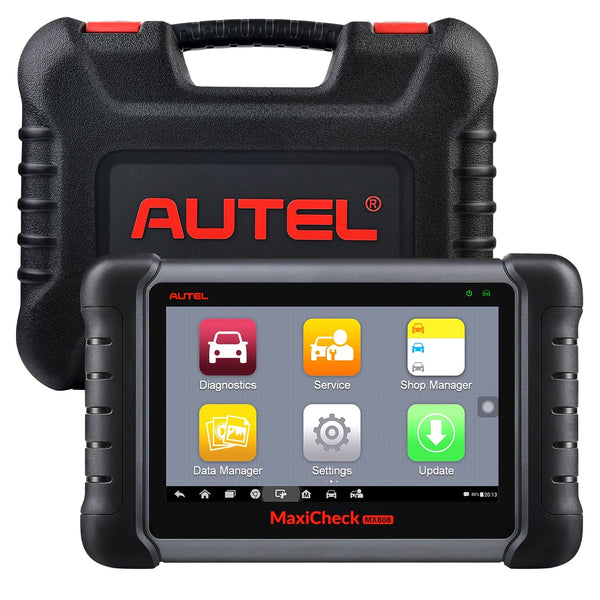

- 1x Carry Case
- 1x Mini USB Cable
- 1x User Manual
- 1x Quick Reference Guide
