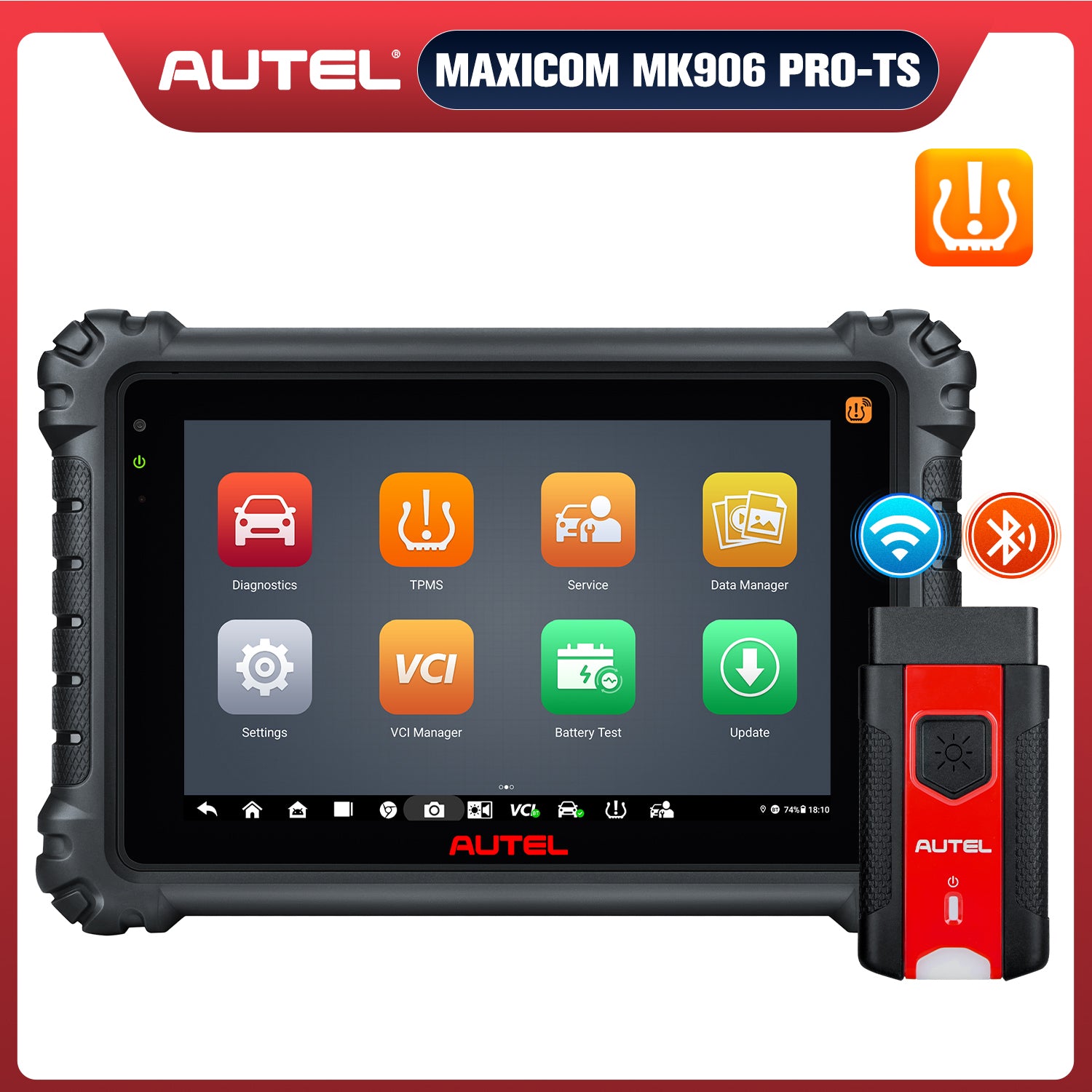

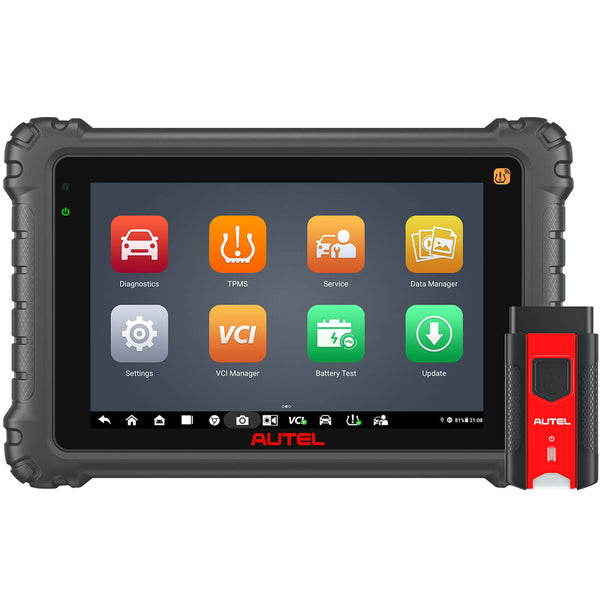

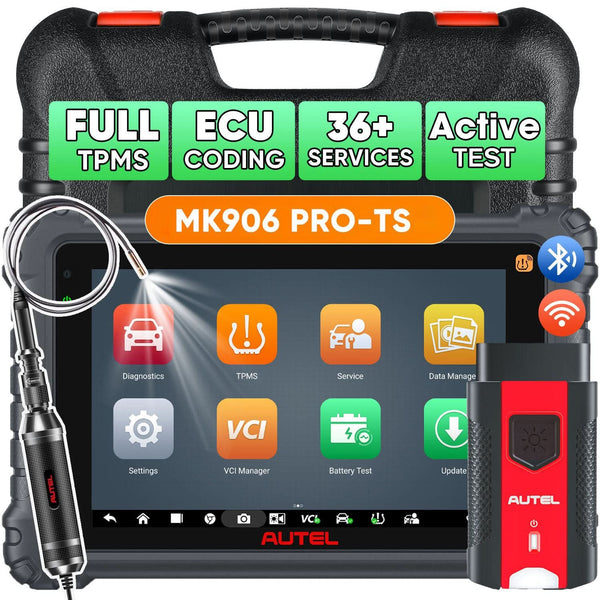

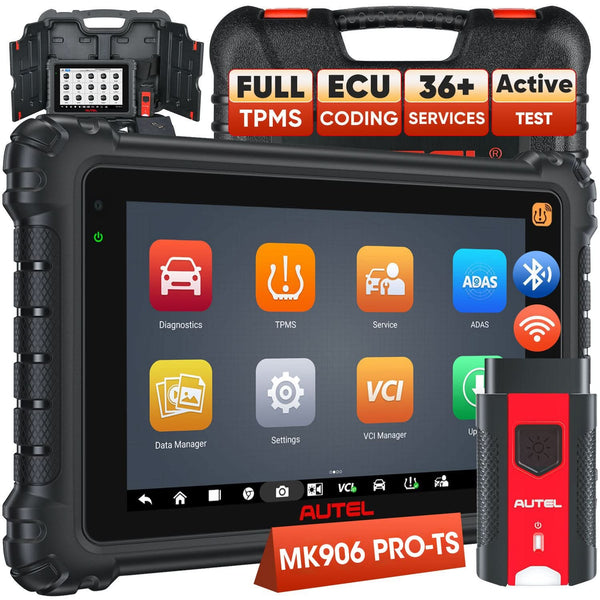

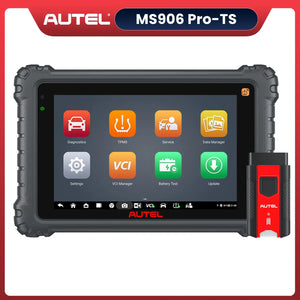

Autel Maxicom MK906Pro TS Autel Scanner with TPMS Functions ECU Coding, Bi-directional Control

items availableIn Stock |
Save up to 30% Save 29%
Original price $1,899.00
from Original price $1,899.00
Original price $1,899.00
Current price $1,349.00
from $1,349.00
Current price $1,349.00
Model: MK906 Pro-TS

Delivered by Mon, Oct 10 - Wed, Oct 12 Ship from New Jersey or California, United States

Service

Fast, Free Shipping & No Extra Tax

30-Day Return or Replacement

12-Month Free Warranty

Lifetime Customer Support

Pay with Ease
Trusted Delivery
free shipping by UPS, DHL or FedEx
  • Description
  • Video
  • Downloads
  • Shipping
  • Certificate
    • Description
  • Autel MaxiCOM MK906 Pro-TS

    As Autel 2022 newest diagnostic scan tool and upgraded version of MS906 Pro/MS906TS, MK906 Pro-TS has been upgraded from both hardware and software. And Autel MK906 Pro-TS is equipped with Android 7.0 OS/Exynos octa-core Pro-TScessor with 4G RAM & 128GB for super smooth operation/8-inch 1920*1200 touchscreen/5MP & 16MP double cameras/11600mAh battery.

    AUTEL MAXICOM MK906 PRO-TS Main Features

    Why Choose Autel MaxiCOM MK906 Pro-TS?

    • No IP Restriction - You can use MK906 Pro-TS all over the world
    • New Brand Hardware Upgrade - Adopting Samsung Exynos octa-core processor with 128GB Storage, extremely fast and smooth; Equipped with 11600mah high-capacity battery, durable and long-lasting; Upgraded to 8-inch 1920*1200 resolution touch screen, 5MP front camera, 16MP rear camera, clear and detailed.
    • Compeleted TPMS Services - Autel MK906 Pro-TS comes Integrated TPMS antenna module for performing comprehensive TPMS service. Tire pressure sensor activation, programming, learning, modification and other tire pressure functions
    • OE-Level Full Systems Diagnosis - MaxiCOM MK906 Pro-TS can get OE-level analysis of ECM, transmission, ABS, airbag, SAS, DPF, EVAP, TPMS, BMS, EPB among other on-board systems. You can read, clear their codes thus turning off warning lights; check freeze frame data and view live stream in graph to evaluate the vehicle’s health at a glance.
    • 31+ Service Functions - MK906 Pro-TS has 31 service function options, mainly including Oil Reset, EPB service, TPMS ID Relearn, ABS Auto Bleed, SAS Calibration , DPF Regeneration and etc
    • Battery Tester - Autel automotive tool MK906 Pro-TS works with Battery Tester to check 12V vehicle battery and view the health status of the vehicle's battery and electrical system. (Autel BT506)
    • 1-Year Free Software Update - After you register and log in, you can enjoy a free software upgrade for one year. After one year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device
    • Autel Cloud Service - MaxiCOM MK906 Pro-TS supports Autel Cloud Service, including remote expert service, one click help, device management/report management, intelligent and comprehensive.

    Autel MaxiCOM MK906 Pro-TS Main Features

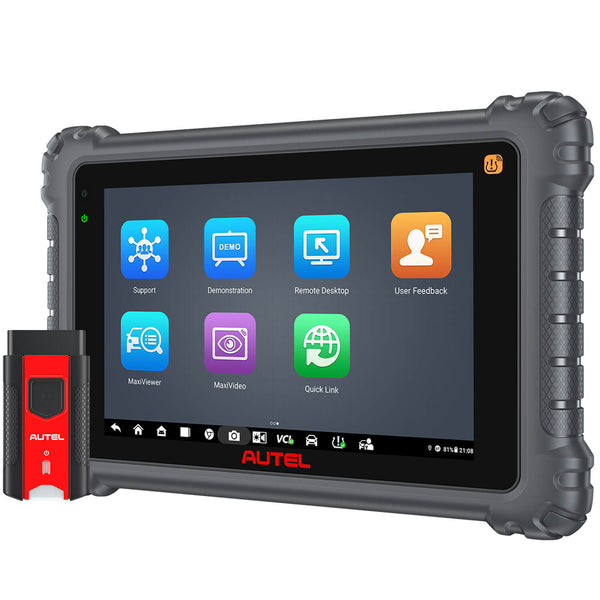

    1. 8-inch, 1920 x 1200 high-resolution touchscreen tablet, Samsung Exynos Octa-core Pro-TScessor with 128 GB storage and running Android 7 operating system.

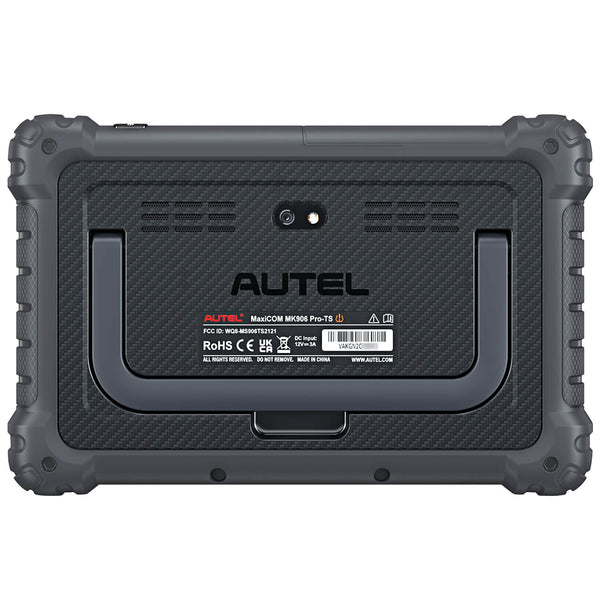

    2. Long-lasting 11,600 mAh rechargeable battery, 5 MP front camera and 16 MP rear camera.
    3. MaxiCVI V200 wireless Bluetooth vehicle communication interface supporting the latest communication Pro-TStocols.
    4. Comprehensive diagnostics on 1996 and newer U.S., Asian and European vehicles
    5. AutoScan: Scan all available systems, including ADAS identification
    6. Read/Erase Codes, View Freeze Frame and Live Data
    7. Perform Active Tests (bi-directional controls), Coding and Adaptations
    8. AutoVIN/Scan VIN for rapid vehicle identification
    9. Perform ADAS (inc. Camera/s, Radar, LiDAR, Night Vision) Systems Calibrations with additional purchase.
    10. Battery analyzation capability*
    11. Cloud-based Reports and Data Management
    12. Remote Expert (coming soon)
    13. With additional purchase of the MaxiBAS BT506 battery and electrical system tester.

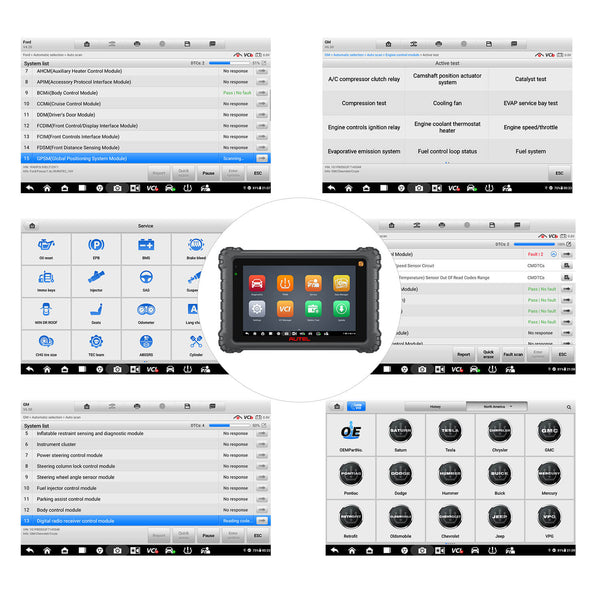

    Autel MaxiCOM MK906 Pro-TS Full Systems Diagnosis & Services

    Autel MK906 Pro-TS bluetooth scanner is loaded with 31+ reset functions for in-depth and comprehensive repairing & maintenance.

    1. Oil Reset - Reset the oil change calculator in the engine and automatic transmission
    2. EPB - Replacement of brake pads on vehicles with an electric parking brake
    3. SAS - Adaptation of the sensor to the angular position of the steering wheel
    4. DPF - Regeneration of diesel particulate filter
    5. Brake Bleed - ABS Brake Bleeding
    6. IMMO - Immobilizer keys functions
    7. ​​BMS - Battery registration and reset
    8. Seats, Odometer, Injector, CHG tire size, TEC Learn, Suspension, Throttle, WIN OR ROOF, Lang Change, Headlamp.

    Autel MaxiCOM MK906 Pro-TS Full Systems Diagnosis & Services

    Autel MaxiCOM MK906 Pro-TS Reset Services

    Note: The reset service does not work normally on all vehicles. In order to ensure that the Autel diagnostic tool can solve the Pro-TSblems you encounter, please Pro-TSvide the VIN of your vehicle and your needs, and we will reply to you an email within one working day. 👉Contact us👈

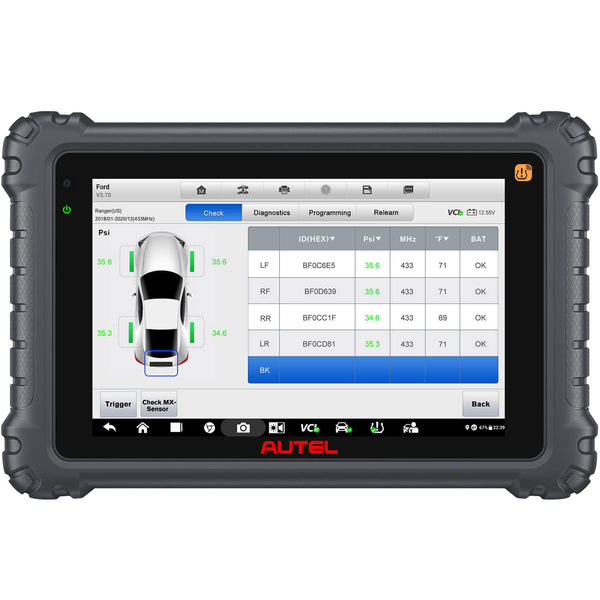

    Autel MaxiCOM MK906 Pro-TS Complete TPMS Functions

    Autel MK906 Pro-TS diagnostic scanner comes with comprehensive TPMS and OBDII diagnostic functions and able to diagnose the newest models up to 2021. It is loaded with all TPMS functions to activate all known OEM TPMS sensors, view sensor data, program Autel MX-Sensors, and perform TPMS relearn and diagnosis.

    • Activate/Reset TPMS Sensors
    • TPMS diagnose, one step for complete TPMS health check
    • Read/Clear TPMS DTCs; on-screen DTC description
    • Scan TPMS sensor ID and copy ID into MX-Sensor
    • Program MX-Sensor by auto-creating sensor ID
    • Read Sensor ID by OBD and copy ID into MX-Sensor
    • Relearn by OBD function
    • Relearn procedure guide on the tool
    • Check Key FOB
    • Read TPMS live data

    Autel MaxiCOM MK906 Pro-TS Complete TPMS Functions

    Autel MaxiCOM MK906 Pro-TS Advanced Functions

    Bi-Directional Control (Active Test)

    MaxiCOM MK906 Pro-TS automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.

    autel maxicom mk906 pro-ts Bi-Directional Control (Active Test)

    Note: Available tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu. To check compatibility with your vehicle, please refer to Autel website or consult us directly

    ECU Coding

    Autel MK906 Pro-TS Pro-TSfessional auto diagnostic tool comes with advanced ECU coding function. ECU Coding allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or coding. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU coding, for various vehicle control systems, such as engine, transmission, ABS and more.

    autel maxicom mk906 pro-ts ecu coding

    Autel MaxiCOM MK906 Pro-TS Add-on Functions

    MaxiCOM MK906 Pro-TS is a diagnostic scanner with various interfaces that can access to more Add-on like Inspection Camera, HDMI Pro-TSjector, Phone, PC, USB Memory Stock, Headset, Oscilloscope, Extend SD Card etc.

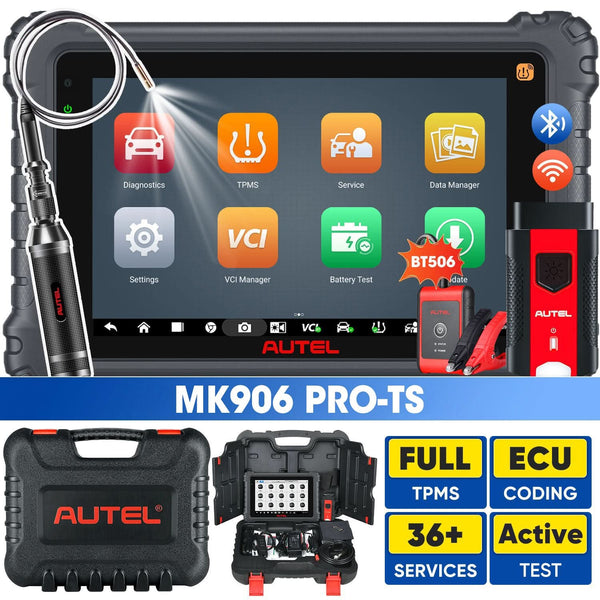

    1. MK906 Pro-TS connects to a MV108 / MV105 inspection camera and turns into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
    2. MaxiCOM MK906 Pro-TS works with Autel MP408 oscilloscopePro-TSviding you an insight to the inner workings of a vehicle’s electronic circuits. Featuring the user-friendly UI design combined with the unrivalled hardware specs, is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles.

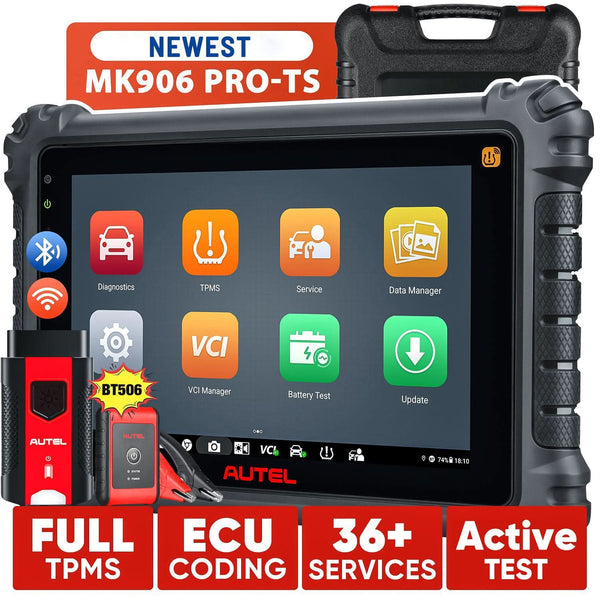

    3. Autel automotive tool MK906 Pro-TS works with Battery Tester(BT506) to check 12V vehicle battery and view the health status of the vehicle's battery and electrical system.

    autel maxicom mk906 pro-ts add-on functions

    Autel MaxiCOM MK906 Pro-TS Specification:

    Operating System: Android 7.0
    Pro-TScessor: Samsung Exynos 8 Core(4*M2 2.3G + 4*A53 1.7G)
    Memory: 4/128GB
    Display: 8.0" LED capacitive touch screen with 1920x1200 resolution
    Connectivity: • Wi-Fi (802.11 b/g/n)USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB)
    Camera (rear):

    Front: 5 Megapixel

    Rear: 16 Megapixel

    Sensors; Gravity Accelerometer, Ambient Light Sensor (ALS)
    Audio Input/Output: • Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack
    Power and Battery: 11 600 mAh 3.7 V lithium-polymer battery
    Charging via 12 V AC/DC power supply
    Input Voltage: 12 V (9-35 V)
    Power Consumption: 5 W
    Operating Temp.: -10 to 55°C (14 to 131°F)
    Storage Temp.: -20 to 70°C (-4 to 158°F)
    Dimensions (W x H x D): 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
    Weight NW: 1.05 kg (2.3lb.)

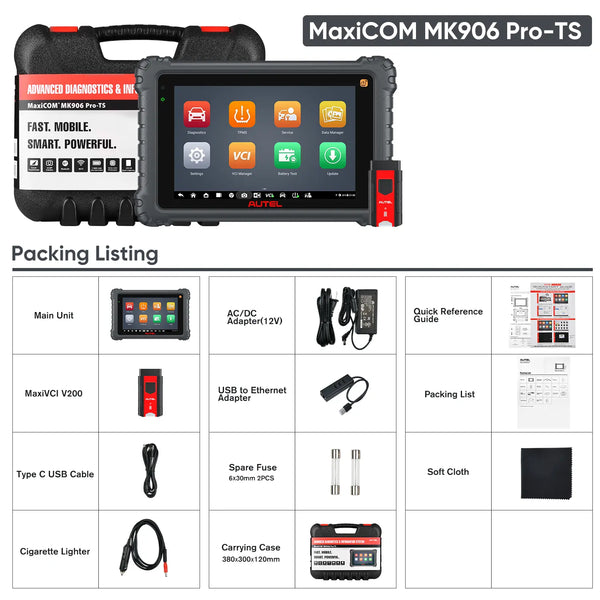

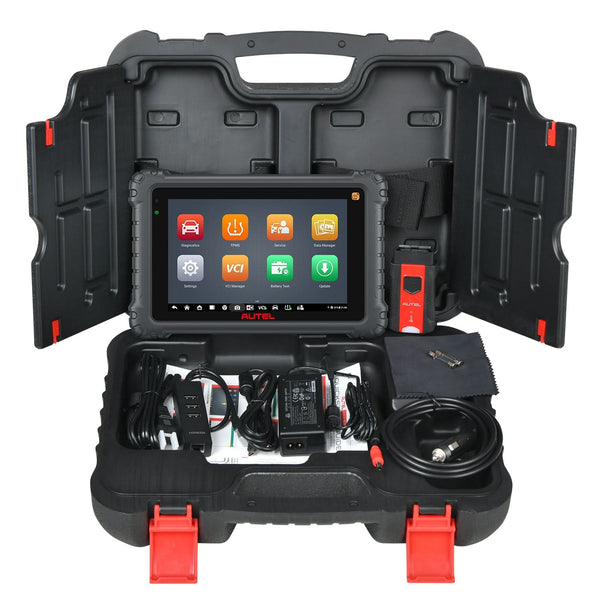

    Autel MaxiCOM MK906 Pro-TS Package List

    • 1x MaxiCOM MK906 Pro-TS main unit
    • 1x MaxiVCI V200
    • 1x AC/DC Adapter (12V)
    • 1x Type C USB Cable
    • 1x Cigarette Lighter Adapter
    • 2x Spare Fuse(6*30mm)
    • 1x USB to Ethernet Adapter
    • 1x Soft Cloth
    • 1x User Manual
    • 1x Packing List

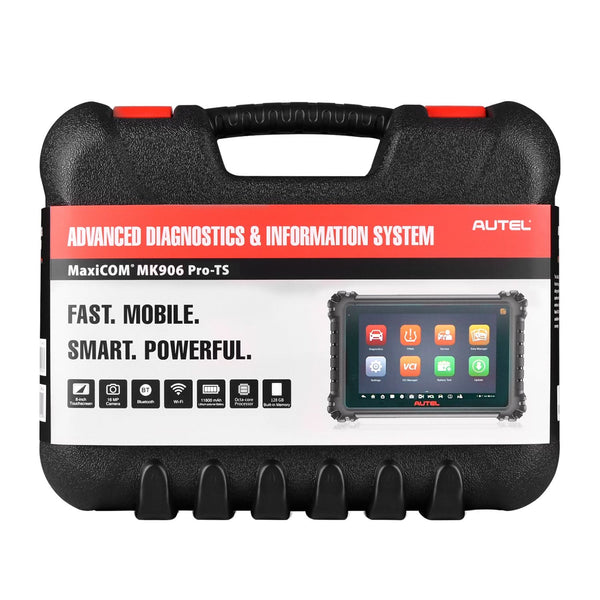

    • 1x Carrying Case
    • 1x Quick Reference Guide
