Autel MaxiLink ML629 ABS Airbag Code Reader OBD2 EOBD CAN Scanner Check Engine Transmission Codes

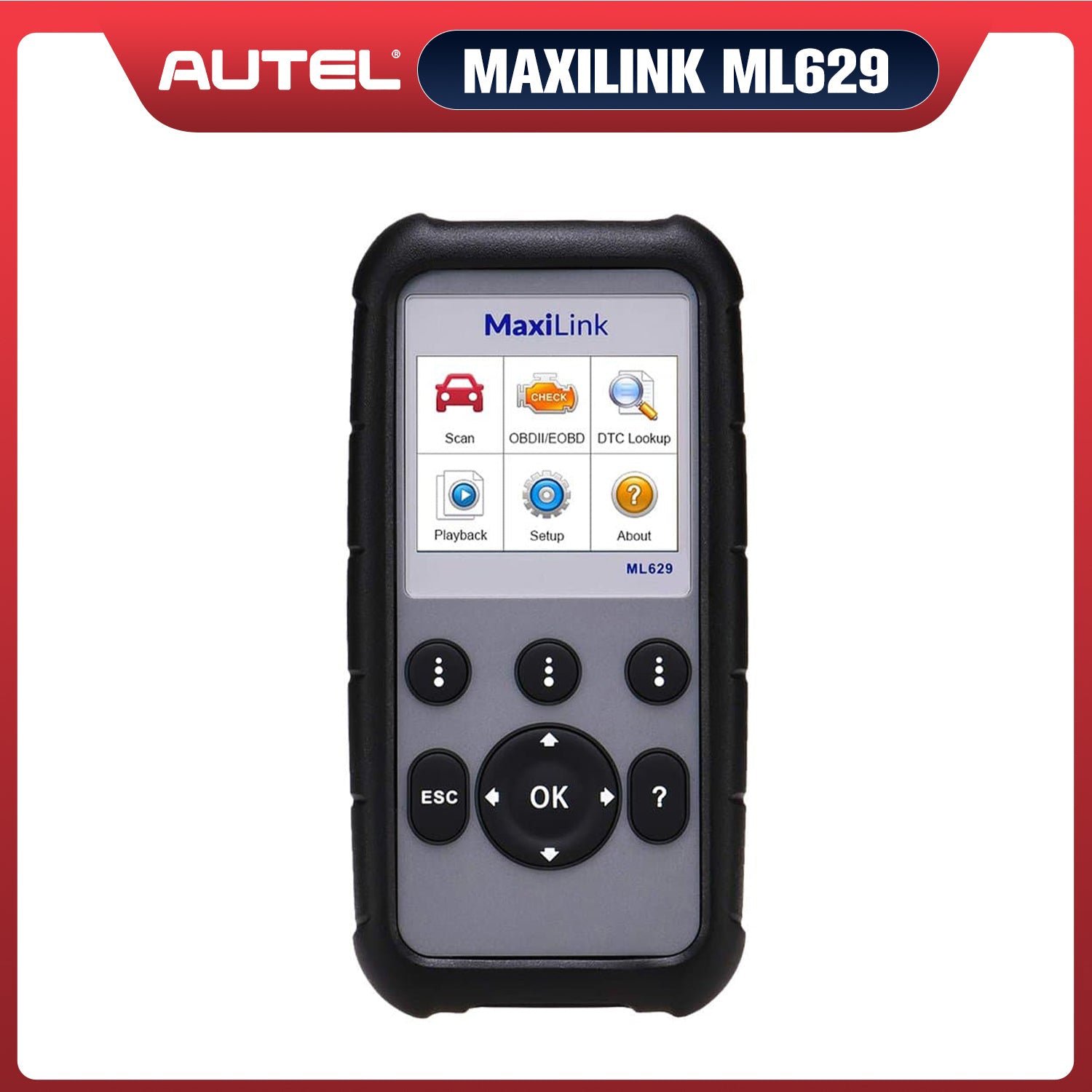

Autel MaxiLink ML629
- The ABS/SRS/Engine/Transmission + CAN OBDII MaxiLink ML629 is built to help you to determine why the Malfunction Indicator Light or the ABS / SRS warning light is on. Supporting all 10 test modes of OBDII test, ML629 provides you a complete diagnosis.
Autel MaxiLINK ML629 Functions:
- Easily determines the cause of the Check Engine Light (MIL), Reads and clear check engine light codes. Turns off Check Engine Light (MIL), resets monitors
- Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
- Built-in DTC lookup library for manual retrieval and shows code definition
- Fix the latest bugs and add newly DTC or parameters Continuously.
- AutoVIN for Quick DTC Definition.
- Troubleshooter code tips guide technicians to the root cause of trouble codes faster
- This OBD2 scanner can be utilized to read and erase trouble codes from Anti-lock Braking System (ABS) and Supplemental Restraint System (SRS) and Engine/ Transmission

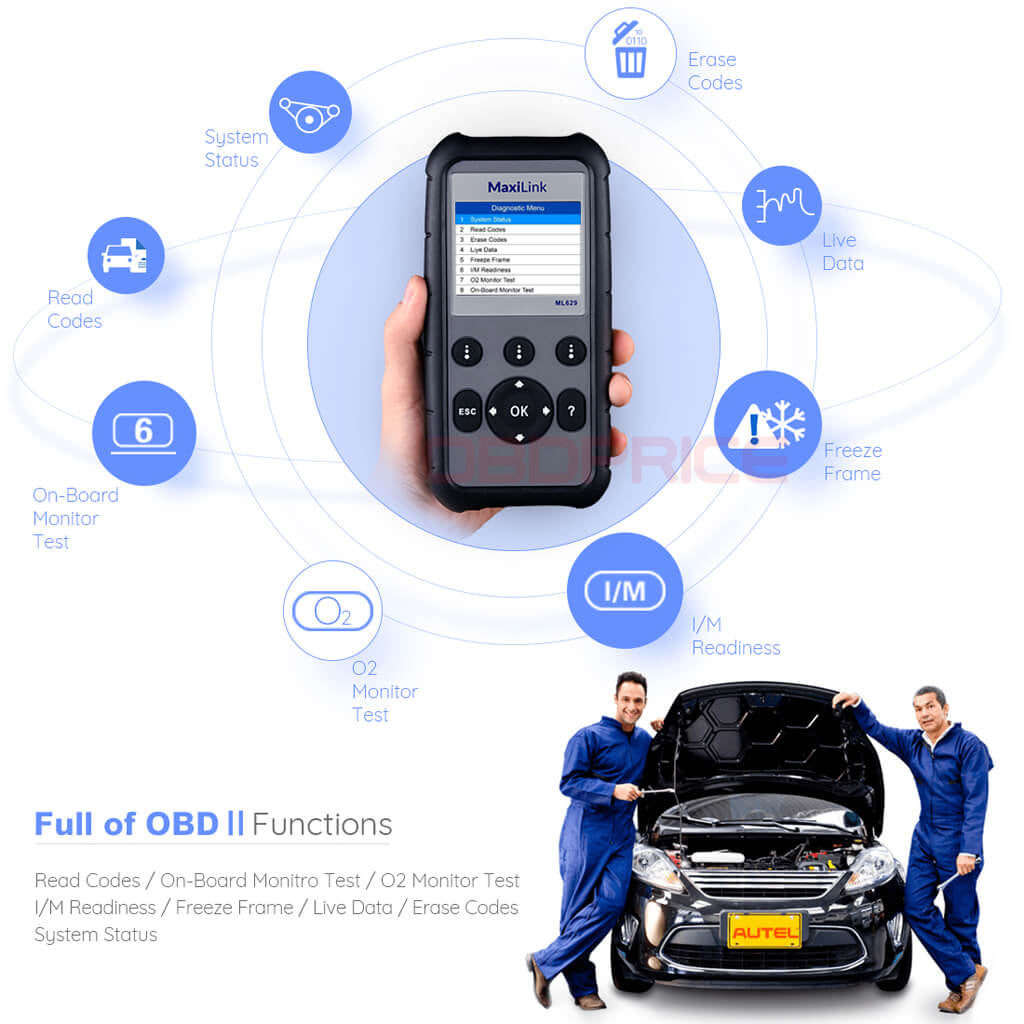

Autel MaxiLINK ML629 OBDII Features:
- Supports all 10 test modes of OBDII test, ML629 provides you a complete OBD II diagnosis
- Graphs data = Displays all data stream items or select a certain item of live data with a graph
- Views Freeze Frame Data = shows vehicle parameters recorded by ECU when an emission-related fault occurs
- On-board monitor test can be utilized to read the results of on-board diagnostic monitoring
- Displays monitor and I/M readiness status (emissions) and live O2 sensor test data
- Reads, stores and plays back live PCM data stream and live sensor data
- Retrieves vehicle information (VIN, CALID and CVN)
3. Autel MaxiLINK ML629 Vehicle Coverage
- Works on most 1996 and newer major vehicle models (OBDII & CAN) – domestic and import
- A wide range of European, US and Asian vehicles are covered by Autel ML629, including GM, Ford, Mazda, Toyota, Lexus, Scion, Suzuki, Peugeot, Citroen, Fiat, Abarth, Lancia, Alfa, Honda, Acura, Subaru, Nissan, Infiniti, Chrysler, Renault, Dacia, Land Rover, Jaguar, VW, Audi, Bugatti, Skoda, Seat, Bentley, Volvo and Porsche, etc. For a detailed vehicle coverage list, please contact us.
4. Autel MaxiLINK ML629 Multi-language
- English, Chinese, French, German, Spanish, Portuguese, Japanese, Nederlands, Polish, Korean, Swedish, Italian, Russian.
5. Autel MaxiLINK Update & Print
- Life-time FREE software update from Autel official webstie
- TF memory card for data backup and software update Via USB
- Internet upgrade via USB Cable
- Prints data via PC
Autel MaxiLINK ML629 Specification:
- Display ： 2.8inch LCD with 320X240 resolution
- Connectivity ：USB mini 2.0 OBD II DB15
- Operating Temp. ：-10°C to 60°C (14°F to 140°F)
- Storage Temp. ：-20°C to 70°C (-4°F to 158°F)
- External Power ：8.0 to 18.0 V power provided via vehicle battery
- Dimensions(LxWxH) ：182.8 mm (7.2”) x 90.9 mm (3.6”) x 33.2 mm (1.3”)
- Net Weight ：247 g (0.544 lb.)
Autel MaxiLINK ML629 Package List
- 1x MaxiLink ML629 Unit
- 1x TF card
- 1x OBDII Cable
- 1x USB Cable
- 1x User Manual
- 1x Quick guide
