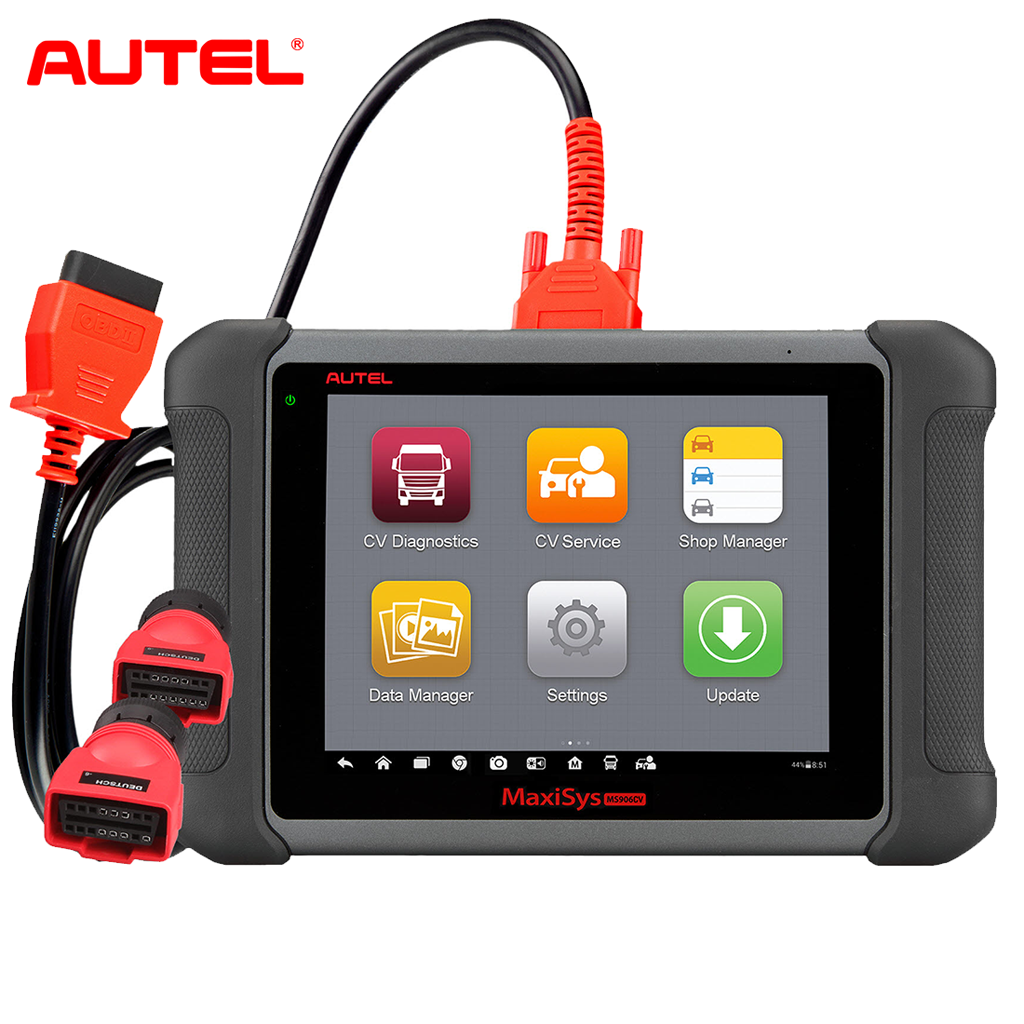

Autel MaxiSys MS906CV
- Autel MaxiSys MS906CV is an advanced diagnostic device developed for customers looking for a tool with ultra-convenient and modern design while delivering ultimate performance. Featuring the powerful Samsung Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), and an 8.0 inch LED capacitive touch screen, based on the Android multitasking operating system, and combined with the best possible coverage of OE-level diagnostics, the MaxiSys MS906CV is an ideal solution to manage your repair jobs smartly and conveniently with greater integration.
Autel Maxisys MS906CV Features:
- Extraordinarily powerful Samsung Exynos 5260 6-core processor
- 8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility
- Internal reliable and fast 32GB Solid State Drive for better performance
- Built-in 8-megapixel rear camera with autofocus and flashlight
- 802.11b/g/n Wi-Fi to access your favorite web resources
- Unique ergonomic design with rubberized outer protection and a rugged internal housing
- Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
- Open source Android Operating System for fast boot-up and multitasking
- Easy and intuitive navigation makes finding what you need simple and fast
- Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
- Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
- Smart AutoVIN technology for identifying vehicles easily
- Automatic system and software updates with real-time push message notifications via Wi-Fi
- Instant remote control tech support anytime, anywhere
- Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
- Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Convenient data management system for managing internal program applications and reviewing data
Autel Maxisys MS906CV Specification:
- Operating System: Android™ 4.4.2, KitKat
- Processor: Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
- Memory: 2 GB RAM & 32 GB ROM
- Display: 8.0" LED capacitive touch screen with 1024x768P resolution
- Connectivity: Wi-Fi (802.11 b/g/n), DB16 DLC, USB 2.0, SD Card (Support up to 32GB)
- Camera (rear): Rear-facing, 8.0 Megapixel, AF with Flashlight
- Sensors/Gravity Accelerometer, Ambient Light Sensor (ALS)
- Audio Input/Output: Microphone, Single Speaker
- Power and Battery: 3.7V/5000 mAh lithium-polymer battery, Charging via 12 V AC/DC power supply
- Input Voltage: DC/12 V (9-35 V)
- Power Consumption: 5 W
- Operating Temp.: 0 to 55°C (32 to 131°F)
- Storage Temp.: -20 to 60°C (-4 to 140°F)
- Housing: Strong plastic housing with protective rubber boot
- Dimensions (W x H x D): 270.8 mm (10.0") x 176.0 mm (6.9") x 36.0mm (1.4")
- Weight: NW: 0.93 kg (2.05 lb.)
- ISO 9142-2, ISO 14230-2, ISO 15765-4, K-Line, L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J
MS906CV Vehicle Coverage:
- Autel MaxiSys 906cv performs enhanced system diagnostics on more than 20 makes 80+ models of light, medium, and heavy duty commercial vehicles.
• Allison • Bendix • Caterpillar • Cummins • International • Detroit • PACCAR • VOLVO • Freightliner • Wabco • ZF Meritor • MERCEDES BENZ •Boschauto • Power Stroke • AISIN • IVECO • Mack • Eaton • MTU • MWM
• VOLVO • AGRALE • AUTOCAR • CAPACITY • Dodge • FIAT • FORD • FOTON • Freightliner • GMC • GREAT WALL • HINO • HYUNDAI • ISUZU • KIA • MERCEDES BENZ • MITSUBISHI • MITSUBISHI FUSO • NISSAN • Sterling • International • IVECO • VOLKSWAGEN • Kenworth • Mack • Peterbilt • WORKHORSE • WESTERN STAR • SETRA • UD • Renault
• OBD • VOLVO • AGRALE • HINO • ISUZU • MERCEDES BENZ • MITSUBISHI FUSO • VOLKSWAGEN • TOYOTA • RENAULT

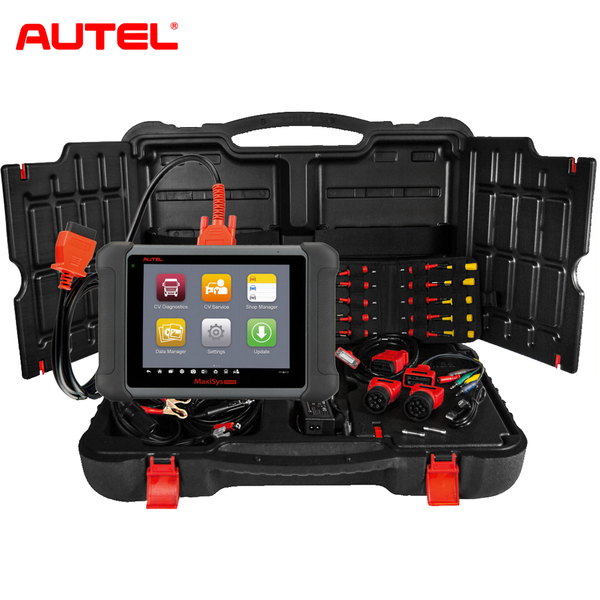

Autel MS906CV Package Content:
- 1x MaxiSYS MS906cv Tablet
- 1x AC/DC Adapter (12V)
- 1x Main Cable
- 1x Mini USB Cable
- 1x Clipper Cable
- 1x Cigarette Lighter
- 1x Light Fuse 6*30mm (2pcs)
- 1x Deutsch-6
- 1x Deutsch-9
- 1x UNI-4
- 1x 1-Year Software Updates
- 1x Year Warranty (Renewable)
- 1x Quick Reference Guide
- 1x Soft Cloth Screen Wipe
- 1x Soft Case
- 1x Carrying Case
- 2x JW1
- 2x JW2
- 2x JW3
- 2x JW4
- 2x JW5
- 2x JW6
- 2x JW7
- 2x JW8
- 2x JW9
- 2x JW10
MaxiSys MS906CV User Manual V1.00.pdf
