Cyber Monday Sale Autel Robotics EVO II Dual 640T Thermal Drone Rugged Bundle [V3]

items available In Stock |
from Original price
Original price
$4,799.00
from $4,799.00
Current price $4,799.00
  • 50MP Ultra-Sensitive Camera
  • 7.9" Smart Controller V3
  • 640x512 30Hz New Thermal Imaging Sensor
  • Multiple Temperature Measurement Modes
  • 360° Obstacle Avoidance
  • SkyLink 2.0 Video Transmission
  • 15KM Image Transmission

Delivered by Tue, Dec 10 - Thu, Dec 12 Ship from New Jersey or California, United States

Service

Fast, Free Shipping & No Extra Tax

30-Day Return or Replacement

12-Month Free Warranty

Lifetime Customer Support

  • Description
  • Specs
  • Video
  • Accessories
  • Downloads
  • FAQ
  • Shipping
  • Certificate
    • Description
  • Autel Robotics EVO II Dual 640T V3 Thermal Drone

    Autel EVO 2 Dual 640T V3 infrared drone is an industry-first drone combining infrared imaging camera with visible light camera. With thermal resolution up to 640x512 and a visual spectrum sensor, EVO 2 becomes a workhorse. First responders, contractors, and business owners finally have a compact and portable tool that gives them the data they have been asking for.

    Autel Robotics EVO II Dual 640T V3 Thermal Drone

    EVO II Dual 640T V3 Top Highlights

    640x512 30Hz New Thermal Imaging Sensor

    640x512 30Hz New Thermal Imaging Sensor

    Equipped with 640*512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easy to observe distant targets. The system uses a new image processing algorithm, making thermal imaging details clearer and more discernible than competition with the similar resolution and hardware.

    Maximum Efficiency In All Viewing Conditions

    EVO II Dual 640T V3 supports up to 10 thermal palettes, enabling pilots to cope with a variety of complex shooting environments and mission scenarios.

    DRI Ranges

    DRI stands for Detection, Recognition and Identification.
     1)Detection: Detect if an object is present
     2)Recognition: See what type of object it is (i.e. person, vehicle, airplane)
     3)Identification: Determine subject affiliation and intent. DRI Ranges

    Picture-in-Picture Mode (For Enhanced Situational Awareness)

    Visual and thermal imagery are combined to help users quickly interpret data and aid in critical decision-making.

    Multiple Temperature Measurement Modes, Professional Analysis Tool

    Capture And Preserve Even The Smallest Of Details

    50-MP ultra-sensitive visual camera

    The visual camera installed in the drone features a unique RYYB sensor with Moonlight Algorithm 2.0. This improves the camera's 50 megapixels by giving users more information for better forensics and analysis even in low-light situations.

    50-MP ultra-sensitive visual camera


    In low light, it is possible to detect, recognize, and categorize individuals and proceed with confidence. And with a mix of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for quick and precise tracking, you'll never lose sight of your targets.

    With the aid of a combination of visual and thermal images captured by these dual cameras, you can swiftly understand data and make important decisions.

    0.8" RYYB CMOS Sensor

    Equipped with a .8" RYYB CMOS sensor, featuring moonlight algorithm 2.0 that provides excellent noise suppression in limited lighting conditions, further enhancing its 50 megapixel camera to give users more details for better forensics and analysis. Detect, identify, classify subjects in low light situations and proceed with certainty.

    Autel Robotics EVO II Dual 640T V3 0.8" RYYB CMOS Sensor

    4x Lossless Zoom

    The high resolution provides the ability to zoom deep into a scene and crop an image or video to 4K without any loss in quality. Capture a scene, zoom in, and reframe your shots with ease.

    autel evo ii dual 640t 4x lossless zoom

    4K HDR For Greater Dynamic Range

    4K HDR video adds dynamic range by merging long-, medium-, and short-term exposures into a single frame. 10-bit color depth captures over 1 billion colors to provide greater flexibility in post production while still retaining rich details in the shadows and highlights.

    Mission Planner

    Rectangular and Polygon mission planners - Those are going to be great for anybody that's dealing with photogrammetry. So anybody that needs to be able to capture a lot of images in a rectangular mission or polygon mission, you're going to be able to do that in an autonomous fashion. Then you're going to be able to take EVO II Dual 640T's images and upload them to your 3D mapping.

    360° Obstacle Avoidance

    Autel Robotics EVO II Dual 640T V3 is equipped with 19 groups of sensors including 12 visual sensors,the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.

    Autel 640T V3 360° Obstacle Avoidance

    EVO II - AI Enhanced Dynamic Track

    EVO II Dual smart tracking uses deep learning algorithms to automatically track the selected subject while avoiding obstacles during flight. The function can track the subject in three modes: behind, side-by-side, or fixed position.

    Autel Smart Controller V3

    Smart Controller V3's 7.9-inch, 2000nits high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 9.3 miles (15km) away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

    Autel Smart Controller V3

    Autel Live Deck 2

    Autel Live Deck 2

    The Autel EVO 2 Dual 640T V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck 2.The Live Deck 2 features:
    1)1080P/60FPS Video Stream Capability
    2) Three Auto-Switch Bands
    3)7.45 mile (12 km) Transmission Range
    4)5-Hour Battery Life
    5)IP43 Resistance

    Powerful Infrared Thermal Analysis Tool(IRPC)

    This free temperature measurement analysis tool is developed for the 640T V3, and enables users to quickly import images, edit and analyze temperature measurement, and to generate detailed reports for sharing and coolaboration.(Select the "Word" icon Export report. Generate analysis report)

    All Cameras interchangeable

    Autel EVO II Series Dones is one aircraft with three camera options. All cameras for EVO II can be purchased separately and are interchangeable!

    Autel EVO II One new aircraft with three camera options and all camer interchangable

    Industry Leading Performance

    The EVO II Dual 640T V3's flight performance has been fully optimized thanks to its new power system and carbon fiber structural design. Equipped with an industry-leading dual-frequency image transmission system, the unit also provides stronger anti-interference capabilities and stable transmission of high-definition images up to 1080p.

    38Min Max Flight Time 45mph(20m/s) Max Flight Speed

    9.3miles(15km) Max Transmission Range 2lbs(920g) Max Lift Capability

    39mph(17m/s) Max Wind Resistance



    EVO II Dual 640T [V3] - Wide Application

    EVO II Dual 640T [V3] - Wide Application

    EVO II Dual 640T [V3] in Police Use

    An Autel EVO II Dual thermal drone saved the day for a Nevada sheriff’s department when a suspect fleeing into the cover of darkness could be located because of his “heat signature.” While one suspect was apprehended pretty quickly, the other fled the scene on foot into the night.Typically, when that happens, the person running gets away because there’s not a great way to maintain visuals in the dark. However, Greenhut used the EVO II’s thermal camera to explore the area until he found the suspect attempting to hide behind a tree. Greenhut locked the drone’s sight in on the man until backup arrived to arrest him.

    EVO II Dual 640T [V3] In Industrial Inspection

    The EVO II 640T uses a visual spectrum sensor and a 640*512 radiometric thermal sensor, giving inspectors the ability to perform multiple roof inspections in half the time it takes by conventional methods. Our drone kits will not only allow you to visually inspect the entire building , but also use thermal technology to check for hot spots. This enables you to safely and quickly check the status of the structure. As well as to help you identify defects, leakage, and corrosion issues, without having to spend on additional personnel and equipment.

    EVO II Dual 640T [V3] In Search and Rescue operations

    Autel EVO II 640T Thermal Drone is a versatile and reliable tool for search and rescue operations. With its high-resolution thermal imaging camera, long flight time, and accurate positioning capabilities, this drone is designed to assist search and rescue teams in finding and rescuing victims in a timely and effective manner.

    EVO II Dual 640T [V3] In Wildlife Management

    Maximize your livestock protection with the advanced thermal imaging capabilities of the Autel 640T drone. As a leading solution in the industry, the EVO II Dual 640T provides peace of mind for farm owners by detecting potential threats, such as predators, that could cause harm to farm animals. With its thermal imaging technology, even the most elusive creatures, like Wild Boar, can be easily located and counted. This reliable and effective tool ensures the safety and security of your livestock, making the Autel EVO II Dual 640T an indispensable asset for any farm owner.

    EVO II Dual 640T [V3] In Residential Roof Inspection

    Inspect and document the exterior condition of shingle, tile, or slate roof structures with ease using the high-resolution visible imaging capabilities of the Autel EVO II Dual 640T drone. Utilizing unmanned aerial vehicle (UAV) technology, this drone provides a detailed view of the roof, allowing you to easily observe hail damage, wind damage, openings in the roof, cracked tiles, and much more. When water gets on the surface of the membrane, it creates a higher temperature that can be easily detected using the infrared imaging capabilities of the Autel 640T. This versatile tool makes roof inspections quicker, safer, and more efficient, delivering reliable results every time.

    EVO II Dual 640T [V3] In Legal Hunting

    The EVO II Dual 640T V3 is a highly advanced drone that can greatly assist hunters in their pursuits. With a dual 640T thermal camera and high-resolution imaging capabilities, hunters can locate and track game from the air. The drone's long flight time and stable flight performance also allow for extended monitoring and observation of wildlife. This cutting-edge technology can help hunters plan and execute successful hunting trips, increasing their chances of making a successful catch.

    autel evo 640t

    • Specs
  • Autel EVO II Dual 640T V3 Specs

    Thermal Camera

    Sensor Uncooled VOx Microbolometer
    Lens FOV H33°V26°
    Focal length 13mm
    Zoom 1 - 16x
    Pixel size 12 µm
    Wavelength range 8-14 µm
    Temperature range High gain mode: -20° to +150°
    Low gain mode: 0° to +550°
    Temperature measurement accuracy ±3℃ or ±3% of reading (whichever is greater)
    @Environmental temperature-20℃~60℃
    Accurate temperature measurement distance 2-20 meters
    Video resolution 640x512@25fps
    Video format MOV / MP4 (Support H.264/H.265)
    Camera resolution Infrared mode: 640*512
    Picture-in-picture mode: 1920*1080, 1280*720
    Photo mode Single shot
    Burst shooting: 3/5 frames, 3 is the default
    Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s
    Photo format JPG (with irg file)

    Visible Light Camera

    Sensor 1/1.28"(0.8") CMOS
    Effective Pixels: 50 MP
    Lens FOV:85°
    35 mm format equivalent focal length: 23 mm
    Aperture:f/1.9
    Focus range: 0.5 m to infinity (with auto focus)
    ISO Range Video: 100-64000
    Photo: 100-6400
    Shutter Speed Photo mode: 1/8000 ~ 8s
    Other: 1/8000 ~ 1/frame rates
    Digital Zoom 1-16x (up to 4x lossless zoom)
    Maximum photo size 8192*6144(4:3)
    4096*30 72(4:3)
    3840x2160(16:9)
    Image Format JPG(default)/DNG/JPG+DNG
    Video format MOV/MP4
    Video resolution 3840x2160P60/P50/P48/P30/P25/P24
    2720x1528P60/P50/P48/P30/P25/P24
    1920x1080P60/P50/P48/P30/P25/P24
    Max bitrate 80Mbps
    Supported file system FAT32/exFAT

    Gimbal

    Weight 0.30 lbs (135 grams)
    Mechanical Range Pitch: -135° to +45
    Yaw: -100° to +100°
    Controllable Range Pitch: -90° to +30°
    Yaw: -90° to +90°
    Stabilization 3-Axis (Tilt, Roll, Pan)
    Max Control Speed (Tilt) 300°/s
    Angular Vibration Range ±0.005°

    Aircraft

    Takeoff Weight 2.5 lbs (1150 g)
    Max Takeoff Weight 4.4 lbs (2000 g)
    Dimensions Folded: 8.98 x 5.24 x 4.33 inch (L x W x H) (228 x 133 x 110 mm)
    Unfolded: 16.69 x 13.94 x 4.33 inch (L x W x H) (424 x 354 x 110 mm)
    Diagonal Distance 15.63 in (397 mm)
    Max Service Ceiling Above Sea Level 22,965 ft (7000 m)
    Max Flight Time (no wind) EVO II Dual (640) 38min
    EVO II Dual (320) 40min
    Max Hovering Time (no wind) EVO II Dual (640) 33min
    EVO II Dual (320) 35min
    Max Flight Distance (no wind) 15.53 miles (25 km)
    Max Wind Speed Resistance 39-46 mph (Level 8)
    Max Tilt Angle Standard mode: 28°
    Ludicrous mode: 33°
    Max Angular Velocity 120°/second
    Max Ascent Speed Standard mode: 11.18 mph (5 m/s)
    Ludicrous mode: 17.89 mph (8 m/s)
    Max Descent Speed Standard mode: 6.71 mph (3 m/s)
    Ludicrous mode: 8.94 mph (4 m/s)
    Max Speed (near sea level, no wind) Standard mode: 33.55 mph (15 m/s)
    Ludicrous mode: 44.73 mph (20 m/s)
    Operating Temperature Range 14°F to 104°F (-10°C to 40°C)
    Operating Frequency 2.4~2.4835GHz
    Transmission Power (EIRP)

    2.4~2.4835GHz
    FCC: ≤26 dBm
    ISED: ≤26 dBm
    CE: ≤20 dBm
    RCM: ≤20 dBm
    SRRC: ≤26 dBm

    GNSS GPS/GLONASS/VIO/ATTI
    Hovering Accuracy Range Vertical:
    ± 0.78 in (when vision positioning is active)
    ± 7.87 in (with GPS positioning)
    Horizontal:
    ± 0.78 in (when vision positioning is active)
    ± 3.28 ft (with GPS positioning)
    Internal Storage 8 GB
    SD Storage Standard: 32 GB
    Max Micro SD Card Supported: 256 GB

    Sensing System (Obstacle Avoidance)

    Sensing System Omnidirectional Binocular Obstacle Sensing System
    Forward Precision Measurement Range: 0.5-20 m
    Detectable Range: 0.5-40m
    Effective Sensing Speed: <15m/s
    FOV: Horizontal: 60°, Vertical: 80°
    Backward Precision Measurement Range: 0.5-16 m
    Detectable Range: 0.5-32m
    Effective Sensing Speed: <12m/s
    FOV: Horizontal: 60°, Vertical: 80°
    Upward Precision Measurement Range: 0.5-12 m
    Detectable Range: 0.5-24m
    Effective Sensing Speed: <6m/s
    FOV: Horizontal: 60°, Vertical: 50°
    Downward Precision Measurement Range: 0.5-11 m
    Detectable Range: 0.5-22m
    Effective Sensing Speed: <6m/s
    FOV: Horizontal: 100°, Vertical: 80°
    Sides Precision Measurement Range: 0.5-12 m
    Detectable Range: 0.5-24m
    Effective Sensing Speed: <10m/s
    FOV: Horizontal: 60°, Vertical: 50°
    Operating Environment Forward, Backward, Upward and Sides: Surface with clear pattern and adequate lighting (lux > 20)
    Downward: Surface with clear pattern and adequate lighting (lux > 20)
    Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

    Remote Controller

    Operating Frequency 2.400 GHz to 2.4835 GHz
    Max Transmission Distance FCC:9 km(without interference or obstruction)
    CE:5 km(without interference or obstruction)
    Real-time Image Transmission Quality 720p@30fps / 1080p@30fps
    Maximum Bit Rate of Real-time Image Transmission 40Mbps
    Transmission Power (2.4G) FCC:≤26 dBm
    ISED:≤26 dBm
    CE:≤20 dBm
    RCM:≤20 dBm
    SRRC:≤20dBm
    Display screen 3.26" OLED
    854(W) * 480(H)Pixel
    Directly preview the video without connecting a mobile phone
    Remote Controller Battery 5000mAh
    Run Time 3 hours
    Charging Time 2 hours fast charge
    Supported Mobile Device Size Max Length: 3.30" (84mm)
    Max Thickness: 0.51" (13mm)
    Supported USB Port Types Lightning, Micro USB (Type-B), USB-C
    Working current/voltage 1.7A@3.7V

    Battery

    Capacity 7100 mAh
    Voltage 11.55 V
    Max Charging Voltage 13.2 V
    Battery Type LiPo 3S
    Energy 82 Wh
    Net Weight 0.81 lbs (365 grams)
    Charging Temperature Range 41°F to 104°F (5°C to 40°C)
    Max Charging Power 93 W
    Charging Time 90min

    • Video
  • Introducing: Commercial Applications for EVO II

    EVO II Dual 640T Thermal Imaging Demonstration

    EVO II Dual 640T: Thermal Analysis Tool Overview

    • Accessories

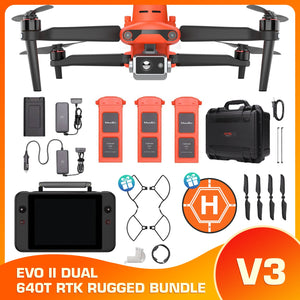

  • Autel EVO II Dual 640T V3 Rugged Bundle Package List

    Autel EVO II Dual 640T V3 Rugged Bundle Package List
    • Autel EVO II V3 Aircraft with Dual 640T Thermal Sensor
    • Autel V3 7.9” Smart Controller with Controller Case
    • Intelligent Flight Battery x2
    • Propellers (Pair) x4
    • Smart Controller USB-C Charging Cable & Power Brick
    • Battery Charger (Wall Cord & Power Converter)
    • Spare Controller Sticks (Pair)
    • Gimbal Cover
    • 32 GB SD Card
    • Smart Controller Hanging Neck Strap
    • EVO II Battery Car Charger
    • EVO II Battery Multicharger

    • Downloads
  • Name

    Download

    EVO II Dual 640T V3 Brochure - EN.pdf

    EVO II Series Disclaimer and Safety Guidelines - EN.pdf

    EVO II Dual Reports - FCC.pdf

    EVO II Dual Certificates - FCC.pdf

    *If you need certification from other countries or regions, please contact us.

    • FAQ
  • EVO II Dual 640T [V3] FAQ

    Q: Which industries can evo ii dual 640t v3 be used in?
    A: It can be used for many fields, such as law enforcement, electrical power inspection, fire rescue, building inspection, legal hunting and more.

    Q: What camera sensor does the 640T V3 use?
    A: The 640t V3 is equipped with a 640x512 30Hz new thermal imaging sensor and 0.8" RYYB CMOS visible camera sensor.

    Q: What is the effective image transmission distance?
    A: Autel EVO 2 Dual 640t V3 is equipped with brand new Skylink 2.0, which offers 15KM video transmission distance and 2.4GHz / 5.8GHz / 900MHz tri-band communication frequency.

    Q: What factors affect the accuracy of temperature measurement?
    A:
    1. The influence of the atmos-phere: The higher the temperature and humi-dity of the atmos-phere, the greater the temperature measurement error.
    2. The distance between the camera and the measured object: The farther the distance, the greater the temperature measurement error.
    3. The emiss-ivity and background temperature of the object: When the emiss-ivity of the surface of the measured object is low and the background temperature is high, it will cause a large temperature measurement error.

    Q: Does the smart controller provide customizable buttons?
    A: Yes. There are two customizable buttons on the back of the smart controller V3, and 4 functions can be customized through the APP.

    • Shipping
  • Free Worldwide Shipping

    shipping policy

    Where is my order shipped from?

    We provide worldwide free shipping! And all orders will be shipped from the warehouse nearest to you and carried by DHL, FedEx, UPS, USPS, DPD, or Royal Mail according your address. Following is the location where our warehouse located at and estimate develiry date for reference.

    Your Address Shipping Location Delivery Estimated
    United States/ Canada CA, US NJ, US 3-5 Days
    Europe Germany 5-7 Days
    United Kingdom Leicestershire, UK 5-7 Days
    Australia Sydney, AU 7- 10 Days
    Other Countries HongKong 7-15 Days

    Order Processing Time

    All our order are processed and shipped out within 24 hours (excluding weekends and holidays).

    After the order is shipped out and received by the carrier, we will update you by email with a Track-and-Trace code with which you can follow your package and see the remaining shipping time.

    Please allow 24-48 hours for the tracking information to update.

    Shipping Address Change

    If you would like to change the shipping address for your order, please contact us by email with the new shipping address. Once the order is shipped, we can not alter the shipping address anymore.

    International Shipping Duties & Taxes

    - For international order. If the items don't ship from your local warehouse in your country/ region, you, the customer, will be responsible for the import duty, but please don't worry, We will decrease the declared value to reduce your import tax.

    For more details of the Import Tax, please visit Import Duty

    Returns, Refunds, and Exchanges

    We provide a 30-Day Returns Service after delivery, If you are not satisfied with the item you bought or change your mind, please contact us for a return shipping address and ship all the items back to us for a refund in their original package.

    For more details of the return policy, please visit our Return Policy

    • Certificate
  • Autel Authorized Dealer

    Obdprice.com is Autel Authorized Exclusive Online Dealer. Products Created by Autel ® Innovation & Quality You Can Trust.

    autel scanner UK authorized dealer
