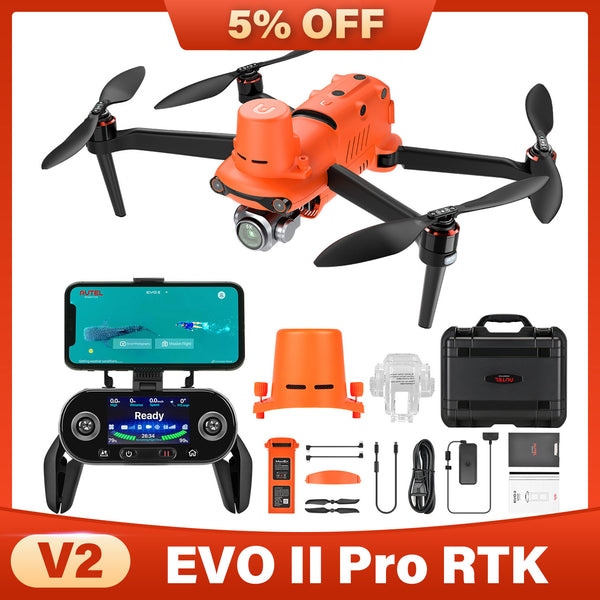

【Cyber Monday Sale】Autel Robotics EVO II Pro RTK 6K Drone Rugged Bundle [V2]

items availableIn Stock |
Save 15% Save 15%
Original price $3,881.00
from Original price $3,881.00
Original price $3,881.00
Current price $3,289.00
from $3,289.00
Current price $3,289.00

Delivered by Tue, Dec 06 - Thu, Dec 08 Ship from New Jersey or California, United States

Service

Fast, Free Shipping & No Extra Tax

30-Day Return or Replacement

12-Month Free Warranty

Lifetime Customer Support

Pay with Ease
Trusted Delivery
free shipping by UPS, DHL or FedEx
  • Description
  • Specs
  • Accessories
  • Shipping
  • Certificate
    • Description
  • EVO II Pro RTK Drone

    The EVO II Pro RTK integrates an entirely new RTK module, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters, and various other data. The positioning system supports an A-RTK base station and RTK network, which help provide stable, accurate data acquisition in complex operating environments.

    Capture Every Detail

    The EVO II Pro RTK has a high dynamic range and powerful low-light performance, enabling users to capture explicit imagery without missing any detailed information.

    Autel EVO II Pro rtk drones

    6K Ultra HD Video

    The 6K resolution ultra-high-definition lens, supported by a 1-inch sensor, makes it easy to achieve professional shooting results.

    High-resolution Camera

    The 1-inch CMOS sensor coupled with 20 MP and f/2.8 - f11 aperture, gives you the versatility needed to capture the best images in various mission scenarios.

    EVO II PRO RTK

    Light. Efficient. Reliable.

     The EVO II Pro RTK inherits the foldable design of the original EVO II Series, making it compact, light, portable, and ready to fly in just a matter of seconds. Alongside a 5.5-mile maximum transmission range, the aircraft offers a flight time of up to 36 minutes and can reach a top speed of up to 45 mph, making it the perfect flying companion for your daily missions.

    Autel Robotics EVO II Pro RTK Drones V2

    Mission Execution With Advanced Intelligence

    The EVO II Pro RTK provides users with a full range of intelligent features and solutions to suit a variety of mission needs. Using advanced flight control and the latest AI technology, the aircraft can significantly improve mission workflows and help reduce operating costs.

    EVO II Pro RTK Drone

    RTK / PPK

    The Evo II RTK Series supports third-party base stations with NTRIP capability.

    Enhanced Dynamic Track

    EVO II Pro RTK can model the location and speed of targets simultaneously, predict their trajectory accurately, avoid obstacles during flight, and track them continuously while identifying up to 64 objects at the same time. The function can track the subject in three modes: behind, side-by-side, or fixed position.

    360° Obstacle Avoidance

    EVO 2 Pro Drone’s front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. Begin detecting potential hazards up to 30m away and let EVO II accurately control the speed of the drone to avoid a collision.

    Autel Robotics EVO II Pro 6K RTK Drones

    RTK High-precision GNSS Base Station

    The EVO II RTK Series supports RTK high-precision GNSS base station to obtain real-time differential data, which makes it possible to obtain the accurate coordinates of the designated target point.

    Application Field

    EVO II PRO RTK Drones Application

    • Specs
  • Camera

    Sensor 1" CMOS
    Effective Pixels: 20 MP
    Performance temperature: -10~60°C
    Lens FOV: about 82°
    35mm Format Equivalent: 28.6 mm @ f/2.8
    Aperture: f/2.8–f/11
    Focus range: 1m to infinity (with auto focus)
    ISO Range Video: 100-6400
    Photos: 100-12800"
    Shutter Speed Electronic Shutter: 8 ~ 1/8000s
    Digital Zoom 1 - 8 times
    Photo Mode Single shot;
    Continuous shooting (AEB/Burst): 3, 5, 3 by default;
    Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, default 5S;
    Pure night shot: support 4K Jpeg;
    HDR: Support 4K Jpeg;
    Long exposure: up to 8s;
    Photo Resolution 5472x3648 (3:2)
    5472x3076 (16:9)
    3840x2160 (16:9)
    Photo Format JPG(default); DNG
    Video Resolution 6K 5472x3076 p30/p25/p24
    5K 4800x2700 p60/p50/p48/p30/p25/p24
    4K 3840x2160 p60/p50/p48/p30/p25/p24
    2.7K 2720x1528 p120/p60/p50/p48/p30/p25/p24
    1080P 1920x1080 p120/p60/p50/p48/p30/p25/p24
    Effective Frame 5472×3648
    Video Format MOV(default); MP4
    Codecs H.264 / H.265
    Max Video Bitrate 120Mbps
    Support File System FAT32(≤ 32 GB)
    exFAT(> 32 GB)
    Support Memory Card Type Class4 / Class10 / U3
    Capacity:4G / 8G / 16G / 32G / 128G

    Gimbal

    Gimbal Three-axis stabilization
    Mechanical Range Tilt: -135° to +45°
    Heading: -100° to +100°
    Controllable Range Tilt: -120° to +30°
    Heading: -90° to +90°
    Maximum Control Speed (Tilt) 300°/s
    Angle Jitter ±0.005°

    Aircraft

    Weight (with propeller and battery) 1237g±0.5g
    Wheelbase 397 mm
    Maximum Take-off Altitude 6000 m
    Max Ascent Speed 5 m/s(automatic flight)
    8 m/s(manual control)
    Max Descent Speed 4 m/s
    Max Horizontal Flight Speed 72 km/h(positioning mode)
    Max Tilt Angle 33°(positioning mode)
    Max Angular Velocity 120°/s
    Max Flight Time 36 minutes
    Operating Temperature Range 0℃ to 40℃
    Maximum Resistance to Wind 39-46 mph (Level 8)
    Operating Frequency 2.400 GHz to 2.4835 GHz
    Transmission Power (2.4G) FCC:≤26 dBm
    ISED:≤26 dBm
    CE:≤20 dBm
    RCM:≤20 dBm
    SRRC:≤20dBm
    Hovering Accuracy When RTK is enabled and working normally:
    Vertical: ±0.1 m; Horizontal: ±0.1 m
    RTK is not enabled: vertical: ±0.1 m (when the visual positioning is working normally);
    ±0.5 m (when GNSS positioning works normally) Level: ±0.3 m (when the visual positioning is working normally);
    ±1.5 m (when GNSS positioning works normally)
    Image Position Compensation The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF ​​coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.

    Sensing System (Obstacle Avoidance)

    Sensing System Omnidirectional Obstacle Sensing
    Forward Precision Measurement Range: 0.5-20 m
    Detectable Range: 0.5-40m
    Effective Sensing Speed: <15m/s
    FOV: Horizontal: 60°, Vertical: 80°
    Backward Precision Measurement Range: 0.5-16 m
    Detectable Range: 0.5-32m
    Effective Sensing Speed: <12m/s
    FOV: Horizontal: 60°, Vertical: 80°
    Upward Precision Measurement Range: 0.5-12 m
    Detectable Range: 0.5-24m
    Effective Sensing Speed: <6m/s
    FOV: Horizontal: 60°, Vertical: 50°
    Downward Precision Measurement Range: 0.5-11 m
    Detectable Range: 0.5-22m
    Effective Sensing Speed: <6m/s
    FOV: Horizontal: 90°, Vertical: 70°
    Sides Precision Measurement Range: 0.5-12 m
    Detectable Range: 0.5-24m
    Effective Sensing Speed: <10m/s
    FOV: Horizontal: 60°, Vertical: 50°
    Operating Environment Above: The surface has rich textures and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment); the surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.) Below: The ground has rich textures and sufficient lighting conditions (> 15 lux, indoor fluorescent lamp is normally irradiated by the environment); the surface is made of diffuse reflective material and the reflectivity is> 20% (such as walls, trees, people, etc.)

    Remote Controller and Image Transmission

    Operating Frequency 2.400 GHz to 2.4835 GHz
    Max Transmission Distance FCC:9 km(without interference or obstruction)
    CE:5 km(without interference or obstruction)
    Real-time Image Transmission Quality 720p@30fps / 1080p@30fps
    Maximum Bit Rate of Real-time Image Transmission 40Mbps
    Transmission Power (2.4G) FCC:≤26 dBm
    ISED:≤26 dBm
    CE:≤20 dBm
    RCM:≤20 dBm
    SRRC:≤20dBm
    Display screen 3.26" OLED
    854(W) * 480(H)Pixel
    Directly preview the video without connecting a mobile phone
    Remote Controller Battery 5000mAh
    Run Time 3 hours
    Charging Time 2 hours fast charge
    Supported Mobile Device Size Max Length: 3.30" (84mm)
    Max Thickness: 0.51" (13mm)
    Supported USB Port Types Lightning, Micro USB (Type-B), USB-C
    Working current/voltage 1.7A@3.7V

    Intelligent Flight Battery

    Capacity 7100 mAh
    Voltage 11.55 V
    Max Charging Voltage 13.2 V
    Battery Type LiPo 3S
    Energy 82 Wh
    Net Weight 0.81 lbs (365 grams)
    Charging Temperature Range 41°F to 104°F (5°C to 40°C)
    Storage Temperature and Humidity -10~30℃,65±20%RH
    Recommended Storage Temperature 22-28℃
    Max Charging Power 93W
    Charging Time 90 minutes

    Intelligent Flight Battery Manager

    Voltage 13.2 V
    Charging Temperature Range 5℃ to 45℃

    Charger

    Input 100-240 V, 50/60 Hz, 1.5A
    Output 13.2 V = 5 A 5V=3A 9V=2A 12V=1.5A
    Voltage 13.2±0.1V
    Rated Power 66W
