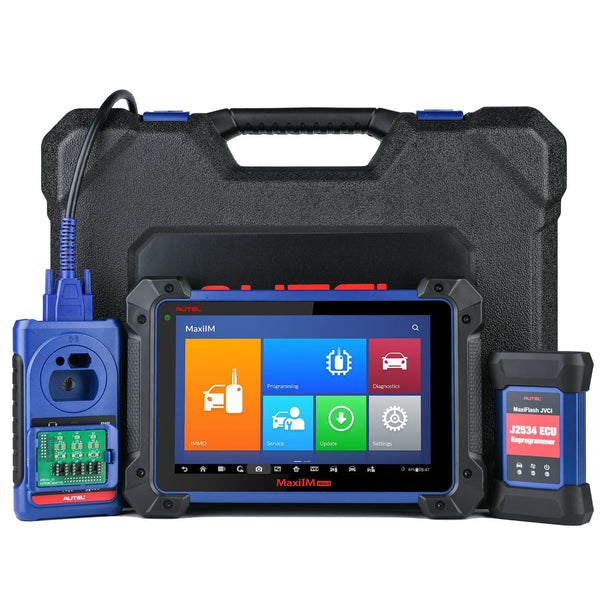

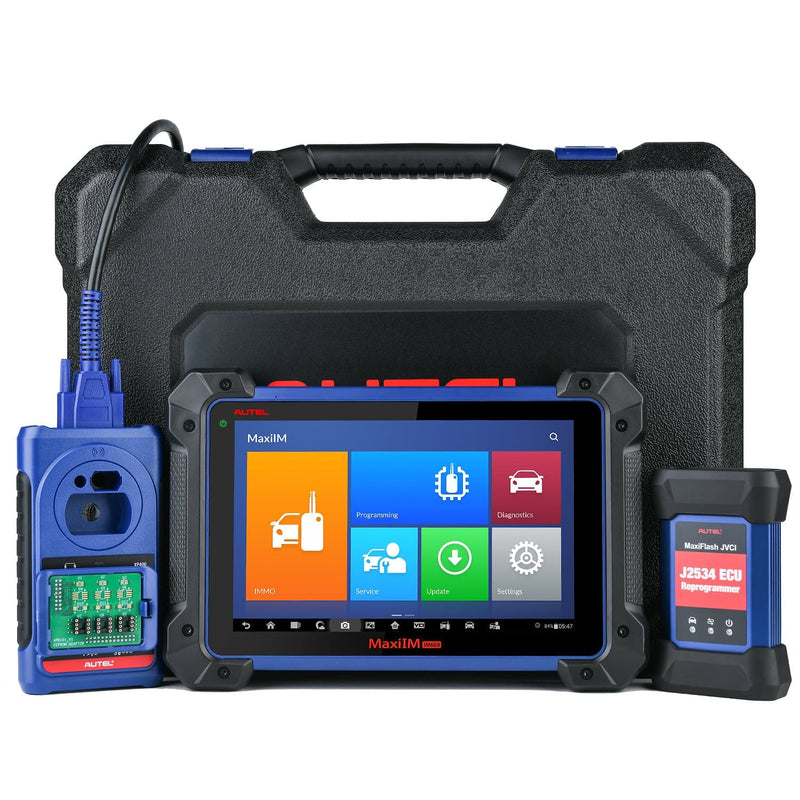

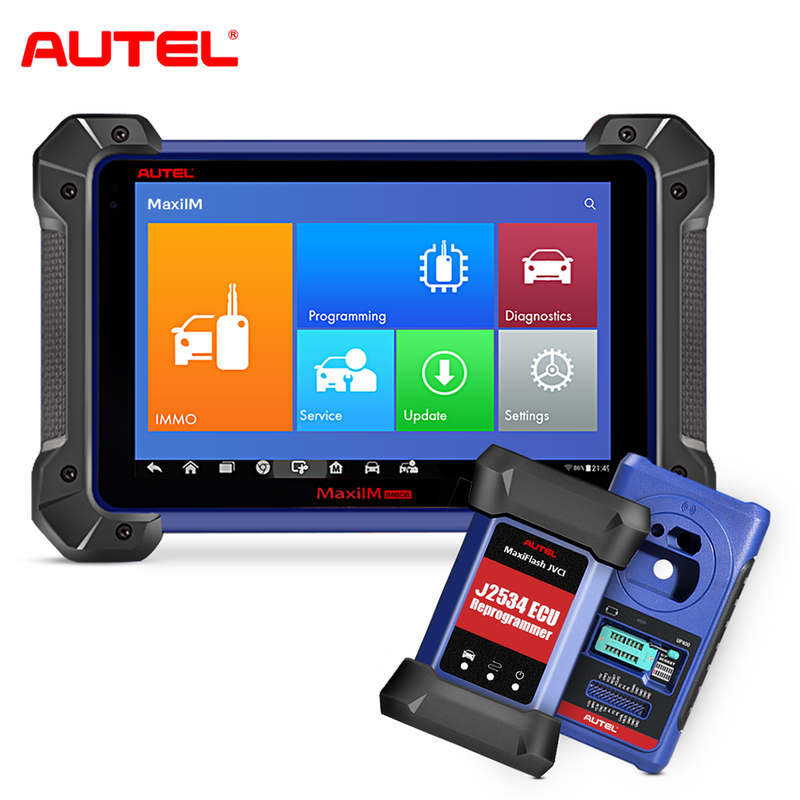

Autel MaxiIM IM608:

• IM608 is a state of the art 10-inch Android-based touchscreen tablet combining the most advanced key programming and immobilizer capabilities with OE-level diagnostics and service functions. Equipped with XP400 key programmer and MaxiFlash JVCI ECU programmer, IM608 is a comprehensive immobilizer and key programming tool and ideal for auto technicians and locksmiths. Advanced version of Autel IM508.
• 1 Year Free Updates

Autel MaxiIM IM608 Main Features

• Read & Clear Fault Codes | Short description & code provided (can clear faults & warning lights)
• Service Functions |  EPB, DPF, SAS, Oil Reset, BMS and TPMS Sensor ID Relearn, etc.
• Access Live Data | Data from the ECU/Modules/sensors displayed in real-time (Oxygen sensor-rich/lean etc)
• Actuation/Component Testing | Actuate (switch on/off) to diagnose functionality (relays, fans, locks etc)
• Coding Functions | Allows you to change vehicle parts that need to be ‘coded’ (Injectors, ABS, starters etc)
• Flashing/Reprogramming | Advanced updating/coding of ECU’s online through a J2534 pass-through flashing device
• Advanced Key Programming | IMMO functions, Transponder read/write/identify, MCU/EEPROM chip read/write

Autel MaxilM IM608 OE- Level Diagnostic For 80+ Vehicle Makes

• All Systems Diagnostics
• AutoVIN / AutoScan
• Read / Erase Codes
• View, Record and Playback Live Data
• View Freeze Frame Data
• Shop and Data Manager Applications

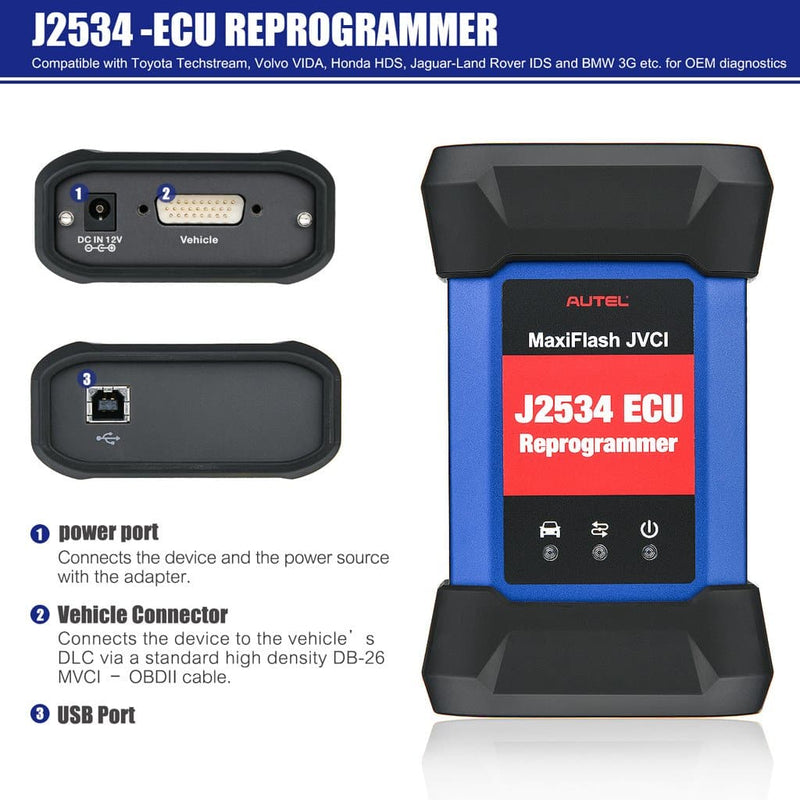

• MaxiFlash JVCI ECU Programmer (Bluetooth/USB cable)

Autel MaxiIM IM608 Advanced IMMO & Key Programming

• Smart Mode：for Guided and Automated Key Learning
• Expert Mode：for Advanced Key Learning
• Read PIN / CS (All Key Lost)
• Generate Key
• Key Learning
• Remote Learning
• Backup / Restore IMMO Data
• IMMO ECU Reset / Adaptation
• IMMO ECU Refresh / Coding
• BENZ 3rd Generation IMMO Add Key, All Key Lost, Key Learning
• BMW FEM / BDC Key Learning and ECU Adaptation
• BMW CAS4/3/2 Key Learning
• VW / AUDI MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost,
• A6 All Key Lost, and More
• XP400 Key & Chip Programmer
• Support PC
• MCU / EEPROM Chips Read / Write
• ECU Read / Write
• MC9S12 Encryption Chip Read / Write
• Key Read / Write
• Mercedes Infrared Key Read / Write
• Remote Frequency Detect
• IC Card Read/Write

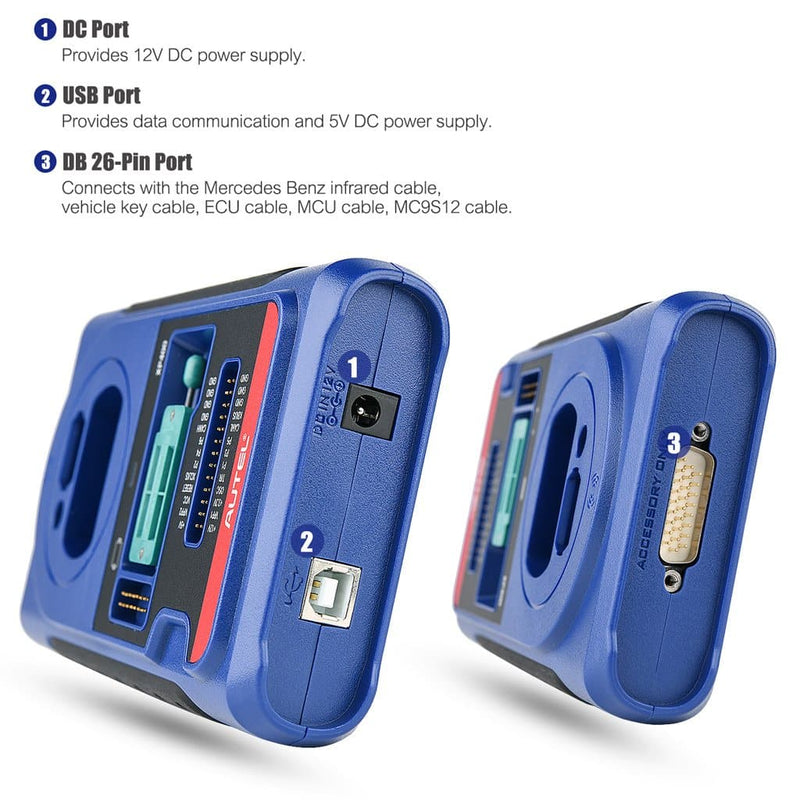

XP400 Key & Chip Programmer

• Support PC
• MCU / EEPROM Chips Read / Write
• ECU Read / Write
• MC9S12 Encryption Chip Read / Write
• Key Read / Write
• Mercedes Infrared Key Read / Write
• Remote Frequency Detect
• IC Card Read/Write

Autel MaxiIM IM608 Specification:

• Operation System: Android 4.4.2,KitKat
• Processor: Samsung Exynos hex-core Processor(1.3GHz Quad-core ARM Cortex-A7+1.7GHz Dual-core ARM Cortex-A15)
• Memory: 2GB RAM & 64 GB On-board Memory
• Display: 10.1-inch LED capacitive touch screen with 1920*1200 resolution; Wi-Fi：(802.11 a/b/g/n/ac); USB 2.0
• Connectivity: BT v.2.1+EDR; SD Card (Support up to 32GB); HDMI
• Camera(rear): 8.0 Megapixel, AF with Flashlight
• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
• Audio: Microphone; Dual Speakers
• Input/output: 3-Band 3.5mm stereo / standard headset jack
• Power and Battery: Charging via 12V AC/DC power supply with the temperature between 0℃ to 45℃
• Input Voltage: 12V (9-24V)
• Power Consumption: 6.5W
• Operating Temp: 0℃ to 50℃ (32 to 122℉)
• Storage Temp: -20℃ to 60℃ (-4 to 140℉)
• Dimensions(W*H*D): 300mm (11.81") x 220.0mm (8.66") x 50.0mm (1.97")
• Weight NW: 1.42kg (3.13lb.)
• GW: 8.655kg(19.08lb)
• Protocols: ISO9141-2, ISO14230-2, ISO15765-4, K/L-line, Flashing code, SAE-J1850 VPW, SAE-J1850PWN, CAN ISO11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6SAE J1939, SAE J1708, Fault-Tolerant CAN

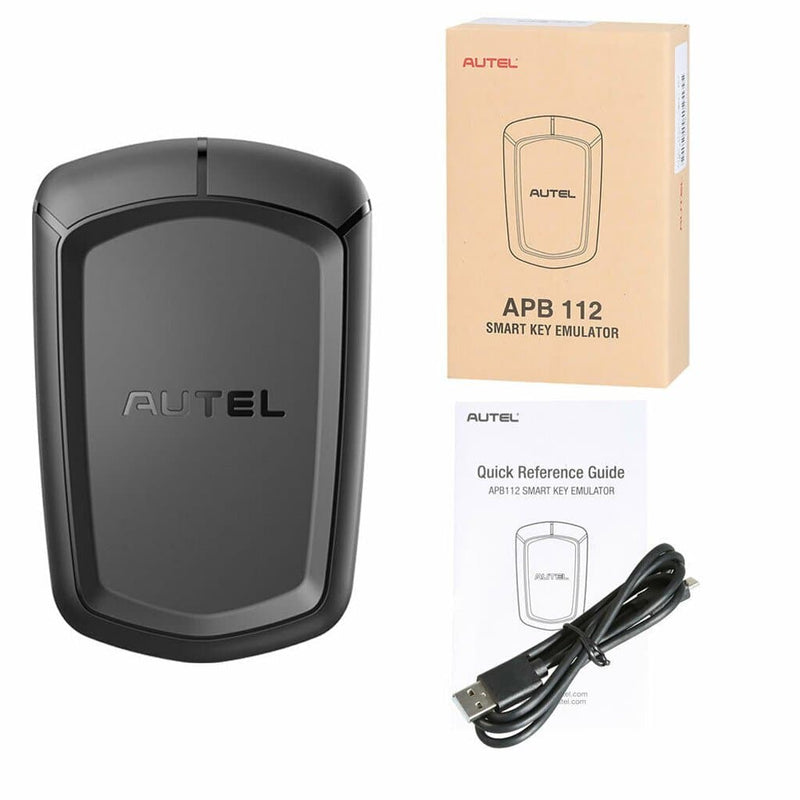

Autel APB112 Features:

• The APB112 smart key simulator is used to collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip. It can also simulate the vehicle key chip. Currently, it supports to simulate the 4D type chip. More key chip types will be supported with future upgrades.
• Smart key simulator
• 46, 4D data collection
• 46 smart key password calculation
• 46 chip simulation
• Toyota 4D (94/D4, 98) smart key simulation
• Toyota H (88/A8, A9, 39) smart key simulation
• Toyota/Lexus smart key all key lost
• Chip decoding (Hyundai 46)
• Collects data from the ignition coil
• Identify ignition coil troubles
• Decode vehicle key chip data
• Simulate vehicle key chip (ex - 4D chip)
• Must be used with an Autel diagnostic tool
• Compatible with Autel MaxiIM IM608, IM508, and MX808IM, Auro Otosys IM100, IM600
• Compact but would need to be used with the XP400
• Cannot be used with the XP200

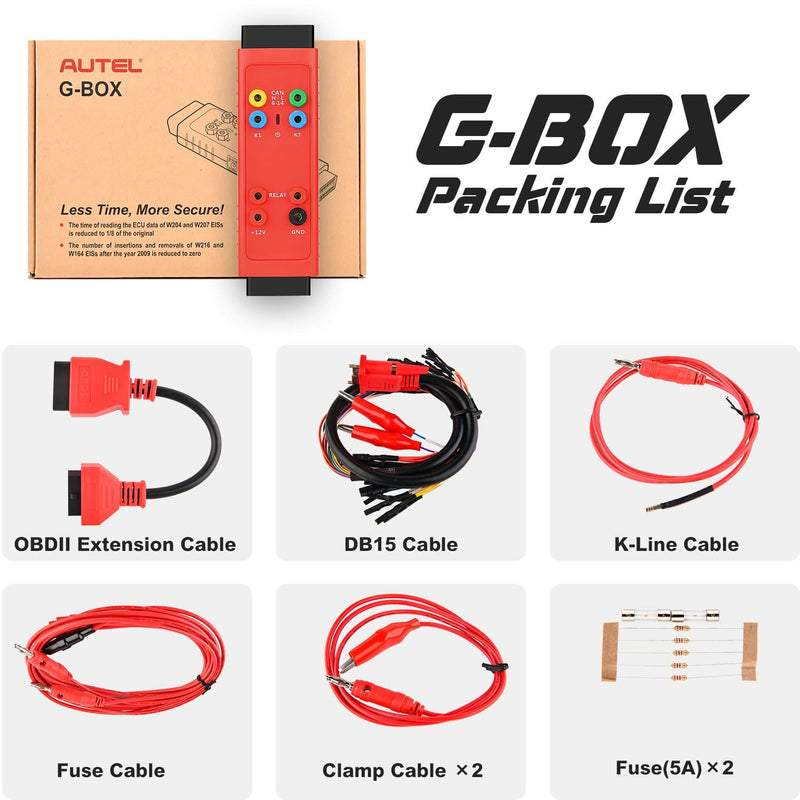

Autel G-Box Accessory Tool

• The Autel G-Box is designed to be used on for Mercedez-Benz vehicles with DAS3 CAN EIS/EZS in AKL. It helps to save time for reading the ECU data from W204 and W207 EISs by over 85%.
• The G-BOX2 realizes fast mode on vehicle and bench when all keys for Mercedes-Benz vehicles using ths DAS3 EIS/EZS are lost. The use of the G-BOX2 reduces the time needed and eliminates the process of insertion and removal.
• The G-BOX2 can read and access most engines manufactured by Bosch including EDS/ MEx17 series engines used in for BMW and for Volks wagen Vehicles. This capability supports the ability to perform adaptions when all keys are lost and engine is replaced.

• The G-BOX2 is compatible with the Autel's advanced diagnostic tablets support IMMO and key programming functions.

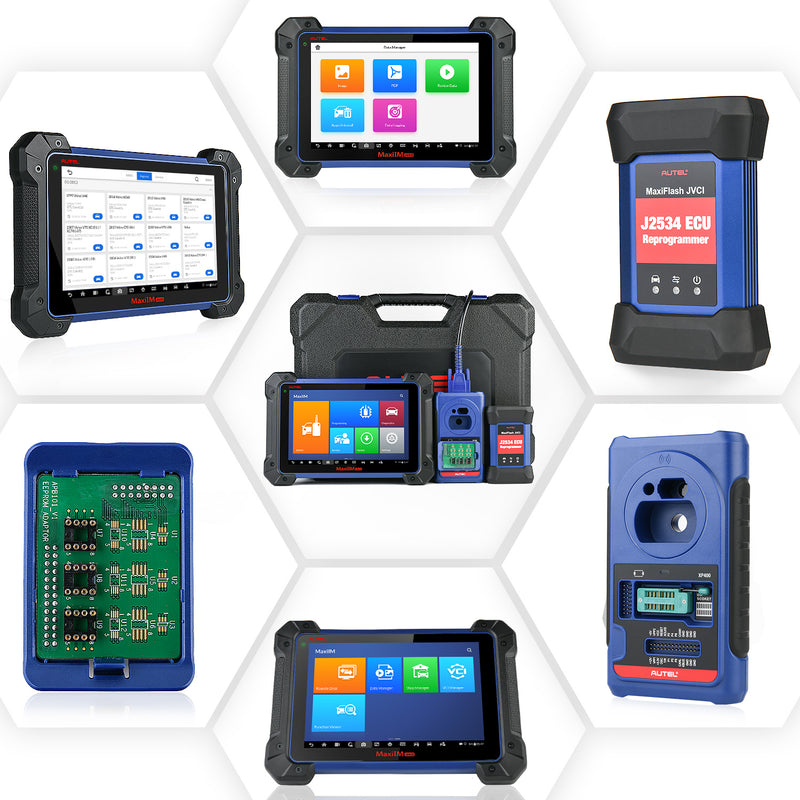

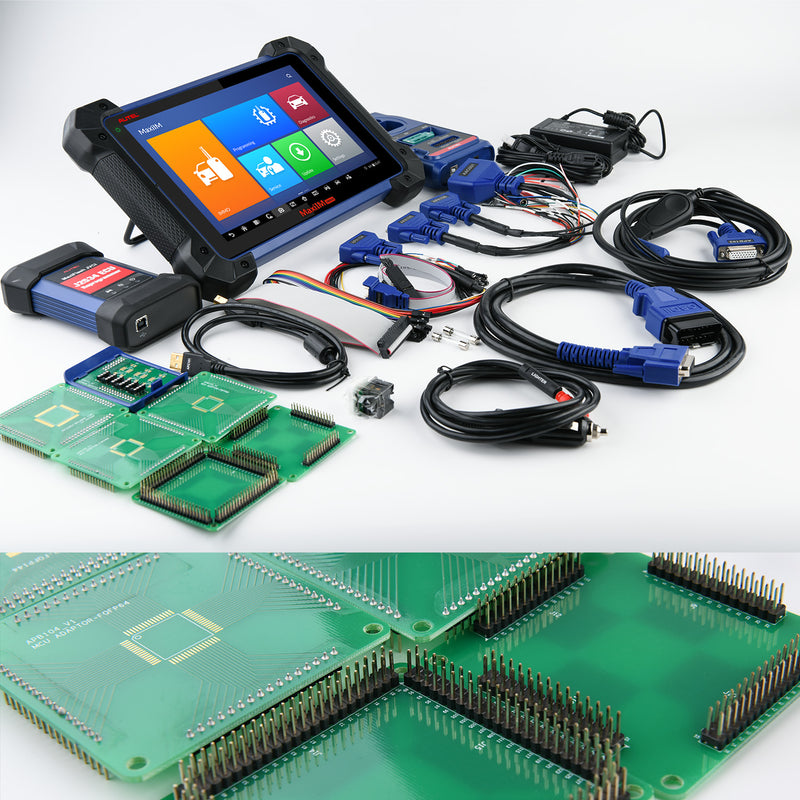

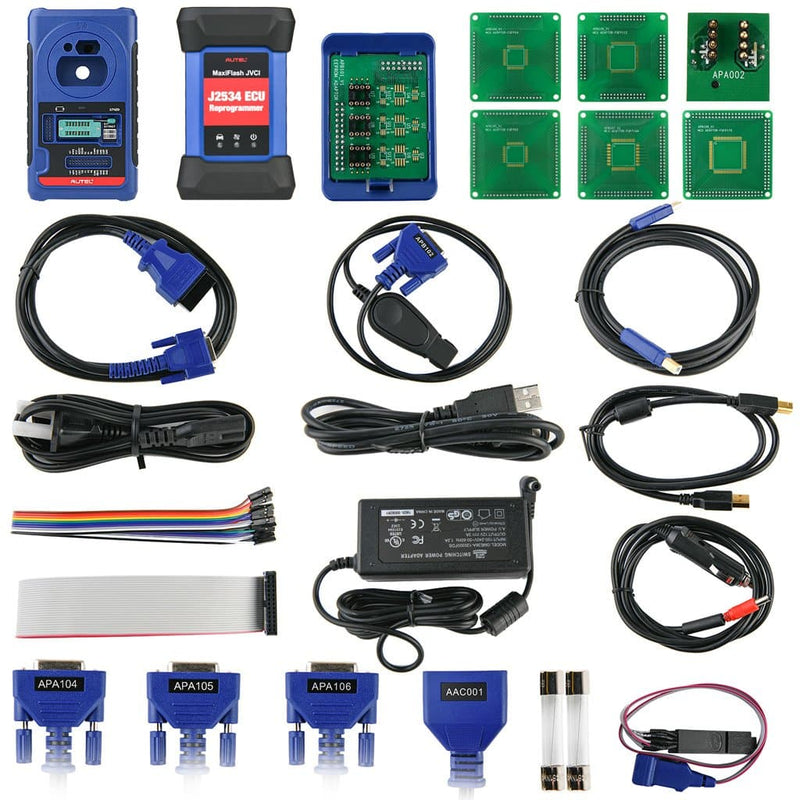

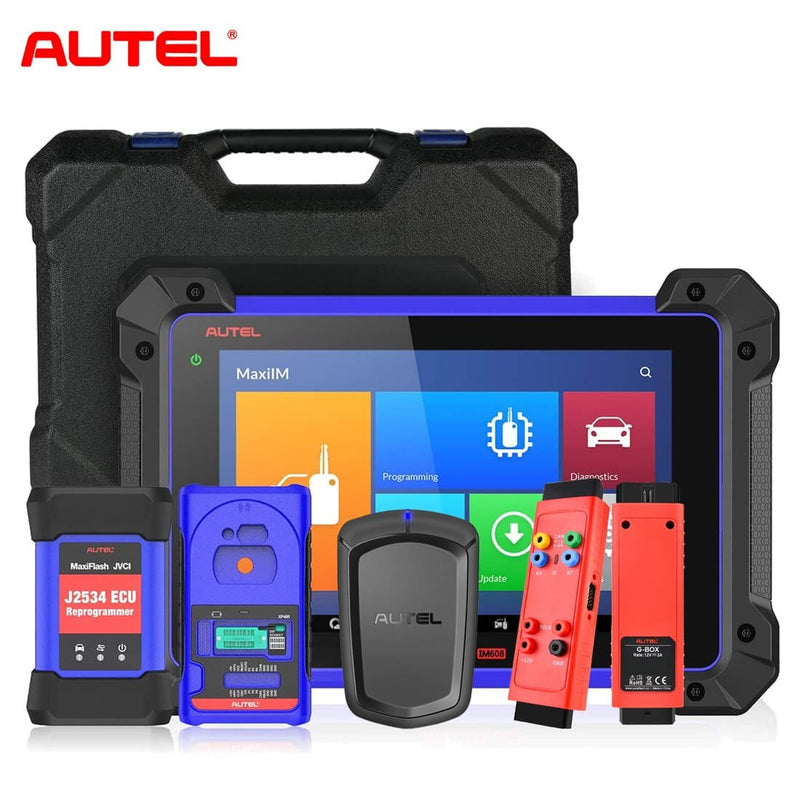

Autel IM608 Bundle Package List:

• 1x Autel MaxiIM IM608 Main Unit
• 1x APC101 USB Cable
• 1x APA101 Signal Cable
• 1x MaxiFlash JVCI
• 1x APB101+ APD101 (EEPROM Adaptor + EEPROM Adapter Shell)
• 1x APA103 (EEPROM Clamp)
• 1x XP400
• 1x APB102 MB IR Cable
• 1x APA104 ECU Clamp
• 1x Main Cable
• 1x APB104 (MCU_FQFP64)
• 1x APA105 (MCU Clamp)
• 1x USB Cable (2m)
• 1x APB105 MCU_FQFP80
• 1x APA106 (MC9S12 Clamp)
• 1x Mini USB Cable
• 1x APB106 (MCU_FQFP144)
• 1x APA107 (Connect Cable)
• 1x AC/DC 12V Adapter
• 1x APB107 (MCU_FQFP144)
• 1x Quick Reference Guide
• 2x Light Fuse 6*30mm
• 1x APB108 (MCU_FQFP176)
• 1x Packing List
• 1x Cigarette Lighter
• 1x APA002 (EEPROM Socket)
• 1x Carrying Case 634*170*404mm
• 1x AAC001
