Autel DS808S-TS vs TS900: Which TPMS Scanner Fits Your Needs?

TPMS stands for Tire Pressure Monitoring System. Car tires are a critical component for the safe and proper operation of a vehicle, and maintaining proper tire pressure is a key indicator of whether a tire has a problem. TPMS tool is designed to ensure that this system functions properly. Some TPMS scanners also support full-system diagnostics.

Both the Autel DS808S-TS and the Autel TS900 are TPMS scan tools that also support professional diagnostic functions. These two Autel TPMS tools differ somewhat in terms of hardware configuration and software features. Generally speaking, the Autel 900 series offers slightly better hardware, though it is also more expensive. Please see our detailed comparison below.

Autel DS808S-TS vs TS900: Comparison Chart

As we can see from the table, the differences between the Autel DS808S-TS and the TS900 mainly lie in diagnostic capabilities and hardware specifications, such as battery capacity, screen size, and camera. So, how do these differences affect specific diagnostic scenarios?

Under Real-World Diagnosis: The Impact of Variability

Hardware Configuration Differences

About Screen Size

The Autel DS808S TS has a slightly smaller screen. During the diagnostic process, screen size directly affects how much data is displayed and the overall user experience. Some users may prefer a larger screen. However, the difference between these two models is negligible.

About Camera

Autel TS900 has a 8MP rear camera. You might be wondering: a camera? We often use the camera on our phones to take photos and record videos, but what can it be used for on a TPMS tool?

Actually, it serves a similar purpose—taking photos of the faulty area to help explain the issue to customers. Or you can use it to scan the VIN, saving you the trouble of entering it manually. Of course, this is simply a more convenient option when automatic VIN recognition fails.

$100 OFF

Autel MaxiTPMS TS900

$699.00

$799.00

Code: BLOG5COPY

TPMS Programming Tool | Full TPMS Functions | Program MX Sensor | Bi-Directional Control | All System Diagnostics | 40+ Reset Services | Upgrade of TS608/MX808TS/MK808TS

Learn More Buy Now

About Battery Capacity

Nowadays, cell phone batteries are getting bigger and bigger, and manufacturers’ marketing messages have gradually shifted to highlighting battery life of X hours. So, when it comes to TPMS scan tool, does a larger battery capacity mean better performance? The answer is yes. Although battery life depends on various factors, if your battery is large enough, it will generally last longer when performing the same tasks.

In Summary

These are a few areas where the Autel TS900 TPMS scanner outperforms the DS808S-TS in terms of hardware specifications. However, aside from actual diagnostics—where the battery capacity is somewhat useful—the rest really depends on your specific needs. I had assumed the TS900 would be more expensive because of its superior hardware, but I was surprised to find that it’s actually the cheaper option.

Autel TS900 Key Features Overview

Software Feature Differences

FCA & Renault SGW

Those familiar with auto repair may recognize this function at a glance. Here’s a brief overview anyway. FCA & Renault SGW (Safety Gateway) is a vehicle safety system that restricts unauthorized diagnostic tools from performing advanced functions, such as active testing, coding, and service resets.

The Autel DS808S-TS supports FCA and Renault SGW, which means it unlocks advanced diagnostic capabilities for a wider range of vehicles—such as online coding for Audi, BMW, and others—helping you better resolve complex diagnostic issues and improve customer satisfaction.

ECU Coding and Refresh Hidden

In real-world automotive diagnostics, the functions of these two features can be explained simply as follows: ECU Coding matches or customizes ECU settings to the vehicle, while Refresh Hidden unlocks supported hidden vehicle features and personalization options.

For example, if you have a Autel DS808S-TS, after replacing a BMW headlight module, ECU coding can be used to configure the new module to the vehicle, while “Refresh Hidden” may reveal supported hidden/customization functions available for that specific vehicle.

Autel DS808S-TS ECU Coding Functions

Service Function

The more service features available, the more problems you can solve and the broader your business scope can become. However, whether specific service features are compatible depends on the specific car model; the service features supported may vary by car brand and model.

Compatible with BT506

This Function allows the scanner to work with the Autel BT506 for battery health, cranking, and charging system tests. This is a useful feature for shops that also offer battery testing and replacement services.

In the real-world, when a car is slow to start, connect the BT506 to check whether the problem comes from a weak battery or the charging system.

$43 OFF

Autel MaxiBAS BT506

$166.00

$209.00

Code: BLOG5COPY

Car Battery Tester & Analyzer, 100% Detection Rate of Bad Batteries

Learn More Buy Now

In Summary

The Autel DS808S-TS offers advantages such as FCA gateway unlocking, ECU coding, and flashing hidden features, as well as compatibility with the Autel BT506 battery diagnostic tool, while the Autel TS900 provides a wider range of service functions.

Autel DS808S-TS vs TS900: Which TPMS Scanner Fits Your Needs?

As far as I’m concerned, the DS808S-TS better suits my needs—it’s more affordable, offers more features, and meets my requirements for TPMS system diagnostics and repairs. Of course, what works for me may not necessarily work for you:

Choose the Autel DS808S-TS If You Want:

• More advanced diagnostic functions, such as ECU coding and flashing hidden features.
• Compatibility with the Autel BT506 battery diagnostic tool.
• A more affordable option with a slightly higher price point.
• To work on vehicles that require FCA & Renault SGW unlocking.
• To perform TPMS diagnostics and repairs on a wide range of vehicles.

$100 OFF

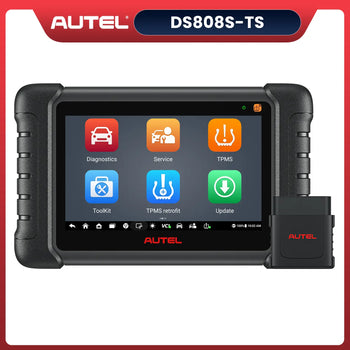

Autel MaxiDas DS808S-TS

$729.00

$829.00

Code: BLOG5COPY

Wireless TPMS Diagnostic Tool with Free Autel Maxivideo MV480, Complete TPMS Programming, OE-Level All Systems Diagnosis, 30+ Services, Upgraded of MP808S/ DS808TS/MP808TS

Learn More Buy Now

Choose the Autel TS900 If You Want:

• A slightly larger screen for better visibility during diagnostics.
• A built-in camera for taking photos and scanning VINs.
• A longer battery life for extended use without recharging.
• To perform TPMS diagnostics and repairs on a wide range of vehicles.
• A more affordable option with a slightly lower price point.

In conclusion, both the Autel DS808S-TS and the Autel TS900 are excellent TPMS scanners that offer a range of features for professional automotive diagnostics. Your choice will depend on your specific needs, budget, and the types of vehicles you work on. Consider the differences in hardware and software features to determine which scanner best fits your requirements.
