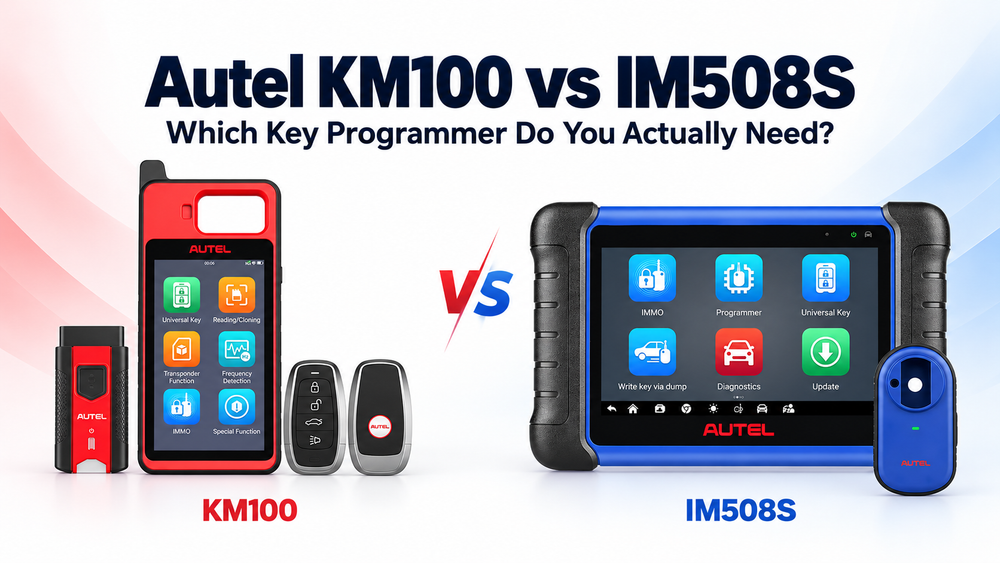

Autel KM100 vs IM508S: Which Key Programmer Do You Actually Need?

Autel key programmers, ranging from the Autel KM100 to the IM608 series, offer a wide range     of features—from basic to advanced—to meet the key programming needs of different vehicle models and users. So,     between the Autel KM100 and the IM508S, there’s a $500 price difference. Is the more affordable Autel KM100     sufficient, or when would you need the IM508S?

In this article, we’ll compare the features, prices, vehicle compatibility, and recommended use cases of the Autel     KM100 and IM508S to help you decide which key programming tool best suits your needs.

Quick Answer: Should You Choose the KM100 or IM508S?

People have a variety of reasons for purchasing key programming tools. Some may simply need to add a spare key for their family to use in their vehicle, while others may need to program keys for many different makes of vehicles. When deciding which tool to choose, the most important factor is your specific needs.

If your primary needs are generating keys using Autel IKEYs and performing key learning for everyday vehicles, the Autel KM100 is the more portable and cost-effective choice. However, if you require daily diagnostics or wish to expand your workshop's services to include advanced key programming, the Autel IM508S would be the more suitable option.

Before buying, confirm support for your exact vehicle and task. Add-key and all-keys-lost coverage can differ.

Autel KM100 Vs IM508S: General Comparison

Note: This table does not list every function of the key programmers; instead, it focuses on the key functional differences between the KM100 and the IM508S. For a detailed comparison, please refer to the Autel Key Programming Tools Comparison.

Which Tool Fits the Key Jobs You Actually Do?

Depending on the specific scenarios and requirements for car key programming, the tools needed may vary. Next, I’ll list five specific work scenarios to help you determine which Autel key programmer is best suited for your needs.

Scenario 1: Adding a Spare Key When a Working Key Is Available

In this scenario, you already have a working key and need to add a spare key. The KM100 can handle this task efficiently via OBD, making it a convenient choice for simple key addition without the need for advanced IMMO  functions.

However, before deciding to purchase, you should first check whether your vehicle is compatible with the Autel KM100  to avoid buying a product you can’t use.

Scenario 2: Generating Universal Smart Keys

Generating a universal key is relatively simple, but it requires the use of Autel IKEYs. If you don’t have the     original key, you’ll need to purchase Autel IKEYs to complete this step. The Autel KM100 can be used with Autel  IKEYs to generate a universal key for your vehicle.

Remember that generating a key and pairing it with the vehicle are separate steps. Confirm support for both before accepting a job.

Scenario 3: Handling All-Keys-Lost and More Advanced IMMO Work

When all keys are lost or when more advanced IMMO system tasks need to be performed—such as reading or writing MCU data—the Autel KM100 may not be up to the task. In such cases, the Autel IM508S, with its powerful IMMO capabilities     and compatibility with advanced key programmers, can handle these complex tasks and provide users with a more     comprehensive key programming solution.

However, before making a purchase, you should verify whether the Autel IM508S is compatible with your vehicle. Some high-end models often require additional tools, such as the Autel XP400 Pro or G-BOX3, to perform the necessary operations.

Scenario 4: Diagnosing Vehicle Problems Alongside Key Work

The IMMO system is an integral part of the vehicle; a malfunction may not be resolved simply by programming a new key, but may also involve the vehicle’s ECU or other electronic control modules. In such cases, having an Autel key programmer like the Autel IM508S—which offers comprehensive diagnostic capabilities—becomes even more important.

In this scenario, the Autel IM508S is the more suitable choice, as it not only performs key programming but also supports full-system diagnostics. This not only improves key programming efficiency but also helps expand your business.

Do You Need Extra Accessories with the IM508S?

If you're certain you want to purchase the Autel IM508S, you'll also need to confirm whether your key programming task requires additional accessories—such as the Autel XP400 Pro, G-BOX3, and APB112—to ensure that all operations can be completed successfully.

• Autel XP400 PRO: Simply connect the XP400 PRO to upgrade the Autel key programmer into a professional automotive key programming platform capable of performing ECU-level operations.

• Autel G-BOX 3: The Autel G-BOX 3 is designed to handle some of the most challenging European vehicle security systems. It is particularly well-suited for Mercedes and BMW models, enabling code calculation and secure access to electronic control units in the event of a lost key.





• Autel APB112: The Autel APB112 is a tool specifically designed for the simulation, testing, and         verification of immobilizer systems. It allows technicians to understand immobilizer behavior patterns and verify ECU responses before making any changes.

• Autel IMKPA: The Autel IMKPA adapter kit extends XP400 Pro functionality into deeper key unlocking and learning operations.

The above details cover specific accessories that may be used during the Autel key programming process; you can determine whether to purchase these additional items based on your specific programming requirements. For instance,     if you are programming keys for a BMW, you might need the Autel G-BOX 3 to handle the data.

If you wish to further enhance the IMMO programming capabilities of the Autel IM508S, you can opt for the Autel IM508S Pro instead; it comes factory-equipped with the XP400 Pro, offering more     comprehensive support for programming operations.

Note: These accessories are compatible only with Autel IM508 and IM608 series key programming tools; they         cannot be used with the Autel KM100.

Who Should Buy the KM100—and Who Should Buy the IM508S?

By now, you should have a clearer understanding of the differences, suitable use cases, and respective strengths of     the Autel KM100 and IM508S. So, how should you choose? Here is a brief summary.

• Choose the Autel KM100: If you are looking for a user-friendly device that handles everyday tasks—such as  key generation, cloning, and adding new keys—without the need for advanced diagnostics or complex key  programming functions, the KM100 is a highly cost-effective choice.

• Choose the Autel IM508S: If you require diagnostic capabilities and wish to perform advanced key         programming operations, the IM508S is the more suitable choice; it not only enables full-system diagnostics but also supports complex key learning and ECU-level operations.

The specific model you choose should be based on your actual needs. You might start by listing your specific task requirements, then verify whether these two Autel key programmers cover the vehicle makes and models you encounter     in your daily work, and finally make a decision after considering factors such as your budget.

FAQs About the Autel KM100 and IM508S

1. Can the KM100 replace an IM508S?

For supported everyday key jobs, it may cover your needs. However, the KM100 does not replace the IM508S’s all-system     diagnostics or its options for more advanced programmer-based immobilizer work. Choose based on the jobs you     actually perform.

2. Can either tool program OEM keys?

Both can perform key learning with compatible OEM on supported vehicles. The key must match the vehicle’s     requirements, and the tool must support the intended operation.

3. Do the KM100 and IM508S require subscriptions?

The Autel KM100 supports free lifetime software updates. The Autel IM508S uses a paid update subscription after its included update period. Subscription     expiry does not necessarily disable every installed function, but online services and certain operations may have     separate requirements.

4. Does the IM508S support every vehicle the KM100 supports?

Do not assume so. A broader feature set does not guarantee identical coverage for every vehicle and operation.  Compare the exact model, year, region and task—such as add key or all keys lost—and check whether the IM508S     requires additional accessories.
