When we choose a car diagnostic tool, powerful functions and affordable price have become necessary reference factors. With the continuous advancement of Autel scanners, we will launch the MK906S Pro, a high-performance scanner priced at around US$1,000 in 2023. Here, we will also compare Autel MK906BT VS MS906 Pro VS MK906S Pro.
Autel MK906S Pro, as Autel's latest diagnostic scanning tool in 2023, is a major upgrade of Autel MS906 Pro/MK906BT/MK906 Pro. MK906S Pro has better operability in terms of hardware and software, and can be used by DIY enthusiasts and professional automotive mechanics. Teachers provide services.

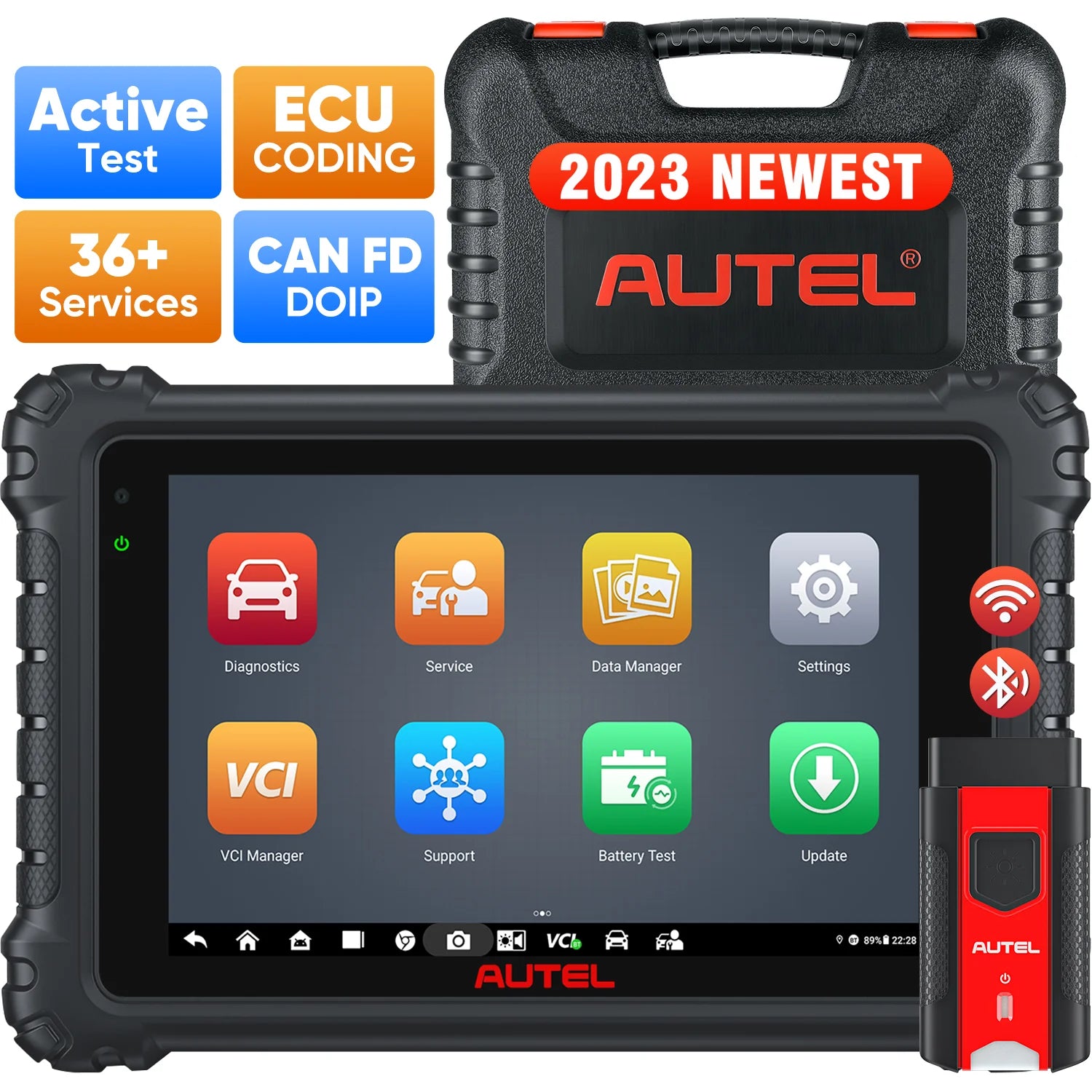

Autel MK906S Pro scanner tool has top hardware configuration, octa-core processor; 4G memory/128G memory; 8.0-inch LED; front: 16 megapixels / back: 16 megapixels; 11600 mAh battery capacity.
The Autel MK906S Pro diagnostic scanner has no IP restrictions, has OE-level complete system diagnosis, 36+ service functions, can perform ECU coding, including ADAS system calibration, and supports the use of expanded battery testers to make car diagnosis more comprehensive.
| Model | MK906BT | MS906 Pro | MK906S Pro | ||
| Price | $880 | $1,059 | $1,199 | ||
|
Hardware
|
|||||
| CPU | Exynox 5260 | Exynos 8895 | Qualcomm 660 | ||
| RAM | 2GB | 4GB | 4GB | ||
| ROM | 64GB | 128GB | 128GB | ||
| Battery Capacity | 10000 mAh | 11600 mAh | 11600 mAh | ||
| Android Version | Android 4.4.4 | Android 7.0 | Android 10.0 | ||
| Screen Size | 8.0 inch | 8.0 inch | 8.0 inch | ||
| Screen Resolution | 1024*768 | 1920*1200 | 1920*1200 | ||
| Camera | Rear 8.0 MP | Rear 16.0 MP Front 5.0 MP |
Rear 16.0 MP Front 16.0 MP |
||
| VCI | V100 | V200 | V200 | ||
|
Software
|
|||||
| Basic Diagnostic Function | √ | √ | √ | ||
| Service | √ | √ | √ | ||
| Special Functions | √ | √ | √ | ||
| Bi-Directional Control(Active Test) | √ | √ | √ | ||
| Online ECU Programming | / | / | / | ||
| Online ECU Coding | √(BMW, Porsche, VW) | √(BMW, Porsche, VW) | √(BMW, Porsche, VW) | ||
| BMW Brush Hidden | √ | √ | √ | ||
| VW, Audi, Skoda Brush Hidden | √ | √ | √ | ||
| VW, Audi, Skoda, Seat, Bently, Man LD Guide function | √ | √ | √ | ||
|
Extended function
|
|||||
| Oscilloscope function (requires MP408) | √ | √ | √ | ||
| Endoscope function (requires MV105/MV108) | √ | √ | √ | ||
| Battery Test | √ | √ | √ | ||
| Remote Expert | / | √ | / | ||
|
Other Features
|
|||||
| Remote Desk | √ | √ | √ | ||
| DoIP/CAN | / | √ | √ | ||
| D-PDU/RP1210 | / | / | / | ||
| Pre & Post Scan | √ | √ | √ | ||
|
New Features
|
|||||
| Language | Multi-Language | Only English | Multi-Language | ||
| Autel Cloud Service | √ | √ | √ | ||
| Wifi Printer | / | √ | √ | ||
In the comparison table of Autel MK906BT, MS906 Pro, and MK906S Pro, we can easily see the improvements in hardware configuration and software services of the Autel MK906S Pro OBD-II scanner.
Better CPU processors bring better operational fluency, and top hardware configurations provide better choices.Autel MS906S, MK906BT scanners are now discontinued, choose the next generation new upgraded scanner tool Autel MK906S Pro. If you are choosing among scanners priced around $1,000, the Autel MK906S Pro OBD-II diagnostic scanner will bring you more benefits!
