Autel MaxiCOM MK906BT Diagnostic Scan Tool
The MaxiCOM MK906BT Diagnostic Platform is an evolutionary smart solution for specialized automotive diagnosis. MK906BT comes with MaxiVCI V100 Bluetooth Box which can communicate with vehicles wirelessly. And it combined with the best possible coverage of OE-level diagnostics, and based on the revolutionary multitask-capable Android Operating system, the MaxiCOM organizes information with test instrumentation to help you diagnose symptoms, codes, and customer complaints easily, quickly and efficiently.
MaxiCOM MK906BT Features:
- Extensive complete system coverage for more than 80 US, Asian and European makes and models;
- Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
- Auto VIN technology can automatically identify the vehicle’s make, model, and year information;
- Instant remote control tech support anytime, anywhere;
- Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes;
- Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors;
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized;
- Convenient data management system for managing internal program applications and reviewing data.
Autel MaxiCOM MK906BT Full Systems Diagnosis & Services:
Doing regular and routine maintenance on a modern car is impossible without a diagnostic system. Even the simplest procedures require the participation of an auto scanner. That's why Autel engineers have been working on them and making them as user-friendly as possible in the new MaxiCOM MK906BT. Now you can easily do functions like:
-
Oil Reset: Reset the oil change calculator in the engine and automatic transmission
-
EPB: Replacement of brake pads on vehicles with an electric parking brake
-
SAS: Adaptation of the sensor to the angular position of the steering wheel
-
DPF: Regeneration of diesel particulate filter
-
Brake Bleed: ABS Brake Bleeding
-
IMMO: Immobilizer keys functions(All keys lost, add new keys)
-
BMS: Battery registration and reset
- Seats, Odometer, Injector, CHG tire size, TEC Learn, Suspension, Throttle, WIN OR ROOF, Lang Change, Headlamp.
Autel MaxiCOM MK906BT Advanced Functions:
-
Autel MaxiCOM MK906BT ECU Coding--Autel MK906BT professional auto scanner comes with advanced ECU coding function. ECU Coding allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or coding. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU coding, for various vehicle control systems, such as engine, transmission, ABS and more. Coding functions are usually used by advanced specialists.
-
Autel MK906BT Bi-Directional Control & Active Test--MK906BT automotive diagnostic scanner comes with Bi-Directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.
Note: Available tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu. To check compatibility with your vehicle, please refer to Autel website or contact us directly.
Autel MaxiCOM MK906BT Add-On Functions:
Autel MaxiCOM MK906BT is a diagnostic scanner with various interfaces that can access to more Add-on like Inspection Camera, HDMI Projector, Phone, PC, USB Memory Stock, Headset, Oscilloscope, Extend SD Card etc.
- MK906BT connects to a MV108 / MV105 inspection camera and turns into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
- MK906BT works with Autel MP408 oscilloscope providing you an insight to the inner workings of a vehicle’s electronic circuits. Featuring the user-friendly UI design combined with the unrivalled hardware specs, is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles.
Autel MaxiCOM MK906BT Specifications:
| Operating System: |
AndroidTM 4.4.2, KitKat |
| Processor: |
Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15) |
| Memory: |
2 GB RAM & 64 GB ROM |
| Display: |
8.0 inch LED capacitive touch screen with 1024x768P resolution |
| Connectivity: |
•Wi-Fi (802.11 b/g/n),USB: 2.0,Mini USB 2.0,Wireless BT V2.1+EDR, Class1,HDMI 1.4a,SD Card (support up to 32GB) |
| Camera (rear): |
Rear-facing, 8.0 Megapixel, AF with Flashlight |
| Sensors; |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output: |
•Microphone,Single Speakers,3-Band 3.5 mm stereo/standard headset j |
| Power and Battery: |
10,000 mAh 3.7 V lithium-polymer battery
Charging via 12 V AC/DC power supply |
| Input Voltage: |
12 V (9-35 V) |
| Power Consumption |
5 W |
Autel MK906BT Package List:
- 1x MK906BT main unit
- 1x MaxiVCI V100
- 1x Lighter Fuse
- 1x Mini USB Cable
- 1x Cigarette Lighter
- 1x Soft Cloth
- 1x User Manual
- 1x Carrying Case
- 1x Quick Reference Guide
- 1x AC/DC Adapter (12V)
- 1x Adapter for Chrysler-16 (America Version Only)
- 1x Adapter for GM/Daewoo-12
- 1x Adapter for Benz-38
- 1x Adapter for Mitsubishi/Hyundai-12+16
- 1x Adapter for Honda-3
- 1x Adapter for BMW-20
- 1x Adapter for Kia-20
- 1x Adapter for Nissan-14
- 1x Adapter for VW/AUDI-2+2
[comparisons]
| Model |
MS906S
|
MS906BT |
MK906BT
|

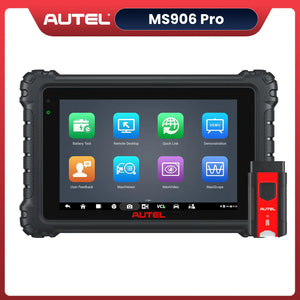

MS906 Pro |
MS906TS |
| Hardware |
| CPU |
Exynox 5260 |
Exynox 5260 |
Exynox 5260 |
Exynos 8895 |
Exynox 5260 |
| RAM |
2GB |
2GB |
2GB |
4GB |
2GB |
| ROM |
64GB |
64GB |
64GB |
128GB |
64GB |
| Battery Capacity |
10000 mAh |
10000 mAh |
10000 mAh |
11600 mAh |
10000 mAh |
| Android Version |
Android 4.4.4 |
Android 4.4.4 |
Android 4.4.4 |
Android 7.0 |
Android 4.4.4 |
| Screen Size |
8.0 inch |
8.0 inch |
8.0 inch |
8.0 inch |
8.0 inch |
| Screen Resolution |
1024*768 |
1024*768 |
1024*768 |
1920*1200 |
1024*768 |
| Camera |
Rear 8.0 Megapixel |
Rear 8.0 Megapixel |
Rear 8.0 Megapixel |
Rear 16.0 Megapixel
Front 5.0 Megapixel |
Rear 8.0 Megapixel |
| VCI |
V100 |
V100 |
V100 |
V200 |
V100 |
| Software |
| Basic Diagnostic Function |
√ |
√ |
√ |
√ |
√ |
| Service |
√ |
√ |
√ |
√ |
√ |
| Special Functions |
√ |
√ |
√ |
√ |
√ |
| Bi-Directional Control(Active Test) |
√ |
√ |
√ |
√ |
√ |
| Online ECU Programming |
/ |
/ |
/ |
/ |
/ |
| Online ECU Coding |
/ |
√(BMW, Porsche, VW) |
√(BMW, Porsche, VW) |
√(BMW, Porsche, VW) |
√(BMW, Porsche, VW) |
| BMW Brush Hidden |
/ |
√ |
√ |
√ |
√ |
| VW, Audi, Skoda Brush Hidden |
√ |
√ |
√ |
√ |
√ |
| VW, Audi, Skoda, Seat, Bently, Man LD Guide function |
√ |
√ |
√ |
√ |
√ |
| Extended function |
| Oscilloscope function (requires MP408) |
√ |
√ |
√ |
√ |
√ |
| Endoscope function (requires MV105/MV108) |
√ |
√ |
√ |
√ |
√ |
| Battery Test |
√ |
√ |
√ |
√ |
√ |
| Remote Expert |
/ |
/ |
/ |
√ |
/ |
| Complete TPMS Function |
| Quick Mode & Advance Mode |
/ |
/ |
/ |
/ |
√ |
| Activate TPMS sensors |
/ |
/ |
/ |
/ |
√ |
| Read sensor data |
/ |
/ |
/ |
/ |
√ |
| TPMS health check |
/ |
/ |
/ |
/ |
√ |
| Read/clear TPMS DTCs |
/ |
/ |
/ |
/ |
√ |
| Scan TPMS sensor ID |
/ |
/ |
/ |
/ |
√ |
| Manual input OE ID into MX-sensor |
/ |
/ |
/ |
/ |
√ |
| Program MX-Sensor by auto creating sensor ID |
/ |
/ |
/ |
/ |
√ |
| Read Sensor ID by OBD and copy ID into MX-Sensor |
/ |
/ |
/ |
/ |
√ |
| Relearn by OBD function |
/ |
/ |
/ |
/ |
√ |
| Relearn procedure guide on the tool |
/ |
/ |
/ |
/ |
√ |
| Read TPMS live data |
/ |
/ |
/ |
/ |
√ |
| Tire Type/Pressure selection |
/ |
/ |
/ |
/ |
√ |
| Other TPMS special functions |
/ |
/ |
/ |
/ |
√ |
| Other Features |
| Remote Desk |
√ |
√ |
√ |
√ |
√ |
| DoIP/CAN |
/ |
/ |
/ |
√ |
/ |
| D-PDU/RP1210 |
/ |
/ |
/ |
/ |
/ |
| Pre & Post Scan |
/ |
/ |
√ |
√ |
√ |
| New Features |
| Language |
Only English |
Only English |
Multi-Language |
Only English |
Only English |
| Autel Cloud Service |
√ |
√ |
√ |
√ |
√ |
| Wifi Printer |
/ |
/ |
/ |
√ |
/ |
[accessories]
[downloads]
|
Name
|
Download |
|
Autel-MaxiCOM-Mk906BT-Quick-Guide.pdf
|
|
