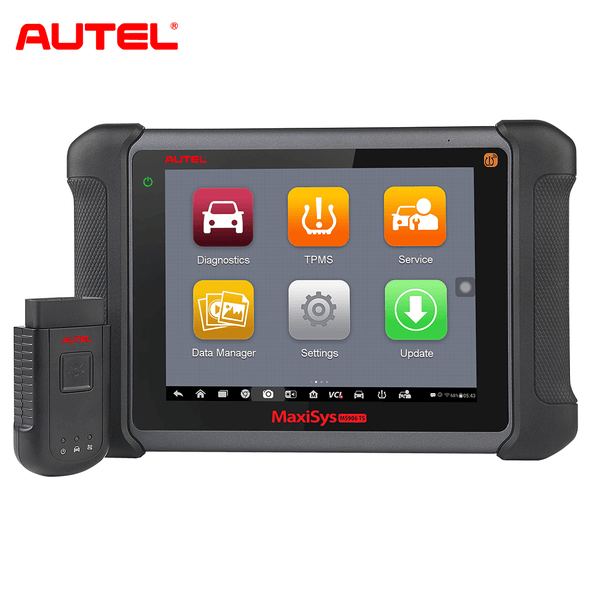

Autel Maxisys MS906TS Bi-Directional Diagnostic Scanner and TPMS Tool with Advanced ECU Coding, Upgraded Ver of MS906BT/ MP808TS

items availableIn Stock | 12 reviews
Save up to 39% Save 41%
Original price $1,699.00
from Original price $1,699.00
Original price $1,699.00
Current price $996.00
from $996.00
Current price $996.00
Item: MS906TS

Delivered by Thu, Dec 01 - Sat, Dec 03 Ship from New Jersey or California, United States

Service

Fast, Free Shipping & No Extra Tax

30-Day Return or Replacement

12-Month Free Warranty

Lifetime Customer Support

Pay with Ease
Trusted Delivery
free shipping by UPS, DHL or FedEx
  • Description
  • Video
  • Comparison
  • Accessories
  • Downloads
  • Software Update
  • Shipping
  • Certificate
    • Description
  • MaxiSys MS906TS Bi-Directional Diagnostic Scanner

    Autel MaxiSys MS906TS is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices integrated with the TPMS antenna module. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and TPMS integration. Utilizing the powerful Exynos 5260 6-core processor, an 8” capacitive HD touch screen, and long-distance wireless communication, the MaxiSys MS906TS efficiently provides comprehensive vehicle diagnostics and analysis along with universal TPMS solutions.

    Why buy Autel MS906TS TPMS Tool?

    The wireless Maxisys MS906TS diagnostic scanner is an industry first combining advanced diagnostics with complete TPMS functionality. Now technicians don't need a secondary TPMS service device to trigger, program, or relearn Autel MX-sensor and quickly test all vehicle systems with one ultra-fast, lightweight, touch screen tablet.

    Quickly diagnose all vehicle systems with Auto VIN & Scan technology, perform advanced ECU coding, bi-directional control, 33+ Services with the same vehicle coverage and advanced diagnostics features as the Autel MS906BT.

    Autel MS906TS automotive diagnostic scan tool compatible with more than 80+ models of American, Asian, and European vehicles. Featured a full set Non-OBDII adapters for wider vehicle coverage.

    NO IP restriction and can be used in any place on the global, and come with a wireless working range of up to 164 feet (50m)

    One-Year Autel Manufacturer Warranty and 1-Year Free Software Update

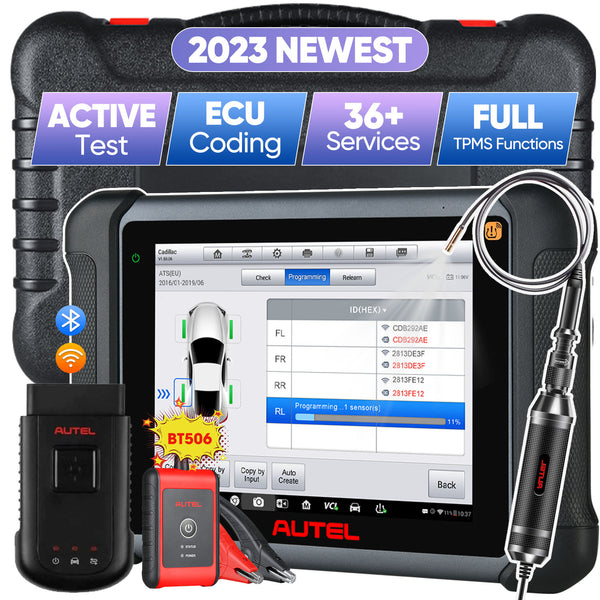

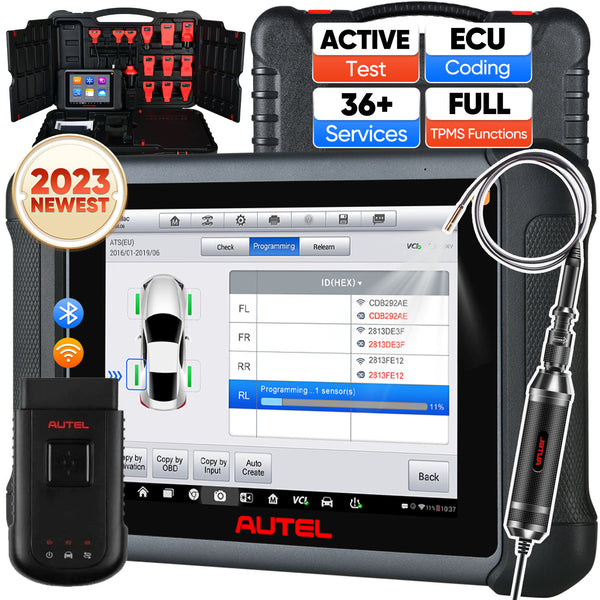

    Complete TPMS Diagnostic & Services

    Autel MS906TS diagnostic scanner comes with comprehensive TPMS and OBDII diagnostic functions and able to diagnose the newest models up to 2021. It is loaded with all TPMS functions to activate all known OEM TPMS sensors, view sensor data, program Autel MX-Sensors, and perform TPMS relearn and diagnostics.

    • Activate/Reset TPMS Sensors
    • TPMS diagnose, one step for complete TPMS health check
    • Read/Clear TPMS DTCs; on-screen DTC description
    • Scan TPMS sensor ID and copy ID into MX-Sensor
    • Program MX-Sensor by auto-creating sensor ID
    • Read Sensor ID by OBD and copy ID into MX-Sensor
    • Relearn by OBD function
    • Relearn procedure guide on the tool
    • Check Key FOB
    • Read TPMS live data
    ms906ts tpms functions

    The Most Affordable Complete TPMS & Diagnostic Scan Tablet

    The MaxiSys MS906TS scan tool not only is a comprehensive TPMS service tool but also is an advanced smart wireless diagnostic device providing specialized automotive diagnostic services for customers.

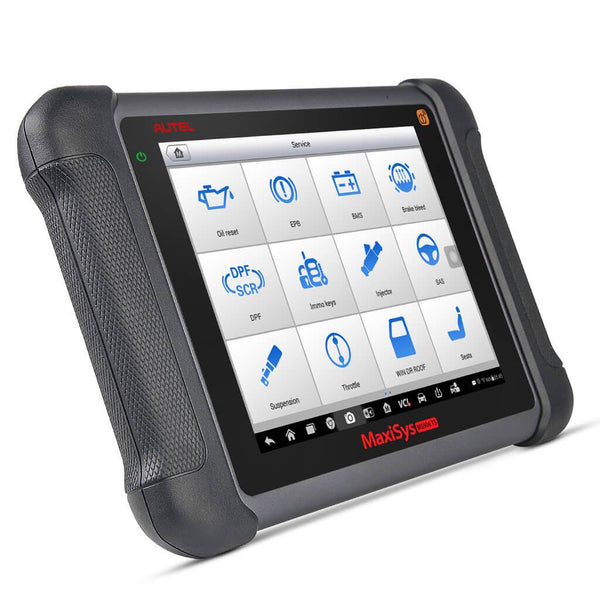

    Autel MaxiSys MS906TS Full Systems Diagnosis & Services

    Doing regular and routine maintenance on a modern car is impossible without a diagnostic system. Even the simplest procedures require the participation of an auto scanner. That's why Autel engineers have been working on them and making them as user-friendly as possible in the new MaxiSys MS906BT. Now you can easily do functions like:

    1. Oil Reset: Reset the oil change calculator in the engine and automatic transmission
    2. EPB: Replacement of brake pads on vehicles with an electric parking brake
    3. SAS: Adaptation of the sensor to the angular position of the steering wheel
    4. DPF: Regeneration of diesel particulate filter
    5. Brake Bleed: ABS Brake Bleeding
    6. IMMO: Immobilizer keys functions(All keys lost, add new keys)
    7. ​​BMS: Battery registration and reset
    8. Seats, Odometer, Injector, CHG tire size, TEC Learn, Suspension, Throttle, WIN OR ROOF, Lang Change, Headlamp.
    Autel Maxisys MS906TS 31+ Function Services

    Autel MS906TS Bi-directional Control & Active Test

    MS906TS automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.

    Note: Available tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu. To check compatibility with your vehicle, please refer to Autel website or consult us directly.

    Autel Maxisys MS906TS Bi-Directional Control (active test)

    Autel Maxisys MS906TS ECU Coding

    Autel MS906TS professional auto scanner comes with advanced ECU coding function. ECU Coding allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or coding. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU coding, for various vehicle control systems, such as engine, transmission, ABS and more.

    Autel Maxisys MS906TS Supporting ECU Coding

    Autel Maxisys MS906TS Extension of Diagnostic Function

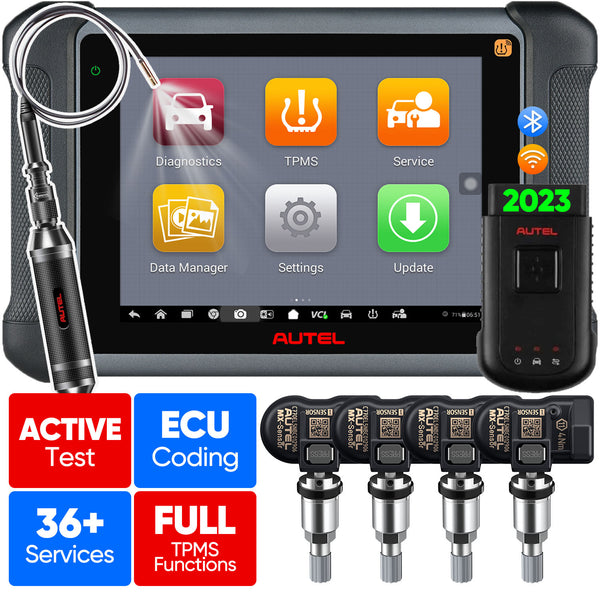

    The MS906TS TPMS Tool has the ability to record digital images and videos. Using the diagnostic tool in conjunction with MP408 oscilloscope or MV105 inspection camera will provide greater insight into the interior of the vehicle, expanding the diagnostic capabilities of the device and facilitating your quick inspection.

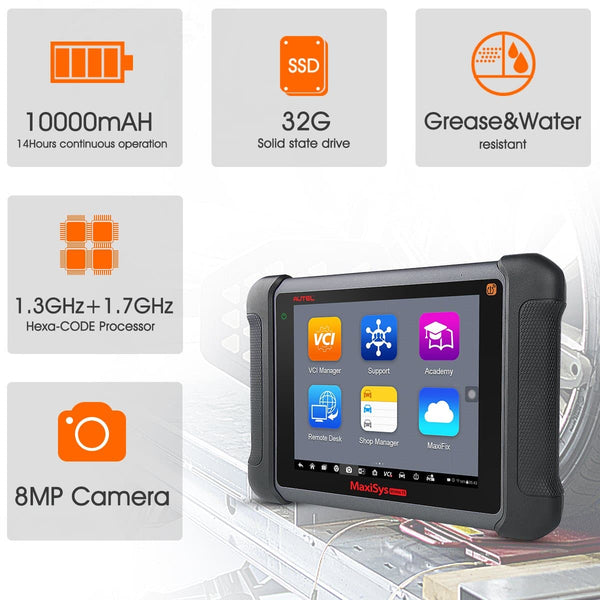

    Autel MaxiSYS MS906TS Specification:

    Operating System: Android™ 4.4.2, KitKat
    Processor: Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
    Memory: 2 GB RAM / 64 GB ROM
    Display: 8.0" LED capacitive touch screen with 1024x768P resolution
    Connectivity: Wi-Fi (802.11 b/g/n); USB: 2.0; Mini USB 2.0; Wireless BT V2.1+EDR Class1; HDMI 1.4a; SD Card (support up to 32 GB)
    Camera (rear): Rear-facing, 8.0 Megapixel, AF with Flashlight
    Sensors; Gravity Accelerometer, Ambient Light Sensor (ALS)
    Audio Input/Output: • Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack
    Power and Battery: 11000 mAh 3.7 V lithium-polymer battery
    Charging via 12 V AC/DC power supply
    Input Voltage: 12 V (9-35 V)
    Power Consumption: 5 W
    Operating Temp.: -10 to 55°C (14 to 131°F)
    Storage Temp.: -20 to 70°C (-4 to 158°F)
    Housing: Rubberized outer protection and rugged internal housing
    Dimensions (W x H x D): 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
    Weight NW: 1.10 kg (2.42 lb.)

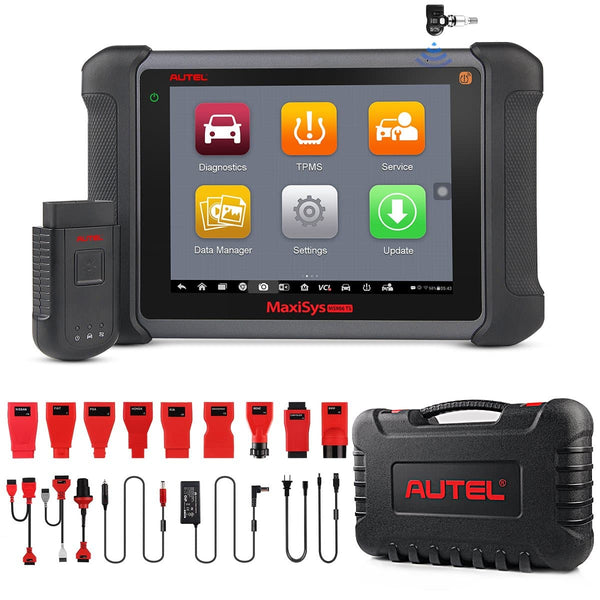

    Autel MS906TS Package List:

    • 1x Autel MS906ts Main Unit

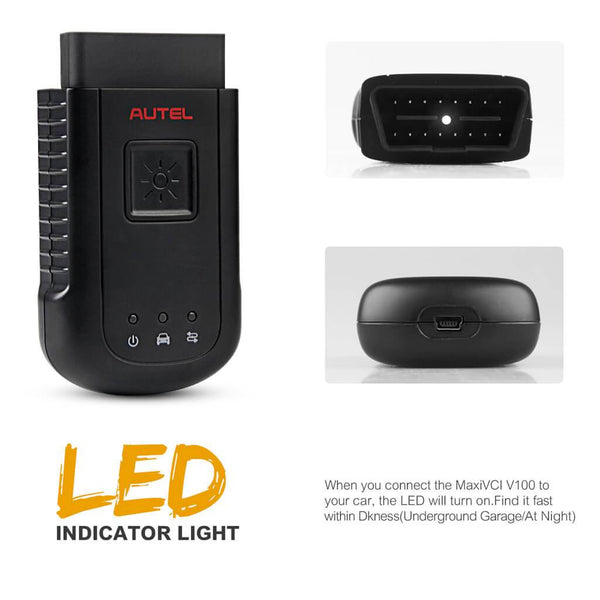

    • 1x MaxiVCI V100
    • 1x Adapter for VW/AUDI-2+2
    • 1x AC/DC Adapter (12V)
    • 1x Adapter for Benz-14 (Europe Only)
    • 1x Adapter for Chrysler-16 (America Only)
    • 1x Adapter for GM/Daewoo-12
    • 1x Adapter for BMW-20
    • 1x Adapter for Benz-38
    • 1x Adapter for Kia-20
    • 1x Adapter for Mitsubishi/Hyundai-12+16
    • 1x Adapter for Nissan-14
    • 1x Adapter for Honda-3
    • 1x Mini USB Cable
    • 1x User Manual
    • 1x Carrying Case
    • 1x Quick Reference Guide
    • 1x Lighter Fuse
    • 1x Cigarette Lighter
    • 1x Soft Cloth
    • 1x Packing List
    • Video
  • Video: Atuel Maxisys MS906TS TPMS Tool Introduction

    • Comparison
  • Model
    MS906S

    MS906BT

    MK906BT

    MS906 Pro

    MS906TS
    Hardware
    CPU Exynox 5260 Exynox 5260 Exynox 5260 Exynos 8895 Exynox 5260
    RAM 2GB 2GB 2GB 4GB 2GB
    ROM 64GB 64GB 64GB 128GB 64GB
    Battery Capacity 10000 mAh 10000 mAh 10000 mAh 11600 mAh 10000 mAh
    Android Version Android 4.4.4 Android 4.4.4 Android 4.4.4 Android 7.0 Android 4.4.4
    Screen Size 8.0 inch 8.0 inch 8.0 inch 8.0 inch 8.0 inch
    Screen Resolution 1024*768 1024*768 1024*768 1920*1200 1024*768
    Camera Rear 8.0 Megapixel Rear 8.0 Megapixel Rear 8.0 Megapixel Rear 16.0 Megapixel
    Front 5.0 Megapixel
    Rear 8.0 Megapixel
    VCI V100 V100 V100 V200 V100
    Software
    Basic Diagnostic Function
    Service
    Special Functions
    Bi-Directional Control(Active Test)
    Online ECU Programming / / / / /
    Online ECU Coding / √(BMW, Porsche, VW) √(BMW, Porsche, VW) √(BMW, Porsche, VW) √(BMW, Porsche, VW)
    BMW Brush Hidden /
    VW, Audi, Skoda Brush Hidden
    VW, Audi, Skoda, Seat, Bently, Man LD Guide function
    Extended function
    Oscilloscope function (requires MP408)
    Endoscope function (requires MV105/MV108)
    Battery Test
    Remote Expert / / / /
    Complete TPMS Function
    Quick Mode & Advance Mode / / / /
    Activate TPMS sensors / / / /
    Read sensor data / / / /
    TPMS health check / / / /
    Read/clear TPMS DTCs / / / /
    Scan TPMS sensor ID / / / /
    Manual input OE ID into MX-sensor / / / /
    Program MX-Sensor by auto creating sensor ID / / / /
    Read Sensor ID by OBD and copy ID into MX-Sensor / / / /
    Relearn by OBD function / / / /
    Relearn procedure guide on the tool / / / /
    Read TPMS live data / / / /
    Tire Type/Pressure selection / / / /
    Other TPMS special functions / / / /
    Other Features
    Remote Desk
    DoIP/CAN / / / /
    D-PDU/RP1210 / / / / /
    Pre & Post Scan / /
    New Features
    Language Only English Only English Multi-Language Only English Only English
    Autel Cloud Service
    Wifi Printer / / / /
