MAP Sensor Failure Symptoms: Diagnosis and Repair

This article explains the working principles of a MAP sensor (manifold absolute pressure sensor), lists seven common malfunction symptoms and causes, and explains how to quickly locate the problem using professional auto diagnostic tools like the Autel scanner, as well as common repair methods.

Finally, it addresses some of the most pressing questions car owners have, such as "Can I still drive my car if my MAP sensor is broken?"

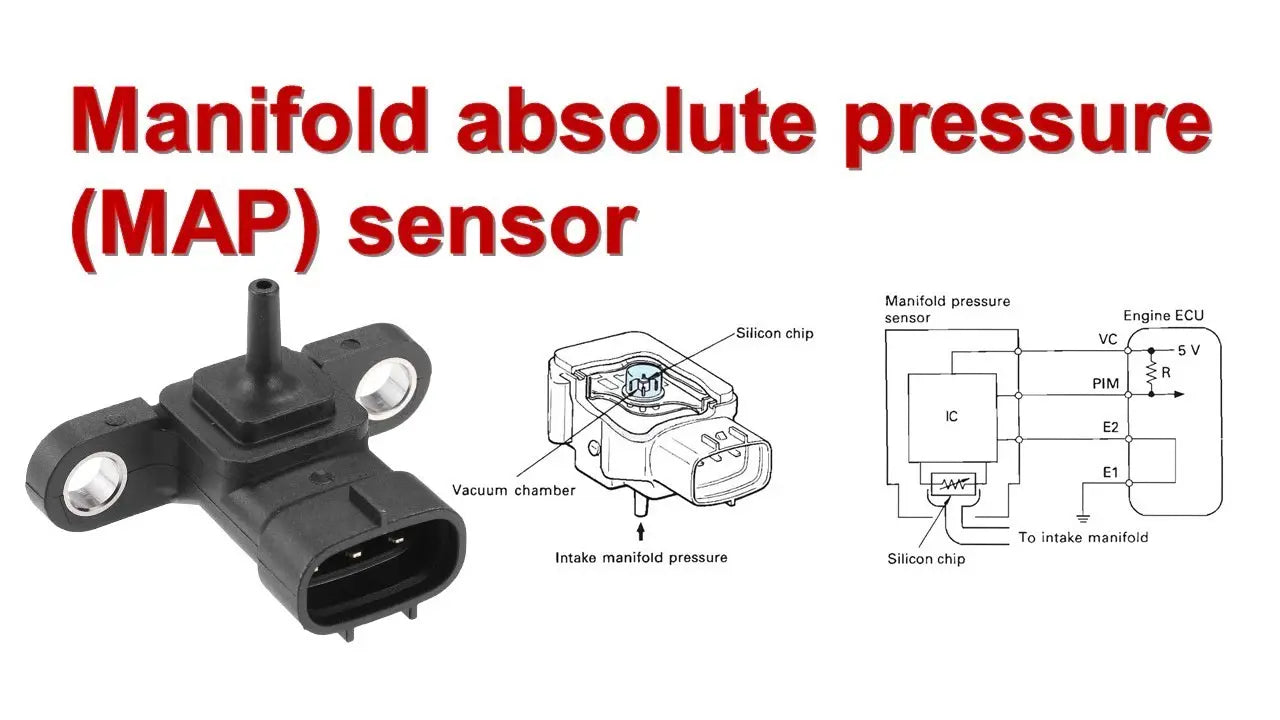

The MAP sensor is an important part of the engine system.

What is a MAP sensor?

The MAP sensor is a crucial component of the engine's fuel injection system. Its primary function is to monitor pressure changes within the intake manifold and convert them into electrical signals that are transmitted to the engine control unit (ECU).

The ECU then uses these signals, combined with data from oxygen sensors, temperature sensors, and other sensors, to calculate the appropriate fuel injection amount and ignition timing, ensuring efficient and stable engine operation under various operating conditions.

The location of the MAP sensor varies depending on the vehicle model, but is commonly found in:

• On or near the intake manifold
• In the intake manifold after the turbocharger
• Inside the air filter box
• In the firewall (connected to the manifold via a vacuum line, such as in some Ford F-Series trucks)

The MAP sensor is usually located on or near the intake manifold.

How does a MAP sensor work?

When the vehicle is started, the ECU provides a reference voltage to the MAP sensor. The piezoresistive or piezoelectric element within the sensor senses subtle changes in intake pressure and converts them into electrical signals.

For example, when you press the accelerator pedal, the throttle opening widens, increasing intake pressure. The MAP sensor then responds with a new voltage signal. The ECU then recalculates the fuel injection rate and ignition timing to ensure efficient engine combustion and control exhaust emissions.

Common Symptoms of a MAP Sensor Failure

When the MAP sensor is malfunctioning, it can affect engine combustion, fuel consumption, and emissions. Common symptoms include:

• Check Engine Light (CEL) illumination
• Idling rough or jittery
• Engine difficulty starting or stalling
• Misfire or knocking
• Significantly increased fuel consumption
• Exhaust emissions exceeding standards, resulting in failure to pass the annual inspection
• The vehicle enters "limp mode" (limited power)

👉 For example, a Harley-Davidson motorcycle with a faulty MAP sensor may experience noticeable jitter at idle or even stall.

The check engine light may be on due to a bad MAP sensor.

Common Causes of MAP Sensor Failure

• External Contamination: Oil, dust, or moisture can cause abnormal readings.
• Internal Damage: Deterioration of the sensor element, circuit breakage, or loose connections.
• Intake System Leaks: Cracked hoses or loose connectors can cause pressure to differ from actual pressure.
• Installation or Accident Damage: Physical impact or improper installation can damage the sensor.

Common MAP Sensor Fault Codes

How to diagnose a MAP sensor fault?

1. Reading fault codes:

   Using Autel Scanner to read DTCs from the ECU can quickly identify whether the MAP sensor is involved. You can also view the real-time data stream to determine if the sensor is outputting abnormal signals.

2. Visual Inspection:

   Check for damage to the sensor, deterioration or loosening of the vacuum tube, and poor contact in the connectors

3. Measure Voltage:

   Turn on the ignition (without starting the vehicle) and check whether the sensor provides a normal reference voltage (generally approximately 5V).

📌 Further Reading: How to Detect EVAP System Valve Faults Using OBD2 Real-Time Data.

Diagnosed the P0105 fault code using an Autel scanner

Repairing MAP Sensor Faults

• Sensor Replacement: If the sensor is confirmed to be damaged, replace it directly.
• Clearing DTCs: After replacement, use an Autel scanner to clear the fault history.
• Road Test: Drive again and observe whether starting, idling, and acceleration return to normal. Scan again to confirm no new DTCs.

Can I still drive with a faulty MAP sensor?

Technically, the vehicle will still operate, but the following may occur:

• Lack of power, slow acceleration
• Significantly increased fuel consumption
• Difficulty starting
• Severely excessive emissions

⚠️ Driving with this fault for an extended period may damage the engine and catalytic converter, so continued driving is not recommended.

FAQs

Q1: What happens if the MAP sensor fails?

A: Engine performance degrades, fuel consumption increases, and exhaust emissions fall below standard. The fault light illuminates, prompting the owner to promptly inspect the sensor.

Q2: What happens if the MAP sensor is unplugged?

A: The ECU enters protection mode, significantly reducing vehicle power and forcing the vehicle to travel to a repair center at low speeds. Fuel consumption and emissions also deteriorate dramatically.

📖 Summary

Although small, the MAP sensor is directly related to engine combustion efficiency and emissions control. If an abnormality occurs, use diagnostic tools to promptly identify the problem and replace or repair it as appropriate to avoid significant losses.
