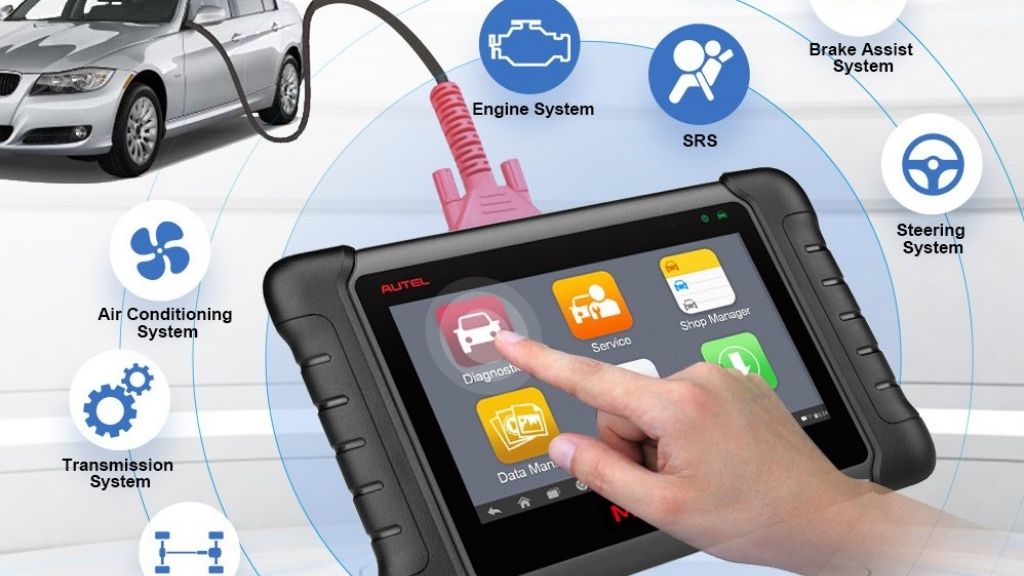

Comparison Autel MS906 VS MS906BT VS MS906TS

Are you confused about which scan tool to choose among Autel MS906 VS MS906BT VS MS906TS scanners? Worry no more as we’ve highlighted every important feature, the pros, and cons of every scanner to make your work easy.

Autel MS906 is an initial version and Upgraded version Autel MS906BT, and Autel MS906TS Diagnostic Scanner have the same types of features.Different technicians and mechanics have different needs. So, depending on what you want the code reader to diagnose, you may find one of these tools to be the most ideal for your job.

If you want a professional scanner at a great price, then you should go for the MS906 scan tool. But if you want a more advanced scanner, then the Autel MS906TS is the device for you.

Comparison Table: Autel MS906 VS MS906BT VS MS906TS

Features

Autel MS906

Autel MS906BT

Autel MS906TS

Processor Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15) Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15) Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
TPMS Function No No Yes
Installed Bluetooth No Yes Yes
Diagnosis Wirelessly No Yes Yes
Coverage Premium Vehicle Brands No Yes(such as Maserati, Bentley) Yes(such as Maserati, Bentley)
Supports Oscilloscope No Yes Yes
Digital Inspection Camera add-ons No Yes Yes
Coding Capability No Yes Yes
Connectivity Mini USB 2.0, Wi-Fi USB: 2.0, Mini USB 2.0, Wi-Fi, Wireless BT HDMI 1.4a USB: 2.0, Mini USB 2.0, Wi-Fi, Wireless BT HDMI 1.4a
Power and Battery 3.7V/5000 mAh lithium-polymer battery, Charging via 12 V AC/DC power supply 3.7 V/10,000 mAh lithium-polymer battery, Charging via 12 V AC/DC power supply 3.7 V/10,000 mAh lithium-polymer battery, Charging via 12 V AC/DC power supply
Tested Battery Life up to 6 hours of continuous operation up to 8 hours of continuous operation up to 8 hours of continuous operation
Audio Input/Output Microphone, Single Speaker Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack
Weight 2.05 lb 2.3 lb 2.42 lb
Pricing Idea Low Medium High
Operating System(OS) Android 4.4.2, KitKat Android 4.4.2, KitKat Android 4.4.2, KitKat
Memory 2 GB RAM & 32 GB ROM 2 GB RAM & 32 GB ROM 2 GB RAM & 32 GB ROM
Display 8.0″ LED capacitive touch screen with 1024x768P resolution 8.0″ LED capacitive touch screen with 1024x768P resolution 8.0″ LED capacitive touch screen with 1024x768P resolution
Camera (rear) Rear-facing, 8.0 Megapixel, AF with Flashlight Rear-facing, 8.0 Megapixel, AF with Flashlight Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS) Gravity Accelerometer, Ambient Light Sensor (ALS) Gravity Accelerometer, Ambient Light Sensor (ALS)
Input Voltage DC/12 V (9-35 V) 12 V (9-35 V) 12 V (9-35 V)
Operating Temperature -10 to 55°C (14 to 131°F) -10 to 55°C (14 to 131°F) -10 to 55°C (14 to 131°F)
Storage Temperature -20 to 70°C (-4 to 158°F) -20 to 70°C (-4 to 158°F) -20 to 70°C (-4 to 158°F)
Power Consumption 5 W 5 W 5 W
Dimensions (W x H x D) 10.0” x 6.9” x 1.4” 10.0” x 6.9” x 1.4” 10.0” x 6.9” x 1.4”

Similarities and Differences between the Autel MS906 VS MS906BT VS MS906TS scanners

Among the three scanners, Autel MS906 diagnostic scanner is the most basic, followed by Autel MS906BT and the most advanced scanner is Autel MS906TS. These scanners share a lot of features such as Samsung Exynos Hexa-core processor, Android 4.4.4 KitKat, 32 GB memory, 8 MP camera, AutoVin technology, and have MaxiFix Cloud-based information system.

Besides having the same features, these scan tools also vary in many ways. First of all, Autel Maxisys MS906BT Bluetooth OBD2 Diagnostic Tool and MS906TS feature Bluetooth connectivity while the MS906 doesn’t have one. Additionally, they have wireless VCI while MS906 doesn’t have one. Furthermore, the MS906TS provides a comprehensive TPMS solution, while the MS906 and MS906BT don’t, which is the main difference between the Autel MS906BT and MS906TS.

Price-wise, the MS906 is the cheapest amongst the three, followed by MS906BT and finally the MS906TS. Make a wise choice and select a diagnostic scanner that meets your needs and demands.

Summary

When choosing a diagnostic scanner, you should ensure that you select a scan tool that has the features and functions that you desire. Also, have a budget in mind so that you don’t end up choosing the wrong diagnostic scan tool. The Autel MS906 scan tool series is one of the best as it features different high-quality scanners that are built for professional use. Select a scan tool from above that has the features and functions that you want.

Still, have a question after reading this Autel MS906 VS MS906BT VS MS906TS article? Comment below.
