Autel MaxiCOM MK908 Diagnostic Tool Upgraded Version of Autel Maxisys, Free Update Online, Multi-language

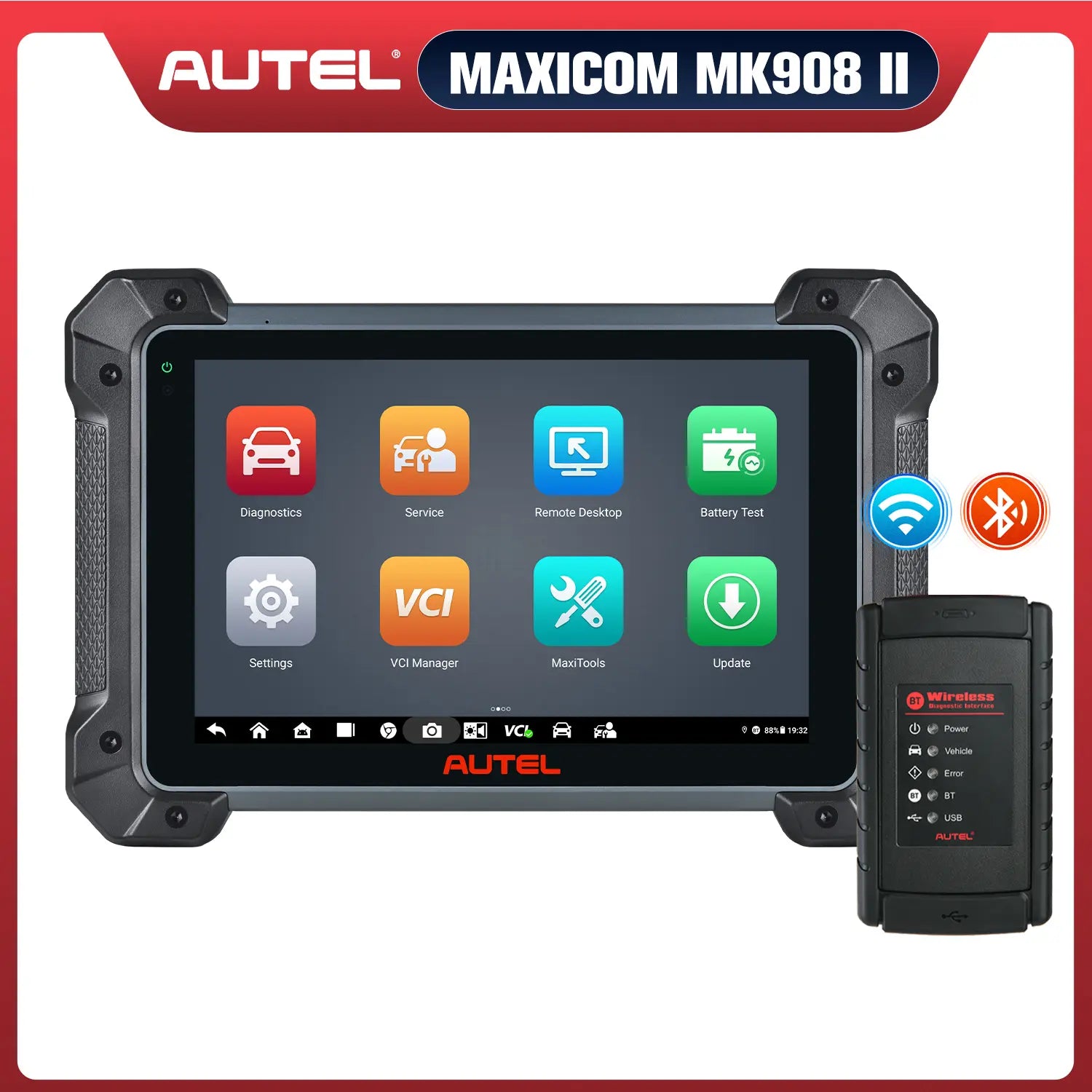

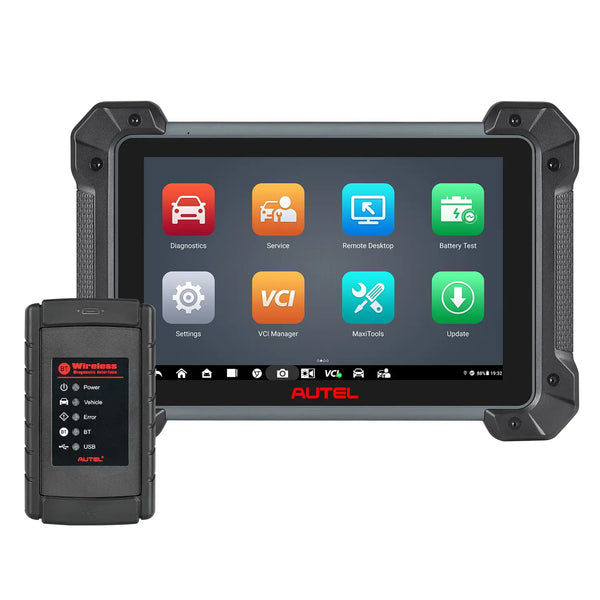

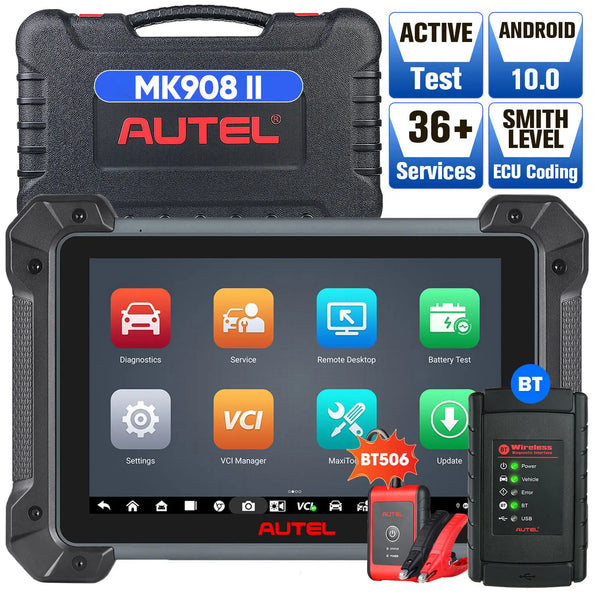

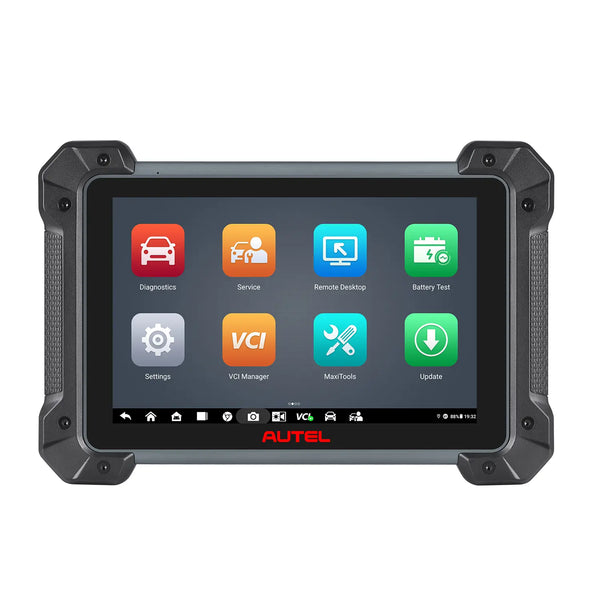

Autel MaxiCOM MK908

• Autel MaxiCOM MK908 Diagnostic Scanner (The next generation of MaxiSys MS908) with ECU Coding Bi-Directional & All System Diagnoses
• Featuring the super-fast Hexa-Core (1.3GHz + 1.7GHz) processor, an intuitive 10.1-inch LED capacitive touch screen, multitask-capable Android 4.4.2 OS and the coverage of OE-level diagnostics, is the best possible auto diagnostic scanner providing evolutionary smart solution for professionals with Garage or Auto Repairing Shops.

Autel MaxiCOM MK908 Features:

• Generic OBD II operations for retrieving OBD2 vehicle diagnostic information;
• Read Codes – displays detailed information of DTC records retrieved from the vehicle control module.
• Erase Codes – erases DTC records and other data from the ECM.
• Live Data – retrieves and displays live data and parameters from the vehicle’s ECU.

Autel MaxiCOM MK908 Special functions

• Oil Reset: Reminds you to change the oil when required.
• EPB: Reads, clears and offers electronic park braking on flat roads.
• BMS: Shows all the information related to the battery management system.
• ABS: Reads and clears anti-lock braking system problems.
• DPF: Shows errors in the DPF system (removes soot from exhaust system).
• TPMS: Monitors air pressure in the tires.
• IMMO: Used for enhancing car security by serving as a code that starts the engine.
• Active test: figuring out whether a specific subsystem or component in vehicles goes well. -Unlike conventional scanners, MK908 users can get access to the vehicle-specific subsystem and component parts, and output commands to the related ECU, thus driving the actuators to perform a specific function for determining the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch, between two operating states.

Autel MK908 ECU Programming & Coding:

• The diagnostic tool can replace the existing software/firmware in the ECU, program new ECUs and fix software-controlled driving performance and emission issues. Since the introduction of OBD II and leading up to modern Hybrids and EVs, computers and software in cars have been expanding at an exponential rate. In-car software is becoming one of the leading needs for service, and updating software may be the only way to fix some of these issues:

1. -Drivability
2. -Fuel Efficiency
3. -Power Loss
4. -Fault Codes
5. -Durability of Mechanical Parts

• The Programming and Coding function is used to re-flash the vehicle control modules, it allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements.
• NOTE: The programming function can only be applied through connection with the J2534 programming device (Autel MaxiFlash Elite), which serves as a Pass-Thru interface to establish communication with and transfer data to the vehicle’s ECU.

What's the difference between Coding and Reprogramming

Advanced Driver Assistance Systems (ADAS)

• ADAS is an array of vehicle systems that aid the driver either through passive alerts or by active control of the vehicle to drive safer and with greater awareness and precision. Cameras, sensors, ultrasound, radar and LIDAR are some of the systems used to capture the driving environment data, including travelling or static vehicles position, pedestrian location, road sign, driving lane and intersection detection, road (curves) and driving conditions (poor visibility or evening driving), use that information to instruct the vehicle to take its predetermined action. Cameras, sensors and sensing systems are typically location in front and rear bumpers,windshield, front grill and side and rear view mirrors.

ADAS Details Services:

Warranty & Updates:

• 1 Year warranty for any possible quality problems.
• 1 Year free updates online
• Notice: Please close the anti-virus software in your PC when updating the device.

Muti-Language:

• English, Spanish, French, German, Polish, Italian, Japanese, Dutch, Portuguese, Russian.

Specification:

• Operating System: AndroidTM 4.4.2, KitKat
• Processor: Samsung Exynos hexa-core Processor
• (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
• Memory: 2GB RAM & 64GB On-board Memory
• Display: 10.1-inch LED screen with 1920x1200 resolutions
• Connectivity: Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0; BT v.2.1 + EDR; SD Card (Support up to 32GB);
• Camera (rear): 8.0 Megapixel, AF with Flashlight
• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
• Input Voltage: 12 V (9-24 V)
• Power Consumption: 6.5 W
• Operating Temp.: 0 to 50°C (32 to 122°F)
• Storage Temp.: -20 to 60°C (-4 to 140°F)

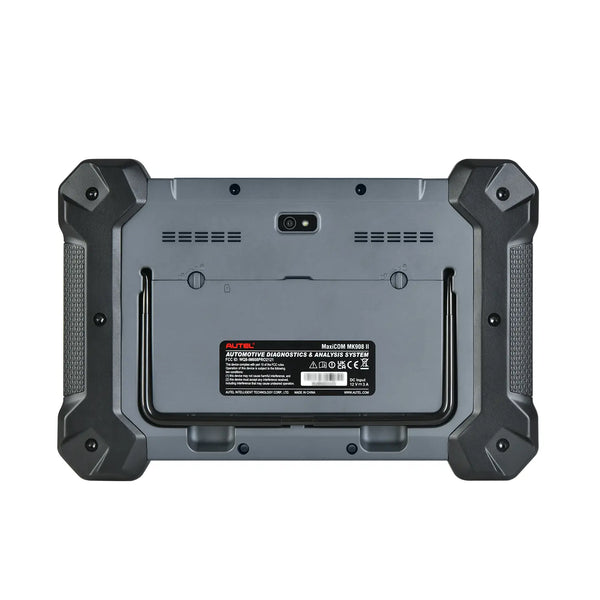

• Housing: Strong plastic housing with protective rubber boot
• Dimensions (WxHxD): 312mm (12.28”) x 208mm (8.18”) x 36mm (1.41”)
• Weight (NW): 1.48kg (3.26 lb)

Protocols:

• ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, High-speed, Middle speed, Low speed and Singlewide CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

Ultimate Configurations for Super-Level Diagnosis

• Super CPU & RAM: This Android OS-based, tablet-style scanner is equipped with an extremely powerful Hexa-Core 1.3GHz + 1.7GHz processor, and makes use of the internal 64GB solid-state drive, along with 2GB of RAM, for super speedy and smooth performance. However MS908, by contrast, only gets 1.4GHz Quad-Core Processor and 32GB SSD drive.
• More Intuitive Display: Unlike MS908 supports 9.7” 1024*768 display, the image clarity image is more admirable in MK908. It is equipped with a 10.1”, 1920*1200 resolution and back-lit LED multi-touch capacitive display for better user experience. Moreover, there’s a built-in 8MP camera with a flashlight and autofocus. Compared with 5MP camera equipped in MS908, you will take more detailed snapshots for deeper analysis. Also, saving that and all the diagnostic data/files are quite easy thanks to 64GB on board memory space (only 32GB in MS908) at your disposal.
• Ergonomic Design: The product has been designed to be carried single handy yet it doesn’t mean it will fit in pocket. In particulars on the outside you will see it adopts the real rubber protection design on the both sides to be more ergonomic, and to resist damage of daily heavy use for maximum longevity.
• Useful Multitasking: The diagnostic scanner incorporates high-quality diagnostic protocols with multitasking capable software, so it shouldn’t come as a surprise that this scan tool not only has amazing speeds, but also gets the ability to multitask, to help you to keep an eye on impacts on other parts, while fixing a particular part of the engine.

Wide Compatibility and Vehicle Coverage

• Chrysler, Dodge, Ford, GM, Jeep, Abarth, Alfa, Citroen, Fiat, Lancia, Opel, Peugeot, Porsche, Renault, Saab, Vauxhall, Volvo, Aston Martin, Audi, Bentley, Benz, Sprinter, BMW, Bugatti, Ferrari, Jaguar, Lamborghini, Land Rover, Maserati, Maybach, Mini, Rolls-Royce, Seat, Skoda, Smart, VW, VW CV, Dacia, Ford EU, LT3, Acura, Daewoo, Daihatsu, Honda, Hyundai, Hyundai CV, Infiniti, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Samsung, Scion, Ssang Yong, Subaru, Suzuki, Toyota, Isuzu, Mahindra, Perodua, Proton, TATA, HINO,UD, Fuso.
• And once you find your car model, you would be highly impressed with the list of diagnostic solutions that this diagnostic scan tool has to provide. Also, it doesn’t mean it’s non-compatible with the vehicles manufactured in other regions or newly launched as the latest updates are frequently launched.

Abundant User-Friendly Add-On Features

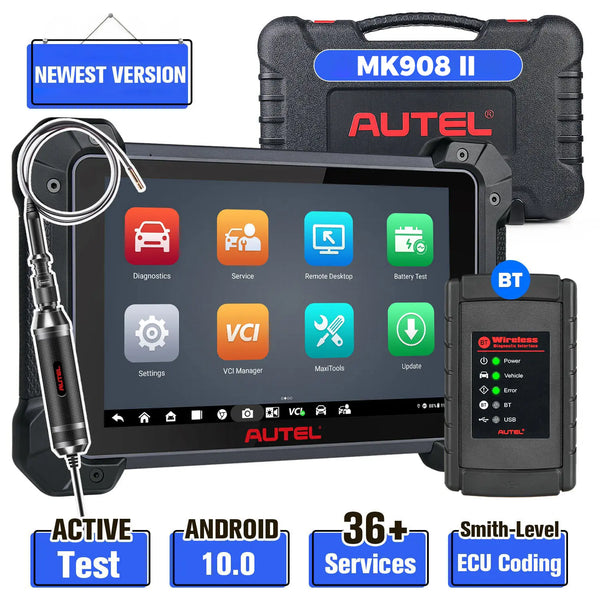

• Extendable Feature: It can expand the diagnostic capabilities by working with Autel MP408, MV108 to go deeper into the unseen details for locating the fault easily and accurately, or by working with Maxitpms TS501 for diagnosing comprehensive TPMS problems.

AutoVin Technology:

• The device equips with the latest AutoVIN technology with advanced Auto-Scan functions to identify CAN-Enabled vehicles, in one touch. It displays the data in the form of text, graph, analog and digital gauge for efficient analysis.

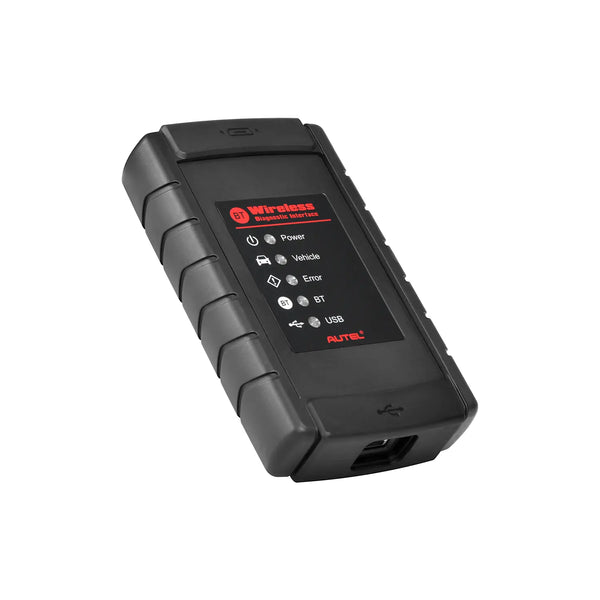

Fast Data Transfer (VCI):

• The package comes with both dual band 802.11n Wi-Fi technology and long range Blue-tooth connectivity that provides its users with an ultra-fast Vehicle Communication Interface. You don’t have to wait. Just plug it into the OBD-II dashboard and it will diagnose within seconds.

MaxiFix:

• The MaxiFix application launches the on-line troubleshooter database, which not only provides you virtually all common diagnostic trouble code (DTC) database for most vehicles, but also serves as a forum allowing you to network with other MaxiCOM users, and gives you access to a vast database of repair and diagnostic tips along with proven filed fixes.

Data Manager:

• The Data Manager application is used to store, print, and review the saved files for future reviews.

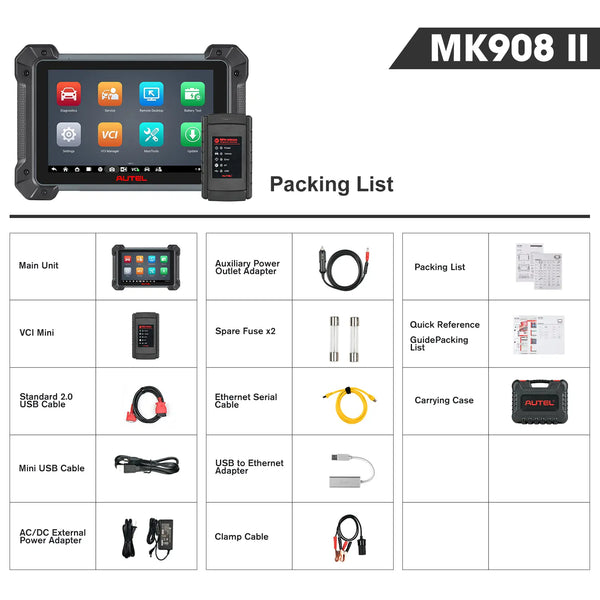

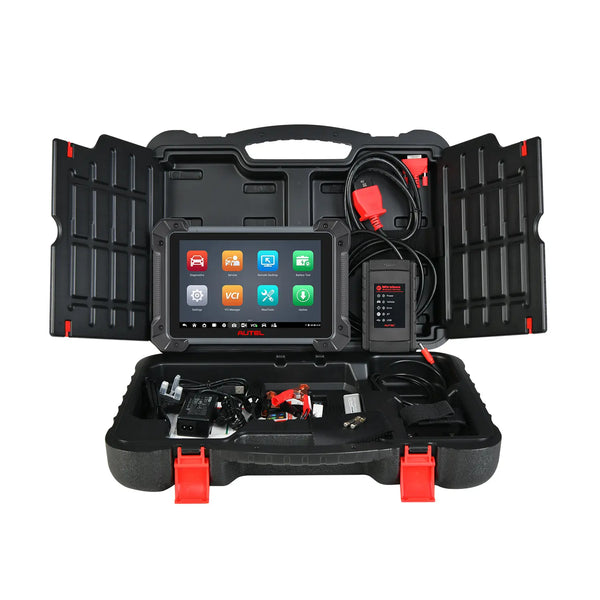

Package List:
