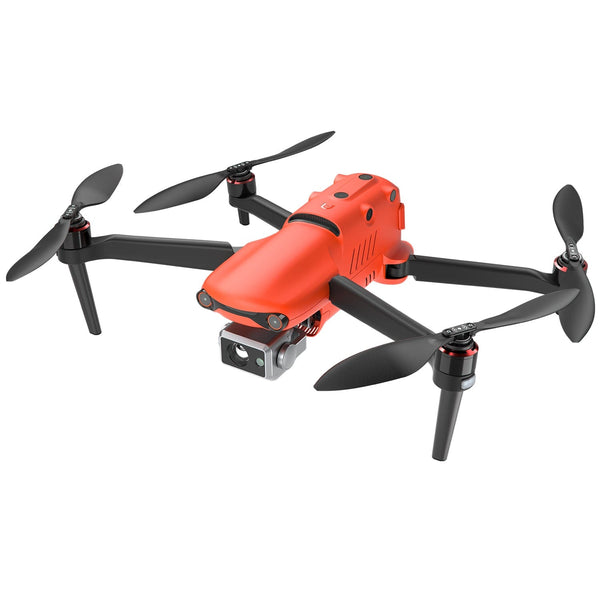

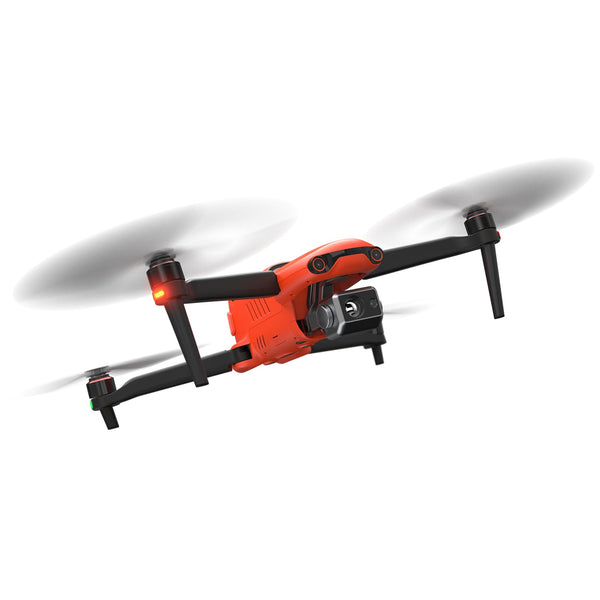

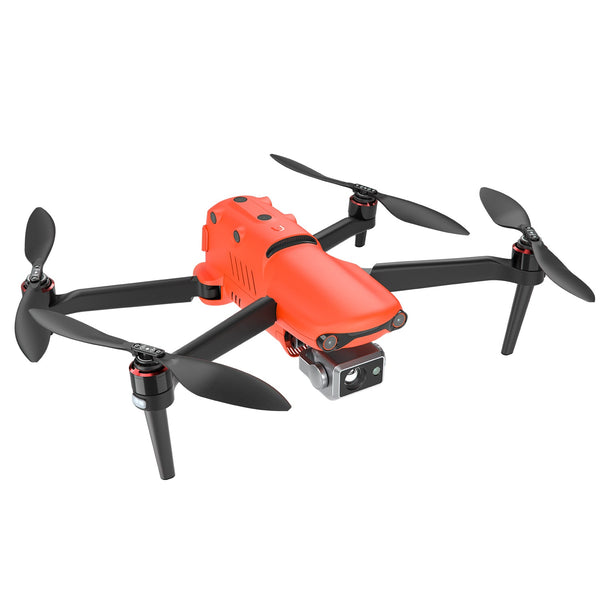

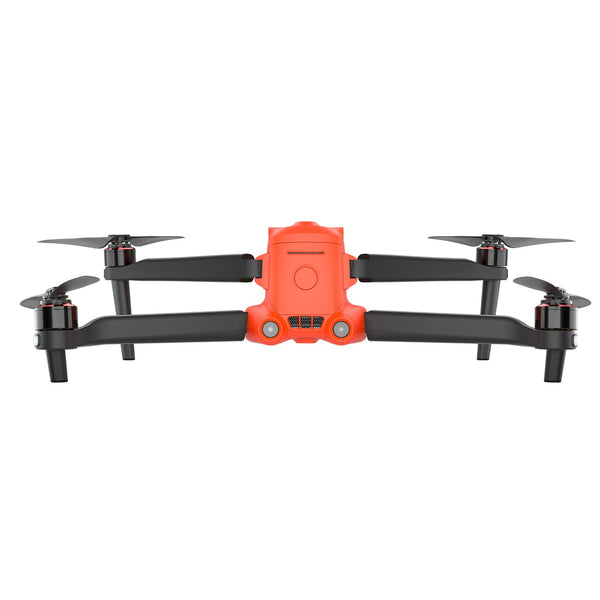

  • Autel Robotics EVO II Dual 640T Drone

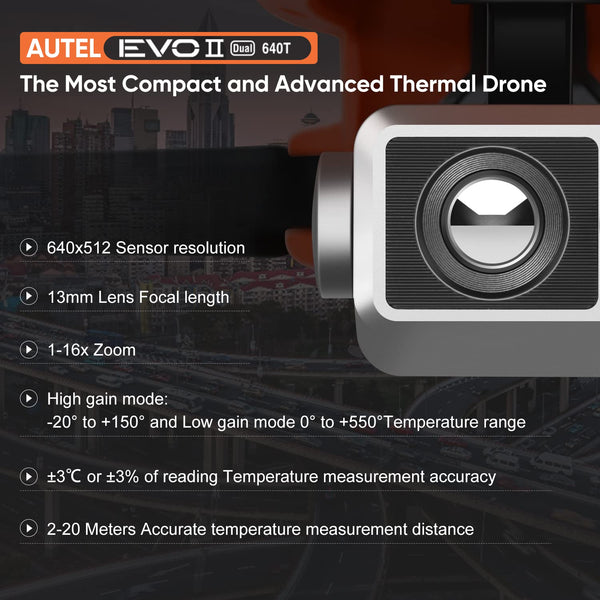

    Atuel Robotics EVO II Dual 640T is equipped with a 640*512 high-resolution thermal imaging camera and 8K ultra HD visible light camera, enabling you to capture highly detailed imagery to achieve optimal insights.

    In addition to the Dual camera, the EVO II Dual 640T  can accurately detect heat sources within a distance of 2-15 meters. By leveraging the compensation algorithm of infrared temperature measurement, the 640T can regulate temperature deviations within 3 degrees Celsius.

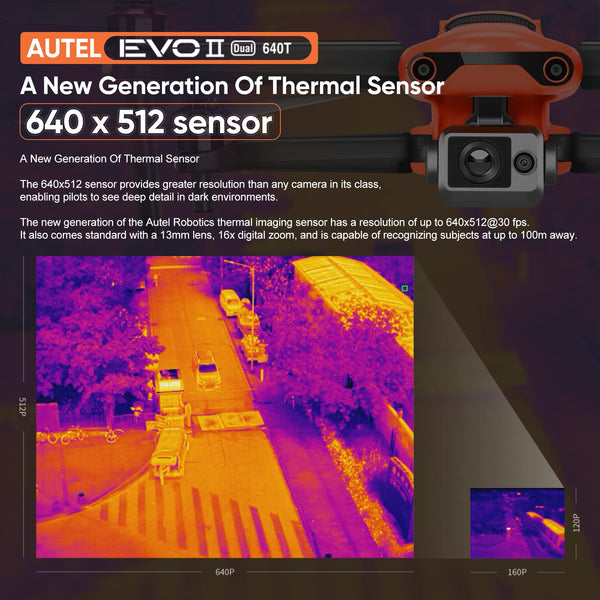

    A New Generation Of Thermal Sensor

    The 640x512 sensor provides greater resolution than any camera in its class, enabling pilots to see deep detail in dark environments. The new generation of the Autel Robotics thermal imaging sensor has a resolution of up to 640x512@30 fps. It also comes standard with a 13mm lens, and 16x digital zoom, and is capable of recognizing subjects up to 100 m away.

    Maximum Efficiency In All Viewing Conditions

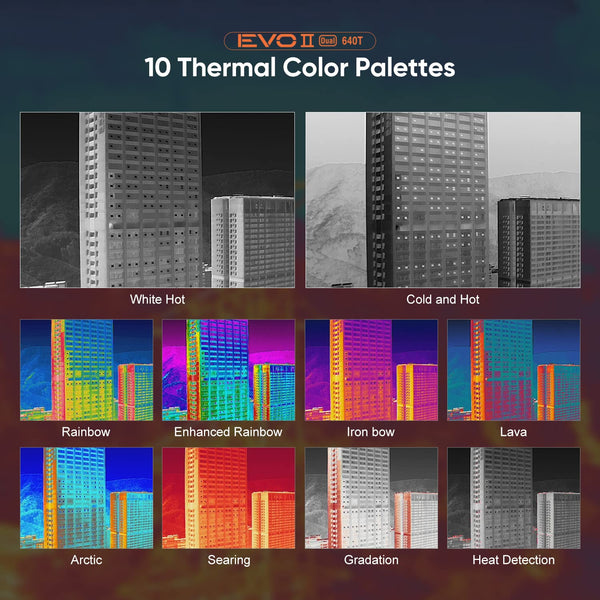

    EVO II Dual 640T supports up to 10 thermal palettes, enabling pilots to cope with a variety of complex shooting environments and mission scenarios.

    Picture-in-Picture Mode (For Enhanced Situational Awareness)

    Visual and thermal imagery are combined to help users quickly interpret data and aid in critical decision-making.

    Autel Infrared camera drone EVO II Dual 640t

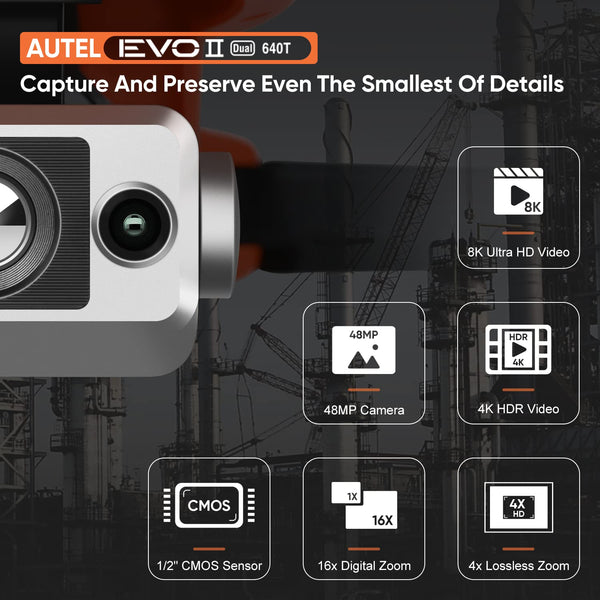

    Capture And Preserve Even The Smallest Of Details

    8K Video, Unmatched Clarity

    EVO II Dual 640T records in resolutions up to 7680x4320. With 4 times more pixels than 4K (and 16 times more than HD), 8K videos redefine image clarity and depth.

    48MP Camera

    The 48MP sensor captures every forensic-relevant detail to assist in precise evidence capture. Both thermal and RGB images are provided with embedded metadata, making the EVO II Dual 640T the ultimate public safety tool.

    4x Lossless Zoom

    The high resolution provides the ability to zoom deep into a scene and crop an image or video to 4K without any loss in quality. Capture a scene, zoom in, and reframe your shots with ease.

    autel evo ii dual 640t 4x lossless zoom

    4K HDR For Greater Dynamic Range

    4K HDR offers greater detail in highlights and shadows, providing higher.

    360° Obstacle Avoidance

    Omnidirectional Obstacle Avoidance With 12 Visual Sensors

     Equipped with 19 groups of sensors — including 12 visual sensors, the main camera, ultrasound, and dual IMUs — the EVO II Dual 640T can easily build three-dimensional maps and plan paths through complex terrain in real-time.

    Powerful Infrared Thermal Analysis Tool(IRPC)

    This free temperature measurement analysis tool is developed for the 640T, and enables users to quickly import images, edit and analyze temperature measurement, and to generate detailed reports for sharing and coolaboration.(Select the "Word" icon Export report. Generate analysis report)

    The New Level of Thermal Drone

    A sharp, high-contrast thermal image ensures improved identification of a wild animal, individual body parts and even the smallest objects such as branches, leaves, grass and ground surface.

    autel evo 640tautel evo ii dual 640t

    All three camera modules support a variety of shooting modes, including: Single-shot; Burst shooting; Auto exposure bracketing (AEB); Time-lapse; High-dynamic-range (HDR) imaging; NIGHTBEAT (high signal-to-noise ratio)

    Connect Autel Live Deck to display live on any device

    A high-definition live feed from the EVO 2 drone camera can be displayed on your remote control’s screen or connect with Autel Live Deck to displayed on any device including computer, tv, phone, etc. Of course, Images and videos can be stored in the aircraft’s onboard memory or on a micro SD card.

    Adjust field-of-view to any angle from 0° to 90° while flying

    EVO II Dual Drone contains a high-precision 3-axis gimbal that keeps the camera steady while the aircraft is flying, ensuring image stability and clarity. Also, You can use the remote control's gimbal pitch dial to adjust the pitch axis to any angle from 0° to 90° at any time.

    All Cameras interchangeable

    Autel EVO II Series Dones is one aircraft with three camera options. All cameras for Evo II can be purchased separately and are interchangeable!

    Autel EVO II One new aircraft with three camera options and all camer interchangable
    Dynamic Track 2.0

     The EVO II Dual 640T can model the location and speed of targets simultaneously, predict their trajectory accurately, and track them continuously while identifying up to 64 objects at the same time.

    Modular Design - Unlimited Expansion

    Modular Design - Unlimited expansion

    Interchangeable Payloads Offer Expansion Capability - Payload Capacity 2lbs (900g)

    Live Video Streaming - LiveDeck enables pilots to share the live aerial video across public or private networks sharing data with command posts, stakeholders, or online viewers.

    Open SDK - Create customized services.

    38 Minutes Max Flight Time


    • Specs
  • EVO II Dual 640T Camera Specifications (Infrared Camera + Visible Light Camera)

    EVO II Dual 640T Infrared Camera Specifications

    Sensor Vanadium oxide uncooled infrared focal plane detector
    Lens Viewing angle H33°V26°
    Focal length 13mm
    Zoom 1-8x
    Sensor Resolution 640x512
    Pixel Size 12μm
    Wavelength Range 8 - 14μm
    Temperature Range High gain mode: -20° to +150°
    Low gain mode: 0° to +550°
    Temperature Measurement Accuracy ±3℃ or ±3% of reading (whichever is greater)
    @Environmental temperature-20℃~60℃
    Video Resolution 640x512@30fps
    Bit rate 6Mbps
    Video Format MOV / MP4 (Support H.264/H.265)
    Camera Resolution Infrared mode: 640*512
    Picture-in-picture mode: 1920*1080, 1280*720
    Photo Mode Single shot
    Continuous shooting: 3, 5, 3 by default;
    Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, the default is 5S.
    Photo Format TIFF+JPG (with irg file)

    EVO II Dual 640T visible light camera specifications

    Sensor 1/2" CMOS
    Effective Pixels: 48 MP
    Lens FOV: about 79°
    35mm Format Equivalent: 25.6 mm
    Aperture: f/1.8
    Focus range: 0.5 m to infinity (with auto focus)
    Digital Zoom 1 ~ 8x (Max. 4x lossless zoom)
    ISO Range Video: 100-6400
    Photos: 100-3200
    Shutter Speed Electronic Shutter: 8 ~ 1/8000s
    Maximum photo size 8000x6000 (4:3)
    7680x4320 (16:9)
    4000x3000 (4:3)
    3840x2160 (16:9)
    Still Image Format JPEG / DNG / JPEG+DNG
    Photo Modes Single shot;
    Continuous shooting (AEB/Burst): 3, 5, 3 by default;
    Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, default 5S;
    Pure night shot: support 4K Jpeg;
    HDR: Support 4K Jpeg;
    Long exposure: up to 8s;
    Image Format JPG (default); DNG
    Video Resolution 8K 7680*4320 p25/p24
    6K 5760*3240 p30/p25/p24
    4K 3840*2160 p60/p50/p48/p30/p25/p24
    2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24
    1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24
    Video Format MP4 / MOV format (MPEG-4 AVC/H.264, HEVC/H.265)
    Max Video Bitrate 120Mbps

    Gimbal

    Gimbal Three-axis stabilization
    Mechanical Range Tilt: -135° to +45°
    Heading: -100° to +100°
    Controllable Range Tilt: -120° to +30°
    Heading: -90° to +90°
    Maximum Control Speed (Tilt) 300°/s
    Angle Jitter ±0.005°

    Aircraft

    Weight (with propeller and battery) 1237g±0.5g
    Wheelbase 397 mm
    Maximum Take-off Altitude 6000 m
    Max Ascent Speed 5 m/s(automatic flight)
    8 m/s(manual control)
    Max Descent Speed 4 m/s
    Max Horizontal Flight Speed 72 km/h(positioning mode)
    Max Tilt Angle 33°(positioning mode)
    Max Angular Velocity 120°/s
    Max Flight Time 38 minutes
    Operating Temperature Range 0℃ to 40℃
    Maximum Resistance to Wind 39-46 mph (Level 8)
    Operating Frequency 2.400 GHz to 2.4835 GHz
    Transmission Power (2.4G) FCC:≤26 dBm
    ISED:≤26 dBm
    CE:≤20 dBm
    RCM:≤20 dBm
    SRRC:≤20dBm
    Hovering Accuracy When RTK is enabled and working normally:
    Vertical: ±0.1 m; Horizontal: ±0.1 m
    RTK is not enabled: vertical: ±0.1 m (when the visual positioning is working normally);
    ±0.5 m (when GNSS positioning works normally) Level: ±0.3 m (when the visual positioning is working normally);
    ±1.5 m (when GNSS positioning works normally)
    Image Position Compensation The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF ​​coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.

    Sensing System (Obstacle Avoidance)

    Sensing System Omnidirectional Obstacle Sensing
    Forward Precision Measurement Range: 0.5-20 m
    Detectable Range: 0.5-40m
    Effective Sensing Speed: <15m/s
    FOV: Horizontal: 60°, Vertical: 80°
    Backward Precision Measurement Range: 0.5-16 m
    Detectable Range: 0.5-32m
    Effective Sensing Speed: <12m/s
    FOV: Horizontal: 60°, Vertical: 80°
    Upward Precision Measurement Range: 0.5-12 m
    Detectable Range: 0.5-24m
    Effective Sensing Speed: <6m/s
    FOV: Horizontal: 60°, Vertical: 50°
    Downward Precision Measurement Range: 0.5-11 m
    Detectable Range: 0.5-22m
    Effective Sensing Speed: <6m/s
    FOV: Horizontal: 90°, Vertical: 70°
    Sides Precision Measurement Range: 0.5-12 m
    Detectable Range: 0.5-24m
    Effective Sensing Speed: <10m/s
    FOV: Horizontal: 60°, Vertical: 50°
    Operating Environment Above: The surface has rich textures and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment); the surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.) Below: The ground has rich textures and sufficient lighting conditions (> 15 lux, indoor fluorescent lamp is normally irradiated by the environment); the surface is made of diffuse reflective material and the reflectivity is> 20% (such as walls, trees, people, etc.)

    Remote Controller and Image Transmission

    Operating Frequency 2.400 GHz to 2.4835 GHz
    Max Transmission Distance FCC:9 km(without interference or obstruction)
    CE:5 km(without interference or obstruction)
    Real-time Image Transmission Quality 720p@30fps / 1080p@30fps
    Maximum Bit Rate of Real-time Image Transmission 40Mbps
    Transmission Power (2.4G) FCC:≤26 dBm
    ISED:≤26 dBm
    CE:≤20 dBm
    RCM:≤20 dBm
    SRRC:≤20dBm
    Display screen 3.26" OLED
    854(W) * 480(H)Pixel
    Directly preview the video without connecting a mobile phone
    Remote Controller Battery 5000mAh
    Run Time 3 hours
    Charging Time 2 hours fast charge
    Supported Mobile Device Size Max Length: 3.30" (84mm)
    Max Thickness: 0.51" (13mm)
    Supported USB Port Types Lightning, Micro USB (Type-B), USB-C
    Working current/voltage 1.7A@3.7V

    Intelligent Flight Battery

    Capacity 7100 mAh
    Voltage 11.55 V
    Max Charging Voltage 13.2 V
    Battery Type LiPo 3S
    Energy 82 Wh
    Net Weight 0.81 lbs (365 grams)
    Charging Temperature Range 41°F to 104°F (5°C to 40°C)
    Storage Temperature and Humidity -10~30℃,65±20%RH
    Recommended Storage Temperature 22-28℃
    Max Charging Power 93W
    Charging Time 90 minutes

    Intelligent Flight Battery Manager

    Voltage 13.2 V
    Charging Temperature Range 5℃ to 45℃

    Charger

    Input 100-240 V, 50/60 Hz, 1.5A
    Output 13.2 V = 5 A 5V=3A 9V=2A 12V=1.5A
    Voltage 13.2±0.1V
    Rated Power 66W
    • Video
  • Introducing: Commercial Applications for EVO II

    EVO II Dual 640T Thermal Imaging Demonstration

    EVO II Dual 640T: Thermal Analysis Tool Overview

    • Accessories

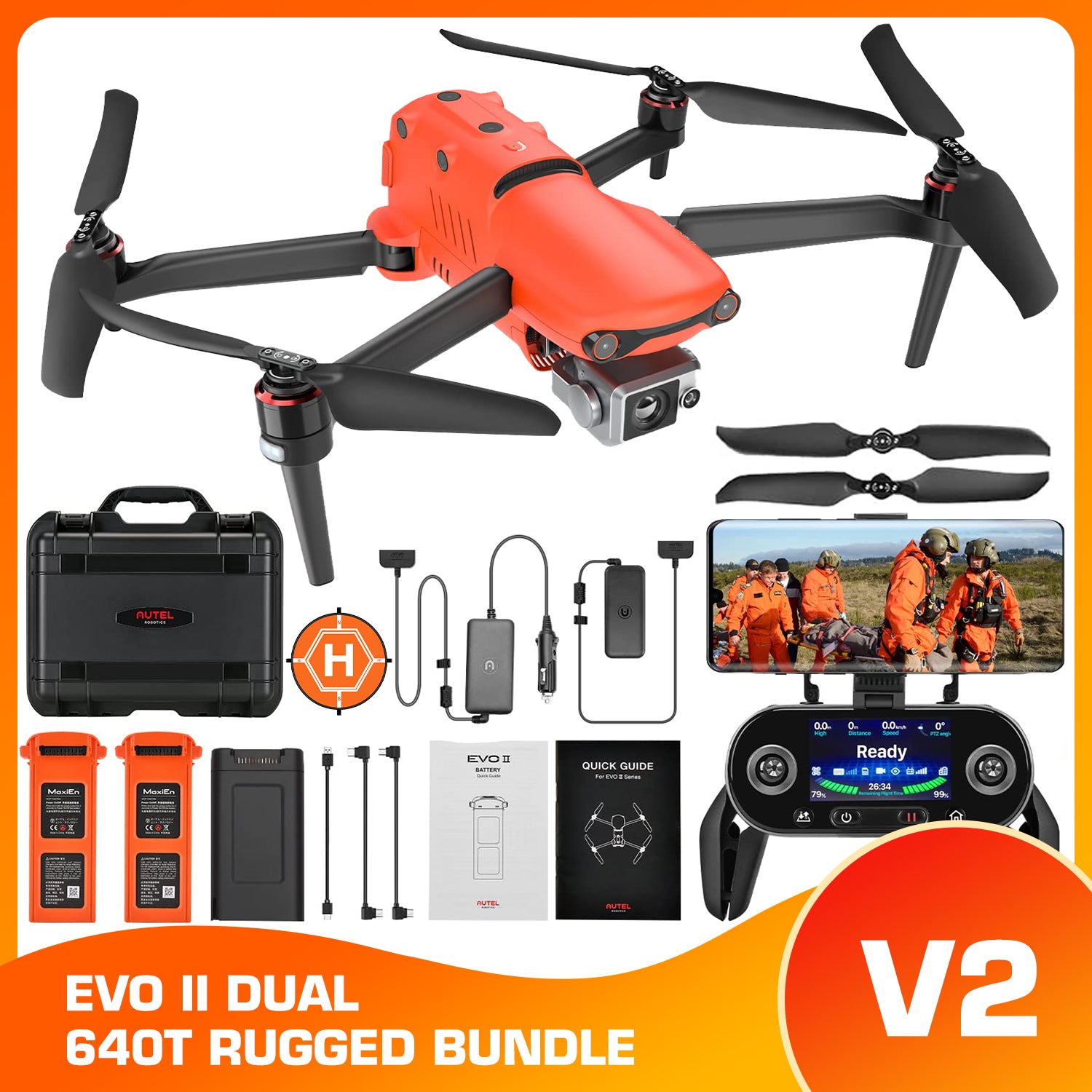

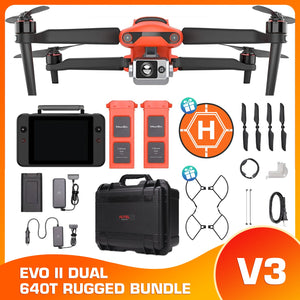

  • Autel EVO II Dual 640T Rugged Bundle
