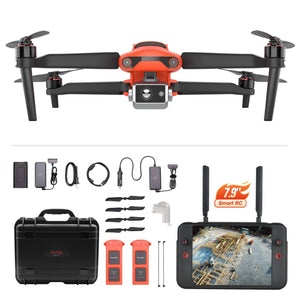

Autel Robotics EVO II Dual 640T RTK Thermal Drone Rugged Bundle [V2] With Autel 7.9" Smart Controller

items available In Stock |
Sold out
Original price $8,999.00
from Original price $8,999.00
Original price $8,999.00
Current price $7,999.00
from $7,999.00
Current price $7,999.00

Delivered by Thu, Nov 14 - Sat, Nov 16 Ship from New Jersey or California, United States

Service

Fast, Free Shipping & No Extra Tax

30-Day Return or Replacement

12-Month Free Warranty

Lifetime Customer Support

Pay with Ease
Trusted Delivery
free shipping by USPS, UPS or FedEx
  • Description
  • Specs
  • Video
  • Accessories
  • Shipping
  • Certificate
    • Description
  • Autel Robotics EVO II DUAL 640T V2 RTK Drones

    The Autel Robotics EVO Dual 640t RTK is an RTK drone that combines an infrared imaging camera with an 8K camera. The Autel Robotics EVO Dual 640t RTK features a 1/2-inch, 48-megapixel CMOS sensor with a thermal imager with a resolution of up to 640x512. RTK drone EVO Dual 640t RTK is commonly used in surveying and mapping, 3D modeling, search and rescue, forest fire protection and inspection.

    Centimeter-Level Positioning System

    The Autel Robotics EVO Dual 640t RTK integrates a new RTK module on top that provides real-time centimeter-level positioning data and supports Post-Processing Kinematics (PPK). The RTK drones can record raw satellite observations, camera exposure parameters and various other data. The positioning system supports A-RTK base stations and RTK networks, helping to provide stable and accurate data collection in complex operating environments.

    RTK Drone with Centimeter-Level Positioning System

    Autel Dual 640T Sensor Camera - 8K and IR Camera

    EVO II Dual 8k drones with ir camera

    Dual-sensor camera: Includes 8K camera and infrared imaging camera. It can operate in visible light, infrared and dual image modes. Additionally, the camera captures infrared images at 640 x 512 (640) or 320 x 256 (320) resolution and records 720p video in dual image mode at 30 fps. Standard 13mm lens, 16x digital zoom, can identify objects up to 100 meters away.

    8K Video with Unparalleled Clarity

    Reach new visual heights with the EVO II Dual 640T. The EVO II Dual 640T records up to 7680x4320 resolution. With a 1/2" CMOS sensor camera capable of capturing 8K video at up to 25fps, up to 48MP still images to help capture evidence with precision, you can record stunning detail previously unattainable on aerial platforms.

    Picture-in-Picture Mode (Enhanced Situational Awareness)

    Autel Dual 640T Multiple Temperature Measurement Modes

    Visual and thermal images combine to help users quickly interpret data and help make critical decisions.



    Multiple Color Modes

    10 Color Schemes for More Vivid Scene Recognition

    Autel EVO 2 rtk with 10 Color Schemes

    Mission Execution With Advanced Intelligence

    The EVO II RTK series uses advanced flight controls and the latest artificial intelligence technology to provide A full range of intelligent functions and solutions actively improve the task workflow, respond to various complex and repetitive task requirements, and minimize operating costs.

    Autel EVO 2 RTK Drone Photo Replication

    Autel EVO II RTK Control Points

    Autel EVO 2 RTK Drone RTK / PPK Mode

    Powerful Infrared Thermal Analysis Tool(IRPC)

    This free temperature measurement analysis tool is developed for the 640T, and enables users to quickly import images, edit and analyze temperature measurement, and to generate detailed reports for sharing and coolaboration.(Select the "Word" icon Export report. Generate analysis report)

    Autel Smart Controller

    EVO II Dual 640T Rugged Bundles are equipped with Autel's 7.9" 2000-nit Smart Controller for maximum viewing when operating. This 7.9" Smart Controller from Autel Robotics features a 2000-nit display, 4.5 hours of runtime, 128GB of internal storage and a customized Android operating system that allows for 3rd party apps to be downloaded and installed.

    Autel EVO II Smart Remote Controller

    The New Level of Thermal Drone

    A sharp, high-contrast thermal image ensures improved identification of a wild animal, individual body parts and even the smallest objects such as branches, leaves, grass and ground surface.

    autel evo 640tautel evo ii dual 640t

    All three camera modules support a variety of shooting modes, including: Single-shot; Burst shooting; Auto exposure bracketing (AEB); Time-lapse; High-dynamic-range (HDR) imaging; NIGHTBEAT (high signal-to-noise ratio)


    Application Field

    RTK drones use real-time dynamic technology to create highly accurate and precisely measurable local images or maps of ground areas, allowing real-time correction of position data when drones measure and capture live images, and are widely used in Powerline Inspection, public safety, firefighting, photogrammetry and other scenes to meet the needs of professionals.

    Autel EVO 2 RTK Drone Powerline Inspection
    Autel EVO 2 RTK Drone More Scenario application

    12 Sensors for Omnidirectional Obstacle Avoidance

    Autel EVO Dual 640t thermal camera with 360 degree obstacle avoidance

    The EVO 2 Dual 640t's front, rear, left, right, up, and down binocular vision sensing system uses AI-enhanced omnidirectional obstacle avoidance to detect potential dangers up to 30m away, allowing EVO II to accurately control the drone's speed to avoid collisions. The EVO II can navigate itself in all directions, giving you the flexibility to control the drone while giving you the option to turn on aerial photography with the click of a button.

    Dynamic Track 2.0

    The EVO II Dual 640T can simultaneously model the position and velocity of targets, accurately predict their trajectories, and track them continuously while recognizing up to 64 objects.

    Autel EVO Dual 640t infrared drone camera Dynamic Track 2.0

    Light, Efficient And Reliable

    EVO II Dual 640t RTK Drone v2 has a foldable design, compact and portable, and takes off quickly. Advanced commercial drone, powerful flight performance can reach a maximum transmission distance of 9 kilometers, a flight time of 36 minutes, a maximum speed of 20 m/s, and can ensure stable flight even in harsh conditions, providing professionals with the perfect air deployment solution.

    evo ii dual 640t rtk thermal imager drones
    • Specs
  • Aircraft

    Weight (with propeller and battery) 1250g±0.5g(EVO II Dual 640T RTK)
    Wheelbase 397 mm
    Maximum Service Ceiling Altitude 6000 m
    Max ascent speed 5 m/s(automatic flight)
    8 m/s(manual control)
    Max descent speed 4 m/s
    Max horizontal flight speed 72 km/h(Ludicrous)
    Max tilt angle 33°(Ludicrous)
    Max angular velocity 120°/s
    Max flight time 36 min
    Operating temperature range -10℃ ~ 40℃
    Maximum resistance to wind Level 8
    Operating frequency non-Japan:2.400 GHz - 2.4835 GHz;5.725 - 5.850 GHz
    Japan:2.400 GHz - 2.4835 GHz;5.650 - 5.755 GHz
    Transmission power 2.4GHz
    FCC/ISED:≤27dBm
    SRRC/CE/MIC/RCM:≤20dBm
    5.8G (non-Japan) ; 5.7G (non-Japan)
    FCC/ISED/SRRC/MIC:≤27dBm
    CE/ RCM:≤14dBm
    Hovering accuracy When RTK is enabled and working normally:
    Vertical: ±0.1 m; Horizontal: ±0.1 m
    RTK is not enabled: vertical: ±0.1 m (when the visual positioning is working normally);
    ±0.5 m (when GNSS positioning works normally)
    Level: ±0.3 m (when the visual positioning is working normally);
    ±1.5 m (when GNSS positioning works normally)
    Image position compensation The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.
    Note: Operating frequency varies by countries and regions, please refer to local laws and regulations.

    GNSS

    Single frequency high sensitivity GNSS GPS+BeiDou+Galileo(Asia)
    GPS+GLONASS+Galileo(Other areas)
    Multi-frequency multi-system high-precision RTK GNSS Frequency points used:
    GPS:L1/L2;
    GLONASS:L1/L2;
    BeiDou:B1/B2;
    Galileo:E1/E5
    First positioning time:<50 s
    Positioning accuracy:
    Vertical 1.5 cm + 1 ppm (RMS);
    Horizontal 1 cm + 1 ppm (RMS)
    1 ppm means that the error increases by 1 mm for every 1 km the aircraft moves

    Gimbal

    Gimbal Three-axis stabilization
    Mechanical range Tilt:-135° to +45°
    Pan:-100° to +100°
    Controllable rotation range Tilt:-90° to +30°
    Pan:-90° to +90°
    Max control speed (Tilt) 300°/s
    Angular Vibration Range ±0.005°

    Autel Robotics Smart Controller

    Image Transmission

    Max Signal Transmission Distance, (No interference, No obstacles):FCC:13km;CE:7km

    Transmitter Power (EIRP)

    902-928 MHz

    FCC:≤30dBm 2.400-2.4835 GHz

    FCC:≤30dBm

    CE:≤20dBm 5.725-5.850 GHz

    CE:≤14dBm

    Digital Transmission

    Working Frequency:5.725 - 5.755 GHz

    Transmitter Power (EIRP):FCC:≤20dBm  CE:≤14dBm

    Wi-Fi Protocol: Wi-Fi Direct, Wi-Fi Display, 802.11a/b/g/n/ac, Wi-Fi with 2×2 MIMO
    Working Frequency: 2.400- 2.4835GHz; 5.150-5.250GHz;  5.725-5.850 GHz
    Battery Capacity: 5800mAh
    Voltage: 11.55V
    Battery Type: Li-ion
    Battery Energy: 67 Wh
    Charging time: 120 min
    Operating Hours ~3h(Max Brightness)
    ~4.5h (50% Brightness)
    Internal Storage 128GB
    Video Output port HDMI Port
    USB-A Voltage/current 5V/2A
    Operating Temperature -4° to 104° F (-20℃ to 40℃)
    Storage Temperature Range < 1 month: -4° to 113° F (-20° to 45° C)
    1-3 months: 32° to 86° F (0° to 30° C)
    3-12 months: 59° to 77° F (15° to 25° C)
    Charging Temperature 41° to 113° F (5℃ to 45℃)
    *Supported Aircrafts EVO II Series, EVOII RTK Series, EVO II Enterprise
    Satellite Positioning Module GPS +GLONASS +Galileo
    Dimensions 303×190×87mm (with antenna folded)
    303×273×87mm (with antenna unfolded)
    Weight 1150g (without protection case)
    1250g (with protection case)

    Sensing system

    Sensing system type Omnidirectional sensing system
    Forward Accurate measurement range: 0.5-20 m
    Detection range: 0.5-40 m
    Effective sensing speed:<15m/s
    Viewing angle: Horizontal: 60°, Vertical: 80°
    Backward Accurate measuring range: 0.5-16 m
    Detection range: 0.5-32 m
    Effective sensing speed:<12m/s
    Viewing angle: Horizontal: 60°, Vertical: 80°
    Upward Accurate measurement range: 0.5-12 m
    Detection range: 0.5-24 m
    Effective sensing speed:<6m/s
    Viewing angle: horizontal: 65°, vertical: 50°
    Downward Accurate measurement range: 0.5-11 m
    Detection range: 0.5-22 m
    Effective sensing speed:<6m/s
    Viewing angle: horizontal: 100°, vertical: 80°
    Left and right Accurate measurement range: 0.5-12 m
    Detection range: 0.5-24 m
    Effective sensing speed:<10m/s
    Viewing angle: horizontal: 65°, vertical: 50°
    Operating Environment Forward, Backward and Sides:
    Surface with clear pattern and adequate lighting (lux > 15)
    Upward:
    Detects diffuse reflective surfaces (>20%)
    (walls, trees, people, etc.)
    Downward:
    Surface with clear pattern and adequate lighting (lux > 15)
    Detects diffuse reflective surfaces (>20%)
    (walls, trees, people, etc.)

    EVO II Dual 640T RTK Thermal Camera

    Sensor Uncooled VOx Microbolometer
    Lens FOV H33°V26° Focal length 13mm
    Zoom 1 - 16x
    Sensor resolution 640x512
    Pixel size 12μm
    Wavelength range 8 - 14μm
    Temperature range High gain mode: -20° to +150°
    Low gain mode: 0° to +550°
    Temperature measurement accuracy ±3℃ or ±3% of reading (whichever is greater)
    @Environmental temperature-20℃~60℃
    Video resolution 640x512@30fps
    Bitrate 6Mbps
    Video format MOV / MP4 (Support H.264/H.265)
    Camera resolution Infrared mode: 640*512
    Picture-in-picture mode: 1920*1080, 1280*720
    Photo mode Single shot
    Burst shooting: 3/5 frames, 3 is the default
    Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s, 5s is the default
    Photo format TIFF+JPG (with irg file)

    EVO II Dual 640T RTK visible light camera

    Sensor 1/2 inch CMOS; 48M effective pixels
    Lens FOV: 79°
    35 mm format equivalent focal length: 25.6 mm
    Aperture: f/1.8
    Focus range: 0.5 m to infinity (with auto focus)
    Zoom 1-16x (up to 4x lossless zoom)
    ISO range Video:100-6400
    Photos:100-3200
    Maximum photo size 8000x6000(4:3)
    7680x4320(16:9)
    4000*3000 (4:3)
    3840*2160 (16:9)
    Photo mode Single shot
    Burst shooting: 3/5 frames
    Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
    Time Lapse:
    JPG: 2s/5s/7s/10s/20s/30s/60
    DNG:5s/7s/10s/20s/30s/60s
    HyperLight: support (under 4K JPEG format)
    Long exposure:Max. 8s
    HDR imaging: support (under 4K JPEG format)
    Image Format JPG (default); DNG
    Video format MP4 / MOV format (MPEG-4 AVC/H.264, HEVC/H.265)
    Video resolution 8K 7680*4320 p25/p24
    6K 5760*3240p30/p25/p24
    4K 3840*2160 p60/p50/p48/p30/p25/p24
    2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24
    1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24
    Max bitrate 120Mbps

    Intelligent Flight Battery

    Capacity 7100 mAh
    Voltage 11.55 V
    Battery type LiPo 3S
    Energy 82 Wh
    Weight 365 g
    Charging temperature range 5℃ to 45℃
    Storage temperature and humidity -10~30℃,65±20%RH
    Recommended storage temperature 22~28℃
    Max charging power 93W
    Charging time 90 minutes

    Intelligent Flight Battery Manager

    Voltage 13.2 V
    Charging temperature range 5℃ to 45℃

    Charger

    Input 100-240 V, 50/60 Hz, 1.5A
    Output 13.2 V ⎓ 5 A
    5V⎓3A 9V⎓2A 12V⎓1.5A
    Voltage 13.2±0.1V
    Rated power 66W

    Storage

    Internal storage 8GB
    SD storage Standard: 32 GB,
    max. support 256GB (UHS-3 rating required)
    • Video
  • Introducing: Commercial Applications for EVO II

    EVO II Dual 640T Thermal Imaging Demonstration

    EVO II Dual 640T: Thermal Analysis Tool Overview

    • Accessories

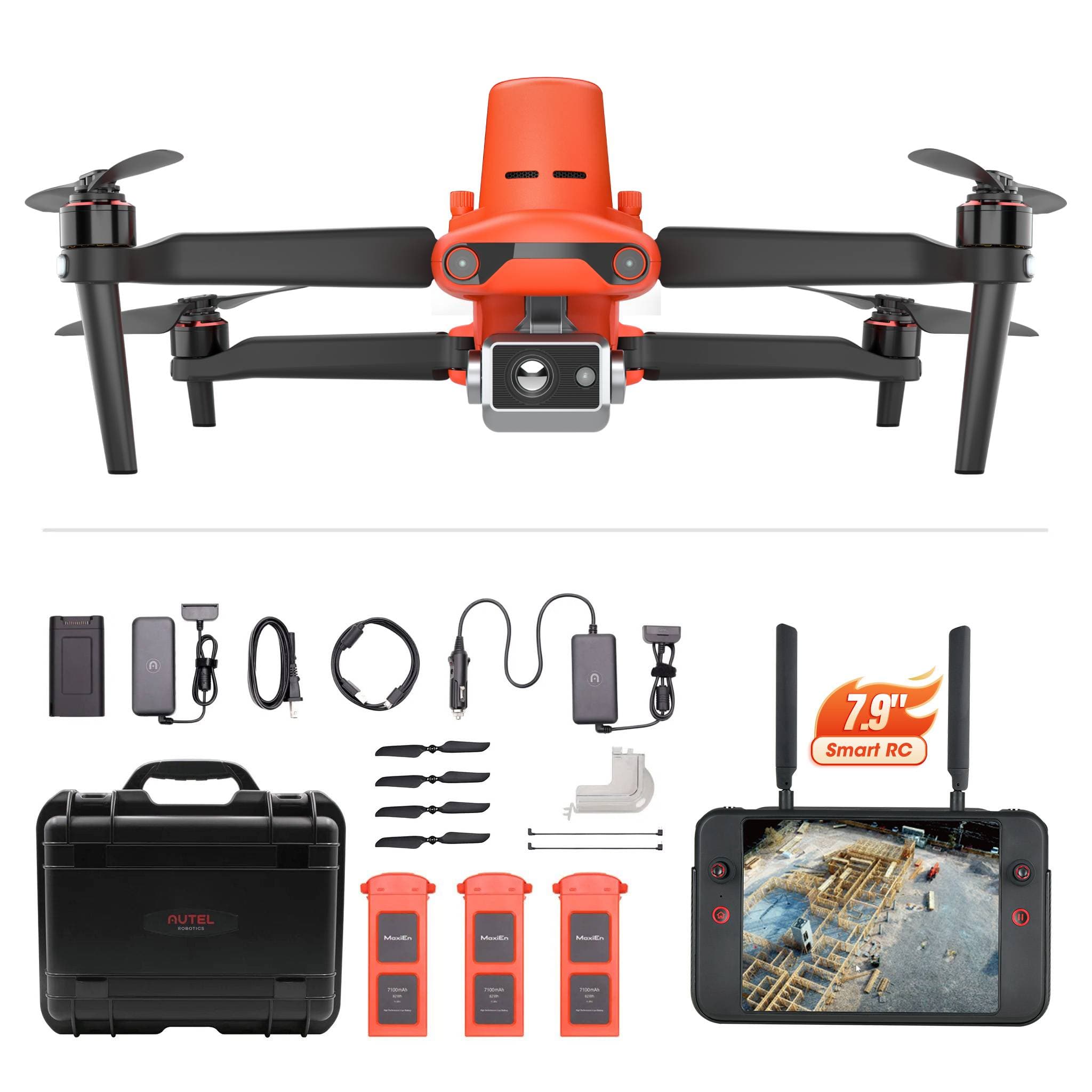

  • Autel EVO II Dual 640T Rugged Bundle With RTK Module
