Autel MK908 II vs MK906S Pro II TS Full Comparison 2026

Autel offers a wide variety of scanners, ranging from entry-level OBD II scanners to advanced automotive scan tools that support features such as ECU programming. The choice of automotive diagnostic tools depends on your budget and needs. However, the ubiquitous product descriptions and bewildering specifications can often leave one feeling overwhelmed and unsure where to begin.

Today we'll be doing a detailed comparison of the Autel MK908 II and MK906S Pro II TS scanners. If your budget is under $1500 and you need ECU coding and active testing diagnostic functions, you can check out this buying guide. Of course, even if you haven't decided on your needs yet, you can still take a look and see if either of these scanners can be added to your shopping list.

Brief Overview

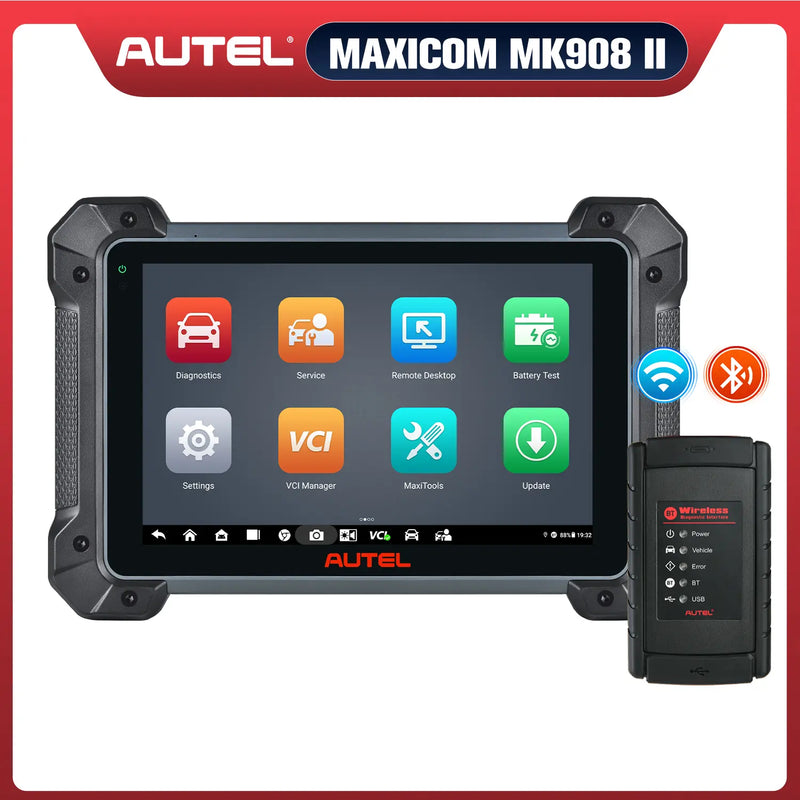

Autel MaxiCOM MK908 II

The Autel MK908 II is a high-end scanner in the Autel MaxiCOM series. It features an octa-core processor and the latest Android operating system, supports advanced functions such as active testing and ECU coding, and offers diagnostic capabilities covering the entire automotive system, along with 36+ reset service functions.

Key Features:

• Fast Wireless Connection
• Professional Full-System Diagnostics
• Advanced Active Tests & System Calibrations
• Online ECU Coding & Hidden Feature Activation
• Free 1-Year Software Updates

Autel MK908 II Highlight Features

Autel MaxiCOM MK906S Pro II TS

The Autel MK906S Pro II TS is an automotive diagnostic tool within the Autel scanner lineup that supports both full system diagnostics and comprehensive TPMS diagnostics and programming. As the latest model released in 2026, it features an octa-core processor and an 8-inch large screen, along with advanced diagnostic capabilities such as ECU coding.

For automotive repair shops with diversified services, this Autel scanner offers an economical solution to expand tire-related business operations.

Key Features:

• Professional Full-System Diagnostics
• Advanced Active Tests & System Calibrations
• Online ECU Coding & Hidden Feature Activation
• Complete TPMS Diagnostics / Works With Advanced Relearn Procedures

Autel MK906S Pro II TS Highlight Features

Autel MK908 II vs MK906S Pro II TS: Comparison Chart

The Autel scanner comparison chart is the most intuitive way to see the differences between the two models. Whether it's subtle variations in hardware configuration or software functionality, this format clearly highlights them.

Item	MK908 II	MK906S Pro II-TS
Price	$1,288	$1,299
Hardware
Processor	Octa-core processor (2.2 GHz + 1.8 GHz)	Octa-core processor (2.2 GHz + 1.8 GHz)
Screen	10.1-inch	8.0-inch
Resolution	1920 x 1200	1920*1200
Camera	16.0 Megapixel AF (auto focus) with Flashlight	Rear: 16 megapixel, autofocus with flashlight Front: 16 megapixel
Memory	4 GB RAM & 128 GB on-board memory	4 GB RAM & 128 GB on-board memory
Weight	1.48 kg (3.26 lbs.)	0.962 kg (2.12 lb.)
Battery	15000mAh	11600mAh
VCI	Bluetooth Box	MaxiVCI V200
Conectivity	Wi-Fi (802.11 a/b/g/n/ac) USB: 2.0 Bluetooth V 5.0 + EDR SD card (Support up to 64 GB) HDMI	Wi-Fi (802.11 b/g/n) USB 2.0 USB Type-C Bluetooth V2.1+EDR, Class 1 HDMI SD Card (supports up to 32 GB)
Software
Operating System	Android 10	Android 10
Basic Functions (Read Codes, Clear Codes, Data Stream)	✔	✔
Service	36+	36+
Special Functions	✔	✔
Bi-Directional Control (Active Test)	✔	✔
Advanced ECU Coding	✔	✔
TPMS Service	✘	✔
Work With MX-Sensor BLE-A001	✘	✔
Program/Relearn/Activate MX-Sensor	✘	✔
Language	Multi-Language	Multi-Language
Autel Cloud Service	✔	✔
DoIP/CAN FD	✘	✔
Wifi Print	✔	✔
Extended Function
Battery Test (requires BT506)	✔	✔
Endoscope Function (requires MV105/MV108)	✔	✔

Autel MK908 II vs MK906S Pro II TS: Key Differences

The Autel MK908 II and Autel MK906S Pro II TS are both mid-to-high-end scanners in the Autel MaxiCOM series. They share consistency in hardware specifications such as processor, operating system, and battery capacity, and both support ECU coding and bidirectional control functions.

However, they also exhibit certain differences and are not entirely identical automotive diagnostic tools.

Hardware Configuration Differences

1.Screen

The Autel MK908 II features a larger 10.1-inch display compared to the MK906S Pro II TS. This expanded screen provides more detailed data visualization and offers greater workspace for split-screen operations. It also reduces visual fatigue and delivers more precise touch control.

2. Battery

The Autel MK908 II features a larger battery capacity. Battery capacity directly correlates with operating time; all other factors being equal, a larger battery capacity supports longer operating durations, making it more suitable for extended continuous operation and handling complex tasks.

3. VCI Device

The two Autel scanners feature different host computer configurations, and the communication protocols supported by each host computer may vary, potentially affecting the range of vehicles that can be diagnosed.

Autel MK908 II Hardware Configuration

Software Functions Differences

1. TPMS Functions

The Autel MK906S Pro II TS supports all TPMS functions, including TPMS sensor information activation, programming, and learning, as well as reading and clearing TPMS system fault codes, and one-click detection of TPMS system health status. However, the Autel MK908 II only supports TPMS reset functionality and does not cover other aspects.

2. Support Protocols

The Autel MK906S Pro II TS supports DoIP and CAN FD communication protocols. These protocols enable massive data transmission while delivering more stable, faster, and secure data transfer. Additionally, these protocols cover a broader range of automotive brands, supporting both new and older vehicle models across major manufacturers.

DoIP And CAN FD Protocol Vehicle Coverage

Autel MK908 II vs MK906S Pro II TS: How To Choose?

After comparing the two, each has its own advantages and disadvantages. Given that their prices are essentially the same, how should we decide which one to purchase?

• Choose The Autel MK908 II: If you require powerful hardware specifications and have no need for TPMS system diagnostics, you may consider purchasing this Autel scan tool.
• Chosse The Autel MK906S Pro II TS: If you're looking for a versatile automotive diagnostic tool to expand your business scope and don't have specific requirements for screen size, this model is worth considering.

Conslusion

Whether it's the Autel MK908 II or the MK906S Pro II TS, both are outstanding representatives among Autel scanners. While they may not be perfect and might have certain shortcomings, their fundamental diagnostic and service capabilities are assured. Choose the scanner that best fits your needs, and you'll find Autel scanners are well worth the investment.

The purpose of this article is to help readers compare products more effectively when making purchasing decisions. If you'd like to see comparisons or analyses of other products, feel free to leave a comment below. We also welcome your unique opinions and suggestions.
