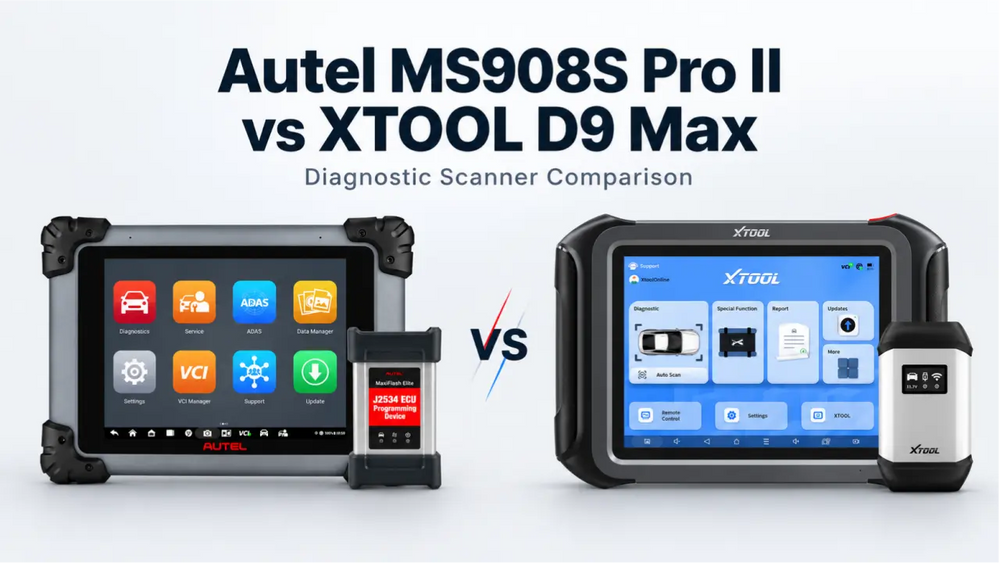

Autel MS908S Pro II vs XTOOL D9 Max: Which Scanner Should You Buy?

Introduction

The Autel MS908S Pro II is a high-end scanner in the Autel MaxiSys series, while the XTOOL D9 Max is a further upgrade from the XTOOL D9S Pro and is also a mid-to-high-end OBD2 scan tool within the XTOOL brand.

So, what exactly are the differences between these two automotive diagnostic tools, both of which support advanced functions such as ECU programming? Which one should professional technicians and independent repair shops choose?

Overall, the specific model you should purchase depends not only on the specific features of these two automotive diagnostic scanners, but also on your specific diagnostic needs, budget, and various usage scenarios. Next, we’ll take a closer look at these different factors to help you make a more informed purchasing decision.

Autel MS908S Pro II vs XTOOL D9 Max: Key Differences

Full-System Diagnostics and Bidirectional Control

Both the Autel MS908S Pro II and XTOOL D9 Max can read and clear fault codes, display live data, and retrieve freeze-frame information across supported vehicle systems. Both also offer bidirectional control, allowing you to command components such as cooling fans, fuel pumps and power windows to help isolate faults. Available tests depend on the vehicle and ECU.

The main difference here is how diagnostic results are presented. The D9 Max includes an ECU topology map, providing a visual overview of module connections and communication status on supported vehicles. The MS908S Pro II does not offer this feature. For routine fault-code checks and component testing, both provide the core functions. When investigating several unresponsive modules or network communication faults, the D9 Max’s visual layout can make the diagnostic picture easier to follow.

ECU Coding and Programming: What Can Each Tool Do?

Both of these automotive diagnostic tools support advanced ECU programming and coding features; however, it’s important to note that the range of features supported by different OBD2 scan tools may vary, as they are from different brands. Therefore, it’s necessary to further understand the differences between these features.

ECU Coding and Adaptation Functions

The Autel MS908S Pro II not only supports the activation of premium features through ECU programming and adaptive functions, but also enables personalized vehicle settings, performance optimization, and model-specific customization to ensure vehicles comply with regional standards.

The XTOOL D9 Max supports resetting hidden functions, optimizing vehicle performance, and resetting adaptive data. Both scanners support ECU coding, component matching and customization on compatible vehicles.

Autel explicitly advertises online ECU coding and provides more detailed examples of adaptations and hidden-feature settings. XTOOL also advertises coding and customization, but the linked D9 Max listing does not clearly distinguish online from offline coding. These descriptions do not establish a clear coverage winner; buyers should confirm the exact coding function for their vehicle before choosing.

Autel MS908S Pro II - ECU Coding Functions

ECU Programming and J2534 Device

The clearer difference is in ECU programming. The MS908S Pro II offers online programming for selected BMW and Mercedes-Benz models. The D9 Max advertises offline ECU programming for supported applications, although the linked listing does not provide a complete vehicle or module list.

This makes Autel’s documented offering more specific for those BMW and Mercedes-Benz jobs, while XTOOL’s offline capability requires confirmation against the intended vehicle.

Both include a J2534 pass-through interface for use with compatible OEM software. If your diagnostic needs involve ECU programming, it is best to verify the specific requirements and ask customer service whether the corresponding features are supported. Do not purchase the product solely based on the claim that it “supports ECU programming.”

Vehicle Coverage, CAN FD, DoIP, and Gateway Access

The diagnostic capabilities of these two automotive diagnostic tools are essentially the same. Although both claim to support over 1,000 vehicle models, the actual range of supported vehicles must be determined based on specific models and features.

The difference between the two in terms of vehicle coverage is that the XTOOL D9 Max supports two new communication protocols—DoIP and CAN FD—giving it an advantage in compatibility with newer vehicle platforms. The MS908S Pro II does not support these protocols.

Service Functions for Everyday Workshop Jobs

Both automotive diganostic tools support common maintenance tasks, including oil resets, EPB service, steering angle calibration, battery registration, DPF regeneration, ABS bleeding and injector coding on compatible vehicles.

The Autel MS908S Pro II supports more than 36 service functions, while the D9 Max claims to support 45. However, since neither brand provides a detailed list of all service functions, and the functions supported vary by vehicle model, you should confirm with official customer service before purchasing to ensure the device includes the features you need.

Hardware, Connectivity, and Diagnostic Workflow

In terms of hardware specifications, the Autel MS908S Pro II is slightly more powerful than the Xtool D9 Max. It features a more advanced octa-core processor, a higher-resolution camera, and a larger battery capacity. These specifications typically result in a smoother diagnostic process, allowing the device to handle even complex issues with ease.

Autel MS908S Pro II Hardware Overview

In terms of connectivity, both automotive diagnostic tools feature wireless connectivity and support a variety of connection methods, including Bluetooth and Wi-Fi. They also provide detailed step-by-step guidance for the diagnostic workflow, walking you through all repair and modification tasks across multiple automotive brands.

Price, Software Updates, and Long-Term Costs

In terms of list prices, the XTOOL D9 Max is more expensive than the Autel MS908S Pro II, but it comes with three years of free software updates. When considering the total cost of ownership over the long term, the D9 Max appears to offer better value, though it’s unclear exactly how long it will remain functional.

Which Scanner Is Better for Your Workshop?

The better choice depends on the vehicles you service, the programming jobs you perform and your software budget. Both scanners cover core diagnostics, active tests and common maintenance tasks, but their differences matter when working with newer vehicle networks or specific ECUs.

Choose the Autel MS908S Pro II If…

• You need online programming for supported BMW and Mercedes-Benz models. Autel explicitly lists this capability, making it a relevant option for workshops handling those specific jobs.
• Your regular vehicles do not require CAN FD or DoIP. The MS908S Pro II provides full-system diagnostics, bidirectional control and coding on compatible vehicles, but lacks these protocols and an ECU topology map.
• You prefer a lower initial purchase price. The linked listing prices it at US$1,649, compared with US$1,899 for the D9 Max. Factor in software renewal after the included first year.

$750 OFF

Autel MaxiSys MS908S Pro II

$2399.00

$1649.00

Code: BLOG5COPY

2026 Autel Professional Diagnostic Scanner with Online ECU Programming, Advanced ECU Coding & Bi-Directional Control

Learn More Buy Now

Choose the XTOOL D9 Max If…

• You service vehicles that require CAN FD or DoIP. Support for these protocols makes the D9 Max the more suitable option between these two for compatible newer platforms.
• You want a visual overview of vehicle networks. Its topology map helps you review module connections and communication status on supported vehicles.
• You need a supported offline programming function. XTOOL advertises offline ECU programming, although the exact vehicle and module must be confirmed.
• You value a longer included update period. Three years of free updates can reduce the need for early software renewal.

For a workshop focused on supported BMW and Mercedes-Benz online programming jobs, the MS908S Pro II is worth considering. For shops needing CAN FD, DoIP and topology mapping, the D9 Max offers the clearer advantage. Both include J2534 interfaces for compatible OEM software; confirm the exact vehicle coverage, programming requirements and subscription costs before buying.

Prices reflect the linked product listings checked on October 27, 2026 and may change.

Final Verdict: Which Scanner Should You Buy?

Automotive diagnostic tools play a vital role in the auto repair industry. Ultimately, the decision on which scanner to purchase comes down to your actual diagnostic needs. Both the Autel MS908S Pro II and the XTOOL D9 Max are excellent OBD2 scanners priced under $2,000.

If you’re looking for a diagnostic tool that supports ECU coding and programming, bidirectional control, and a variety of service functions, you can choose either one based on your budget. However, if you want a tool that supports new communication protocols such as DoIP and requires topology mapping capabilities, go with the XTOOL D9 Max. If you primarily work on high-end vehicles like BMW and Mercedes-Benz, choose the Autel MS908S Pro II, as it offers broader compatibility with these brands.
