In the world of professional vehicle diagnostics, two names frequently come up: the Topdon Phoenix Elite and the Autel Elite II Pro. Both are advanced diagnostic tablets built for workshops, auto repair professionals, and technicians who need reliable, all-in-one tools to perform complete system checks, ECU programming, and coding.
If you are considering upgrading your diagnostic scanner, comparing these two models side by side is essential. The following guide highlights their specifications, strengths, and special functions so you can make an informed decision for your workshop.
| Basic | Item | Autel Elite II Pro | Topdon Phoenix Elite |
| Image |
 |
 |
|
| Price | $2,039 | $1,799 | |
| Hardware | Processor | Qualcomm octa-core processor | MT6761, 4-Core 2.0GHz |
| Screen | 9.7 inch | 10.1 inch | |
| Resolution | 2048 × 1536 | 1280×800 | |
| Battery | 11000 mAh | 12600mAh | |
| Camera | Rear 16.0 MP | Rear 8.0 MP | |
| Memory | 4 GB RAM & 128 GB | 4GB RAM & 64GB ROM | |
| Connectivity | Wi-Fi 802.11 a/b/g/n/ac Bluetooth V5.0 + EDR USB 2.0 HDMI SD Card (Support up to 64 GB) |
USB Wi-Fi, WLAN 802.11b/g/n Bluetooth: Bluetooth 5.0 Type-C |
|
| VCI | MaxiFlash VCI | MDCI | |
| Weight | 1.42 kg (3.13 lbs.) | 1.556 kg (3.43 lbs.) | |
| Software | Operating System | Android 10.0 | Android 10.0 |
| vehicle System Support | All | All | |
| Read and Clear Codes | ✔ | ✔ | |
| Live Data | ✔ | ✔ | |
| Freeze Frame | ✔ | ✔ | |
| I/M Readiness | ✔ | ✔ | |
| Active Test | ✔ | ✔ | |
| ECU Offline Coding | ✔ | ✔ | |
| ECU Online Coding | ✔ | ✔ | |
| ECU Programming | ✔ | ✔ | |
| Service Fuctions | 38 | 41 | |
| vehicle Coverage | 150 | 110 | |
| Language | 21 | 24 | |
| Security Gateway | ✔ | ✔ | |
| DOIP | ✔ | ✘ | |
| CAN FD | ✔ | ✔ | |
| Update | 2-Year Free Update | 2-Year Free Update | |
| Additional Features |
Battery Tester | ✔(MaxiBAS BT506) | ✔ |
| Endoscope | ✔(MV108S) | ✘ | |
| ADAS | ✘ | ✔ |

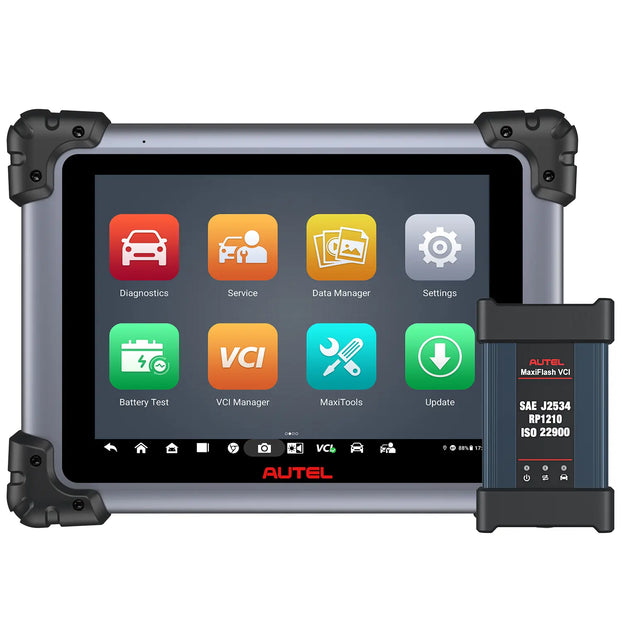

The Autel Elite II Pro focuses on premium design. With a 9.7-inch 2048×1536 display, it delivers sharper visuals than the Phoenix Elite, which uses a larger but lower-resolution screen. Autel also provides 128 GB of storage versus 64 GB, as well as HDMI and SD expansion for added flexibility.

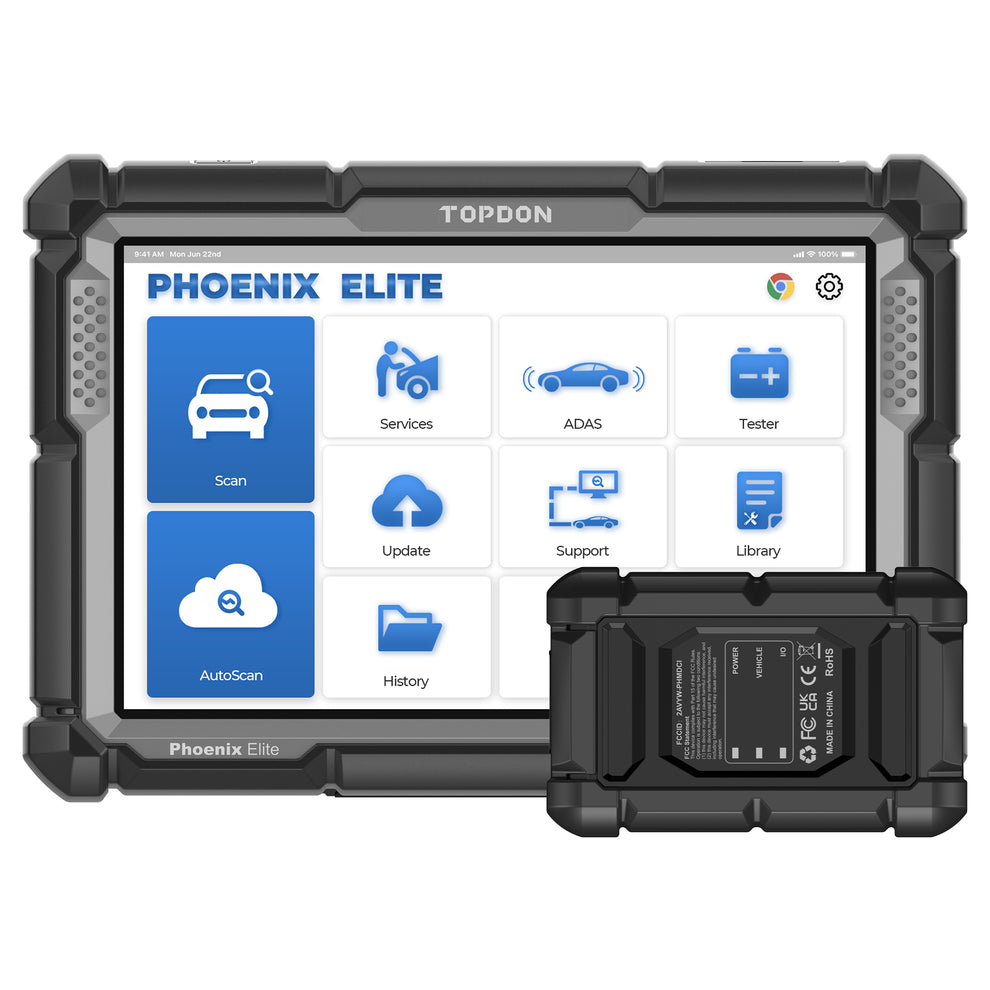

Meanwhile, the Topdon Phoenix Elite offers a bigger 12,600 mAh battery for longer use, while Autel carries an 11,000 mAh unit. For technicians moving around the shop, Topdon’s endurance is a practical plus.
The Autel Elite II Pro stands out with its premium build and design.
Both tablets run on Android 10.0, support all vehicle systems, and include essential diagnostic functions such as:
The Phoenix Elite lists 41 service functions, slightly more than Autel’s 38, which can be useful for routine maintenance resets. By contrast, the Elite II Pro supports 150 vehicle brands, giving it broader coverage compared with Topdon’s 110.
Autel MaxiSys Elite II PRO covers 20,000+ U.S., European, and Asian vehicles up to 2025.
Modern vehicles increasingly require advanced communication standards. Both tools support CAN FD and security gateway access, but only the Autel Elite II Pro includes DOIP. For shops dealing with newer European and luxury brands, this protocol can make a difference.
Where each tool shines is in its special functions:
Both devices include two years of free software updates, ensuring ongoing compatibility and expanded coverage.
Autel Elite II Pro supports BT506 and MV108S, enhancing battery and inspection functions.
The Topdon Phoenix Elite is an appealing choice for workshops seeking a more affordable diagnostic tablet with more service functions and ADAS calibration support included. Its larger battery also makes it practical for long working hours.
The Autel Elite II Pro is better suited for professionals who want premium hardware, wider coverage, DOIP support, and accessory compatibility that extends its value. It may cost more, but it positions a workshop for handling both present and future vehicle platforms.
