Autel MS906 Max PID Triggers for Test Drive Diagnostics

Traditional static vehicle diagnostics generally struggle to directly detect intermittent faults that occur only while the vehicle is in motion. Some of Autel advanced scanners feature PID triggering capabilities, enabling real-time monitoring of these parameters during test drives. This helps identify and resolve potential issues, playing a crucial role in modern vehicle diagnostics.

When it comes to automotive diagnostics, the Autel MS906 Max stands out as a powerful tool for identifying and resolving issues. One of its key features is the ability to monitor PID (Parameter ID) triggers during test drives, providing valuable insights into your vehicle's performance.

In this article, we will explore how to effectively use these PID triggers to enhance your diagnostic capabilities and improve your test drive procedures.

What is the PID Trigger Function?

PID triggers are specific parameters that the Autel MS906 Max can monitor in real-time during a test drive. These parameters can include engine speed, coolant temperature, throttle position, and more. By tracking these PIDs, you can identify patterns and anomalies that may indicate underlying issues with your vehicle.

For example, if you notice that the engine speed PID is fluctuating abnormally during acceleration, it could point to a potential problem with the fuel delivery system or ignition timing.

Advantages of the PID Trigger Function on the Autel MS906 Max

In road test diagnostics, the core value of PID triggering lies in "recording data only at critical moments." Compared to traditional continuous recording methods, the Autel MS906 Max offers more efficient and precise data capture capabilities.

1. Multi-condition triggering for greater precision

Supports triggering based on combinations of multiple PID parameters (e.g., RPM + vehicle speed + load), enabling automatic data recording under specific operating conditions and avoiding interference from irrelevant information.

Multi-condition Parameter Identification (PID) Trigger

2. Automatic Recording of Critical Data

Automatically saves data before and after a trigger when conditions are met, eliminating the need for manual monitoring. This is particularly suitable for capturing intermittent faults.

3. More Efficient Data Playback and Analysis

Supports full playback functionality, allowing for quick identification of abnormal time points and comparison of different test results, thereby improving diagnostic accuracy.

4. Graphical Waveform Display

Intuitively view the trends of multiple parameters through waveform graphs, making it easier to detect abnormal signals and system interaction issues.

5. Enhanced Dynamic Fault Diagnosis Capabilities

For issues that only occur during driving, such as acceleration jerkiness and high-speed vibration, PID triggering can accurately capture critical data.

Preparations Before the Test Drive

Before conducting a test drive with the Autel MS906 Max, ensure that the vehicle is properly warmed up and that all systems are functioning correctly. Additionally, configure the PID triggers according to the specific diagnostic requirements for the test.

• Make sure the car's battery and voltage are normal
• Plug the MaxiVCI 200 into the car's OBD port and connect the Autel MS906 Max properly
• Set up the PID triggers based on the symptoms you want to monitor (e.g., engine speed, throttle position)
• Ensure that the test drive route includes conditions that will trigger the selected PIDs (e.g., acceleration, deceleration, idling)

By following these steps, you can maximize the effectiveness of the PID trigger function on the Autel MS906 Max and gain valuable insights into your vehicle's performance during test drives.

Connect the VCI correctly

How to Use PID Triggers on Autel MS906 Max During a Test Drive

Step 1: Select Relevant PIDs

Choose the parameters related to the issue you are diagnosing, such as:

• Engine RPM
• Throttle position
• Fuel trim
• Vehicle speed

Avoid selecting too many PIDs to keep data clear and manageable.

Step 2: Set Trigger Conditions

Define the conditions that will activate recording.

For example:

• RPM > 3000
• Speed > 60 mph
• Load > 70%

You can combine multiple conditions for higher accuracy.

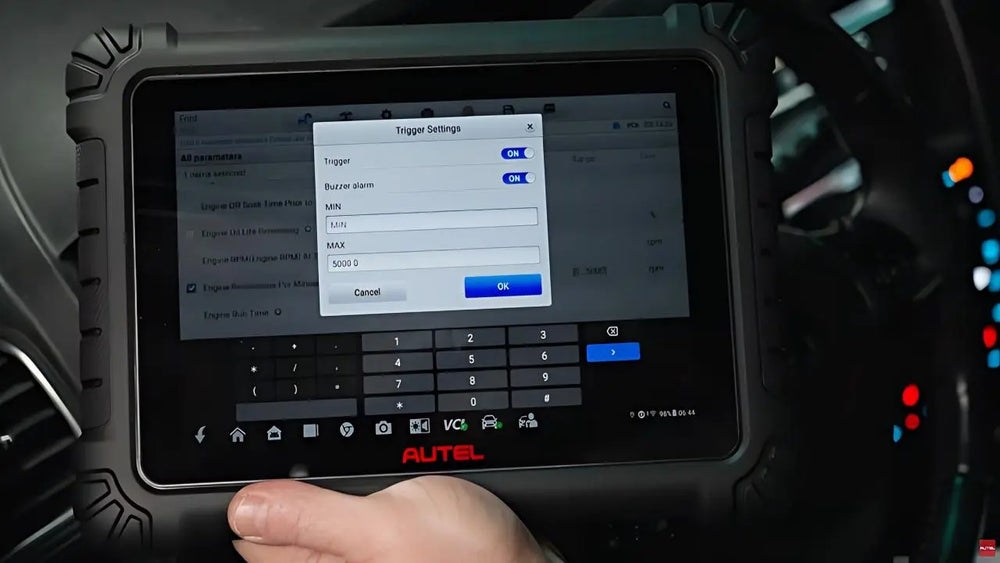

Set PID Trigger Settings

Step 3: Start Recording

Activate the recording function before starting the test drive. Ensure the Autel MS906 Max remains properly connected.

Step 4: Perform the Test Drive

Drive the vehicle under conditions where the issue is most likely to occur:

• Acceleration
• Deceleration
• Highway cruising
• Stop-and-go traffic

Step 5: Analyze the Data

After the test drive:

• Review the triggered data segments
• Use graphs to identify anomalies
• Compare multiple test runs if necessary

The video commentary is as follows:

Real-World Applications

The Autel MS906 Max PID triggers are especially useful in the following scenarios:

• Intermittent engine misfires without fault codes
• Hesitation during acceleration
• Transmission shift issues
• Sudden drops in engine power
• Fuel system irregularities

These are problems that are difficult—or impossible—to diagnose with static testing alone.

Final Thoughts

The PID trigger function on the Autel MS906 Max is a powerful tool for automotive diagnostics, allowing you to capture critical data during test drives. By effectively utilizing this feature, you can identify and resolve issues that may not be apparent through traditional static testing methods.

Whether you're a professional mechanic or a DIY enthusiast, mastering PID triggers can significantly enhance your diagnostic capabilities and help you maintain your vehicle's performance.
