There are many types of car keys, including traditional mechanical keys, transponder keys with chips, and smart keys used in almost all the latest cars. The transponder chip is an essential component of both semi-mechanical keys and smart keys. Although the chip is small, it is crucial for starting the vehicle.
A damaged chip will render the key unusable. Sometimes, the key case you buy doesn't contain a chip, making it impossible to clone or program the key. The Autel AT100 transponder chip, Autel's latest key programming tool released in 2025, easily solves the above problems. It is inexpensive, powerful, and meets the needs of key programming.
So how do you clone a car key using the Autel AT100, and what kind of key programmer should you use with it? Today, we'll take the Autel KM100 as an example to explain in detail the entire process of cloning a car key using the Autel AT100, and answer some of your questions about the Autel AT100.
What is the Autel AT100?
The Autel AT100 is a new key transponder chip launched by Autel in 2025. It can be used with Autel key programming tools such as the Autel KM100 and Autel IM508S to perform advanced functions such as key cloning and programming.
The AT100 super chip can replace various car key chips. It supports cloning ID11, ID12, ID13, ID46, ID47, ID48, ID49, ID4A, ID4C, ID5C, ID4D, ID64, ID8A, ID8C, and MQB chips. However, some cars have higher security levels with their IMMO systems, requiring the use of the Autel XP400 or XP400PRO to read certain key chips.

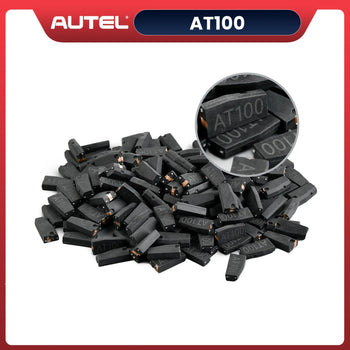

Autel MaxiIM AT100 Chip
AT100-Compatible Key Programmers
The Autel AT100 is compatible with all Autel key programmers, which can work with KM100 KM100E IM508 IM508S IM608 PRO II IM608 II. However, the choice depends on the complexity of the car key and the chip type of the original key.
This is because the Autel AT100 cannot replace all chips for cloning. Furthermore, it is not suitable for all models with high-security IMMO systems; some models even require key programmers like the XP400 Pro for operation.
Autel AT100 Compatible Programmer Slot
How to Perform Key Cloning Using AT100?
The following instructions for key cloning using the Autel AT100 are based on the Autel KM100. The steps may differ slightly when using other key programmers.
Step 1: Correctly Connect the Key Programmer
The Autel KM100 is equipped with MaxiVCI V200, which supports wireless Bluetooth connection between the car and the key programmer via the OBD II port. Inserting the lower-level unit into the OBD II port on the driver's side establishes a connection between the Autel KM100 and the car.
Step 2: Select the Reading/Cloning Menu to Enter
Open the KM100 main interface, select the Reading/Cloning menu, place the original key to be cloned into the sensing area, read it, and determine whether it can be cloned and whether its transponder chip type is replaceable by Autel AT100.
Cloning Car Keys Step 2 With AT100
Step 3: Cloning the Original Key and Writing It Into the AT100 Chip
Click "Clone" below and select "46 Password Calculation". Click "Start" and follow the on-screen instructions. Insert the original key into the ignition switch and turn it on. Then, bring the signal receiver of the Autel KM100 close to the ignition coil. Wait for the password calculation to complete.
Cloning Car Keys Steps With AT100
After obtaining the password, place the original key and read the information. Then remove the original key, place the AT100 into the transponder slot, click Next, and wait for the cloning to complete.
Cloning Car Keys Steps With AT100
Step 4: Check the AT100 Chip and Insert it into the New Key
Check the cloned AT100 chip to confirm that the information matches the original key. Then insert the Autel AT100 into the new key and test if the vehicle can be started normally.
You can refer to the video below:
FQAS
Can Autel AT100 clone all type chips?
No. The Autel AT100 supports cloning ID11, ID12, ID13, ID46, ID47, ID48, ID49, ID4A, ID4C, ID5C, ID4D, ID64, ID8A, ID8C, and MQB chips.
Is it possible to clone the key without using the AT100?
Yes.If the blank key you purchased already has a chip, you can directly use the blank key to perform the key cloning process. For detailed steps, please refer to the link below.
How Much does It Cost to Clone a Car Key?
The price of cloning varies depending on the type of key and the level of difficulty; please refer to the table below for pricing information. If your key is more advanced, purchasing a key programming tool like the Autel KM100 might be a more cost-effective option.
| Car Key Type | Difficulty level | Price | Clone Place |
| Ordinary mechanical key | Cut only the metal part | $5–$30 | Hardware store or self-service key engraving |
| Transponder key | Using a key programmer for cloning | $50–$200 | Locksmith or Chain Key Duplication Shop |
| Smart key/keyless entry | Including Key Pairing/Programming | $150–$600+ | Dealers or Professional Locksmith |
In addition to the cost of key duplication, there may be additional costs such as remote service fees, on-site service fees, and extra parts costs for special chips or rare car models.
Summary
Key cloning using the Autel AT100 transponder chip is quite simple, but you need to be aware of minor issues such as whether your original key chip can be cloned. If your blank key already contains a chip, then cloning directly using the key is perfectly feasible.
The AT100 can replace various car key chips, but Autel IMMO and key programming products are designed for use by certified locksmiths and NASTF-certified vehicle security professionals, ensuring security, legality, and compliance. It can be used with Autel key programmers for cloning and programming, streamlining the workflow.
