How to update Autel MaxiFlash Elite J2534 ECU Programming Tool

Autel MaxiFlash Pro J2534 ECU Programming Tool Device uses the OEM software. This Autel Scanner MaxiFlash Pro tool is capable of providing dealer-level programming capabilities for all makes, all models at an affordable price. It can support Toyota, Volvo, Honda, Jaguar and BMW.

Today we show you the Autel MaxiFlash Elite J2534 Firmware Update:

This function allows you to update the driver software for the Pass-Thru device through the PC. Make sure the PC is connected to the Internet before using this function.

1) Connect the Pass-Thru device to the PC with the supplied Ethernet cable or USB cable.

2) Power up the device by the external power supply; verify the green Power status light on the front panel is on.

3) Verify the Ethernet or USB status light is on.

4) Click on “All Programs” from Windows Start Menu, find the “MaxiFlash Pro”. Entry under “Autel”, click on “MaxiFlashCFG”, and wait for the program interface to pop up.

5) Select the “Update” tab and the update agent will automatically check for the available update online.

6) Press the “Next” button to install the newest firmware.

7) Press the “Cancel” button to exit.

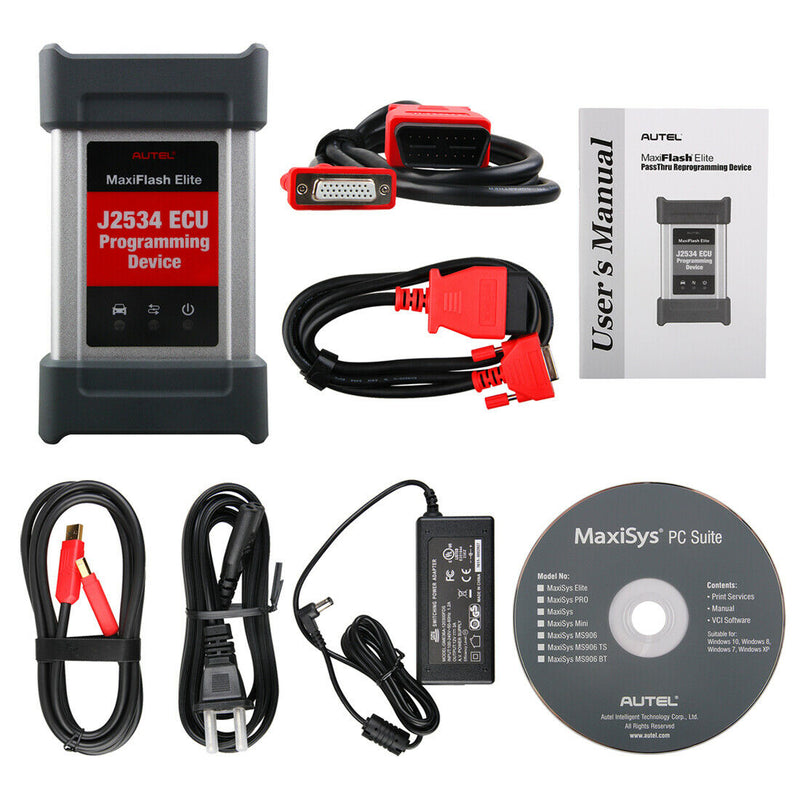

Autel MaxiFlash Elite

As a multi-protocol Pass-Thru vehicle interface, Autel MaxiFlash Elite is a fully compliant SAE J2534-1 & SAE J2534-2 (March 2006) device. Specially designed to provide users with convenient PC communication and ECU reprogramming capabilities on any modern vehicle diagnostic bus, MaxiFlash Elite offers the most significant features desired by OEM customers: reliability, fast performance and flexibility.

MaxiFlash Elite Specifications

Communications Wireless BT V2.1 + EDR,USB 2.0
Wireless Frequency Wireless BT V2.1+EDR, 2.4GHz
Input Voltage Range 12VDC to 24VDC
Supply Current 170mA @ 12VDC 100mA @ 24VDC
Operating Temperature -10°C to +60°C (ambient)
Storage Temperature -20°C to +70°C (ambient)
Dimensions Length: 149 mm (5.87") Width: 86mm (3.38") Height: 35 mm (1.28")
Weight 0.29kg (0.64lb)

J2534 Use For Module Replacement and Programming
