New Autel MS909S2 Scanner: Everything You Need to Know

After releasing its most advanced professional automotive diagnostic tool, the Autel MaxiSys Ultra S2, Autel has now expanded its lineup of Autel scanners with the launch of the brand-new Autel MS909S2 and MS919S2.

In our previous article, we focused on Autel MS919S2 vs MS919, highlighting the key differences between the two models. Today, we’re shifting our attention to the Autel MaxiSys MS909S2. As one of the latest automotive diagnostic tools, the Autel MS909S2 brings several upgrades compared to the earlier Autel MS909.

So, what new features does the Autel MS909S2 offer, and how does it stack up in the Autel MS909S2 vs MS909 comparison? Let’s take a closer look at what makes this new scanner stand out.

What is the Autel MS909S2?

The Autel MaxiSys MS909S2 is an 11-inch Android-based diagnostic tablet with upgraded hardware and near OEM-level capability. It offers enhanced PID analysis, advanced graphing, and multi-PID comparison to quickly spot engine, performance, and emissions issues.

Key features include split-screen diagnostics, voice-controlled assistant MAX, Network Topology 3.0, improved oscilloscope functions, and digital vehicle inspection, making it one of the most advanced Autel scanners for modern vehicles.

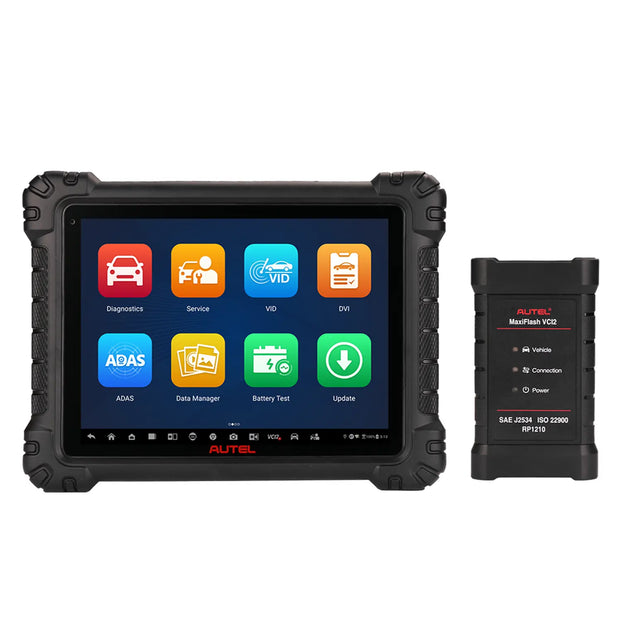

Autel MaxiSys MS909S2

$3,299.00

The Autel MaxiSys MS909S2 features enhanced PID analysis, split-screen diagnostics, voice assistant MAX, Network Topology 3.0, and improved oscilloscope tools.

VIEW MORE

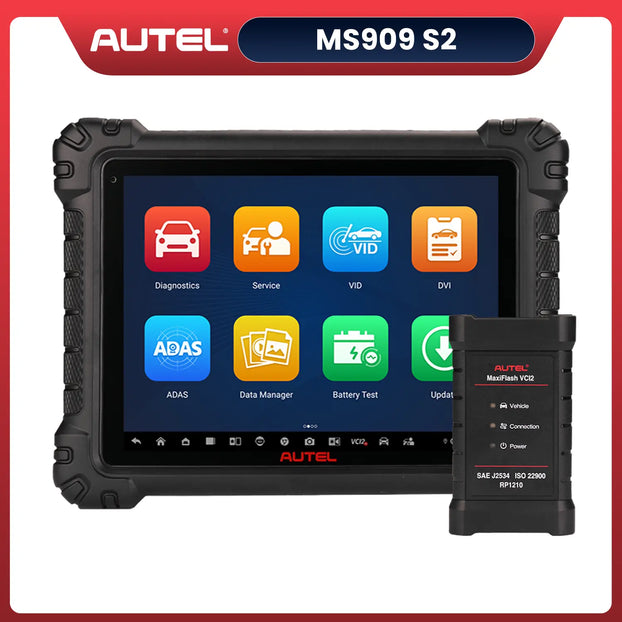

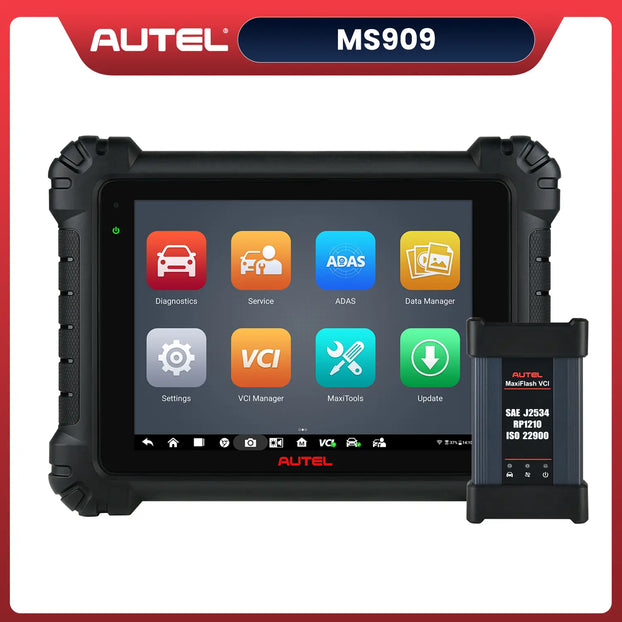

Key Upgrades: Autel MS909S2 vs MS909

Side-by-Side Comparison Table

Item	Autel MaxiSys MS909S2	Autel MaxiSYS MS909
Price	$3,299	$2,799
Hardware
Processor	Octa-core processor	Samsung Exynos 8895V octa-core Processor
Screen	11-inch	9.7-inch
Resolution	2176 x 1600	1536 x 2048
Battery	15000 mAh	15000 mAh
Camera	Rear: 16 Megapixel Front: 16 Megapixe	Rear: 16 Megapixel Front: 5.0 Megapixe
Memory	12 GB RAM & 256 GB	4 GB RAM & 128 GB
Connectivity	Wi-Fi x 2 (802.11 a/b/g/n/ac/ax 2x2 MIMO) BT V5.2 + EDR GPS USB 2.0 (Two USB host Type A) USB Type C (used to charge the tablet or connect to a PC for data transfer) HDMI 2.0 SD Card (support up to 256 GB)	WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (TWO USB HOST Type A, ONE USB mini device) HDMI 2.0 SD Card (Support up to 256GB)
VCI	MaxiFlash VCI2	MaxiFlash VCI
Weight	1656.5 g (3.65 lbs.)	1.66 kg (3.66 lbs.)
Software
Operating System	Android 13	Android 7.0
vehicle System Support	All Systems	All Systems
Read and Clear Codes	✔	✔
Live Data	✔	✔
Freeze Frame	✔	✔
I/M Readiness	✔	✔
Active Test	✔	✔
ECU Coding	✔	✔
ECU Programming	✔	✔
AI Assistant	✔	✘
Digital Vehicle Inspection	✔	✘
Live Data Fusion	✔	✘
Reference Value section	✔	✘
Topology	3.0	2.0
Service Fuctions	38+	38+
vehicle Coverage	150+ brands	150+ brands
Language	Supports languages other than Asia Pacific	Supports languages other than Asia Pacific
Security Gateway	✔	✔
DOIP	✔	✔
CAN FD	✔	✔
Update	1 Year Free	1 Year Free

Key Upgrades

When comparing the Autel MS909S2 vs MS909, several clear upgrades stand out:

• Bigger and sharper display: 11-inch screen at 2176×1600 vs. the MS909’s 9.7-inch 1536×2048.
• Massive boost in memory: 12 GB RAM and 256 GB storage, triple the MS909’s 4 GB RAM and 128 GB.
• Improved cameras: 16 MP front and rear, compared to MS909’s 16 MP rear and 5 MP front.
• Modern operating system: Android 13 vs. Android 7.0 for smoother navigation and better app compatibility.
• New VCI: Equipped with the MaxiFlash VCI2 for faster, more stable connections.
• Stronger connectivity: Stronger connectivity:

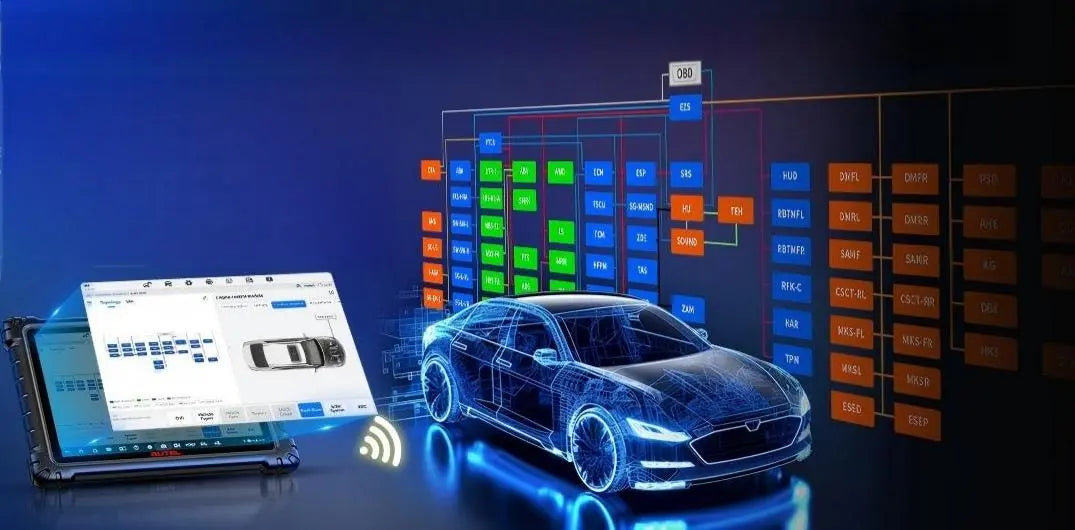

• Topology upgrade: 3.0 with color-coded, real-time module mapping vs. the MS909’s 2.0.

These improvements make the Autel MaxiSys MS909S2 far more powerful and future-ready than the MS909.

The MS909S2 comes with more powerful hardware.

Top Features of the Autel MaxiSys MS909S2

Beyond its hardware upgrades, the Autel MaxiSys MS909S2 includes advanced features that place it among the best Autel scanners:

• All-system diagnostics across 150+ brands.
• Bi-directional control and active tests for real-world troubleshooting.
• ECU coding and programming with better speed and reliability.
• AI voice assistant (MAX) for hands-free navigation and task execution.
• Digital Vehicle Inspection (DVI) for professional multi-point reporting.
• Enhanced graphing and PID analysis, allowing multi-parameter tracking.
• Topology 3.0, providing a dynamic, real-time module map.
• Compatibility with Autel accessories like TPMS tools, oscilloscopes, and videoscopes.

The Autel MS909S2 improves inspections with AI-powered DVI.

Benefits of Choosing the Autel MS909S2

Switching to the Autel MS909S2 offers practical, everyday advantages for technicians:

• Save time with a faster processor, more memory, and upgraded OS.
• Boost accuracy through improved data fusion and enhanced graphing.
• Future-proof your shop with CAN-FD, DoIP, and security gateway support.
• Work more efficiently using split-screen diagnostics, voice commands, and wireless stability.
• Handle complex vehicles with the power of Topology 3.0 and advanced ECU functions.

In short, the Autel MS909S2 isn’t just a refresh of the MS909—it’s a smarter, faster, and more capable diagnostic tool designed for modern vehicles.

The MS909S2 leverages enhanced PID analysis for faster, more precise diagnostics.

Conclusion

The Autel MaxiSys MS909S2 is not just an incremental update—it’s a next-generation diagnostic scanner designed for modern vehicles and professional shops. With upgraded hardware, Android 13, enhanced graphing, AI assistant, and Topology 3.0, it offers near OEM-level diagnostics in a portable tablet.

If you’re already using the Autel MS909, upgrading to the Autel MS909S2 means faster performance, smarter features, and better long-term value. Among the latest Autel scanners, the MS909S2 stands out as one of the best choices for 2025.
