MaxiSYS MS906S

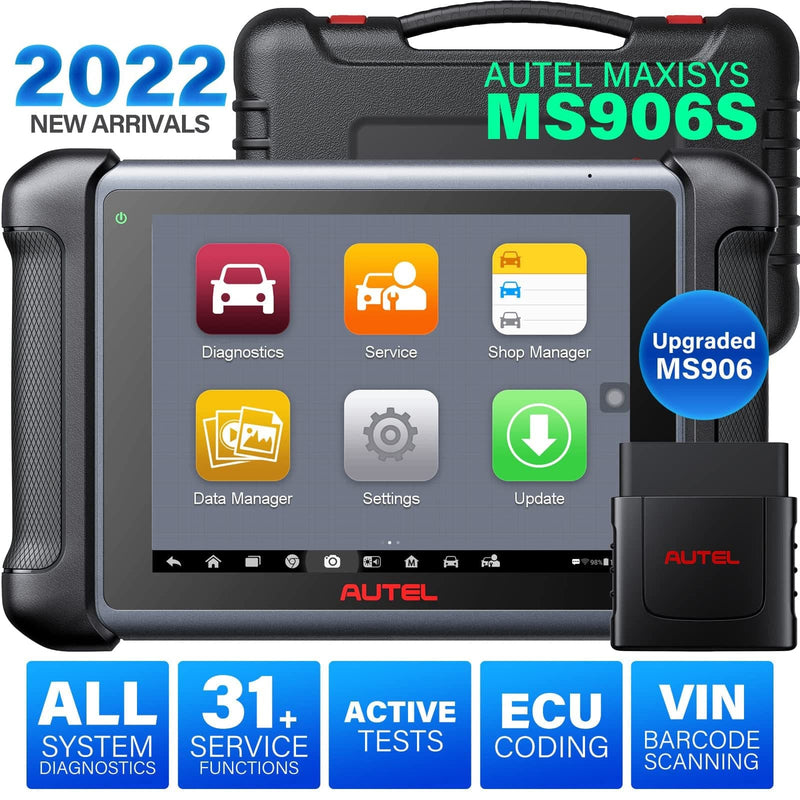

The Autel MaxiSYS MS906S is an 8-inch touchscreen Android-based advanced diagnostic tablet powered by a Hexa-core processor. It features 64GB memory and the Bluetooth-enabled VCI Mini with an extension for easier OBDII port attachment.

The MS906S diagnostic scan tool features advanced diagnostics including active tests and bi-directional controls. Features include Scan VIN optical VIN/barcode recognition for quick vehicle identification, FCA Secure Gateway Access with AutoAuth subscription, Pre/Post-SCAN customizable reports, and forthcoming Cloud Data management and Repair & Diagnostic Database.

The Maxisys MS906S scanner is packaged in a blow-molded case, includes free technical support, and one-year free software updates with a one-year limited warranty.

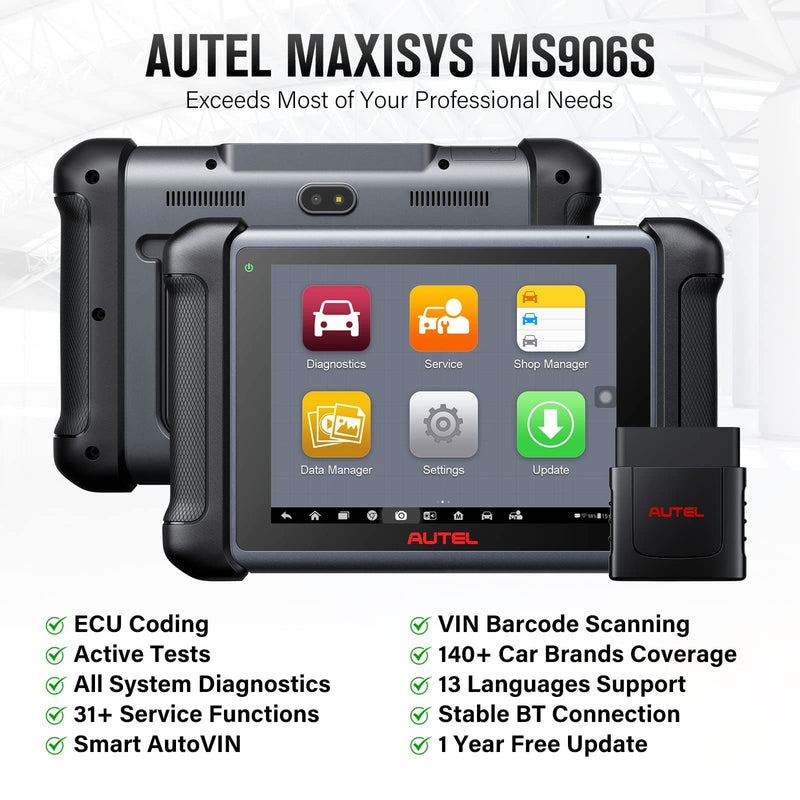

MaxiSYS MS906S Features:

• 8-inch Wireless Touchscreen Diagnostics Tablet
• Compatible with U.S., Asian and European Vehicles, 1996 and newer
• Advanced Diagnostics, Bi-Directional Control and Active Tests
• Bluetooth VCI Mini with extension for easier OBDII port connection
• Android 4.4, Hexa-core Processor, 64 GB Memory
• Expansive Service Function Menu
• FCA Secure Gateway Access with AutoAuth subscription
• Pre/Post Scan Reports
• One-year free software updates with one-year limited warranty

Autel MS906S Specifications:

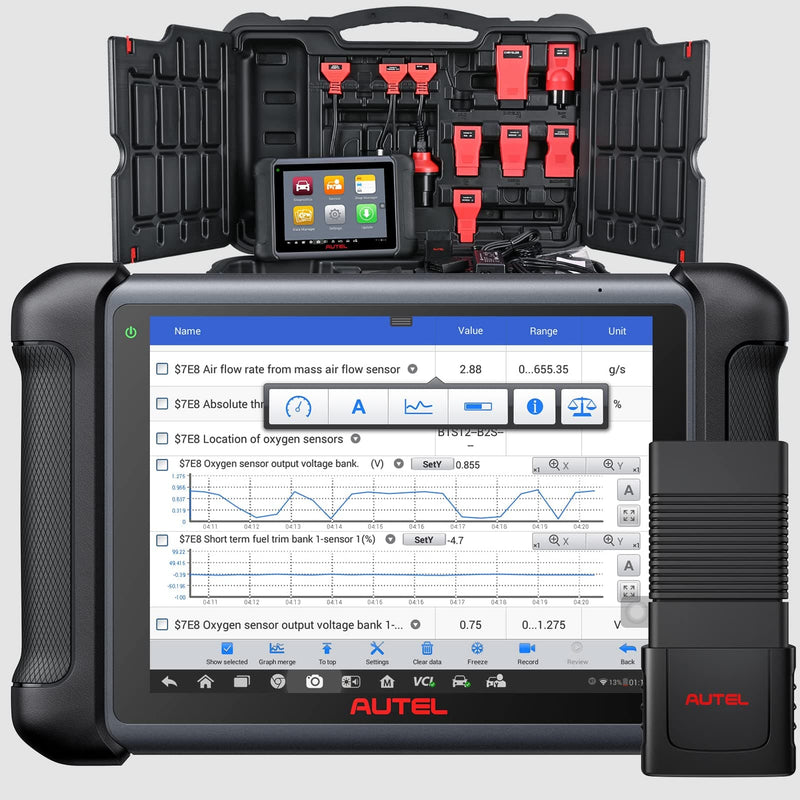

Autel MS906S Package List:

• 1* Autel MS906S Unit
• 1* VCI MINI
• 1* OBD Extension Adapter
• 1* AC/DC Adapter (12V)
• 1* Mini USB Cable
• 1* Cigarette Lighter
• 2* Light Fuse (60x30mm)
• 1* Strap
• 1* Quick Reference
• 1* Package List
• 1* Soft Cloth
• 1* Carrying Case (634x170x404mm)
• 1* Honda-3 Adapter
• 1* Nissan-14 Adapter
• 1* Mitsubishi/ Hyundai -12+16
• 1* Kia-20 Adapter
• 1* Benz-38 Adapter
• 1* BMW-20 Adapter
• 1* VW/AUDI-2+2
• 1* GM/ Daewoo-12
• 1* Fiat-3 (Available in South America and Europe Only)
• 1* PSA-2 (Available in South America and Europe Only)
• 1* Chrysler-16 (Available in U. S. and South America Only)
• 1* Benz-14 (Available in South America and Europe Only)

Model	MS906S	MS906BT	MK906BT	MS906 Pro	MS906TS
Hardware
CPU	Exynox 5260	Exynox 5260	Exynox 5260	Exynos 8895	Exynox 5260
RAM	2GB	2GB	2GB	4GB	2GB
ROM	64GB	64GB	64GB	128GB	64GB
Battery Capacity	10000 mAh	10000 mAh	10000 mAh	11600 mAh	10000 mAh
Android Version	Android 4.4.4	Android 4.4.4	Android 4.4.4	Android 7.0	Android 4.4.4
Screen Size	8.0 inch	8.0 inch	8.0 inch	8.0 inch	8.0 inch
Screen Resolution	1024*768	1024*768	1024*768	1920*1200	1024*768
Camera	Rear 8.0 Megapixel	Rear 8.0 Megapixel	Rear 8.0 Megapixel	Rear 16.0 Megapixel Front 5.0 Megapixel	Rear 8.0 Megapixel
VCI	V100	V100	V100	V200	V100
Software
Basic Diagnostic Function	√	√	√	√	√
Service	√	√	√	√	√
Special Functions	√	√	√	√	√
Bi-Directional Control(Active Test)	√	√	√	√	√
Online ECU Programming	/	/	/	/	/
Online ECU Coding	/	√(BMW, Porsche, VW)	√(BMW, Porsche, VW)	√(BMW, Porsche, VW)	√(BMW, Porsche, VW)
BMW Brush Hidden	/	√	√	√	√
VW, Audi, Skoda Brush Hidden	√	√	√	√	√
VW, Audi, Skoda, Seat, Bently, Man LD Guide function	√	√	√	√	√
Extended function
Oscilloscope function (requires MP408)	√	√	√	√	√
Endoscope function (requires MV105/MV108)	√	√	√	√	√
Battery Test	√	√	√	√	√
Remote Expert	/	/	/	√	/
Complete TPMS Function
Quick Mode & Advance Mode	/	/	/	/	√
Activate TPMS sensors	/	/	/	/	√
Read sensor data	/	/	/	/	√
TPMS health check	/	/	/	/	√
Read/clear TPMS DTCs	/	/	/	/	√
Scan TPMS sensor ID	/	/	/	/	√
Manual input OE ID into MX-sensor	/	/	/	/	√
Program MX-Sensor by auto creating sensor ID	/	/	/	/	√
Read Sensor ID by OBD and copy ID into MX-Sensor	/	/	/	/	√
Relearn by OBD function	/	/	/	/	√
Relearn procedure guide on the tool	/	/	/	/	√
Read TPMS live data	/	/	/	/	√
Tire Type/Pressure selection	/	/	/	/	√
Other TPMS special functions	/	/	/	/	√
Other Features
Remote Desk	√	√	√	√	√
DoIP/CAN	/	/	/	√	/
D-PDU/RP1210	/	/	/	/	/
Pre & Post Scan	/	/	√	√	√
New Features
Language	Only English	Only English	Multi-Language	Only English	Only English
Autel Cloud Service	√	√	√	√	√
Wifi Printer	/	/	/	√	/
