Autel MaxiTPMS TS501K TPMS Diagnostic Tool Kit With 8pcs 315MHz & 433MHz MX-Sensors

by obdprice | 5 Reviews
Sold out
14-days return or replacement View details »
Free Shipping to US
Estimated delivery time: 7-10 Days.View details »
  • Description
  • Shipping
  • Downloads

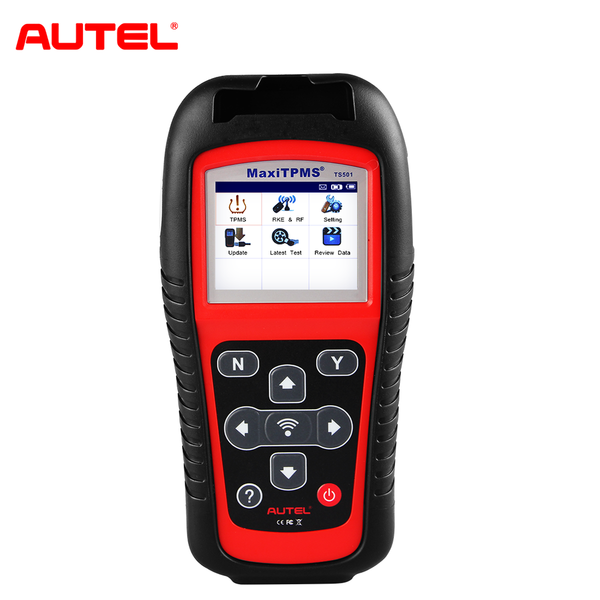

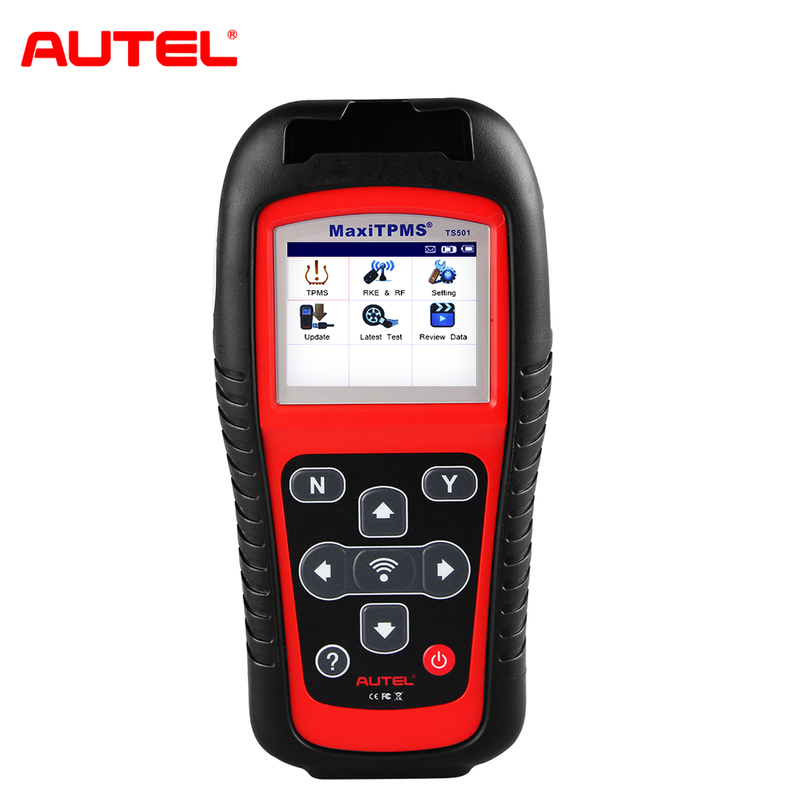

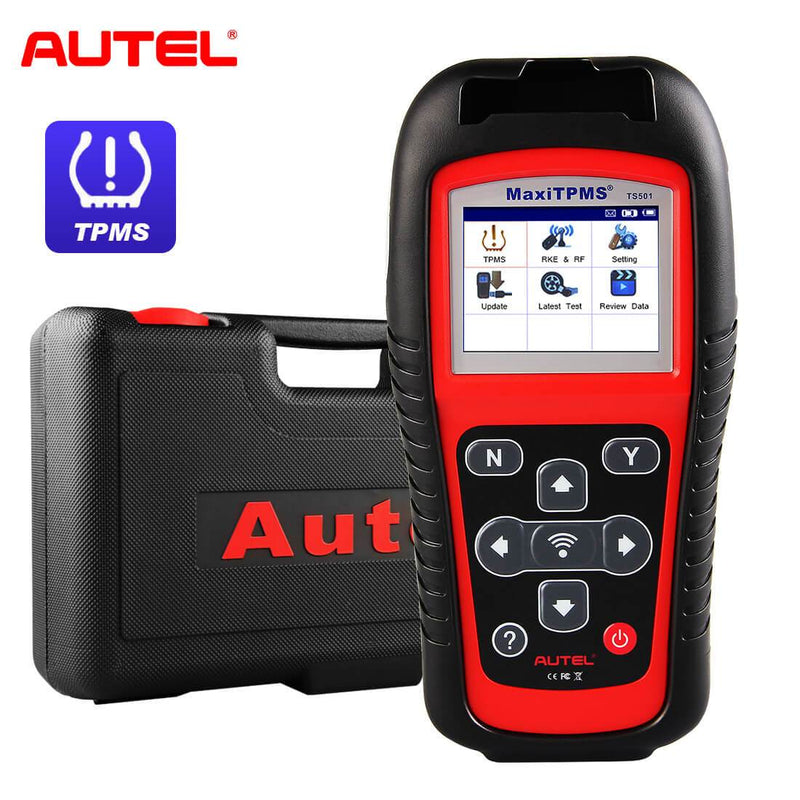

  • Autel MaxiTPMS TS501K

    • MaxiTPMS TS501K is Autel 2019 New TPMS Scan Tool Same functions as TS501, but with 8pcs sensors. It is capable of wirelessly diagnosing TPMS problems and activate any known OEM / Universal TPMS sensors, ID clone or reprogram sensors to the vehicle's ECU, and turn off warning lights. Comes With 3pcs 433MHZ MX-Sensor (2 pcs metal valve stem and 1pcs rubber valve stem) + 5PCS 315MHZ MX-Sensor (4pcs metal valve stem and 1pcs rubber valve stem).

    Autel MaxiTPMS TS501K Features:

    • 1. TS501K Easy-to-use with intuitive navigation and step-by-step on-screen
    • 2. On-screen code definitions and built-in rechargeable Li-ion battery
    • 3. TS501K reads sensor ID from vehicle ECU, programs vehicle ECU to learn sensor IDs and positions, activates magnetic, frequency and supports  tire deflation triggered sensors using 125 kHz continuous or modulated wave signals
    • 4. Receives 315 MHz, 433.92 MHz and 309MHz signal, reads/clears codes of TPMS system and resets malfunction indicator light
    • 5. TS501K simplifies the diagnostic process including four and five wheel vehicles by showing vehicle graphs
    • 6. Decodes sensor data and provides visual and audible responses to confirm sensors are working properly
    • 7. Interprets data including sensor ID, tire pressure, temperature, battery status and OE part no.
    • 8. Pre-selection process offers faster activation and diagnostics
    • 9. Lifetime free upgrade on the internet via USB port
    • Note: The Autel TPMS tool can program the MX-Sensor which was manufactured by Autel only!

    Why choose our Autel TS501K?

    • 1. We need to know the tire pressure in real time to keep safe driving.
    Autel MaxiTPMS TS501K tpms diagnostic tool Autel TS501K tpms diagnostic service tool Autel MaxiTPMS TS501K tpms diagnsotic tool test tire pressure and tire temperature
    • 2. TS501K can Help Technicians to quickly find out faulty TPMS codes and turn off MILs.
    Autel MaxiTPMS TS501K read and erase fault tpms system code

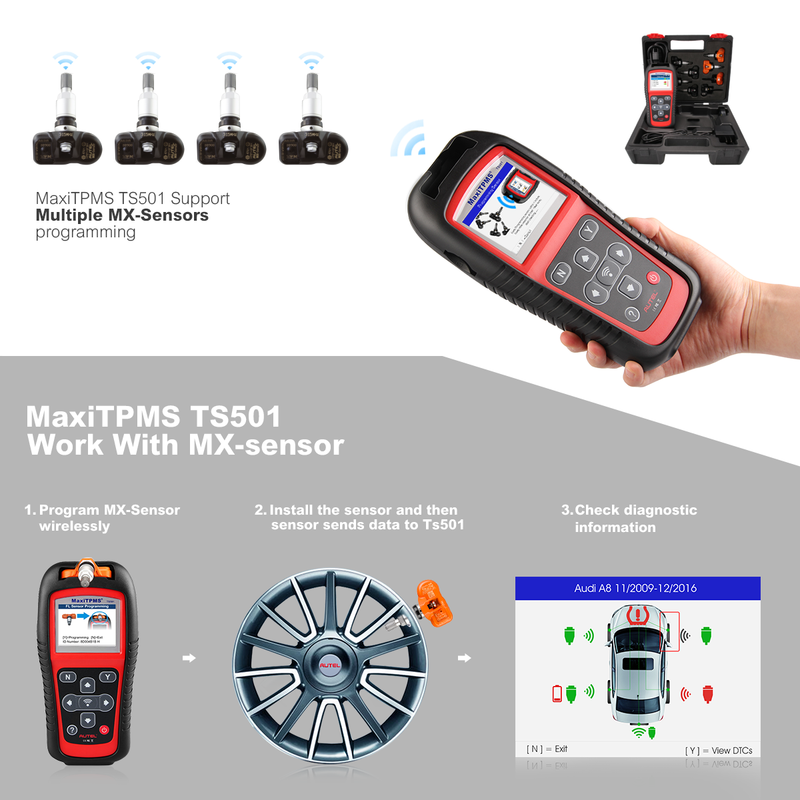

    • 3. Four Options for TPMS Sensor Programming: Auto Create 1-16; Copy By Manual Input; Copy By Activation; Copy By OBD.

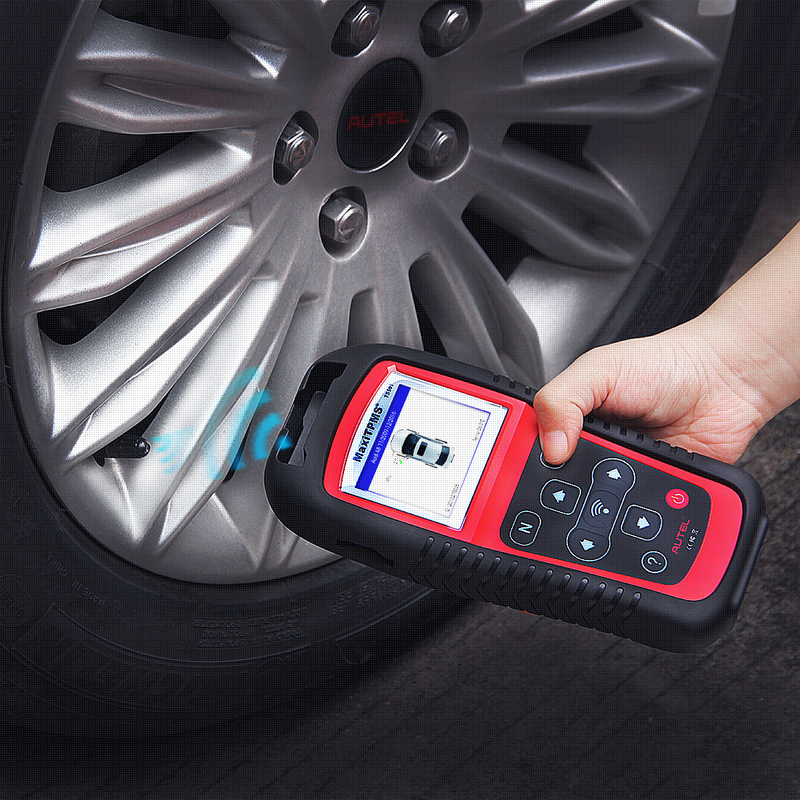

    Autel MaxiTPMS TS501K copy and active tire sensor
    • 4. TS501K Is Lifetime Free Update & Suppots Print Reports Via PC.
    Autel MaxiTPMS TS501K with 1 year free update

    Comparision Between TS401 & TS501K:

    Autel ts501k and ts401 comparison

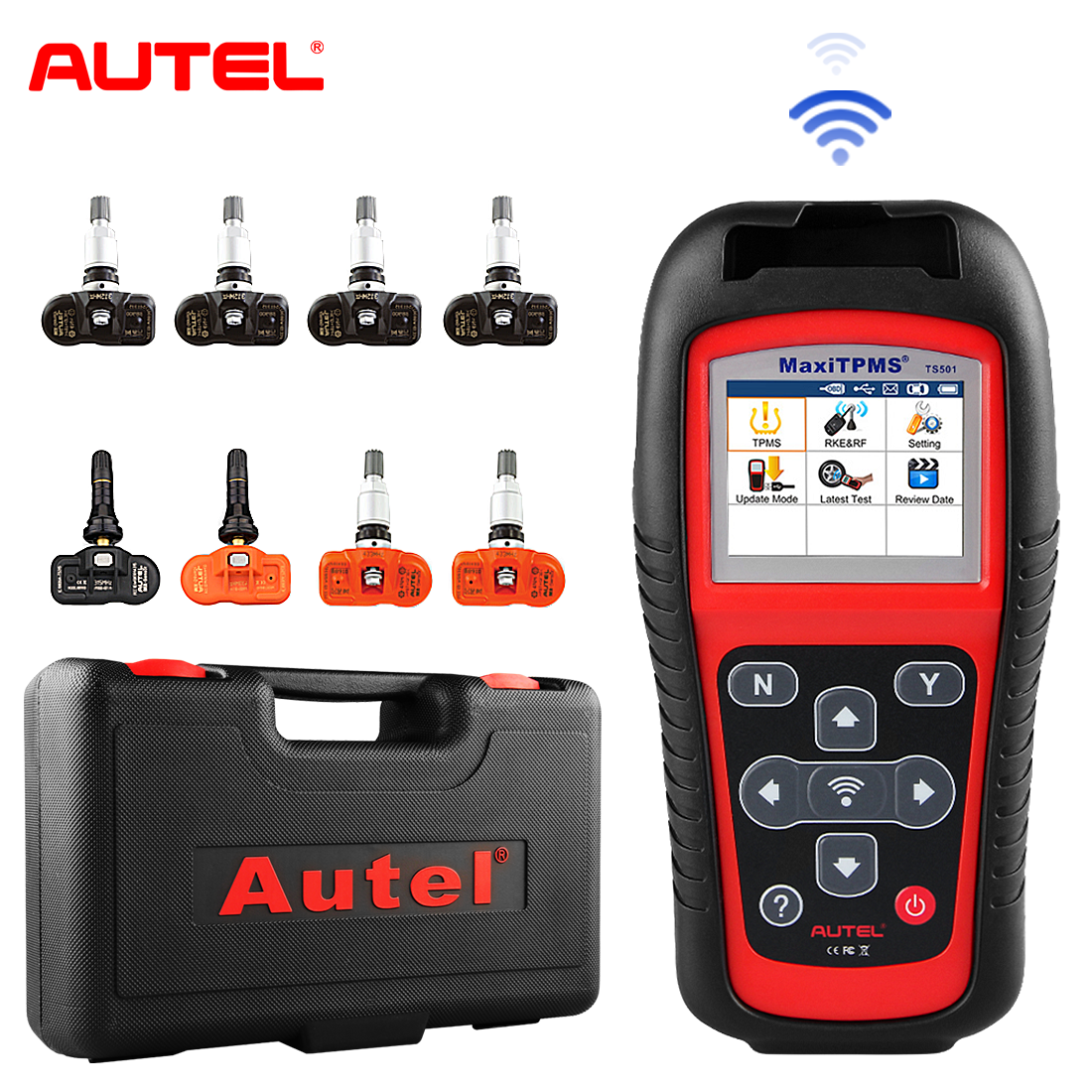

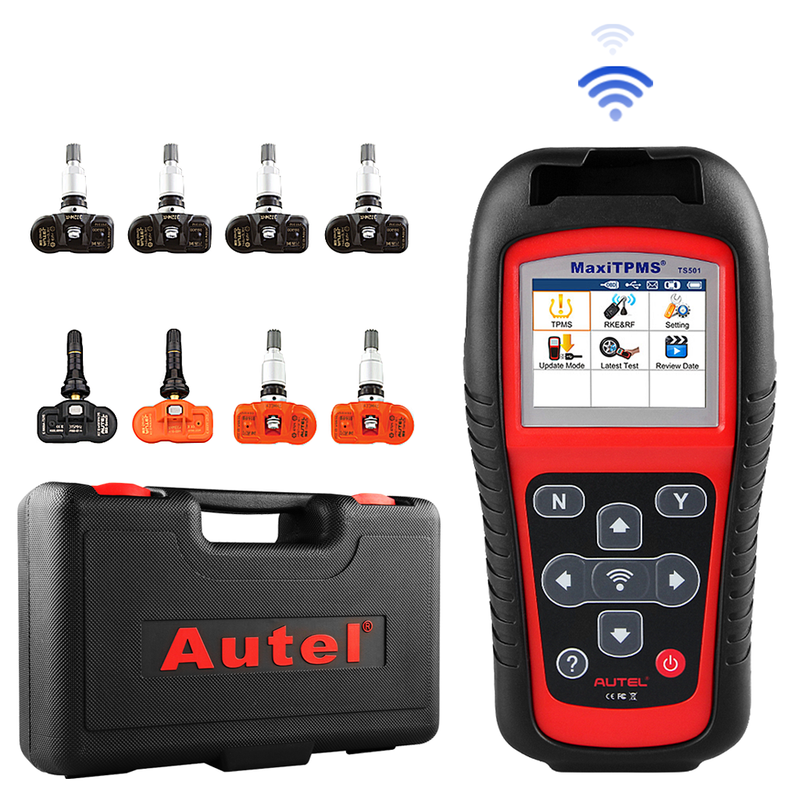

    Autel MaxiTPMS TS501K Package List:

    • 1 x MaxiTPMS TS501 tool
    • 4 x 315MHz MX-Sensor (Metal Valve Stem)
    • 1 x 315MHz MX-Sensor (Rubber Valve Stem)
    • 2 x 433MHz MX-Sensor (Metal Valve Stem)
    • 1 x 433MHz MX-Sensor (Rubber Valve Stem)
    • 1 x OBDII cable
    • 1 x USB cable
    • 1 x  Molded plastic case
    • 1 x Magnet (For early model TPM sensors)
