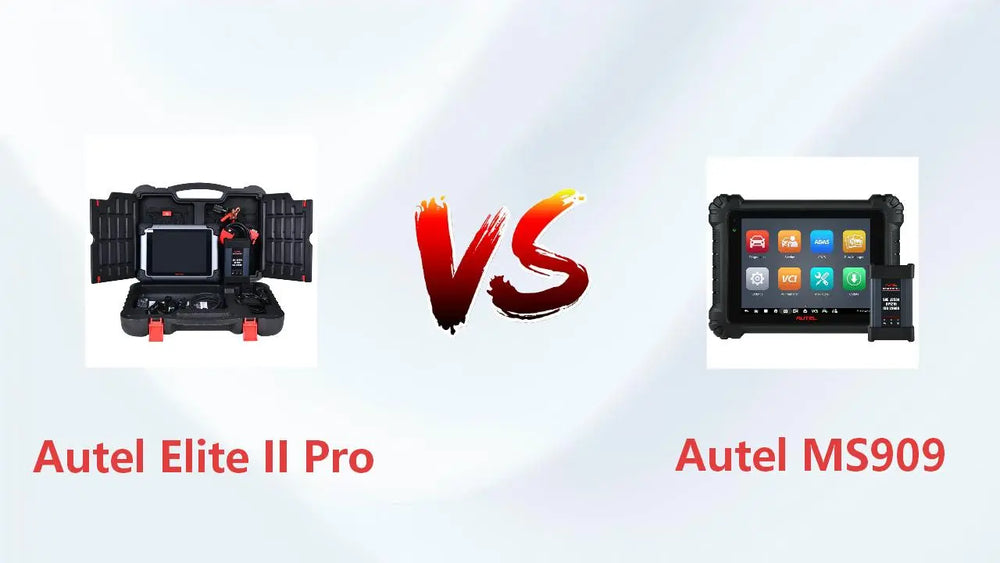

Autel MaxiSys MS909 vs Elite II Pro: Which One Is Better?

Autel scanners come in a wide variety of series and models, with different prices and features. As consumers, how should we choose the right one?

Today, we'll focus on comparing two high-end flagship models in the Autel MaxiSys series: the Autel Elite II Pro and the MS909. What are the differences in configuration and features between these two models, both priced under $3000? Let's take a look.

What is the Autel MaxiSys Series?

The two scanners we're introducing today are both from the Autel MaxiSys series, also known as the MS series. In our previous comparison table of Autel scanners, we provided a general comparison of the Autel MS, MK, and MX series automotive diagnostic tools. The Autel MS series is the most advanced of all the series, mostly consisting of flagship models, and is therefore slightly more expensive.

The Autel MS series is positioned as a high-end model, making it an ideal scanner for professional mechanics, medium-to-large auto repair shops, and DIYers with a sufficient budget who are interested in advanced features. It can help you accurately diagnose problems and improve work efficiency.

The Autel Elite II Pro and Autel MS909 are mid-range scanners in their respective series. Below them are the MS906 series, represented by the Autel MS906Pro, while the higher-end scanners include the S2 series, represented by the Autel Ultra S2.

Appearance and Hardware Comparison

Autel MS909 VS Elite II Pro: Hardware Comparison Chart

Item	Autel MS909	Autel Elite II Pro
Price	$2,799	$2,039
Hardware
Processor	octa-core processor	octa-core processor
Screen Size	9.7 inches	9.7 inches
Resolution	2048*1536	2048*1536
Camera	Rear: 16M Front: 5M	Rear: 16M
Battery	15,000 mAh	11,000 mAh
Memory	4 & 128 GB	4 & 128 GB
VCI	MaxiFlash VCI	MaxiFlash VCI
Connectivity	Wi-Fi x 2 (802.11 a/b/g/n/ac 2x2 MIMO) BT V5.0 + BR/EDR GPS USB 2.0 (two USB host type A, one mini USB device) HDMI 2.0 SD card (supports up to 256 GB)	Wi-Fi 802.11 a/b/g/n/ac Bluetooth V5.0 + EDR USB 2.0 HDMI SD Card (Support up to 64 GB)
Weight	1.66 kg (3.66 lb.)	1.42 kg (3.13 lbs.)

Difference Description

1. Battery Differences

According to the comparison table, the Autel MS909 has a larger battery capacity than the Autel Elite II Pro. Battery capacity determines the operating time, meaning that in the same diagnostic scenarios, the Autel MS909 can operate for a longer period, making it more convenient for outdoor work and diagnosing complex problems.

2. Camera Difference

The Autel MS909 has both front and rear cameras, while the Autel Elite II Pro only has a rear camera. The front camera can be used to record, film, and share the diagnostic process and vehicle status, improving communication efficiency and repair credibility.

3. Weight Difference

The Autel MS909 scanner is slightly heavier than the Autel Elite II, which might make it a little less convenient to carry, but the overall weight difference isn't significant. Both devices feel substantial in the hand, but this doesn't affect usability and also indicates the high quality of the materials used.

Software and Diagnostic Functions Comparison

Autel MS909 VS Elite II Pro: Software Comparison Chart

Software Differences Description

The Autel MS909 and Elite II Pro share many similarities in their software functions. Both support full-system diagnostics and offer a similar number of service functions (primarily depending on the specific vehicle model). They also support advanced features such as ECU coding and programming, meeting the needs of complex diagnostic scenarios.

Of course, due to different price points and models, there are some differences in their software capabilities.

1. Remote Expert Function

The Autel MS909 supports a remote expert function, which means that if you encounter a problem you can't solve, you can use this function on the scanner to find an expert to help resolve the issue. This makes it more convenient for users and ensures that the diagnostic tool can be utilized to its fullest potential, further improving the efficiency and accuracy of your diagnostic and repair work.

2. Topology Mapping Function

Compared to the Autel Elite II Pro, the MS909 also supports topology mapping. This feature helps you accurately locate faulty modules with clear graphical information, saving you diagnostic and repair time and improving work efficiency.

3. Language Supports Difference

The Autel Elite II Pro supports more languages. Whether you are a native speaker of English, French, or German, you can contact our customer service to change to your preferred language or request a customized language service to enhance your user experience. However, the Autel MS909 currently only supports English. If you prefer another language, it's best to choose the former model.

4. Software Update Free Yeas Difference

The Autel Elite II offers two years of free updates, while the Autel MS909 only supports one year of free software upgrades. Therefore, if you are considering a long-term investment, the Autel Elite II Pro would be more cost-effective.

Autel MaxiSys MS909 vs Elite II Pro: How To Choose?

• Choose Autel MaxiSys MS909: If you have a sufficient budget and want to experience flagship features such as topological mapping and remote expert support, and you are comfortable using English, you can consider the Autel MS909. This is the scanner in the Autel MS series that allows you to experience flagship features at the lowest cost.
• Choose Autel MaxiSys Elite II Pro: If you have a slightly lower budget, prioritize value for money, and don't have a strict need for features like topological mapping, the Autel Elite II Pro would be a better fit for your needs, and its features won't disappoint you.

Conlusion

Both scanners in the Autel MS series boast above-average hardware configurations and software features. They can meet everyday diagnostic needs and easily handle complex diagnostic scenarios. Whichever one you choose, you won't be disappointed!
