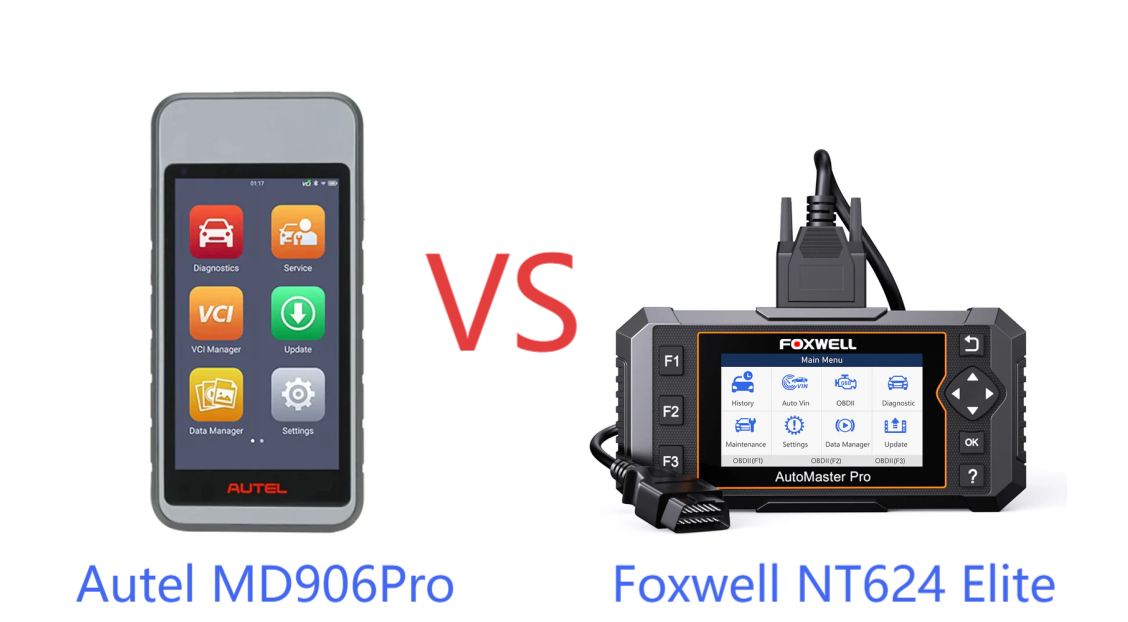

Autel MD906Pro vs Foxwell NT624 Elite: Full Comparison 2025

In 2025, both Autel and Foxwell released updated versions of their popular OBD II scanners — the Autel MD906Pro and the Foxwell NT624 Elite.

If you’re shopping for a powerful, full-featured car diagnostic tools under $500, how do these two latest models compare? Autel vs Foxwell, Autel MD906Pro vs Foxwell NT624 Elite — let’s break down the differences and help you decide which one is the better fit for your needs.

Brief Introduction

About the Autel MD906Pro

The Autel MaxiDiag MD906Pro is a powerful, user-friendly automotive diagnostic tool featuring a 5.5-inch Android-based touchscreen, 64GB storage, and Bluetooth-enabled VCI for convenient wireless operation. With a long-lasting 5,000mAh battery, it ensures extended diagnostic sessions.

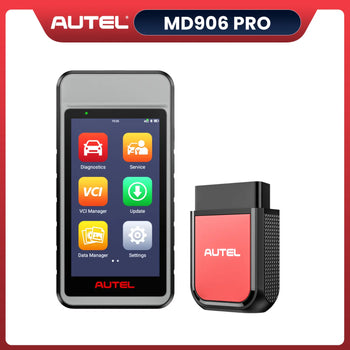

Autel MaxiDiag MD906 Pro

$299.00

Autel MaxiDiag MD906 Pro | 2025 Newest Professional Scan Tool | Enhanced Mode 6 Diagnostics | All System AutoScan | Support 11 service functions | Support OBDII protocols & all 10 OBDII test modes

Shop Now

About the Foxwell NT624 Elite

The Foxwell NT624 Elite is an OE-level all-system diagnostic scanner capable of in-depth scans across 260+ vehicle systems, matching the capabilities of premium $800+ tools. It supports full OBD2 functions for 10,000+ models (1996-2024), including reading/clearing codes, live sensor data (oil/transmission temp, ECU info), and smog test readiness checks.

With 8 free special functions like ABS bleeding, battery registration, DPF regeneration, and EPB reset, it delivers dealership-level maintenance without subscription fees. The Auto VIN scan and 3-in-1 live data display simplify diagnostics, while its portable design with a protective case makes it ideal for DIYers and workshops.

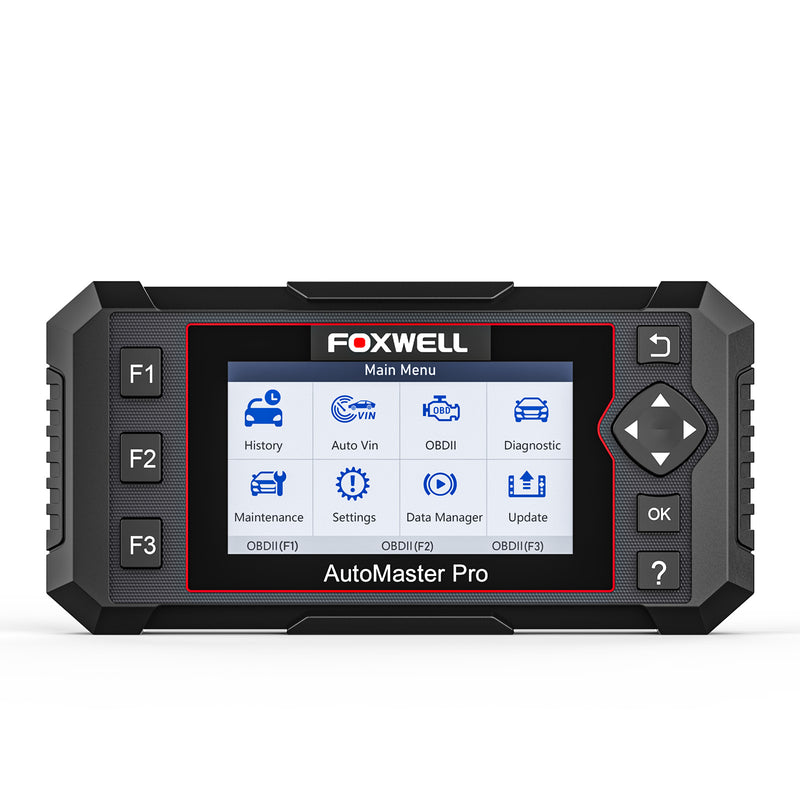

Foxwell NT624 Elite

Details Comparison Table

Basic	Item	Autel MD906Pro	Foxwell NT624
	Price	$299	$269
Hardware	Processor	Quad-core processor (1.5 GHz)	/
	Screen	5.5-inch	4.3 inch
	Resolution	1280 x 720	480x272
	Battery	5000mAh	Plug & Play
	Memory	2 GB RAM & 64 GB ROM	/
	Connectivity	Wi-Fi USB Type-C Bluetooth	USB
	VCI	V150 Lite	Cable
	Weight	368 g (0.8 lb.)	1.8kg
Software	Operating System	Android 9.0	Linux
	vehicle System Support	All System	All System
	Read and Clear Codes	✔	✔
	Live Data	✔	✔
	Freeze Frame	✔	✔
	I/M Readiness	✔	✔
	vehicle Coverage	Current year vehicle of Asia, Europe, America,China	Current year vehicle of Asia, Europe, America,China
	Security Gateway	FCA, SFD, etc	✘
	CAN FD	✔	✘
	Update	Lifetime of tool	Lifetime of tool
Service Fuctions	Oil Reset	✔	✔
	EPB	✔	✔
	TPMS	✔	✔
	BMS	✔	✔
	DPF	✔	✔
	SAS	✔	✔
	Throttle	✔	✔
	AFS Headlamp	✔	✘
	Break Bleeding	✔	✘
	Injector	✔	✔
	A/F	✔	✘

Autel MD906Pro vs Foxwell NT624 Elite: Key Differences

Both the Autel MD906Pro and the Foxwell NT624 Elite are 2025 models priced under $500, and they both support full-system diagnostics, live data, and essential service functions. However, they differ significantly in terms of hardware, software, connectivity, and special functions. Here’s a closer look at how they compare:

Display & Hardware Performance

• Autel MD906Pro comes with a 5.5-inch HD screen (1280×720), which makes it easier to view detailed diagnostic information, live data graphs, and service menus.
• Foxwell NT624 Elite only has a 4.3-inch low-res screen (480×272), which may feel cramped, especially for professional or all-day use.
• Additionally, the Autel runs on a quad-core 1.5GHz processor with 2GB RAM and 64GB storage, delivering smoother performance and faster data handling. Foxwell doesn’t specify its hardware, but it’s noticeably more basic.

Connectivity and Portability

• The MD906Pro supports Wi-Fi, Bluetooth, and USB Type-C, giving users more flexible ways to connect, update, and move around the vehicle without being tethered.
• The NT624 Elite relies solely on a wired USB cable for operation, which limits mobility and may be less convenient in a busy workshop.
• Weight also matters — at 368g (0.8 lb.), the Autel is significantly more portable compared to the 1.8kg Foxwell, making it easier to hold for handheld tasks.

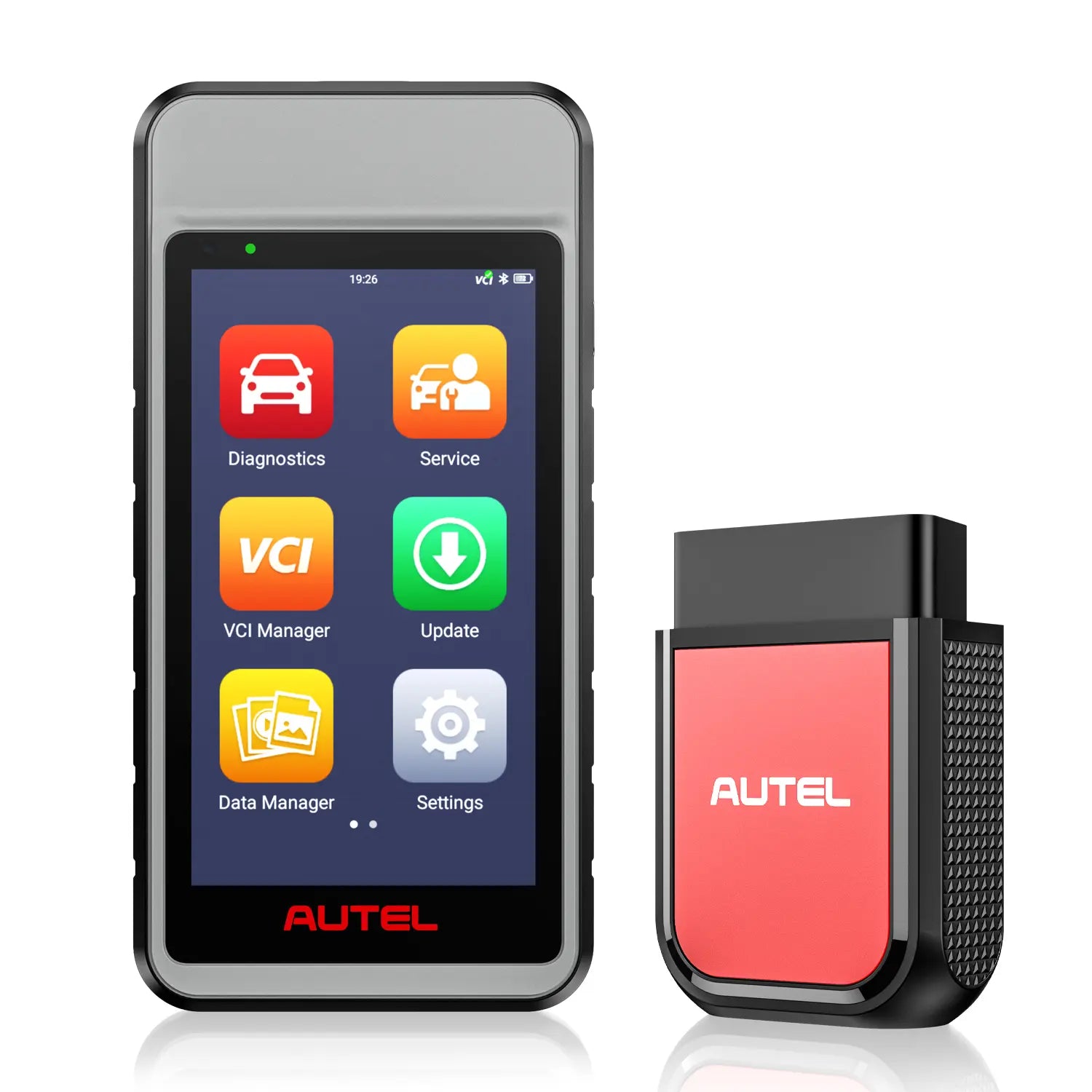

The Autel MaxiDiag MD906Pro is a OBD2 scanner with bluetooth.

Operating System & User Experience

• The Autel scanner runs on Android 9.0, providing a smartphone-like interface, faster navigation, and better update support.
• Foxwell runs a Linux-based system, which is more limited in terms of user interface, customization, and performance.

Coverage for Newer Vehicles

• The Autel MD906Pro supports CAN FD protocol, which is essential for diagnosing newer 2020+ GM, Ford, and Hyundai/Kia models that use faster communication.
• It also supports security gateways like FCA and SFD, allowing access to locked ECUs in vehicles such as Chrysler, Fiat, and some VW/Audi models — a key advantage for advanced users.
• The NT624 Elite lacks CAN FD support and doesn’t mention gateway coverage, which may limit its use with newer or secured vehicles.

The Autel MD906Pro supports CAN FD protocol.

Service & Reset Functions

Both MD906Pro and NT624 Elite support common resets (Oil, EPB, TPMS, DPF), but Autel MD906Pro adds extras like Brake Bleeding, A/F, and AFS Headlamp, giving it the edge for advanced repairs.

Conclusion

If you’re looking for a feature-rich, wireless, future-proof scanner, the Autel MD906Pro is the clear winner — especially for professionals or advanced DIYers working on newer cars.

If your needs are basic and you prefer a simple, wired tool for essential diagnostics at a lower cost, the Foxwell NT624 Elite is still a solid pick.
