To better meet the needs of today’s drivers and technicians, Autel has expanded beyond its tablet-based scan tools by introducing two new handheld diagnostic tools—the Autel MD906PRO and MD909PRO. These Bluetooth scanners are the latest upgrades from the popular MD808PRO, offering enhanced hardware, smarter software, and more advanced full system scan capabilities.
Both Autel MD909PRO and MD906PRO are powerful bluetooth scanners designed for full system diagnostics—but how do they compare? In this article, we’ll break down the key differences between the Autel MD909PRO vs MD906PRO to help you decide which one fits your needs best.

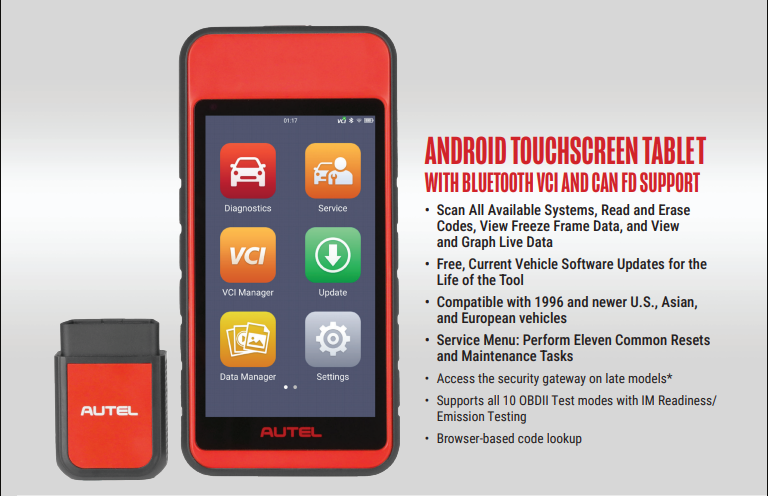

The Autel MD906PRO and MD909PRO are two powerful handheld diagnostic tools designed to elevate your vehicle diagnostics.
These new bluetooth scanners offer full system access and come equipped with essential service functions, including oil reset, battery registration, parking brake pad relearn, steering angle sensor calibration, and DPF regeneration.
As advanced Autel scanners, both the MD906PRO and MD909PRO provide comprehensive full system scan tool capabilities—making them ideal choices for technicians who need reliable and portable solutions.
Autel MD909PRO and MD906PRO
| Basic | Item | MD906 Pro | MD909 Pro |
| Price | $299 | $329 | |
| Hardware | Processor | Quad-core processor (1.5 GHz) |
Quad-core processor (1.5 GHz) |
| Screen | 5.5-inch | 5.5-inch | |
| Resolution | 1280 x 720 | 1280 x 720 | |
| Battery | 5000mAh | 5000mAh | |
| Memory | 2 GB RAM & 64 GB ROM | 2 GB RAM & 64 GB ROM | |
| Connectivity | Wi-Fi USB Type-C Bluetooth |
Wi-Fi USB Type-C Bluetooth |
|
| VCI | V150 Lite | V150 Lite | |
| Weight | 368 g (0.8 lb.) | 368 g (0.8 lb.) | |
| Software | Operating System | Android 9.0 | Android 9.0 |
| vehicle System Support | All System | All System | |
| Read and Clear Codes | ✔ | ✔ | |
| Live Data | ✔ | ✔ | |
| Freeze Frame | ✔ | ✔ | |
| I/M Readiness | ✔ | ✔ | |
| vehicle Coverage | Current year vehicle of Asia, Europe, America, China |
Current year vehicle of Asia, Europe, America, China |
|
| Security Gateway | FCA, SFD, etc | FCA, SFD, etc | |
| CAN FD | ✔ | ✔ | |
| Update | Lifetime of tool | Lifetime of tool | |
| Service Fuctions |
Oil Reset | ✔ | ✔ |
| EPB | ✔ | ✔ | |
| TPMS | ✔ | ✔ | |
| BMS | ✔ | ✔ | |
| DPF | ✔ | ✔ | |
| SAS | ✔ | ✔ | |
| Throttle | ✔ | ✔ | |
| AFS Headlamp | ✔ | ✔ | |
| Break Bleeding | ✔ | ✔ | |
| Injector | ✔ | ✔ | |
| A/F | ✔ | ✔ | |
| Extended Fuctions |
Battery Test | ✘ | ✔(With BT506) |
Based on the comparison chart, we can see that the Autel MD909PRO and MD906PRO share a high level of consistency in both hardware specs and software capabilities. Their most notable similarities include the following key features:
The Autel MD906PRO and MD909PRO share identical hardware specifications. Both feature a quad-core 1.5 GHz processor, a 5.5-inch touchscreen with 1280×720 resolution, 2 GB RAM, and 64 GB of internal storage.
They are powered by a 5000mAh battery and support modern connectivity options including Wi-Fi, Bluetooth, and USB Type-C. Each scanner uses the V150 Lite Bluetooth VCI and weighs only 368 grams (0.8 lb.), making them highly portable handheld diagnostic tools ideal for both shop and mobile technicians.
This design ensures fast response, smooth operation, and easy portability—perfect for busy technicians or mobile use.
Running Android 9.0, both scanners support full system diagnostics, including reading/clearing codes, live data, freeze frames, and I/M readiness. Coverage includes current vehicles from Asia, Europe, America, and China, with support for CAN FD and secure gateways like FCA and SFD. Lifetime updates are included.
Wide vehicle coverage and secure gateway access ensure you're ready for modern cars, while lifetime updates keep your tool future-proof.
Autel MD906PRO and MD909PRO enable FCA & Renault SGW access via AutoAuth web, fee, account reg for more business.
Both the Autel MD906PRO and MD909PRO come equipped with 11 essential service functions, including oil reset, electronic parking brake (EPB), TPMS, battery management system (BMS), diesel particulate filter (DPF) regeneration, steering angle sensor (SAS) calibration, and more—making them versatile tools for everyday automotive maintenance.
The key functional difference between the two models lies in battery diagnostics. The Autel MD909PRO can be paired with the Autel BT506 battery tester (sold separately) to perform advanced battery health analysis using adaptive conductance testing for accurate state-of-charge and state-of-health results.
In contrast, the MD906PRO does not support this feature, giving the MD909PRO an advantage for users seeking a more complete diagnostic solution.
Paired with the BT506, the MD909PRO performs smart battery, starter, and generator tests.
With nearly identical specs and performance, the Autel MD909PRO vs MD906PRO comparison comes down to whether you need battery testing.
Both are advanced Autel scanners, combining the convenience of bluetooth scanners with full system access in a compact handheld format—perfect for professionals and DIYers looking for reliable diagnostic solutions.
