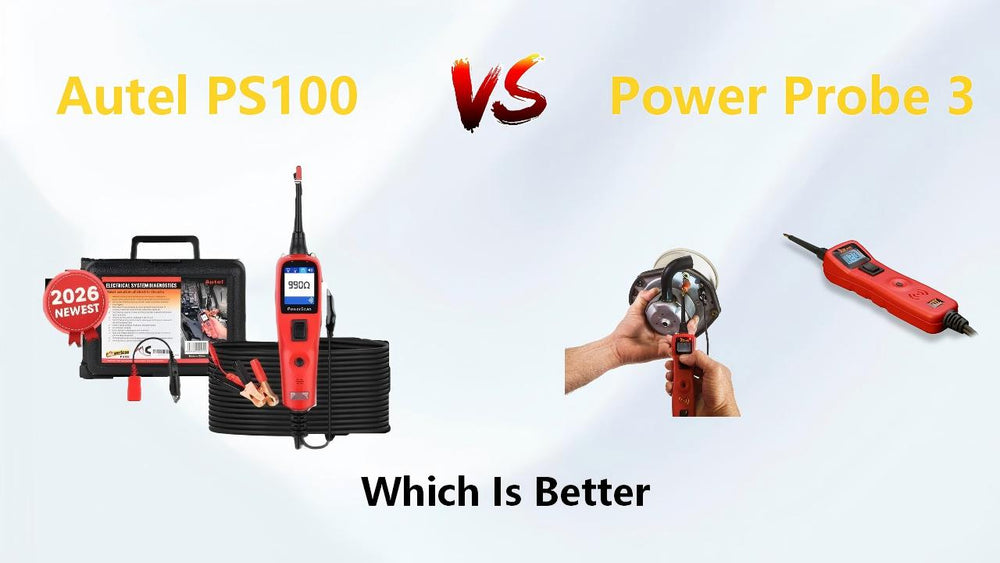

Autel PS100 vs Power Probe 3: Which Circuit Tester Is Better?

All of a car’s components and systems require a power supply or energy source to function and start properly. Electrical faults are often the most common type of automotive malfunction. Compared to a standard multimeter, a circuit tester can perform a wider range of tests—it’s not just used to check voltage—and is an indispensable tool in automotive diagnostics.

When diagnosing a car or other 12V/24V electrical systems, you need to quickly determine whether a circuit is live, whether the ground connection is sound, or whether to directly power a specific component to see if it works properly. In these situations, the Autel PS100 is an extremely handy tool.

The Power Probe 3 is also a highly practical electrical testing tool with a strong reputation; it can easily handle a variety of situations, such as testing power supplies, electrical connections, and short circuits. The Autel PS100 and Power Probe 3 are often compared—so what exactly are the differences between them as circuit testers? Let’s take a look.

Autel PS100 vs Power Probe 3: Quick Comparison

Here, I’ll include a comparison table to clearly illustrate the differences between these two circuit testers in terms of specifications and features:

Note: All data is taken from the official user manuals of the two circuit testers; however, some content may differ due to personal interpretation and is provided for reference only.

About Autel PS100 and Power Probe 3 Overview

If you're still confused about the differences between these two tools after reviewing them, take a look at this section, which explains each of these circuit testers in detail. See if they offer the features you need and if they meet your electrical testing requirements.

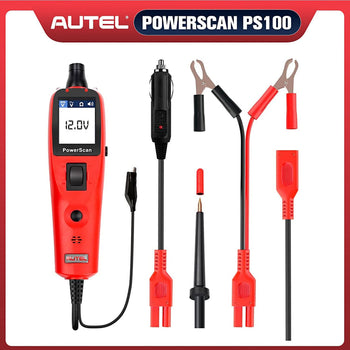

What is the Autel PS100?

According to Autel's latest product information, the PS100 supports 12V and 24V electrical systems, includes a 20-foot extension cable, built-in work light, audible alerts, and can diagnose charging systems, parasitic battery drains, voltage drops, and wiring faults.

Many people mistakenly think the PS100 is an OBD2 scanner. It isn't. Instead, it's designed to complement a diagnostic scanner. A scan tool may tell you that a fuel pump circuit has failed, but the Autel PowerScan PS100 helps determine whether the problem lies in the relay, wiring harness, connector, fuse, or the fuel pump itself. That's a huge difference because it reduces guesswork and speeds up repairs significantly.

Key Features:

• AVO Meter Functions: DC voltage, Resistance, Continuity, Current flow, Circuit polarity
• Power Injection & Component Activation: Using the power switch, technicians can safely apply battery voltage or ground to components such as: Cooling fans, Relays, Fuel pumps, Window motors, Door lock actuators, Solenoids
• Relay and Continuity Testing: The PS100 quickly checks: Relay operation, Switch continuity, Fuse integrity, Wiring continuity, Diodes
• Short Circuit Detection: The PS100 includes: Bad ground detection, Audible circuit tracing, Short circuit indication, Voltage drop testing

You can read the detailed review of the Autel PS100 to learn more about what kind of tool this circuit tester is and how it performs in real-world scenarios.

What can Autel PS100 Do

What is the Power Probe 3?

The original Power Probe PP3 uses a 20ft cable which attaches to the vehicle’s battery, allowing the user to perform an electrical test anywhere in, or around the vehicle.

The PP3 is a Voltmeter and Continuity Tester, with Audible & Visual indicators along with two LED headlights to light up your work area. This circuit tester also supplies Battery Voltage or Ground to activate components. This powerful time-saver tool is perfect for every level of technician.

Key Features:

• DC Voltmeter Indicators provide active feedback
• LED Lights
• Bad Ground –Indicator
• Short Circuit Indicator
• Relay and Component Tester
• Audible Monitoring of Electrical Signals

Autel PS100 vs Power Probe 3: Key Differences

While both tools can handle basic automotive electrical testing, their measurement approaches are different. The Autel PS100 focuses more on versatile electrical measurements, while the Power Probe 3 emphasizes peak and signal testing.

1. Measurement Capabilities

The PS100 supports DC voltage, AC voltage, resistance, frequency, and duty-cycle measurements. Its DC voltage range is 0–65V, while resistance measurement covers 0–200 kΩ.

The Power Probe 3 offers Positive Peak, Negative Peak, and Peak-to-Peak modes, making it particularly useful for monitoring electrical signal changes.

Bottom line: Choose the PS100 if you want broader meter-style measurements; choose the PP3 if peak and signal testing are more important to you.

2. Power, Ground, and Component Testing

Both testers can supply positive or negative power through the probe tip and can be used to activate electrical components. They can also test polarity and continuity.

This makes either tool useful for testing components such as lights, motors, solenoids, relays, and other automotive electrical circuits.

Testing Switches with the Autel PS100

3. Short-Circuit and Bad-Ground Testing

Both the PS100 and Power Probe 3 can help technicians identify bad grounds and short circuits. Their circuit-breaker systems can also be used as part of the short-circuit locating process.

So in this area, neither tool has a clear overall advantage. The main difference comes down to how you prefer to test and monitor the circuit.

4. Circuit Protection

The PS100 uses a 1–10A circuit breaker, while the Power Probe 3 uses an 8A thermal circuit breaker with manual reset. Both are designed to interrupt power when excessive current causes an overload.

Key Takeaway

Overall, the Autel PS100 is the more versatile choice for general electrical measurements, while the Power Probe 3 stands out for peak and signal testing. For basic power, ground, continuity, and component testing, both offer similar practical capabilities.

Autel PS100 vs Power Probe 3: Which One Should You Buy?

Although the two tools share some similarities in certain features, they also differ in terms of price, resistance measurement, and electrical measurement ranges. Therefore, it’s impossible to say which one is better; we can only offer purchasing recommendations based on your specific needs:

Choose the Autel PS100 If You Want More Measurement Functions

The Autel PS100 is the better choice if you want a more versatile electrical tester. It provides dedicated DC voltage, AC voltage, and resistance modes, while its AC mode can also display maximum/minimum voltage, frequency, and duty cycle. Its resistance measurement range is 0–200 kΩ.

It is a good fit for:

• DIYers who want multiple electrical testing functions
• Technicians performing general circuit diagnosis
• Users who need resistance and AC measurements in addition to basic voltage testing
• Those who prefer a color TFT display

Choose the Power Probe 3 If You Need Peak and Signal Testing

The Power Probe 3 may be a better fit if your work frequently involves monitoring changing electrical signals. Its dedicated Positive Peak, Negative Peak, and Peak-to-Peak modes provide a different approach to circuit and signal testing.

It is worth considering if you:

• Frequently troubleshoot electrical signals
• Want dedicated peak and peak-to-peak testing
• Prefer the Power Probe operating style
• Regularly use power and ground functions for component activation

Which One Is Better for Automotive Electrical Troubleshooting?

For general-purpose automotive electrical testing, the PS100 offers greater measurement versatility. For technicians who specifically value peak and signal monitoring, the Power Probe 3 has an advantage in those areas.

For basic tasks such as checking polarity, continuity, grounds, activating components, and locating shorts, both tools provide useful capabilities.

Final Verdict

The Autel PS100 and Power Probe 3 are both capable automotive circuit testers, but they appeal to slightly different users. If you want the most practical model, go with the Autel PS100. If you want the best option for direct circuit testing, go with the Power Probe 3.

It is important to note that neither product can replace a full-featured diagnostic scan tool or a professional multimeter, especially in complex diagnostic scenarios involving ECUs, CAN buses, and sensor waveforms; they can only serve as auxiliary tools.
