Autel PowerScan PS100 Review: Features, Testing & Buying Guide (2026)

If you've ever spent hours chasing an electrical fault only to discover a loose ground wire was the real culprit, you'll immediately understand why the Autel PowerScan PS100 has become a favorite among professional technicians and serious DIY mechanics.

Unlike a standard test light or digital multimeter that only tells part of the story, the Autel PS100 combines multiple electrical diagnostic tools into one handheld device. It functions as an AVO meter, power injector, continuity tester, polarity tester, relay tester, and short-circuit locator, making it one of the most versatile electrical diagnostic tools in Autel's lineup.

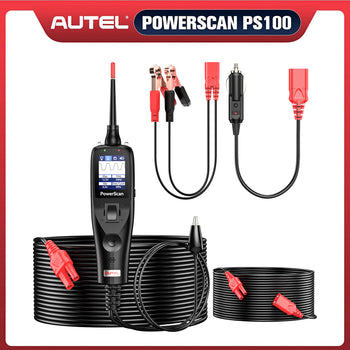

What Is the Autel PowerScan PS100?

According to Autel's latest product information, the PS100 supports 12V and 24V electrical systems, includes a 20-foot extension cable, built-in work light, audible alerts, and can diagnose charging systems, parasitic battery drains, voltage drops, and wiring faults.

Many people mistakenly think the PS100 is an OBD2 scanner. It isn't. Instead, it's designed to complement a diagnostic scanner. A scan tool may tell you that a fuel pump circuit has failed, but the Autel PowerScan PS100 helps determine whether the problem lies in the relay, wiring harness, connector, fuse, or the fuel pump itself. That's a huge difference because it reduces guesswork and speeds up repairs significantly.

Why It Is Different from a Traditional Test Light

A traditional test light only tells you whether voltage exists. The PS100 goes much further by allowing technicians to safely inject battery power or ground directly into components for functional testing. It also measures voltage, resistance, and continuity while identifying positive and negative circuits instantly. Its integrated circuit breaker adds another layer of protection during component activation.

Who Should Use the PS100

The PS100 is suitable for:

• Professional automotive technicians
• Mobile mechanics
• Diagnostic specialists
• Fleet maintenance workshops
• Serious DIY enthusiasts

If electrical diagnosis forms a regular part of your work, this tool can easily pay for itself by reducing troubleshooting time.

PS100 Suitable For

Key Features of the Autel PS100

One reason the Autel PowerScan PS100 has remained popular for years is that it combines several diagnostic tools into one compact unit. Instead of carrying a multimeter, continuity tester, jumper wires, and a separate power probe, technicians can perform nearly every basic electrical diagnostic using a single device.

Autel recently highlighted the PS100's capabilities for diagnosing charging systems, parasitic battery drain, and broken wiring, making it useful for both modern passenger vehicles and commercial trucks.

AVO Meter Functions

The built-in AVO meter measures:

• DC voltage
• Resistance
• Continuity
• Current flow
• Circuit polarity

Rather than switching between multiple tools, all readings appear on the color TFT display.

Power Injection & Component Activation

Perhaps the biggest advantage is its power injection feature.

Using the power switch, technicians can safely apply battery voltage or ground to components such as:

• Cooling fans
• Relays
• Fuel pumps
• Window motors
• Door lock actuators
• Solenoids

Instead of wondering whether a component has failed, you can activate it directly and verify its operation within seconds.

Autel PS100 Key Features

Relay and Continuity Testing

Faulty relays are surprisingly common.

The PS100 quickly checks:

• Relay operation
• Switch continuity
• Fuse integrity
• Wiring continuity
• Diodes

This dramatically reduces unnecessary parts replacement.

Short Circuit Detection

One of the most frustrating automotive electrical problems is locating intermittent shorts.

The PS100 includes:

• Bad ground detection
• Audible circuit tracing
• Short circuit indication
• Voltage drop testing

These features make tracing damaged wiring significantly faster than conventional methods.

How to Use the Autel PowerScan PS100

Using the Autel PowerScan PS100 is simple and requires only a few steps. First, connect the tool's red and black clamps to the vehicle's battery terminals. Once powered on, use the probe to touch the circuit or component you want to test. The display will immediately show voltage, polarity, and other electrical information.

If you need to verify whether a component is working, such as a fuel pump, cooling fan, relay, or window motor, use the power switch to safely apply battery voltage or ground. If the component activates, you know it is functioning correctly and can continue checking the wiring or control circuit if necessary.

Step-by-Step Setup

1. Connect the red clamp to the battery positive terminal.
2. Connect the black clamp to the battery negative terminal.
3. Switch on the PS100.
4. Touch the probe to the circuit or component you wish to test.
5. Observe the voltage and polarity displayed on the screen.
6. If necessary, use the power switch to apply battery voltage or ground for component activation.
7. Release the switch immediately after completing the test.

Safety Tips

Although the PS100 is designed with built-in overload protection, good diagnostic habits are still essential. Never inject power into an electronic control module (ECU) unless the service information specifically permits it.

Always verify the component's operating voltage before activation, and avoid applying power continuously for extended periods, especially to motors or solenoids that are designed for intermittent operation. Wearing safety glasses and working with the ignition switched off when connecting the tool are also recommended practices.

Real-World Applications

The Autel PowerScan PS100 proves its value in everyday electrical diagnostics by helping technicians identify faults beyond what an OBD2 scanner can reveal. While a scan tool may point to a faulty circuit, it cannot determine whether the problem is caused by damaged wiring, a bad ground, a failed relay, or the component itself. The PS100 fills this gap by allowing users to test circuits and activate components directly.

For example, if a vehicle's cooling fan isn't working, the PS100 can apply power directly to the fan motor. If the fan operates normally, the issue is likely in the relay, fuse, wiring, or control module. If it doesn't, the motor is probably faulty. This approach quickly narrows down the root cause and reduces unnecessary repairs.

Autel PS100 Application

The same method works for fuel pumps, window motors, door locks, lighting circuits, horns, and other electrical components. By verifying component operation in minutes, the Autel PowerScan PS100 helps technicians save time, improve diagnostic accuracy, and increase workshop efficiency.

Diagnosing Battery Drain

Parasitic battery drain is one of the most frustrating problems for both technicians and vehicle owners. A battery may repeatedly go flat overnight, yet every charging and starting test appears normal. The PS100 assists by helping isolate circuits that continue drawing excessive current after the vehicle has been switched off. Once the suspect circuit is identified, additional testing becomes much faster because the technician can inspect only the affected branch instead of the entire electrical system.

Finding Broken Wires

Broken conductors hidden inside wiring looms often create intermittent faults that disappear as soon as the vehicle reaches the workshop. By checking voltage at different points along the harness, the PS100 helps narrow down where the voltage disappears. Combined with continuity testing, this method allows damaged sections of wiring to be identified without removing unnecessary interior trim or engine components.

Testing Switches, Relays, and Motors

Many electrical components fail gradually rather than completely. A relay may click but fail to pass current, or a motor may operate only when additional voltage is supplied. Because the PS100 can both measure and inject power, it becomes much easier to distinguish between a faulty control circuit and a defective component. This capability is particularly valuable when diagnosing starter circuits, fuel delivery systems, radiator fans, and power accessories.

Pros and Cons

Like any professional diagnostic tool, the Autel PS100 has strengths and limitations. Understanding both sides helps determine whether it matches your workshop's needs.

Overall, the advantages significantly outweigh the limitations for anyone who performs regular electrical diagnostics. The PS100 is not intended to replace a scan tool or oscilloscope; instead, it complements them by filling the gap between electronic diagnosis and hands-on circuit testing.

Final Verdict: Is the Autel PowerScan PS100 Worth Buying?

Yes — the Autel PowerScan PS100 is worth buying if you regularly diagnose automotive electrical problems. It combines a voltage tester, continuity tester, relay tester, polarity tester, and power injector into one compact tool, making it far more versatile than a standard test light or basic multimeter.

The biggest advantage is speed. Instead of guessing whether a fault is caused by a relay, wire, fuse, ground connection, or motor, the Autel PS100 lets you test and activate components directly. This can save a significant amount of diagnostic time in the workshop or garage.

It works with both 12V and 24V vehicles, includes a long 20-foot cable, and features built-in circuit protection for safer testing. While it does not read OBD2 trouble codes or perform ECU programming, it pairs perfectly with an Autel diagnostic scanner for complete vehicle troubleshooting.

For professional technicians, mobile mechanics, and serious DIY users, the Autel PowerScan PS100 delivers excellent value and remains one of the most practical automotive circuit testers available in 2026.

Overall rating: 4.8/5 ⭐⭐⭐⭐⭐
