Autel offers a wide range of diagnostic tools, and in a previous article, we compiled a comparison table of all Autel scanners focused on diagnostics. However, in addition to these all-around diagnostic tools, Autel also offers scanning tools that can perform detailed diagnostics on automotive tire pressure monitoring systems and anti-theft systems.
Autel offers scanners specifically designed for TPMS systems, which we call the Autel MaxiTPMS series. When you want to choose a TPMS tool that meets your needs, how do you select one? Today, we'll use a comparison chart to help you determine which member of the Autel MaxiTPMS series best suits your diagnostic requirements.
Autel TPMS Tool List at a Glance
| Autel TPMS Tool Information Table | ||||
| Autel MaxiTPMS Series Tools | Price (varies with accessories) | Vehicle List | Update Fee | Function |
| TS501 Pro | $189 | Check vehicle coverage here | Free Lifetime Updates. | Focused TPMS Programming |
| TS508WF | $230-$340 | Free Lifetime Updates. | Focused TPMS Programming | |
| ITS600(E) | $420-$800 | Free Lifetime Updates. | Complete TPMS Tool & Diagnostic | |
| TS900 | $700-$800 | $299 | Advanced TPMS & OE-Level Diagnostics | |
- Price is from our obdprice online store, an Autel authorized dealer.
- This table only lists the TPMS tools in the Autel MaxiTPMS series and does not include scanners ending in "TS" from the Autel diagnostic tools list, which have already been compared in the previous Autel scanner comparison chart. The Autel TPMS tools list shows all Autel scanning tools that support complete and advanced diagnostic functions of TPMS systems.
Overview of Autel MaxiTPMS Series Scanners
The Autel MaxiTPMS series scanners are diagnostic tools specifically developed for automotive TPMS systems. They enable various functions such as TPMS sensor activation, relearning, and programming, and also support reading and clearing TPMS system fault codes. In addition, some advanced TPMS tools also offer advanced tire pressure monitoring system retrofitting capabilities.

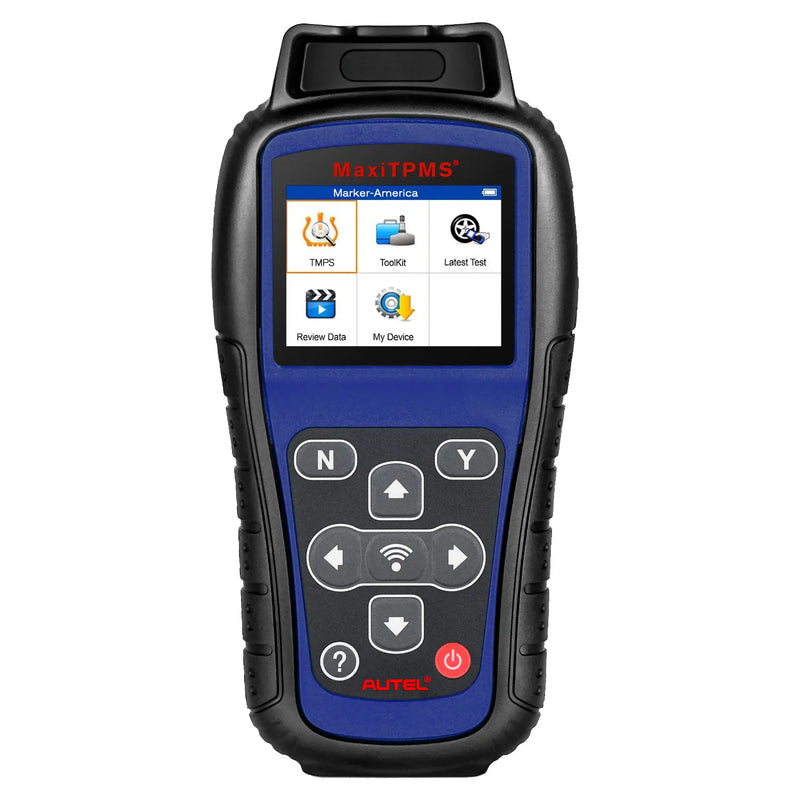

Autel MaxiTPMS TS501 Pro
The Autel TS501 Pro is a TPMS relearning tool. It has a smartphone-like form factor, consisting of a screen and buttons. The TS501 PRO TPMS relearning tool boasts broader vehicle model coverage (98%–99%) and offers frequent lifetime updates.
It integrates all TPMS service options: TPMS programming (Autel MX sensors only), relearning/activating all known sensors, TPMS reset and TPMS health diagnostics, reading sensor data, remote key frequency testing, tire type/pressure selection, and more.
$170 OFF
Autel MaxiTPMS TS501 Pro
$359.00
TPMS Relearn Tool, Activate/ Relearn All Known TPMS Sensors, Program MX-Sensors (315/433MHz), Lifetime Update, Same as TS508WF (Upgraded of TS408/TS501)

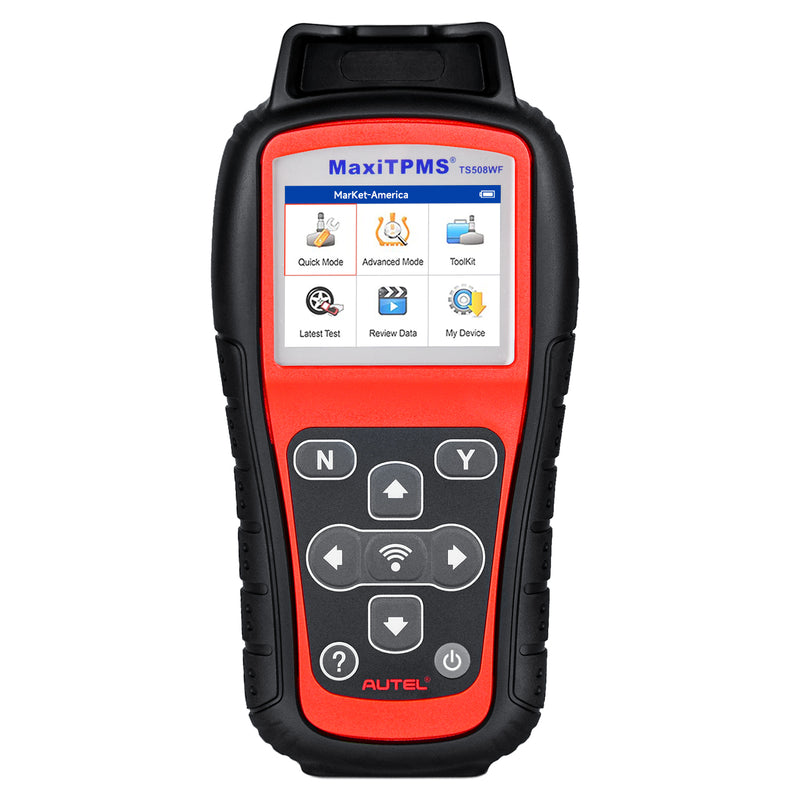

Autel MaxiTPMS TS508WF
The Autel TS508WF is a TPMS service tool. It is Autel’s first non-tablet tool providing Wi-Fi software updates. It features Quick and Advance modes of TPMS service and a TPMS status screen. It can read/activate/relearn all known sensors, has 4 methods of MX-Sensor programming, and performs placard value resets on supported vehicles.
The TS508WF adds tire pressure monitoring system (TPMS) diagnostics, which can read and clear TPMS fault codes (DTCs), and adds an OBD2 connector, allowing users to program sensors via "OBD Copy" and relearn sensors via "OBD Relearn". The TS508WF displays on-tool MX-Sensor relearn procedures including OBDII and can do key fob signal tests.
$33 OFF
Autel MaxiTPMS TS508WF
$272.00
Advanced TPMS Service Tool With Wi-Fi Updates, Program MX-Sersors 315/433MHz, Relearn/Activate All Sensors
Autel MaxiTPMS ITS600(E)
The Autel MaxiTPMS ITS600 is a wireless, 5.5-inch touchscreen Android-based tire pressure monitoring system (TPMS) diagnostic and service scanner, compatible with most TPMS-equipped vehicles in the US, Asia, and Europe. The ITS600 is also compatible with the separately sold TBE200/TBE100 tire tread and brake disc wear analysis tools.
In addition to basic functions such as TPMS diagnostics, sensor programming, sensor relearning, and sensor activation/reading, the Autel ITS600 scanner adds convenient tire functions, VIN scanning for quick vehicle identification, TPMS module retrofitting, and four common maintenance services.
$170 OFF
Autel MaxiTPMS ITS600(E)
$599.00
TPMS Relearn Tool, TPMS Programming Tool Activate/Relearn All Sensors, TPMS Diagnostics, 4 Reset Functions (Oil Reset, BMS, SAS, EPB), Auto VIN (Free Update)

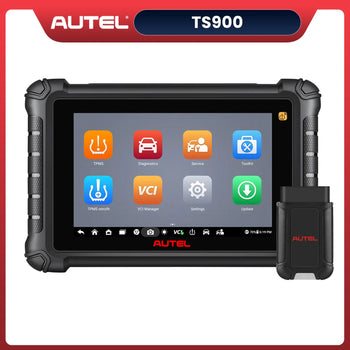

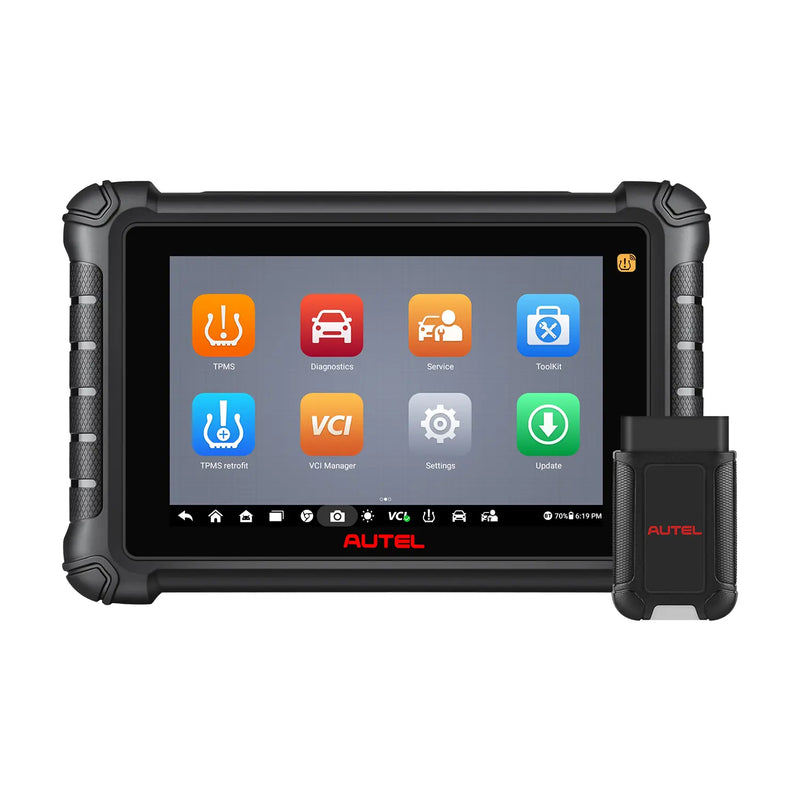

Autel MaxiTPMS TS900
Autel released the MaxiTPMS TS900 in 2025, featuring updated hardware and software designed to cover a wider range of vehicle models and functions. In addition to its powerful TPMS capabilities, the Autel TS900 also boasts OE-level full system diagnostics, bidirectional control, and over 40 maintenance services.
$100 OFF
Autel MaxiTPMS TS900
$799.00
TPMS Programming Tool | Full TPMS Functions | Program MX Sensor | Bi-Directional Control | All System Diagnostics | 40+ Reset Services | Upgrade of TS608/MX808TS/MK808TS
Autel Scanners Comparison Chart: Autel TPMS Tools
| Basic | Model | TS501 Pro | TS508WF | ITS600E | TS900 |
| Price | $189 | $239 | $429 | $699 | |
| Image |  |
 |
 |
 |
|
| Hardware | Processor | / | / | RK3566 Quad-core Arm Cortex-A55 processor (1.8 GHz) |
Quad-core processor (1.5 GHz) |
| Screen | / | 2.8-inch | 5.5 inch | 8 inch | |
| Camera | / | / | 8 MP | 8 MP | |
| Memory/SD | / | / | 2G+64G SDcard up to 64G(Optional) |
4 GB RAM & 64 GB ROM | |
| Battery | 2400mAh | 3200mAh | 5000 mAh | 7700 mAh | |
| Connection | OBD II Cable | OBD II Cable | Bluetooth VCI200 | MaxiVCI V150 | |
| Software | Operating System | Easy Tool Navigation | Easy Tool Navigation | Android 9.0 | Android 11.0 |
| Vehicle Coverage | U.S, Asian and European 1996 and Newer |
U.S, Asian and European 1996 and Newer |
U.S, Asian and European 1996 and Newer |
U.S, Asian and European 1996 and Newer |
|
| Update | Lifetime Free | Lifetime Free | Lifetime Free | One Year Free | |
| Update Method | USB Cord to PC | WiFi | WiFi | WiFi | |
| Auto VIN | ✘ | ✘ | ✔ | ✔ | |
| TPMS Fuctions | Activate,Read,Relearn TPMS Sensors |
✔ | ✔ | ✔ | ✔ |
| 4 Programming Methods | ✔ | ✔ | ✔ | ✔ | |
| AutelSensorBatch | ✔(Up to 16 sensors) | ✔(Up to 16 sensors) | ✔(Up to 20 sensors) | ✔(Up to 20 sensors) | |
| Programming | ✔ | ✔ | ✔ | ✔ | |
| OBD Relearn Automatic Relearn Stationary Relearn |
✔ | ✔ | ✔ | ✔ | |
| Relearn Procedure Guide | ✔ | ✔ | ✔ | ✔ | |
| Exclusive TPMS Status Screen | ✔ | ✔ | ✔ | ✔ | |
| Indicate Sensor OE Part Number |
✔ | ✔ | ✔ | ✔ | |
| Check MX-Sensor Information(ID,Battery,etc.) | ✔ | ✔ | ✔ | ✔ | |
| Tire Pressure Placard Value Reset |
/ | ✔ | ✔ | ✔ | |
| Unlock TPMS ECU for Old Toyota/Lexus, Integrated into OBD Relearn |
✔ | ✔ | ✔ | ✔ | |
| Read/Clear Codes for TPMS System |
✔ | ✔ | ✔ | ✔ | |
| Special Functions (e.g. View Live Data for TPMS System) |
✘ | ✘ | ✔ | ✔ | |
| DOT Scan, Tire Expiration Notice, Tire Recall Lookup |
✘ | ✘ | ✔ | ✔ | |
| Diagnostic and Service |
Diagnostic Range | ✘ | ✘ | Engine, Transmission, ABS and SRS |
All Systems |
| Bi-Directional Control | ✘ | ✘ | ✘ | ✔ | |
| Service | / | / | Oil light reset Electronic brake service Battery registration Steering angle reset |
40+ | |
| Extended functionality |
Compatible with BT506 | ✘ | ✘ | ✔ | ✘ |
| Compatible with TBE100/200 | ✘ | ✘ | ✔ | ✘ | |
| Compatible with MV108S | ✘ | ✘ | ✘ | ✔ |
Autel TS501 Pro vs TS508WF vs ITS600 vs TS900: How to Choose?
If you're simply looking for a tool specifically for TPMS system diagnostics, capable of simple and complete TPMS operations, including TPMS sensor activation, relearning, and programming, the Autel TS501 Pro and Autel TS508WF would be good choices. If you want a more convenient update method and a larger battery capacity, the Autel TS508 would be the best option.
If you're not satisfied with just a TPMS tool that can diagnose multiple car systems and also has maintenance reset functions, the Autel ITS600(E) would be a good choice. It supports diagnostics for four systems: Engine, Transmission, ABS, and SRS, and also offers some common reset services.
If you prefer a flatbed scanner and need proactive testing capabilities and more comprehensive diagnostics and maintenance services for all automotive systems, the Autel TS900 would be a better fit for you.
Conclusion
The four Autel TPMS tools mentioned above are all excellent. Autel MaxiTPMS is a professional diagnostic tool designed specifically for TPMS systems, possessing complete and advanced TPMS functions to meet the needs of both everyday and professional scenarios.
Furthermore, some Autel TPMS diagnostic tools also support the diagnosis and maintenance of other automotive systems, enabling multiple functions from a single tool and maximizing their effectiveness.
Which Autel TPMS tool do you prefer? Feel free to share your thoughts!
